JAC T9 Double Cab 2023
EV 88.02 kWh (299 Hp) 4WD
Electric Car
Body Type Pick-up
Battery Capacity 88.02 KW
330-340 km
Electric Range
140 km/h
Maximum Speed
4
Doors
JAC T9 Double Cab 2023 Key Specs
Acceleration 0 - 100 Km/h
8.4 sec
Acceleration 0 - 62 Mph
8.4 sec
All-electric Range (NEDC)
371 km
All-electric Range (WLTP)
330-340 km
Average Energy Consumption (WLTP)
26.7 kWh/100 km
Battery Voltage
328.44 V
Body Type
Pick-up
Doors
4
Drive Wheel
All wheel drive (4x4)
Fuel Type
Electricity
Generation
T9 Double Cab
Gross Battery Capacity
88.02 kWh
Kerb Weight
2360-2425 kg
Maximum Speed
140 km/h
Modification (Engine)
EV 88.02 kWh (299 Hp) 4WD
Power Steering
Electric Steering
Powertrain Architecture
BEV (Electric Vehicle)
Seats
5
Start Of Production
2023
System Power
299 Hp
System Torque
515 Nm
Wheel Rims Size
8J x 18

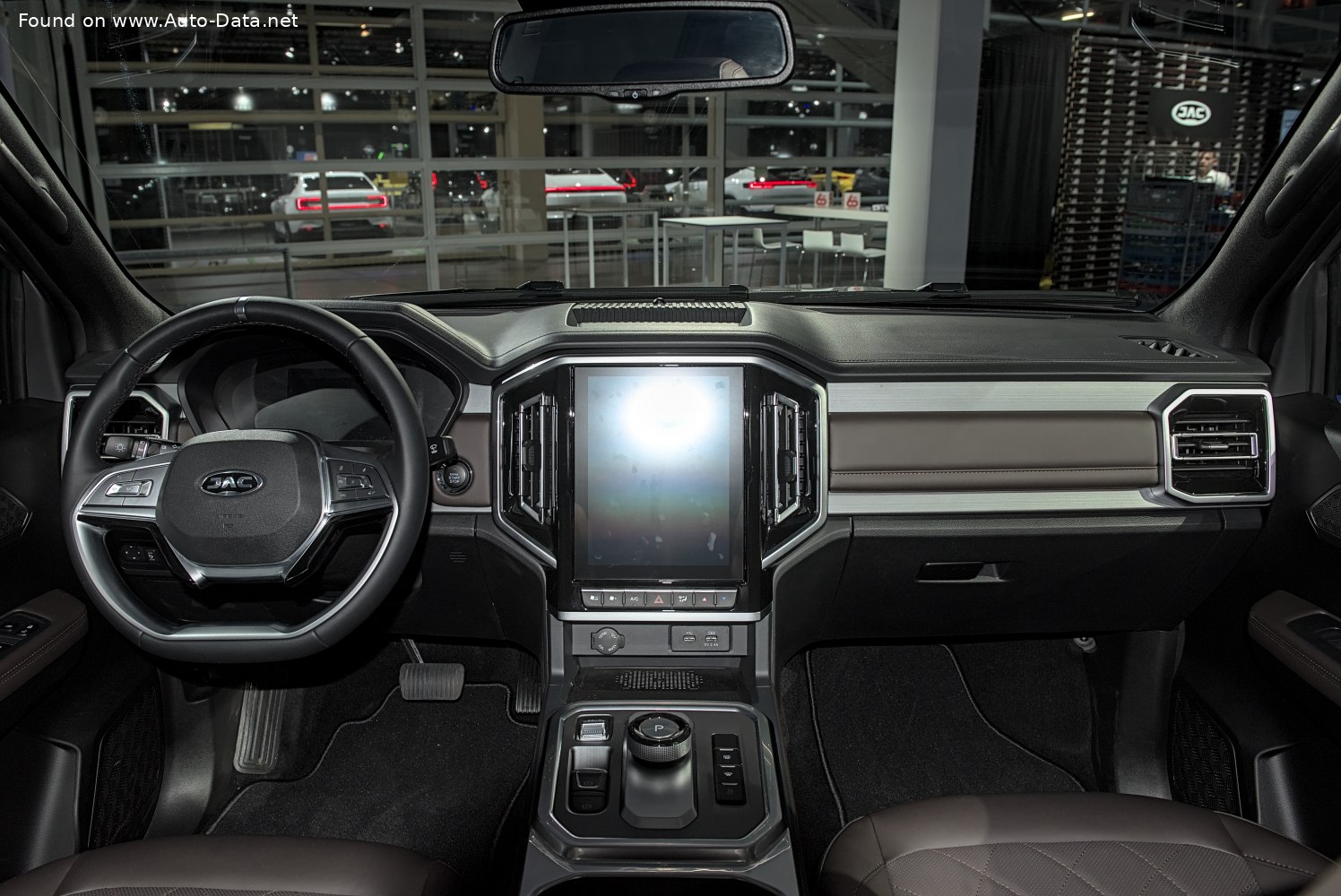

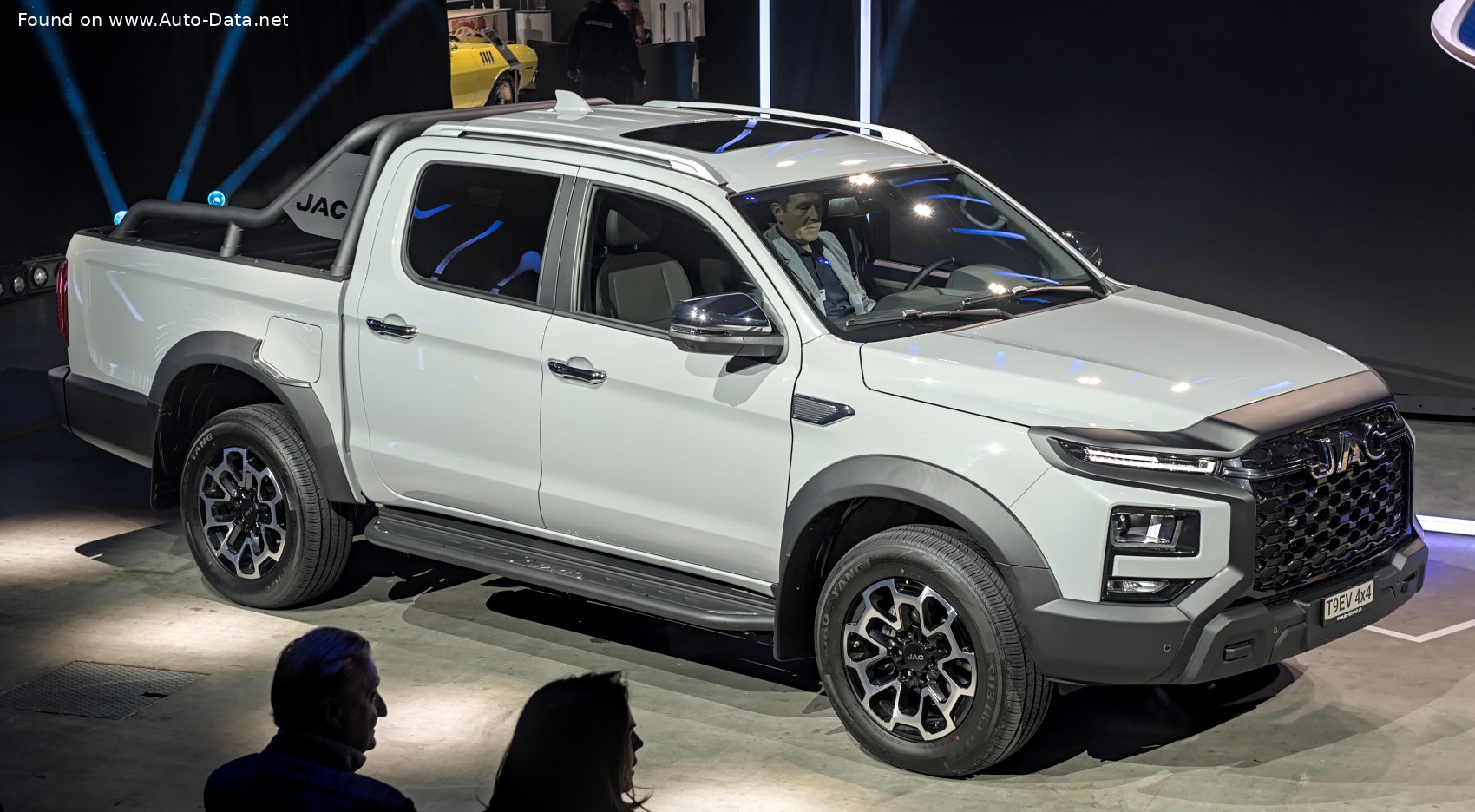

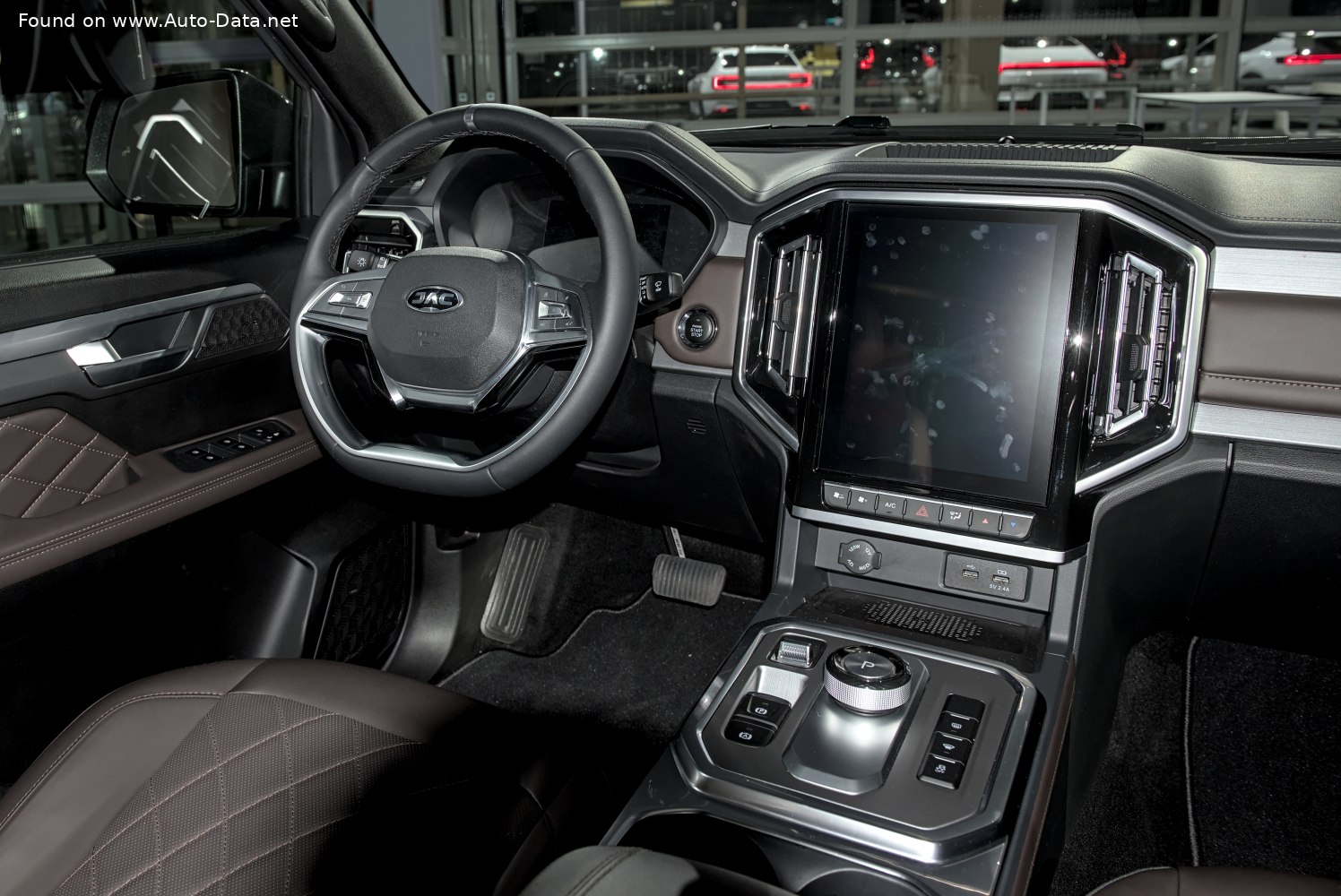

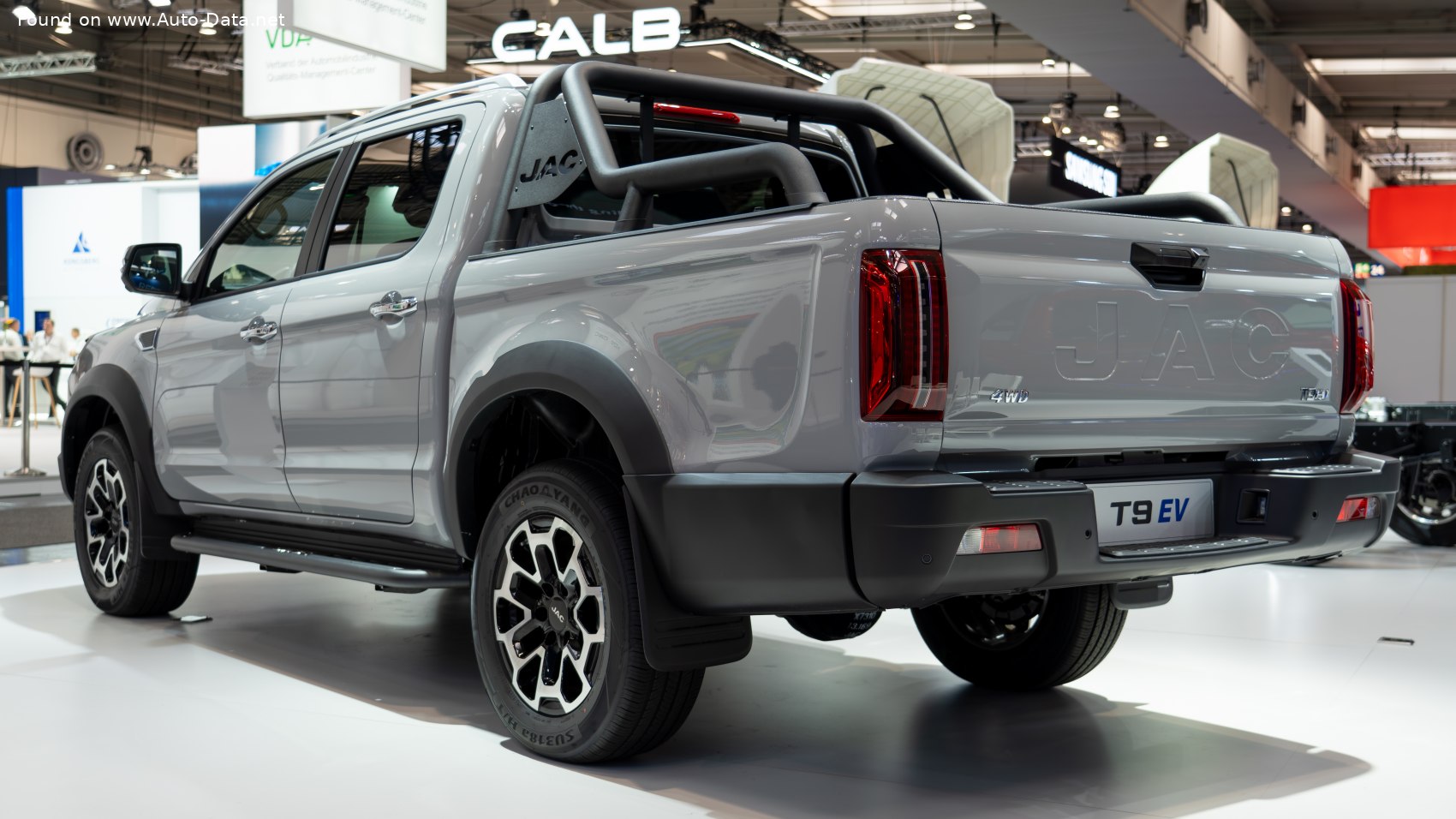

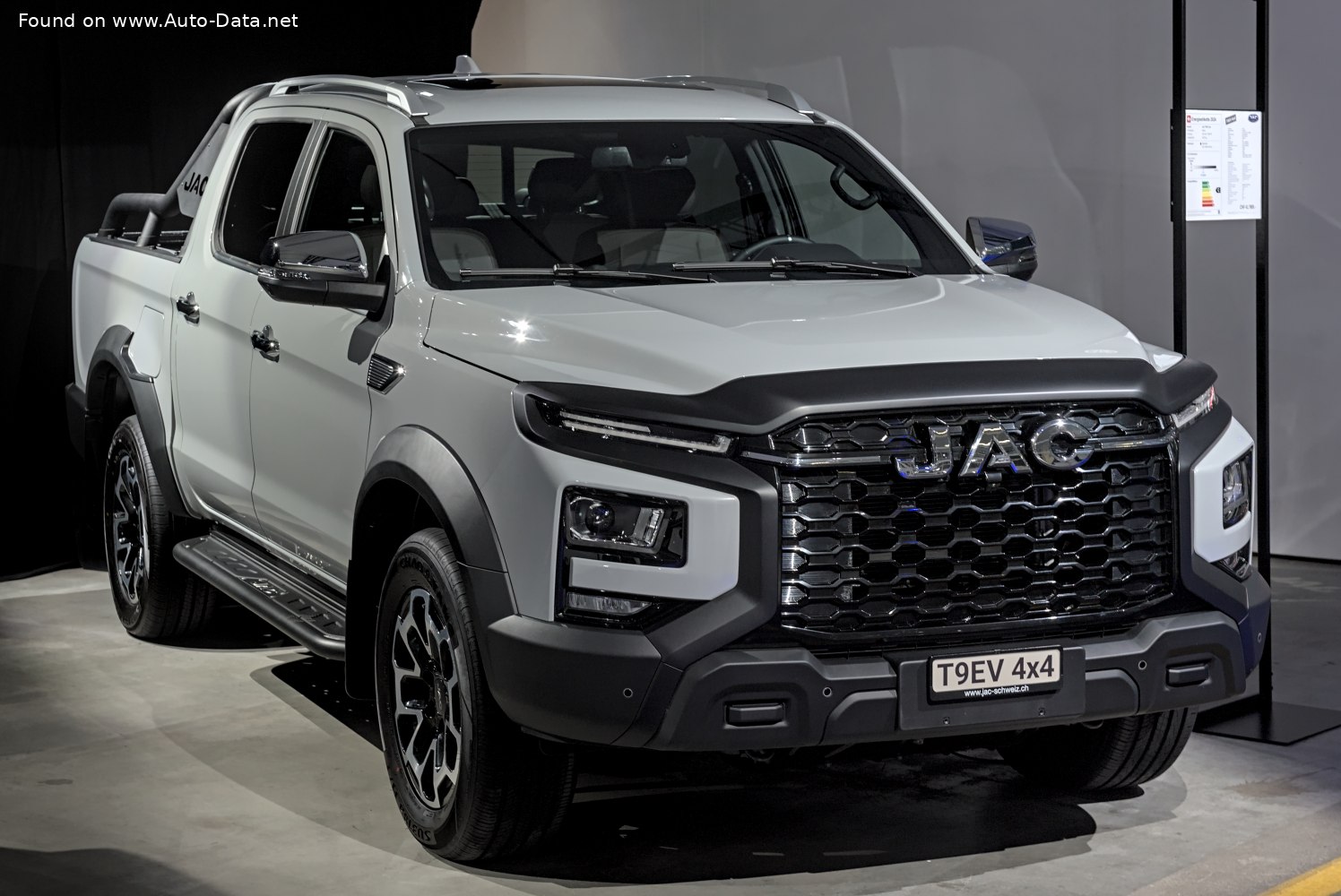

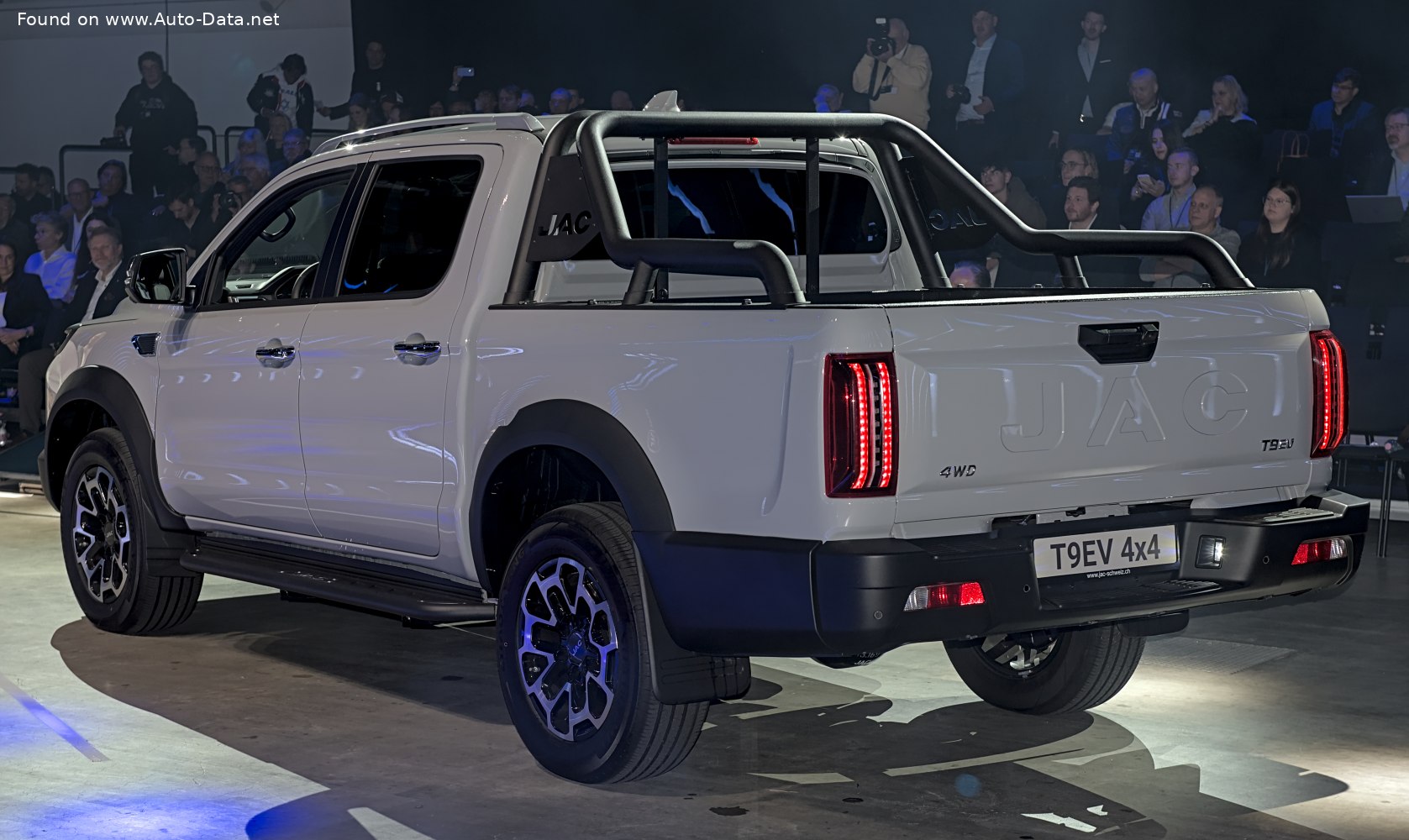

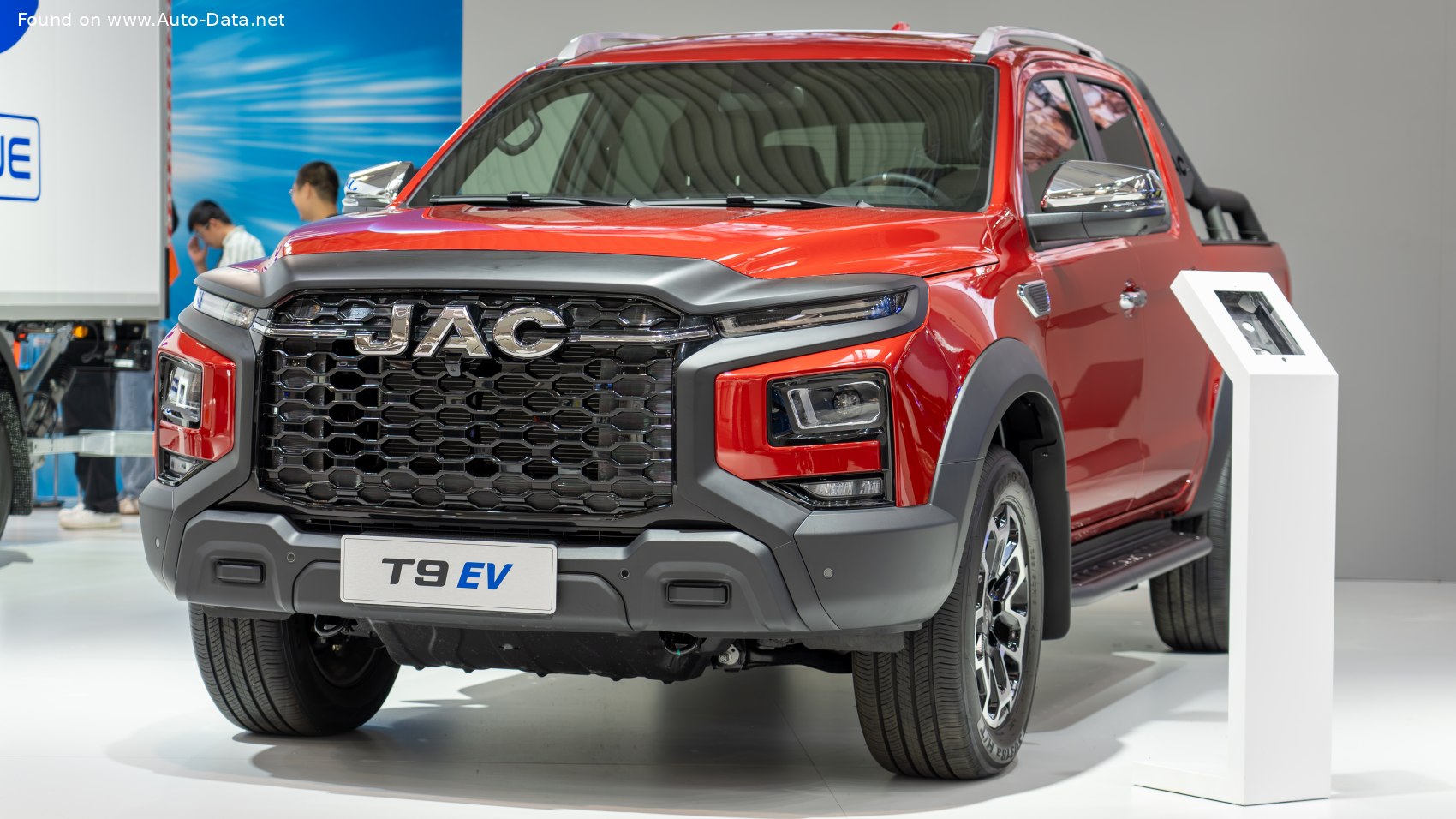

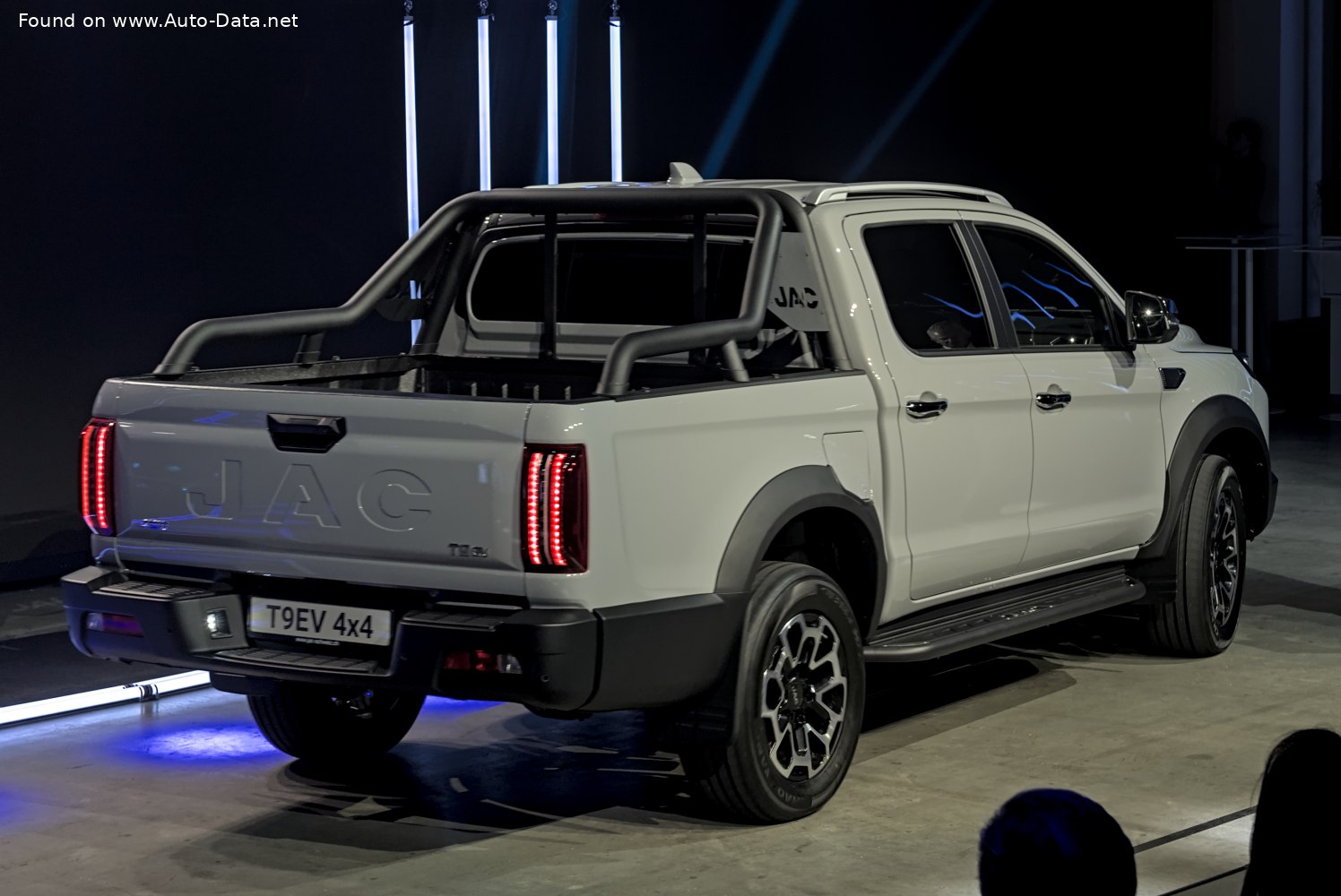

JAC T9 Double Cab 2023 Gallery
JAC T9 Double Cab 2023 Technical Specifications
General
Body type
Pick-up
Brand
JAC
Doors
4
Generation
T9 Double Cab
Model
T9
Modification (Engine)
EV 88.02 kWh (299 Hp) 4WD
Powertrain Architecture
BEV (Electric Vehicle)
Seats
5
Start of production
2023
Performance
Acceleration 0 - 100 km/h
8.4 sec
Acceleration 0 - 60 mph
8 sec
Acceleration 0 - 62 mph
8.4 sec
Fuel Type
Electricity
Maximum speed
140 km/h
Electric
All-electric range (NEDC)
371 km
All-electric range (WLTP)
330-340 km
Average Energy consumption (WLTP)
26.7 kWh/100 km
Battery location
Below the floor
Battery voltage
328.44 V
Charging ports number 0
Log in to see.
Electric motor Torque number 1
340 Nm
Electric motor Torque number 2
176 Nm
Electric motor location number 1
Rear axle, Transverse
Electric motor location number 2
Front axle, Transverse
Electric motor model/code number 1
TZ200XSY
Electric motor model/code number 2
TZ180XS137
Electric motor power number 1
204 Hp
Electric motor power number 2
95 Hp
Electric motor type number 1
Synchronous
Electric motor type number 2
Synchronous
Gross battery capacity
88.02 kWh
System power
299 Hp
System torque
515 Nm
Dimensions
Front overhang
945 mm
Height
1920 mm
Length
5330 mm
Ramp-over (brakeover) angle
21.8°
Rear overhang
1275 mm
Ride height (ground clearance)
205 mm
Wheelbase
3110 mm
Width
1965 mm
Drivetrain
Drive wheel
All wheel drive (4x4)
Front suspension
Double wishbone, Independent coil spring, Transverse stabilizer
Number of gears and type of gearbox
1 gears, automatic transmission
Power steering
Electric Steering
Rear suspension
Rigid axle suspension, Leaf spring
Steering type
Steering rack and pinion
Tires size
265/60 R18
Wheel rims size
8J x 18
Space
Kerb Weight
2360-2425 kg
Max load
900 kg
Max. weight
3260-3325 kg
