Toyota RAV4 4 2015
2.5 (197 Hp) AWD Hybrid E-CVT
Hybrid Car
Body Type SUV
Battery Capacity 1.6 KW
2018
End Year
180 km/h
Maximum Speed
5
Doors
Toyota RAV4 4 2015 Key Specs
Acceleration 0 - 100 Km/h
8.3 sec
Acceleration 0 - 62 Mph
8.3 sec
Battery Capacity
1.6 kWh
Body Type
SUV
Doors
5
End Of Production
2018
Fuel System
Multi-point indirect injection
Fuel Type
Petrol (Gasoline)
Fuel Consumption (economy) - Combined
5 l/100 km
Generation
RAV4 IV (2015)
Maximum Speed
180 km/h
Modification (Engine)
2.5 (197 Hp) AWD Hybrid E-CVT
Number Of Cylinders
4
Power
155 Hp @ 5700 rpm.
Powertrain Architecture
FHEV (Full Hybrid Electric Vehicle)
Seats
5
Start Of Production
2015
System Power
197 Hp

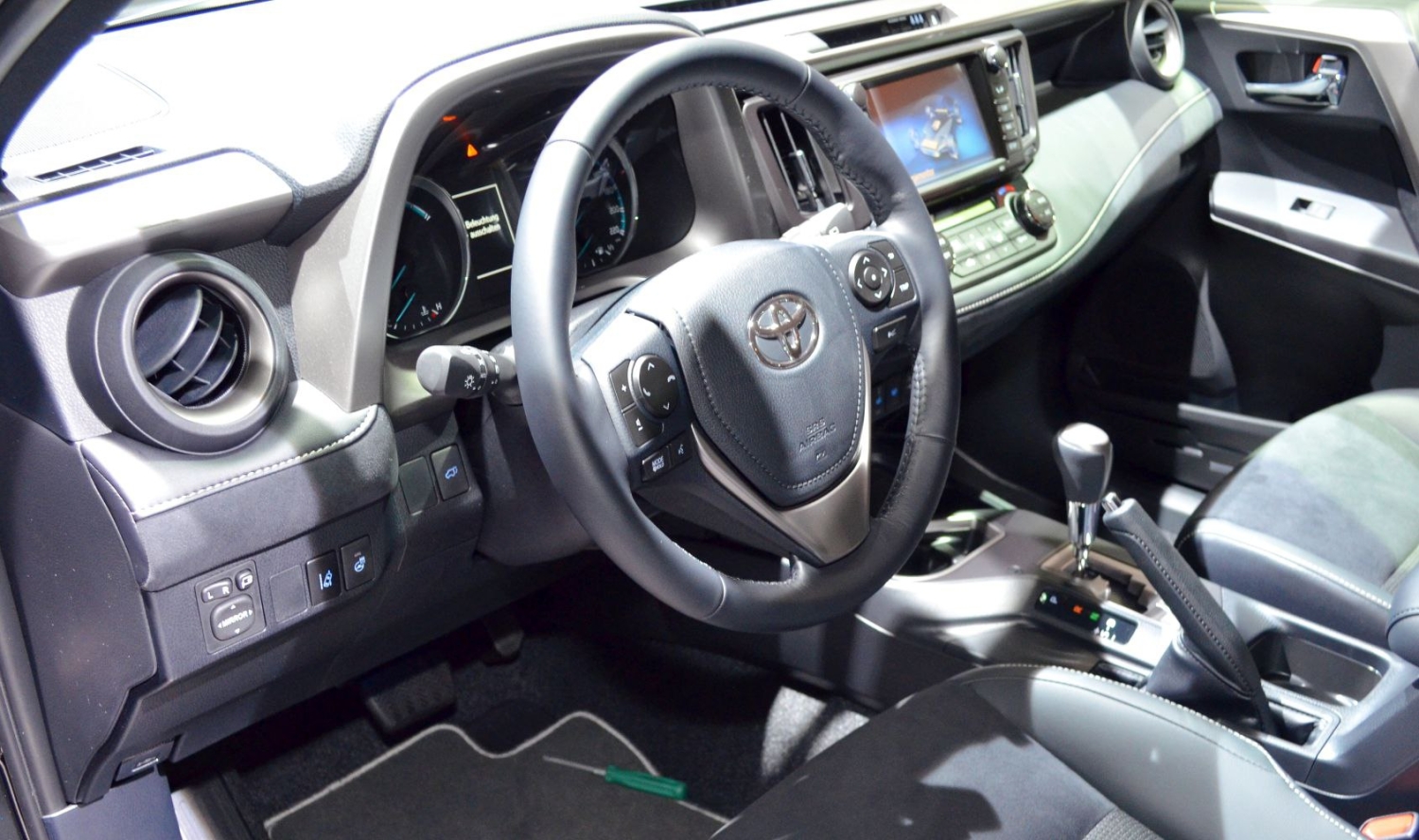

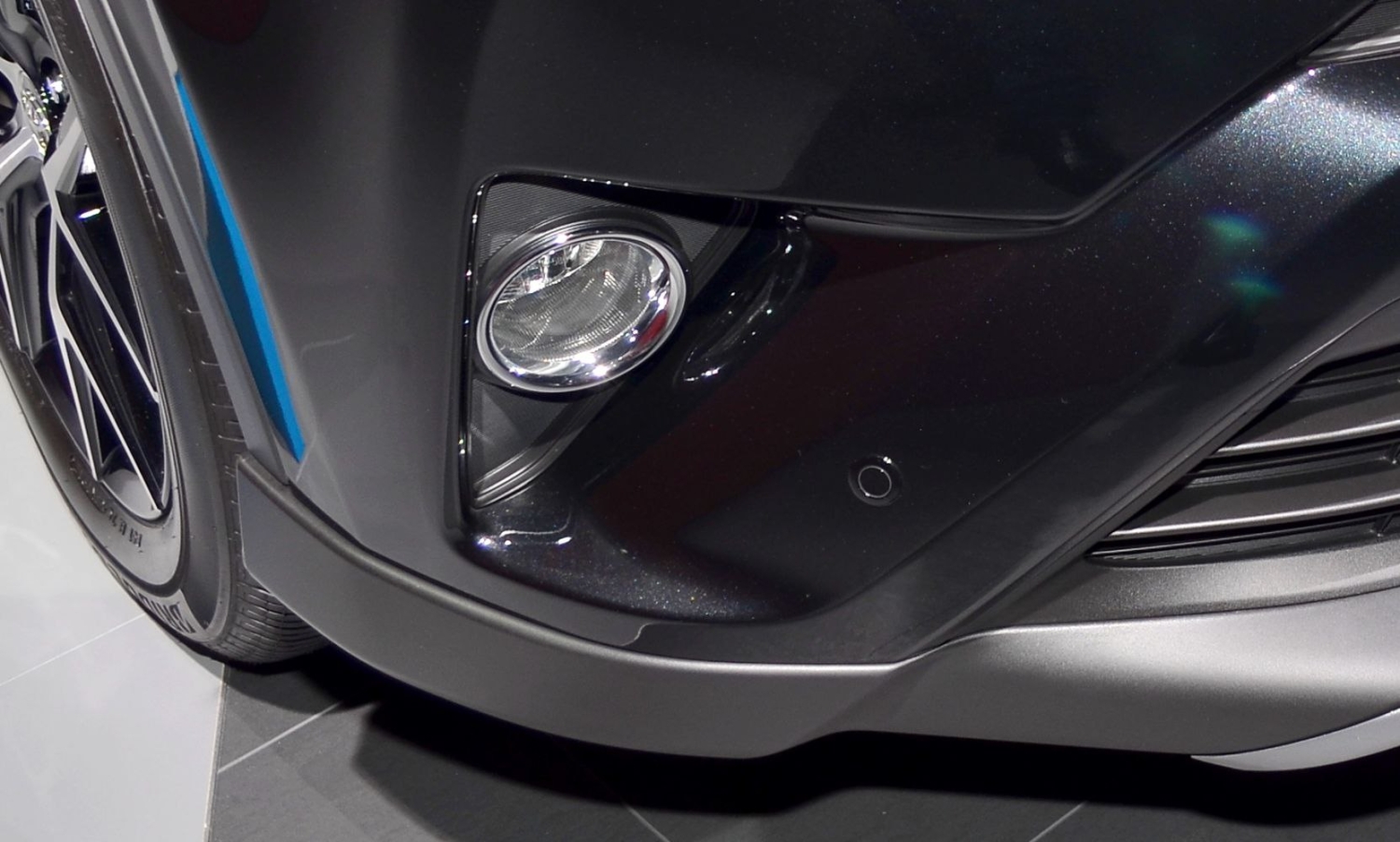

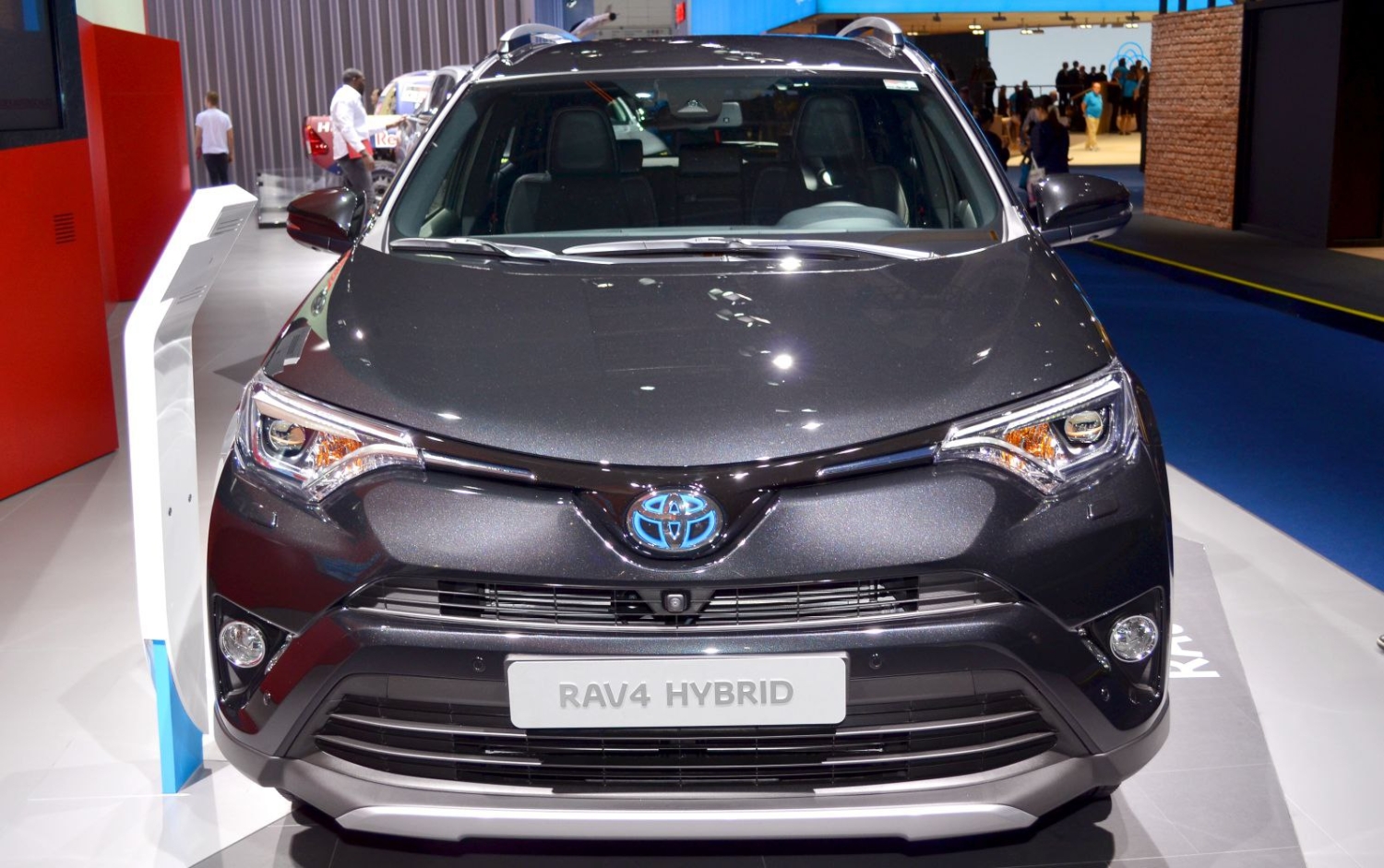

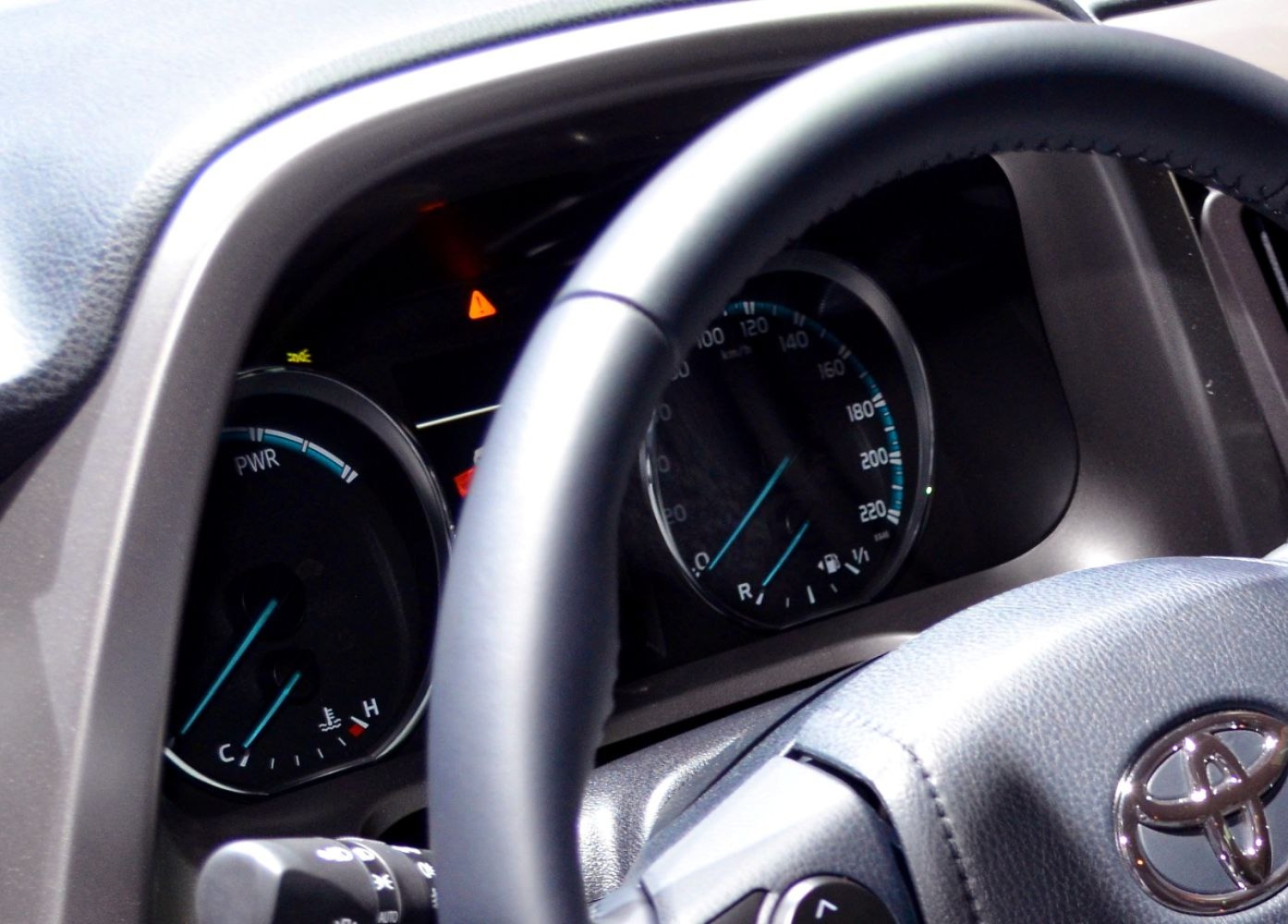

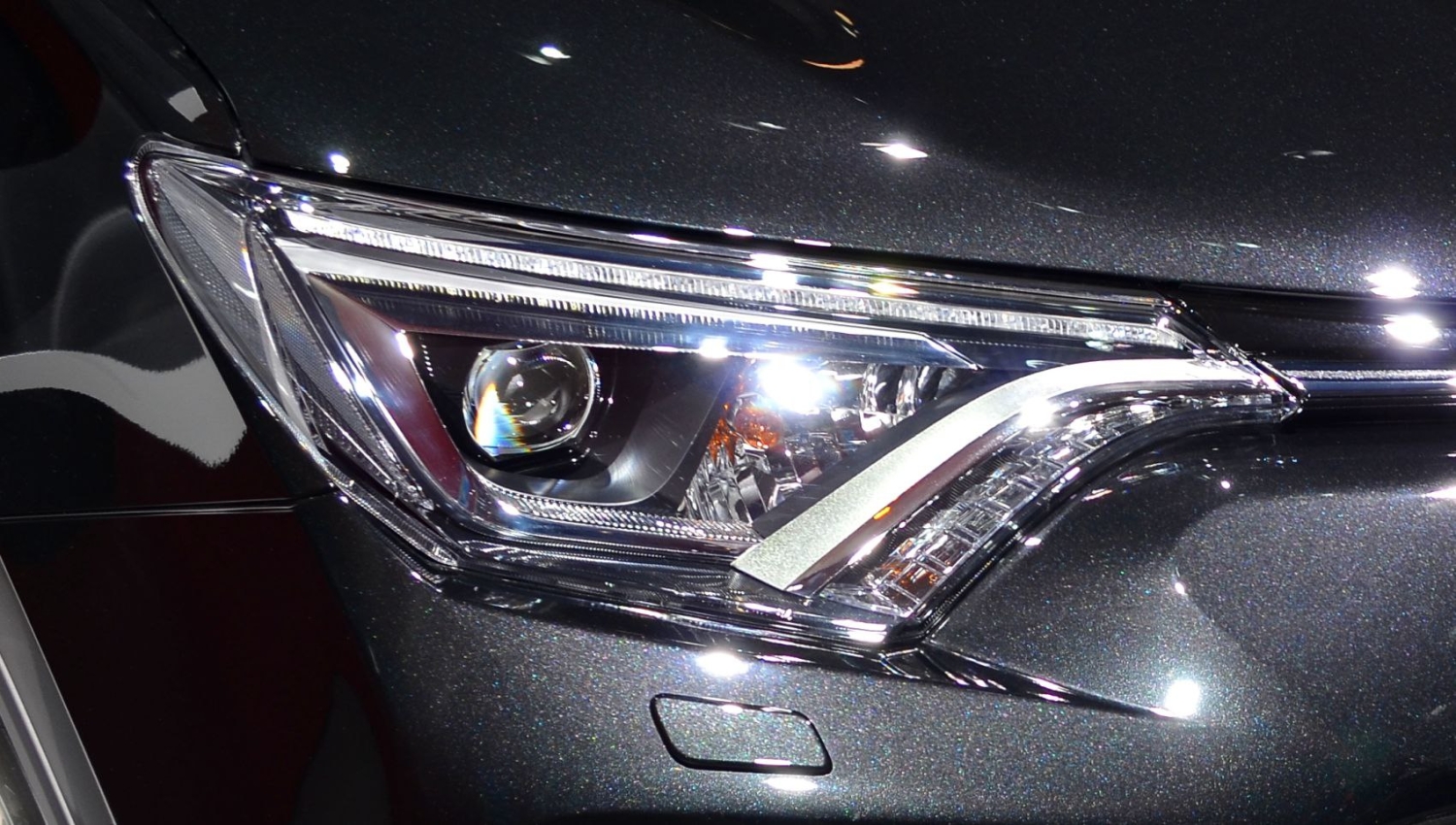

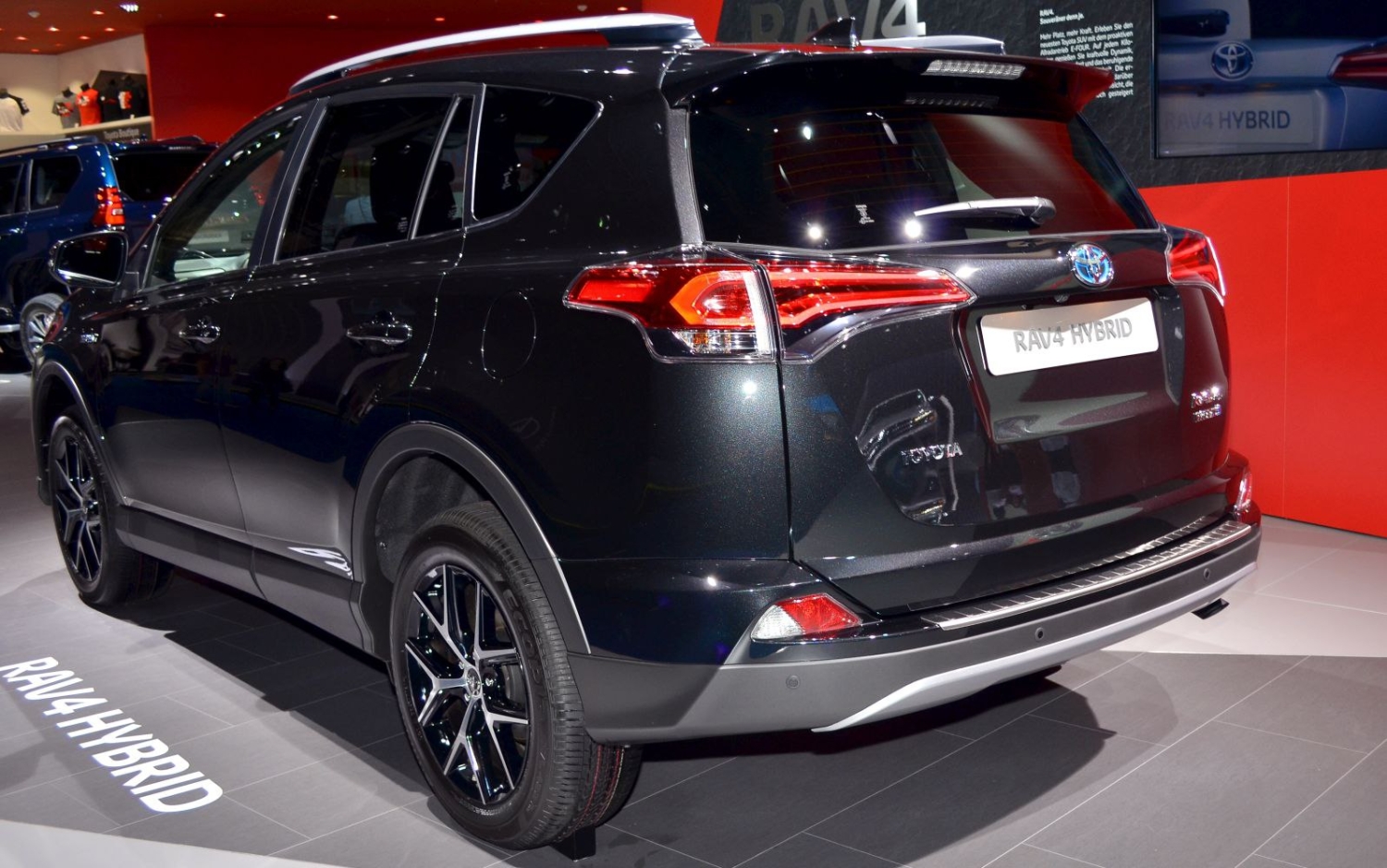

Toyota RAV4 4 2015 Gallery
Toyota RAV4 4 2015 Technical Specifications
General
Body type
SUV
Brand
Toyota
Doors
5
End of production
2018
Generation
RAV4 IV (2015)
Model
RAV4
Modification (Engine)
2.5 (197 Hp) AWD Hybrid E-CVT
Powertrain Architecture
FHEV (Full Hybrid Electric Vehicle)
Seats
5
Start of production
2015
Performance
Acceleration 0 - 100 km/h
8.3 sec
Acceleration 0 - 60 mph
7.9 sec
Acceleration 0 - 62 mph
8.3 sec
CO2 emissions
117 g/km
Emission standard
Euro 6 W
Fuel Type
Petrol (Gasoline)
Fuel consumption (economy) - combined
5 l/100 km
Fuel consumption (economy) - extra urban
4.9 l/100 km
Fuel consumption (economy) - urban
5.1 l/100 km
Maximum speed
180 km/h
Electric
All-electric range
1 km
Battery capacity
1.6 kWh
Electric motor Torque number 1
270 Nm
Electric motor Torque number 2
139 Nm
Electric motor power number 1
143 Hp
Electric motor power number 2
68 Hp
System power
197 Hp
Internal Engine
Compression ratio
12.5
Cylinder Bore
90 mm
Engine displacement
2494 cm
Engine location
Front, Transverse
Engine oil capacity
4.4 l
Fuel System
Multi-point indirect injection
Model Engine
2AR-FXE
Number of cylinders
4
Number of valves per cylinder
4
Piston Stroke
98 mm
Position of cylinders
Inline
Power
155 Hp @ 5700 rpm.
Power per litre
62.1 Hp/l
Torque
210 Nm @ 4200-4400 rpm.
Valvetrain
DOHC. Dual VVT-i
Dimensions
Approach angle
19°
Departure angle
22°
Front track
1560-1570 mm
Height
1675 mm
Length
4605 mm
Minimum turning circle (turning diameter)
10.6-11.2 m
Rear (Back) track
1560-1570 mm
Ride height
177 mm
Wheelbase
2660 mm
Width
1845 mm
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs
Front suspension
Independent type McPherson
Power steering
Electric Steering
Rear brakes
Disc
Rear suspension
Independent on trapezoidal lever
Steering type
Steering rack and pinion
Tires size
225/65 R17 H
Wheel rims size
6.5J R17; 7J R17
Space
Fuel tank capacity
56 l
Kerb Weight
1690-1775 kg
Max load
495-580 kg
Max. weight
2270 kg
