Aston Martin DB5 1963
4.0 (286 Hp)
Generation DB5
Body Type Coupe
Seats 2
1965
End Year
225 km/h
Maximum Speed
2
Doors
Aston Martin DB5 1963 Key Specs
Body Type
Coupe
Doors
2
End Of Production
1965
Fuel System
Carburettor
Fuel Type
Petrol (Gasoline)
Generation
DB5
Maximum Speed
225 km/h
Modification (Engine)
4.0 (286 Hp)
Number Of Cylinders
6
Power
286 Hp @ 5500 rpm.
Powertrain Architecture
Internal Combustion engine
Seats
2+2
Start Of Production
1963

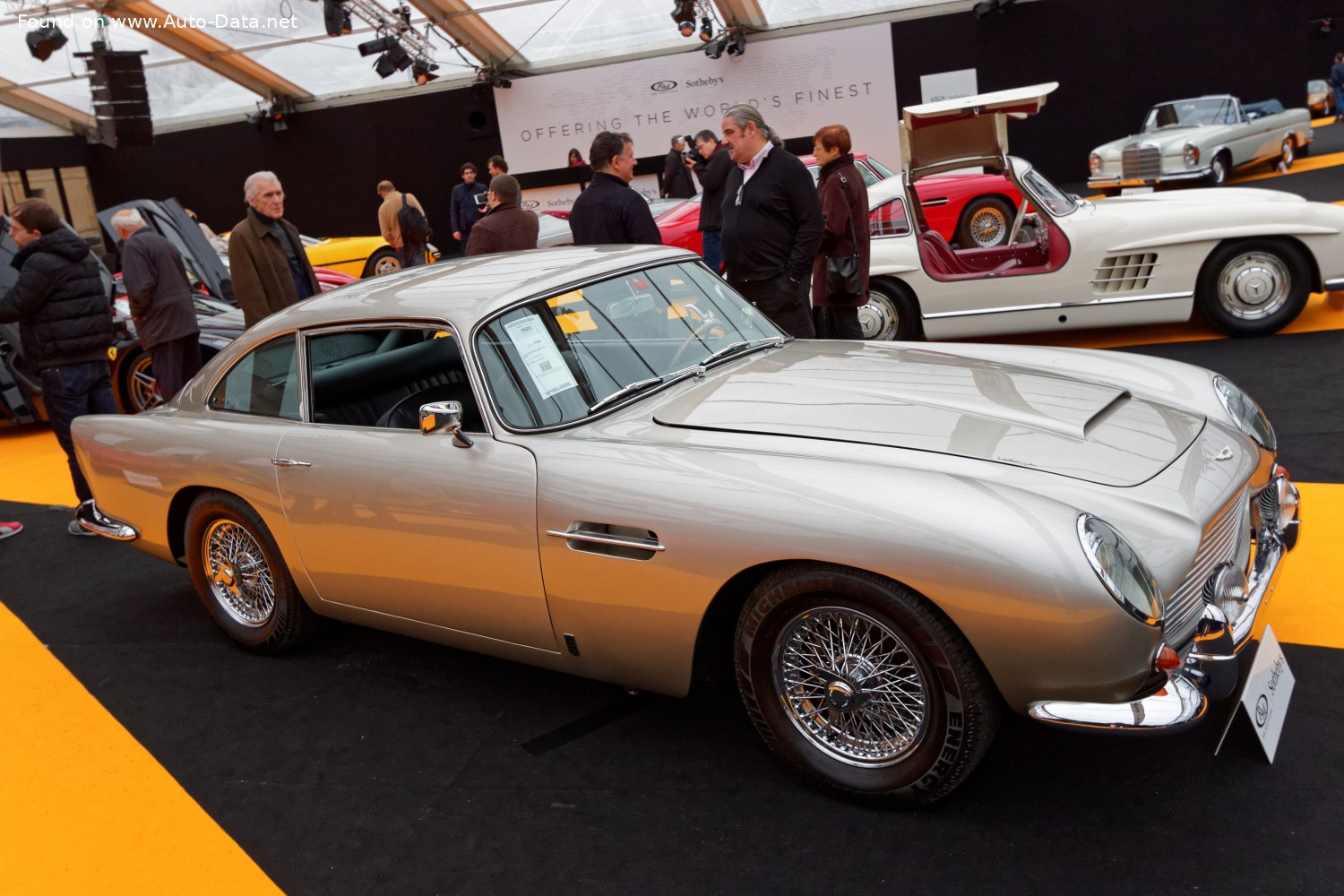

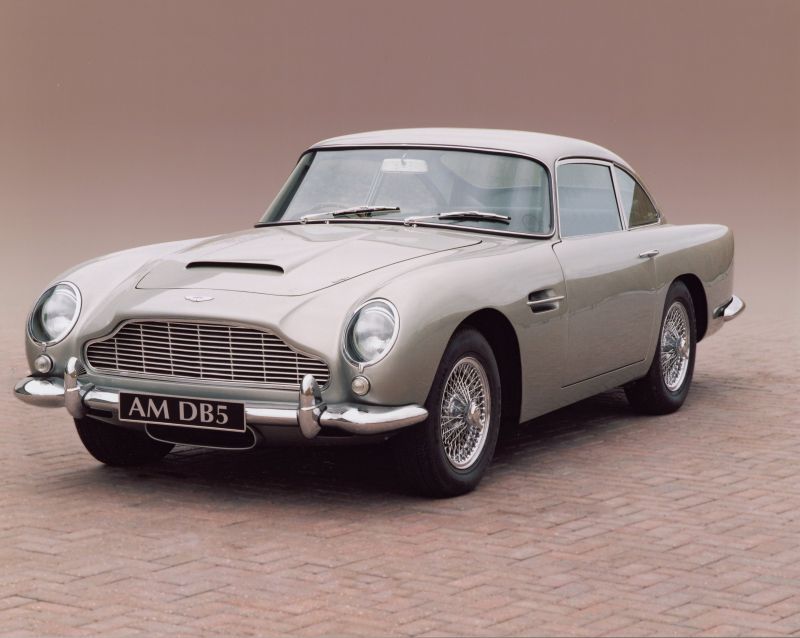

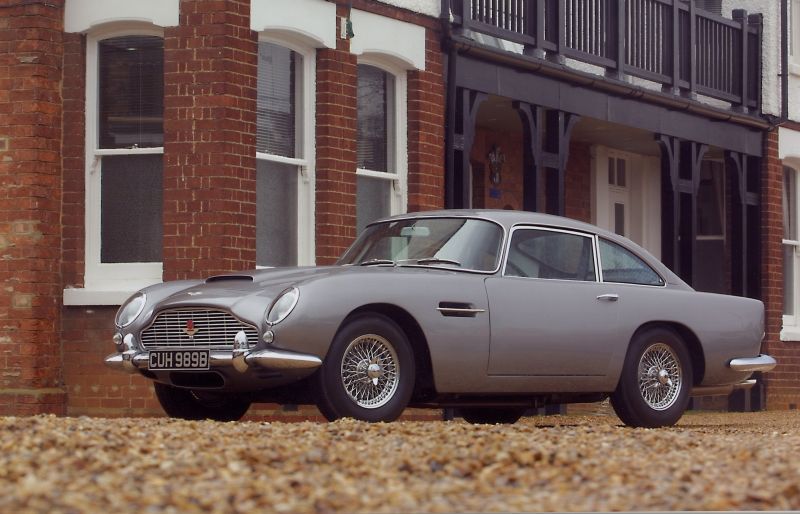

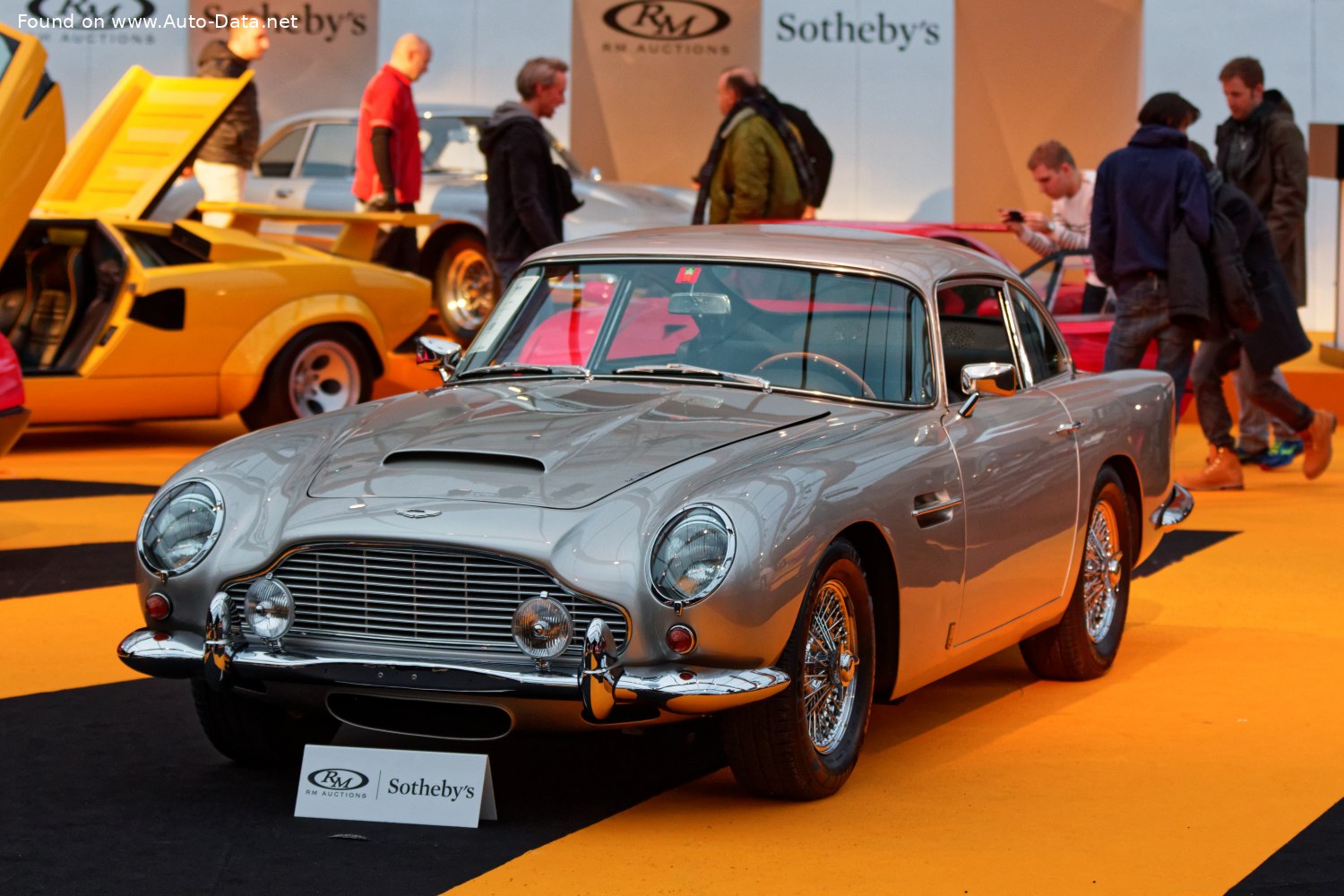

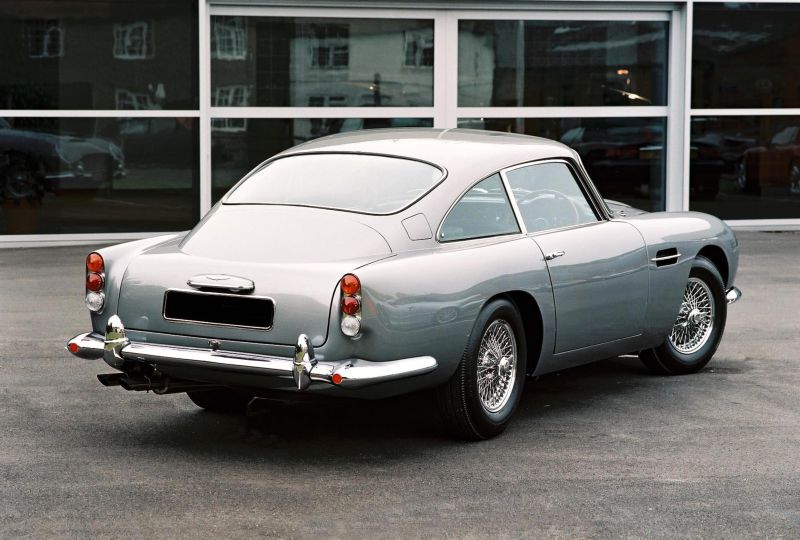

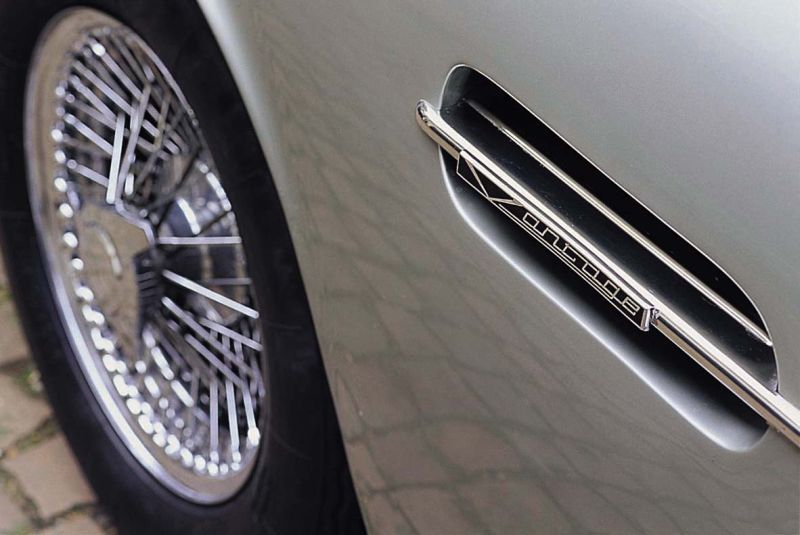

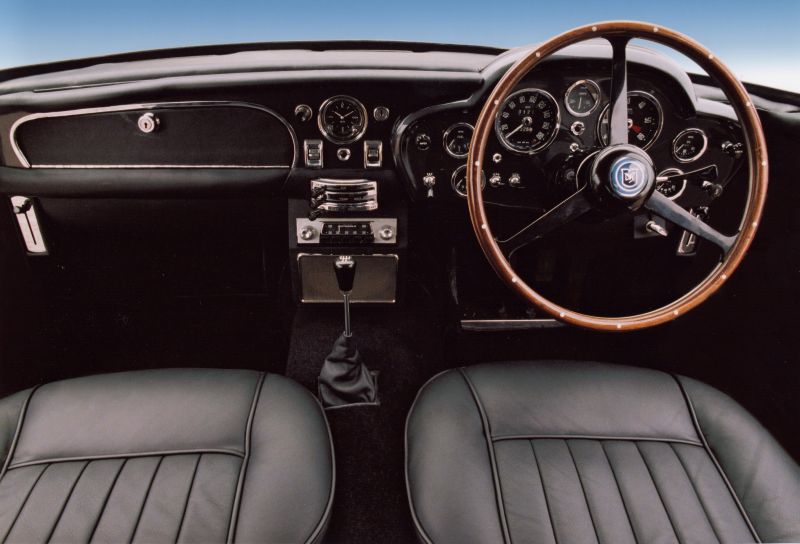

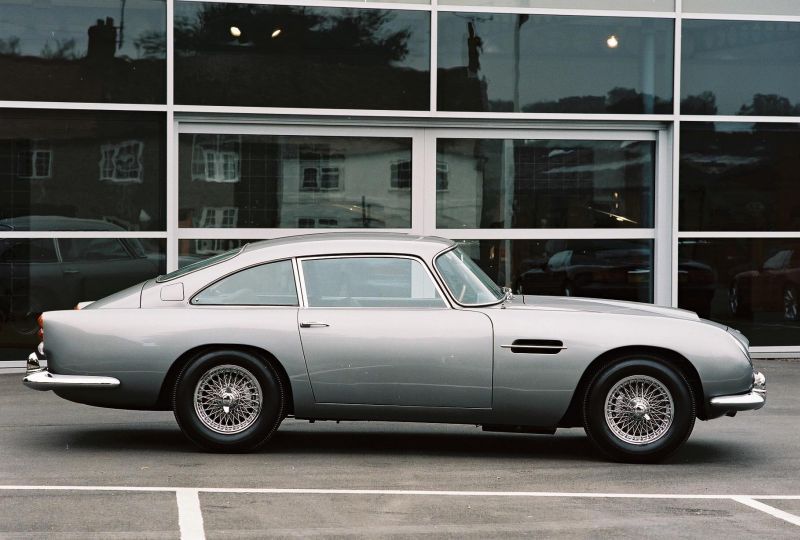

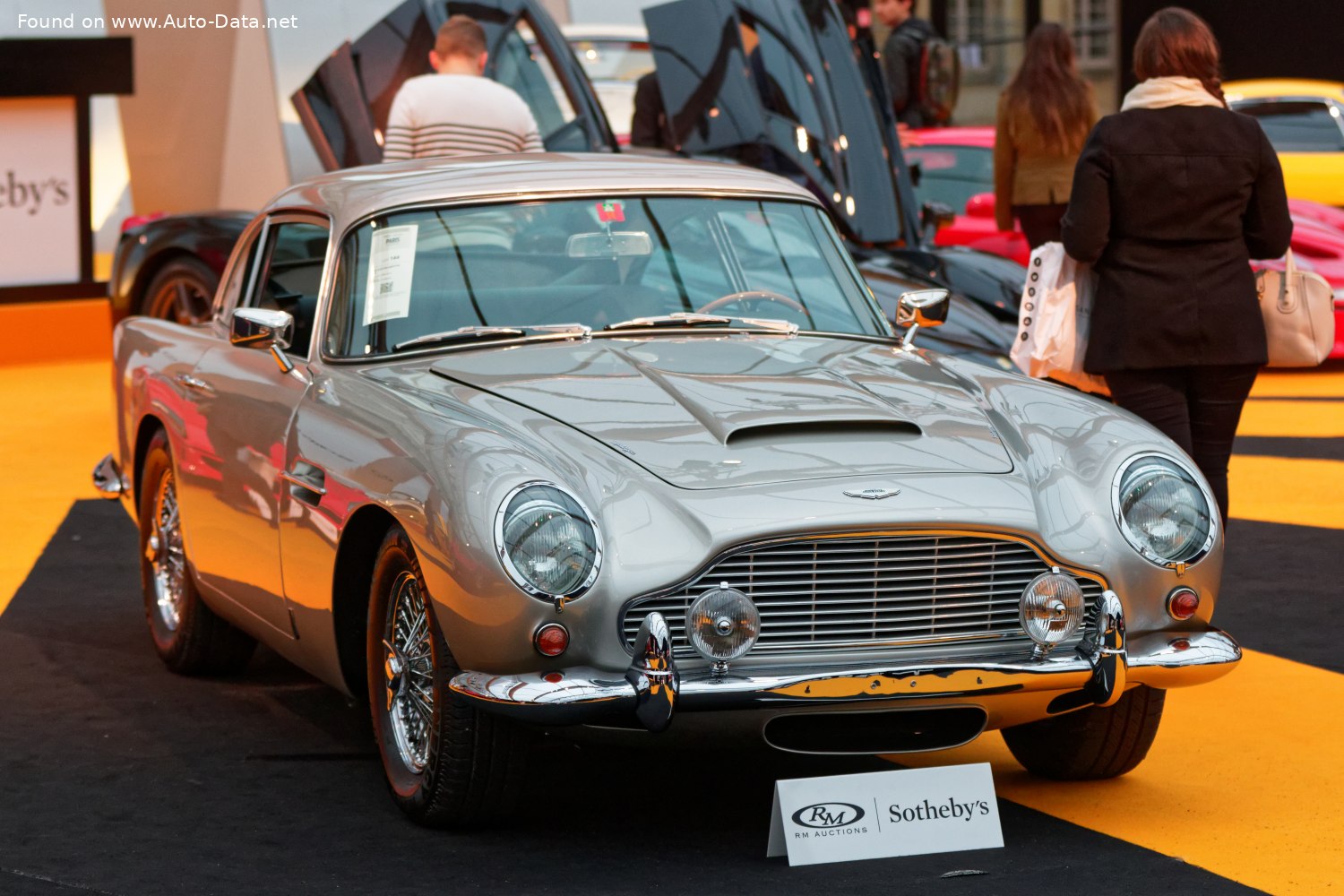

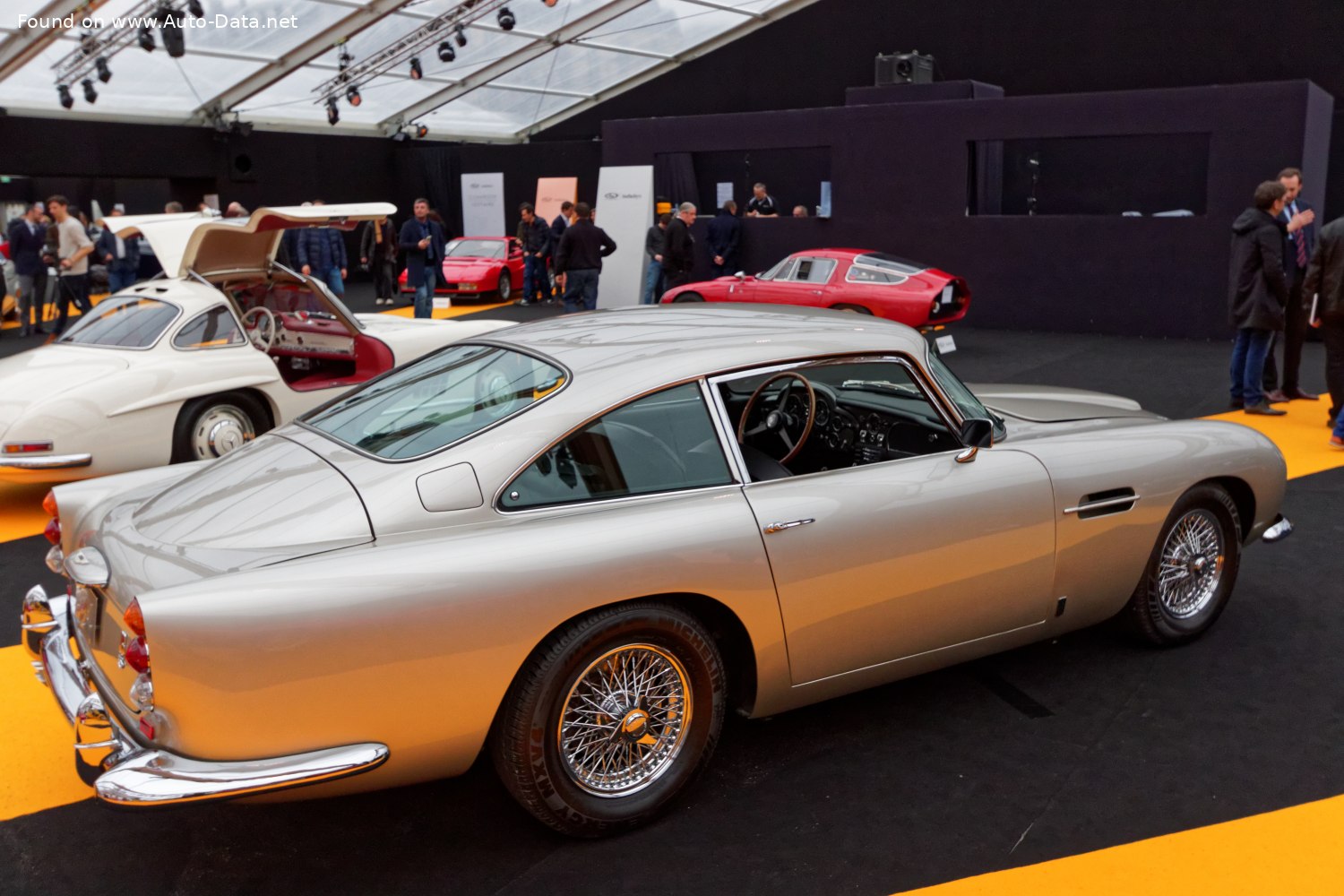

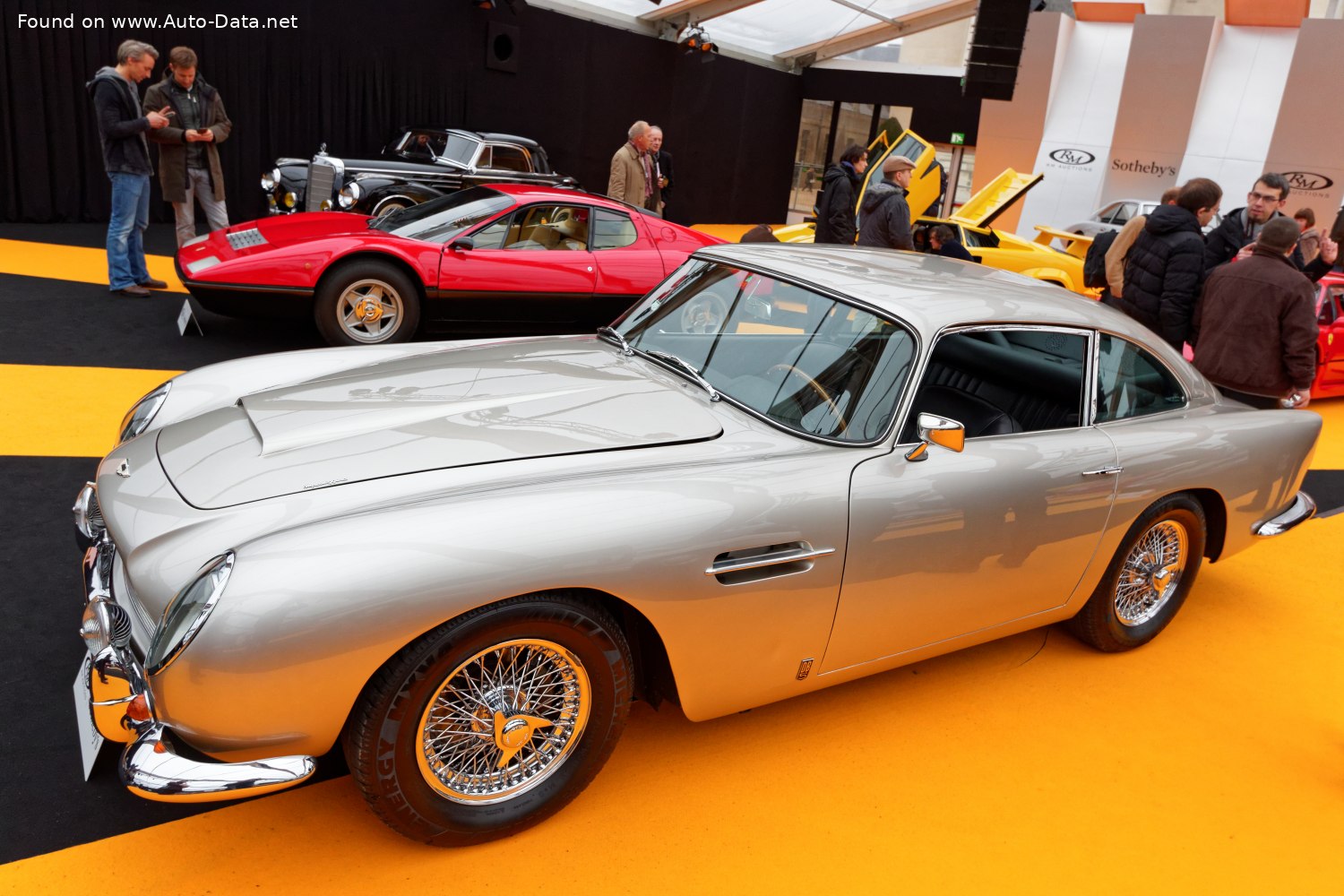

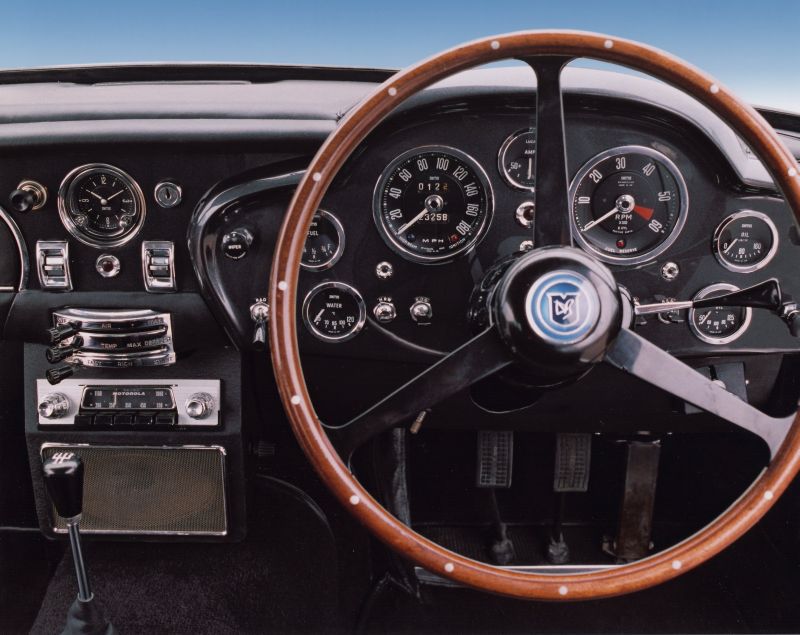

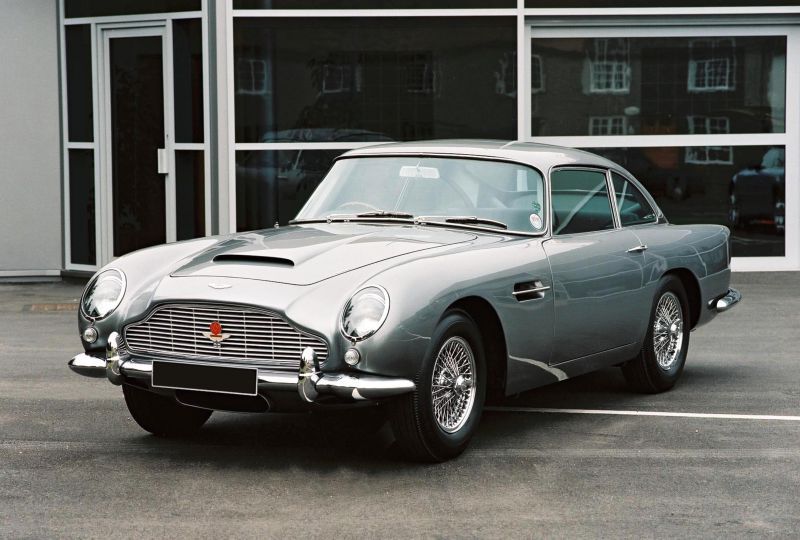

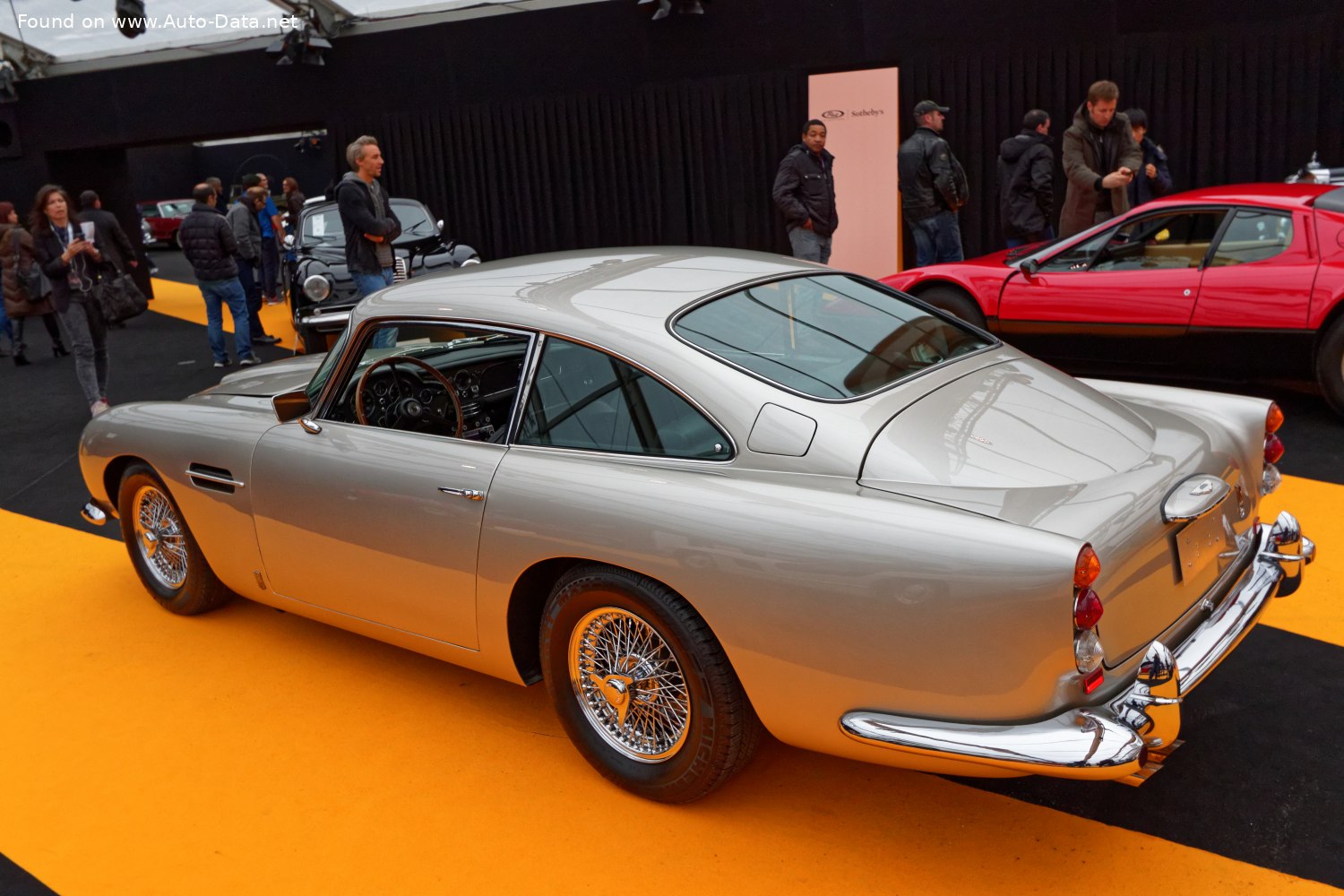

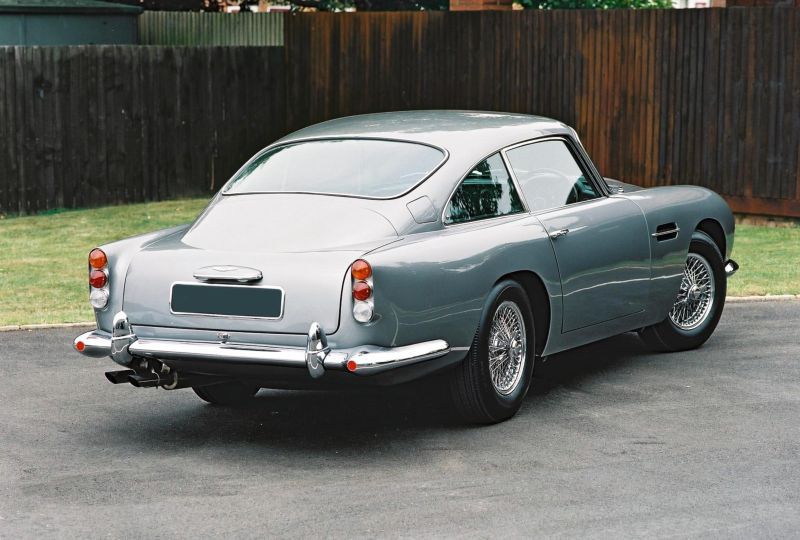

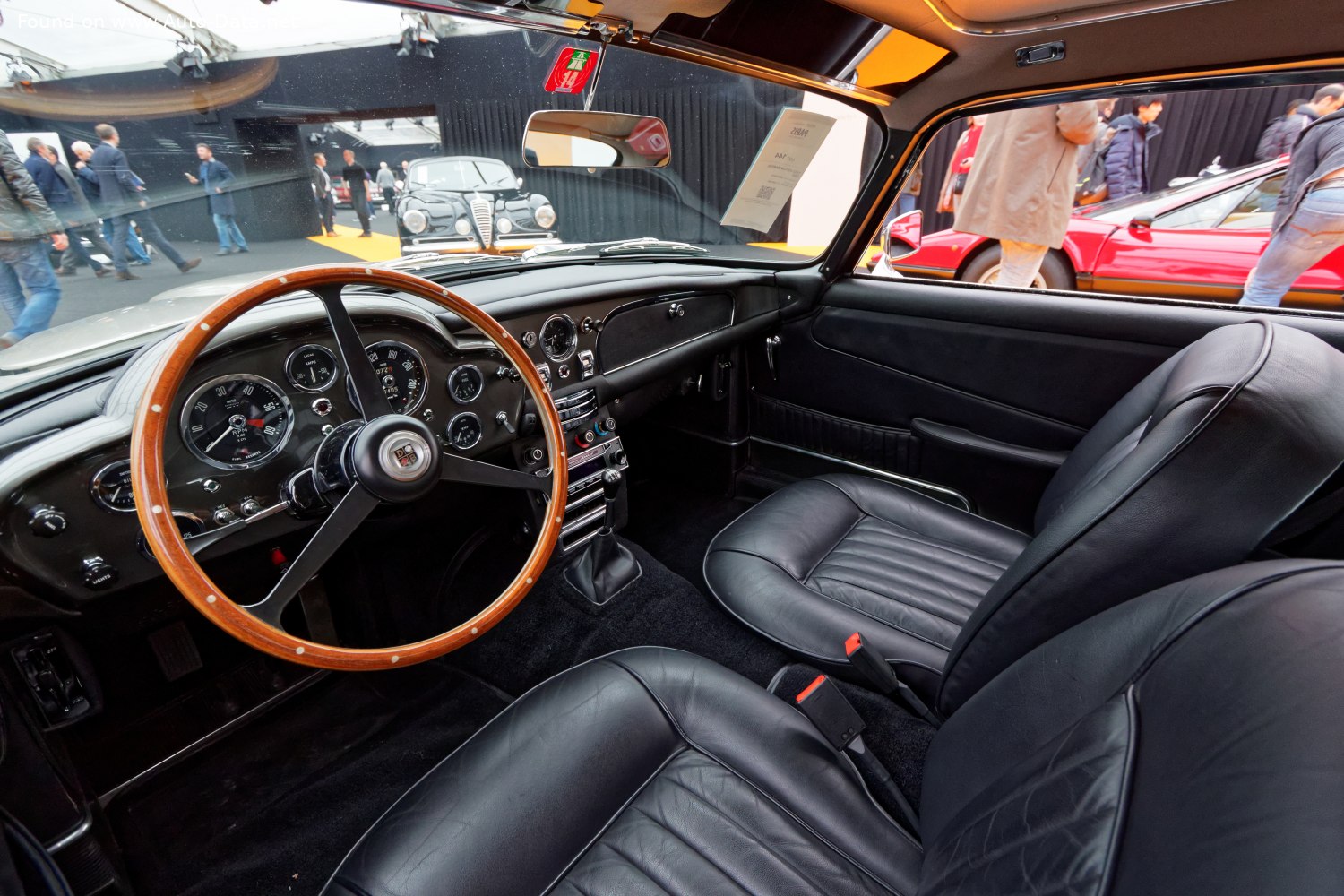

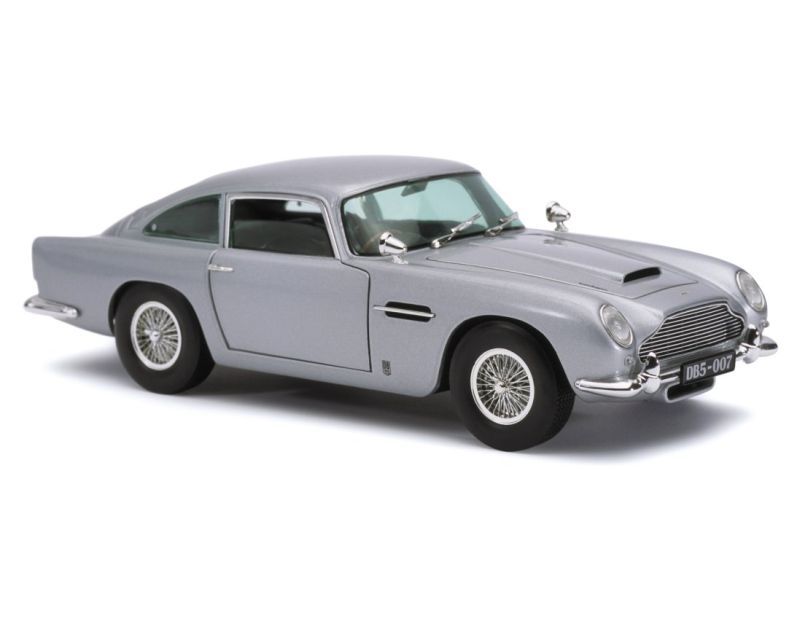

Aston Martin DB5 1963 Gallery
Aston Martin DB5 1963 Technical Specifications
General
Body type
Coupe
Brand
Aston Martin
Doors
2
End of production
1965
Generation
DB5
Model
DB5
Modification (Engine)
4.0 (286 Hp)
Powertrain Architecture
Internal Combustion engine
Seats
2+2
Start of production
1963
Performance
Acceleration 0 - 60 mph
7.1 sec
Fuel Type
Petrol (Gasoline)
Maximum speed
225 km/h
Dimensions
Front track
1372 mm
Height
1346 mm
Length
4572 mm
Minimum turning circle (turning diameter)
10.3 m
Rear (Back) track
1360 mm
Ride height
160 mm
Wheelbase
2490 mm
Width
1680 mm
Engine
Compression ratio
8.8
Cylinder Bore
96 mm
Engine aspiration
Naturally aspirated engine
Engine displacement
3995 cm
Fuel System
Carburettor
Number of cylinders
6
Position of cylinders
Inline
Power
286 Hp @ 5500 rpm.
Torque
380 Nm @ 4500 rpm.
Drivetrain
Drive wheel
Rear wheel drive
Front brakes
Disc
Front suspension
Double wishbone
Power steering
Electric Steering
Rear brakes
Disc
Rear suspension
dependent spring suspension
Steering type
Steering rack and pinion
Space
Kerb Weight
1466 kg
