Hyundai Santa Fe 2 900 2009
2.2 CRDi (197 Hp) 4WD
Generation Santa Fe 2 900 2009
Body Type SUV
Seats 5
2012
End Year
190 km/h
Maximum Speed
5
Doors
Hyundai Santa Fe 2 900 2009 Key Specs
Acceleration 0 - 100 Km/h
9.8 sec
Acceleration 0 - 62 Mph
9.8 sec
Body Type
SUV
Doors
5
Drive Wheel
All wheel drive (4x4)
End Of Production
2012
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
6.7 l
Engine Systems
Particulate filter
Fuel Type
Diesel
Fuel Tank Capacity
75 l
Generation
Santa Fe II (CM, 2009)
Kerb Weight
1840-1920 kg
Maximum Speed
190 km/h
Modification (Engine)
2.2 CRDi (197 Hp) 4WD
Number Of Cylinders
4
Power
197 Hp @ 3800 rpm.
Power Steering
Hydraulic Steering
Powertrain Architecture
Internal Combustion engine
Seats
5
Start Of Production
2009

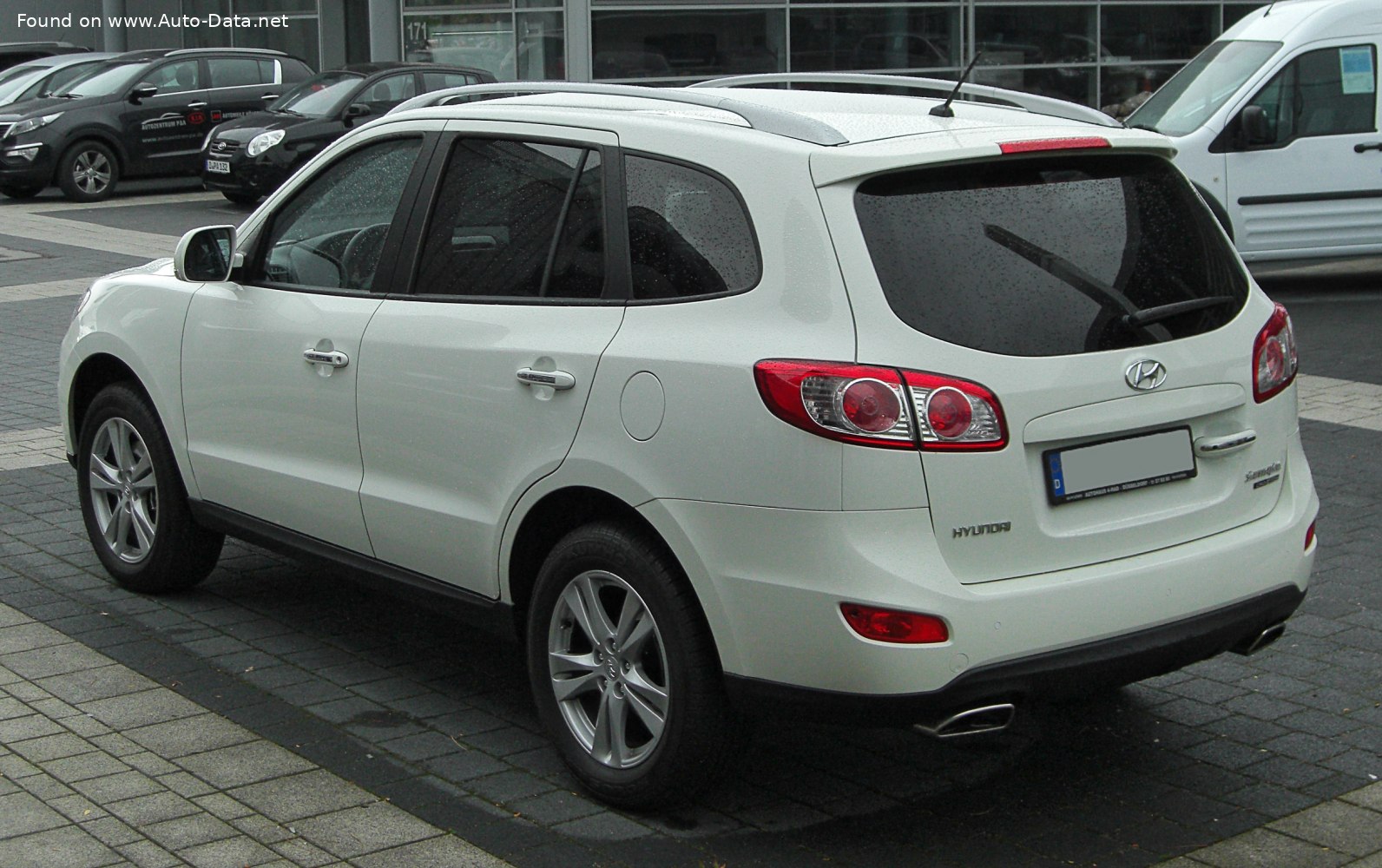

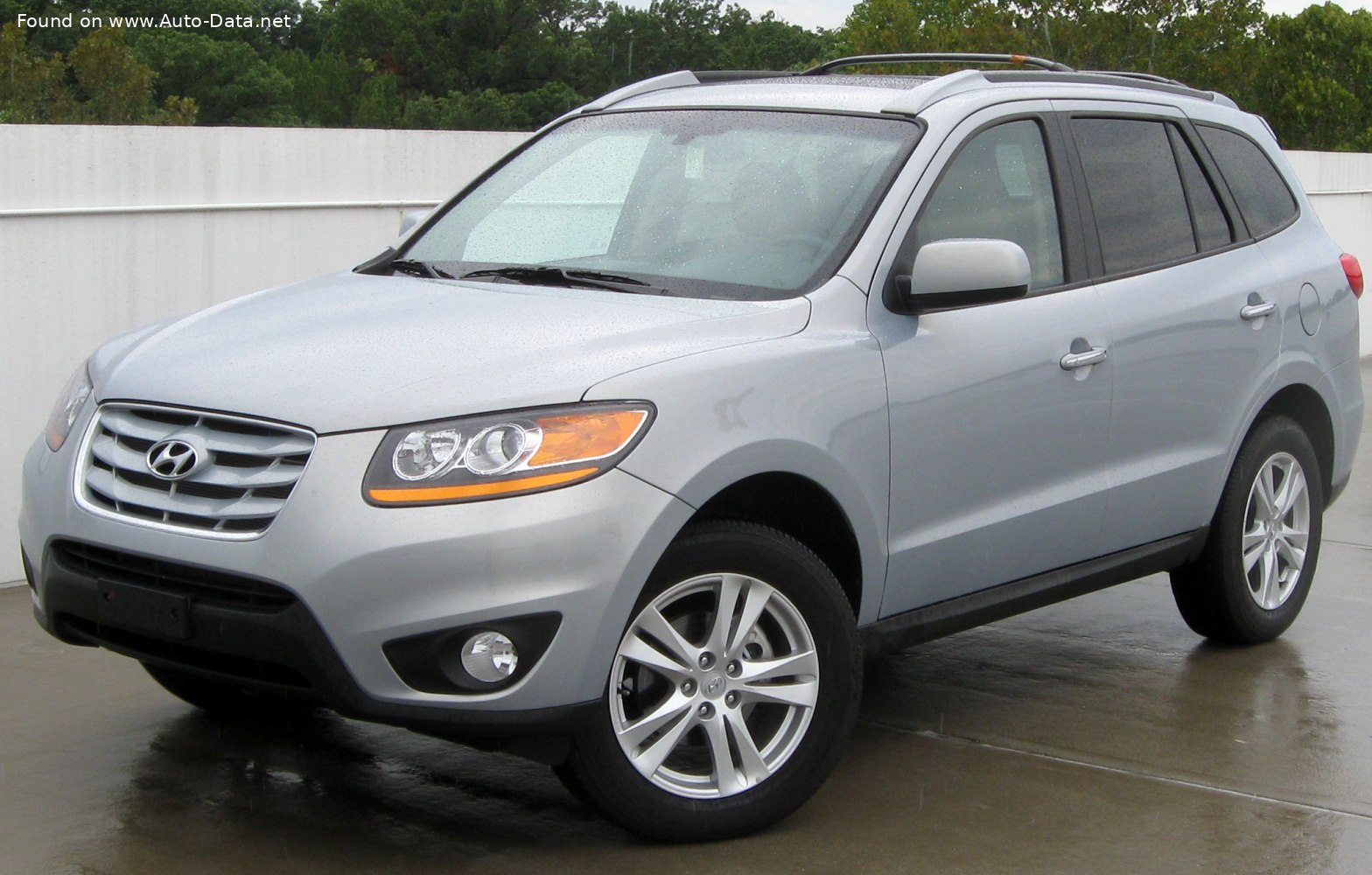

Hyundai Santa Fe 2 900 2009 Gallery
Hyundai Santa Fe 2 900 2009 Technical Specifications
General
Body type
SUV
Brand
Hyundai
Doors
5
End of production
2012
Generation
Santa Fe II (CM, 2009)
Model
Santa Fe
Modification (Engine)
2.2 CRDi (197 Hp) 4WD
Powertrain Architecture
Internal Combustion engine
Seats
5
Start of production
2009
Performance
Acceleration 0 - 100 km/h
9.8 sec
Acceleration 0 - 60 mph
9.3 sec
Acceleration 0 - 62 mph
9.8 sec
CO2 emissions (NEDC)
176 g/km
Emission standard
Euro 5
Fuel Type
Diesel
Fuel consumption (economy) - combined (NEDC)
6.8 l/100 km
Fuel consumption (economy) - extra urban (NEDC)
5.6 l/100 km
Fuel consumption (economy) - urban (NEDC)
8.8 l/100 km
Maximum speed
190 km/h
Dimensions
Approach angle
24.6°
Departure angle
21.6°
Drag coefficient (Cd)
0.38
Front overhang
930 mm
Front track
1615 mm
Height
1760 mm
Length
4660 mm
Minimum turning circle (turning diameter)
10.9 m
Ramp-over (brakeover) angle
17.9°
Rear (Back) track
1620 mm
Rear overhang
1030 mm
Ride height (ground clearance)
200 mm
Wading depth
500 mm
Wheelbase
2700 mm
Width
1890 mm
Engine
Compression ratio
16
Coolant
8.6 l
Cylinder Bore
85.4 mm
Engine Model/Code
D4HB
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
2199 cm
Engine layout
Front, Transverse
Engine oil capacity
6.7 l
Engine oil specification
Log in to see.
Engine systems
Particulate filter
Fuel injection system
Diesel Commonrail
Number of cylinders
4
Number of valves per cylinder
4
Power
197 Hp @ 3800 rpm.
Torque
421 Nm @ 1800-2500 rpm.
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
6 gears, manual transmission
Power steering
Hydraulic Steering
Rear brakes
Disc
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
235/65 R17; 235/60 R18
Wheel rims size
7J x 17; 7J x 18
Space
Fuel tank capacity
75 l
Kerb Weight
1840-1920 kg
Max load
650-730 kg
Max. roof load
100 kg
Max. weight
2570 kg
Permitted towbar download
100 kg
