Toyota Crown 16 Sport S236 2023 2.5 D-4S (234 Hp) Hybrid E-Four e-CVT

Toyota Crown 16 Sport S236 2023 2.5 D-4S (234 Hp) Hybrid E-Four e-CVT
Brand : Toyota
Model : Crown
Generation : Crown 16 Sport S236
Body Type : SUV
Fuel Type : Petrol (Gasoline)
Engine Type : Hybrid
Seats : 5
Doors : 5
Start Year : 2023

Technical Sheet Toyota Crown XVI Sport S236 2023

Body Type
: SUV
Doors
: 5
Drive Wheel
: All wheel drive (4x4)
Engine Aspiration
: Naturally aspirated engine
Engine Oil Capacity
: 4.3 l
Engine Systems
: Start & Stop System
Fuel Type
: Petrol (Gasoline)
Fuel Tank Capacity
: 55 l
Generation
: Crown XVI Sport (S236)
Kerb Weight
: 1810-1820 kg
Modification (Engine)
: 2.5 D-4S (234 Hp) Hybrid E-Four e-CVT
Number Of Cylinders
: 4
Power
: 186 Hp @ 6000 rpm.
Power Steering
: Electric Steering
Powertrain Architecture
: FHEV (Full Hybrid Electric Vehicle)
Seats
: 5
Start Of Production
: October, 2023
System Power
: 234 Hp

General Toyota Crown XVI Sport S236 2023

General
Body type SUV
Brand Toyota
Doors 5
Generation Crown XVI Sport (S236)
Model Crown
Modification (Engine) 2.5 D-4S (234 Hp) Hybrid E-Four e-CVT
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Seats 5
Start of production October, 2023

Performance Toyota Crown XVI Sport S236 2023

Performance
Fuel Type Petrol (Gasoline)
Fuel consumption (economy) - combined (WLTC) 4.7 l/100 km
Fuel consumption (economy) - extra urban (WLTC) 4.4 l/100 km
Fuel consumption (economy) - urban (WLTC) 5.2 l/100 km

Electric Toyota Crown XVI Sport S236 2023

Electric
Battery location Below the floor, under the rear seats
Electric motor power number 1 120 Hp
Electric motor Torque number 1 202 Nm
Electric motor model/code number 1 3NM
Electric motor location number 1 Integrated into the transmission
Electric motor type number 1 Synchronous
Electric motor power number 2 54 Hp
Electric motor Torque number 2 121 Nm
Electric motor model/code number 2 4NM
Electric motor location number 2 Rear axle, Transverse
Electric motor type number 2 Synchronous
System power 234 Hp

Internal Engine Toyota Crown XVI Sport S236 2023

Internal Engine
Coolant 6 l
Cylinder Bore 87.5 mm
Engine Model/Code A25A-FXS
Engine aspiration Naturally aspirated engine
Engine configuration Inline
Engine displacement 2487 cm
Engine layout Front, Transverse
Engine oil capacity 4.3 l
Engine oil specification Log in to see.
Engine systems Start & Stop System
Fuel injection system Direct injection / Multi-point indirect injection
Number of cylinders 4
Number of valves per cylinder 4
Piston Stroke 103.4 mm
Power 186 Hp @ 6000 rpm.
Power per litre 74.8 Hp/l
Torque 221 Nm @ 3600-5200 rpm.
Valvetrain VVT-iE

Dimensions Toyota Crown XVI Sport S236 2023

Dimensions
Front track 1605 mm
Height 1565 mm
Length 4720 mm
Minimum turning circle (turning diameter) 10.8 m
Rear (Back) track 1615 mm
Ride height (ground clearance) 160 mm
Wheelbase 2770 mm
Width 1880 mm

Drivetrain Toyota Crown XVI Sport S236 2023

Drivetrain
Drive wheel All wheel drive (4x4)
Front brakes Ventilated discs

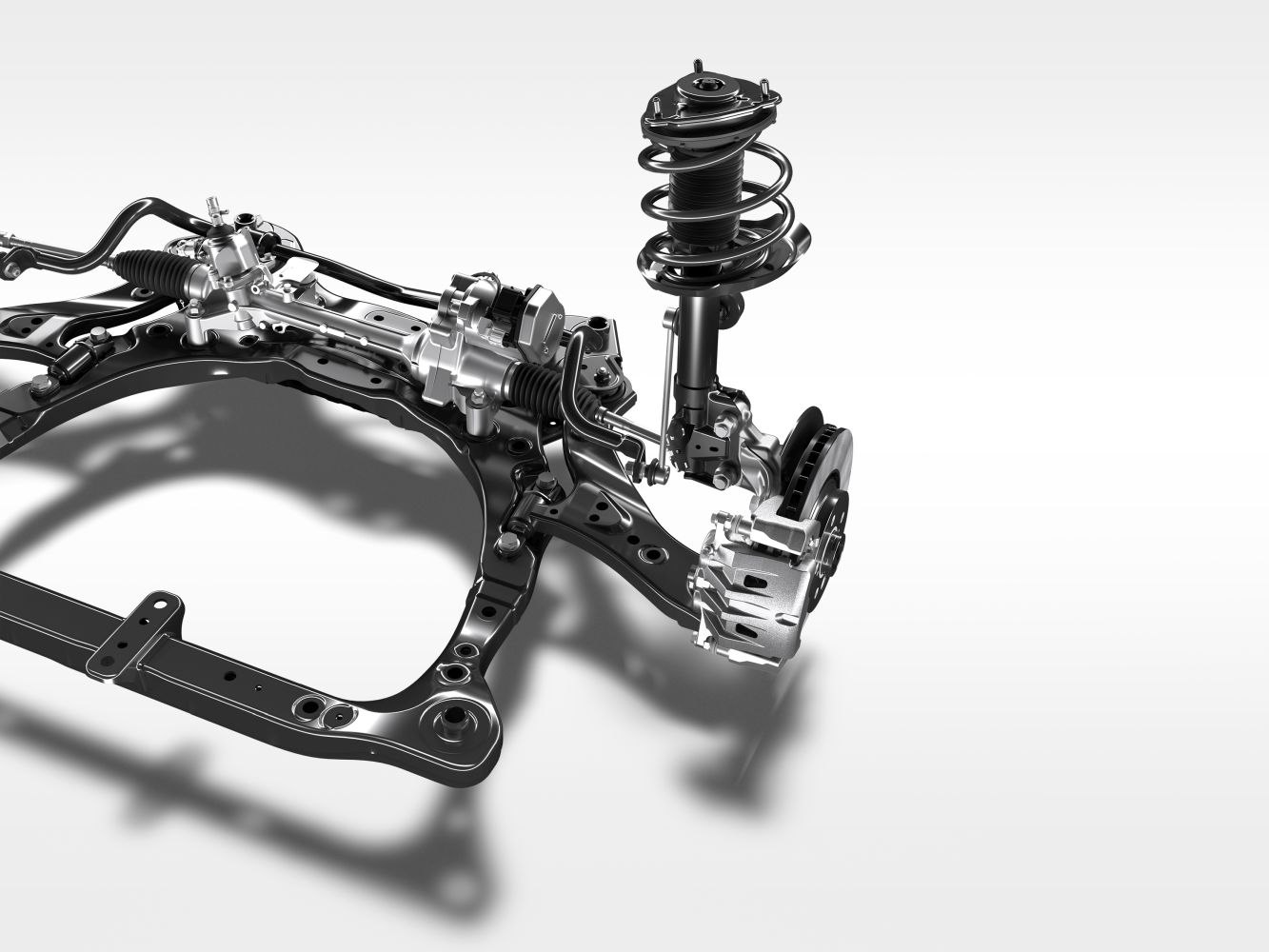

Front suspension Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox automatic transmission e-CVT
Power steering Electric Steering
Rear brakes Ventilated discs

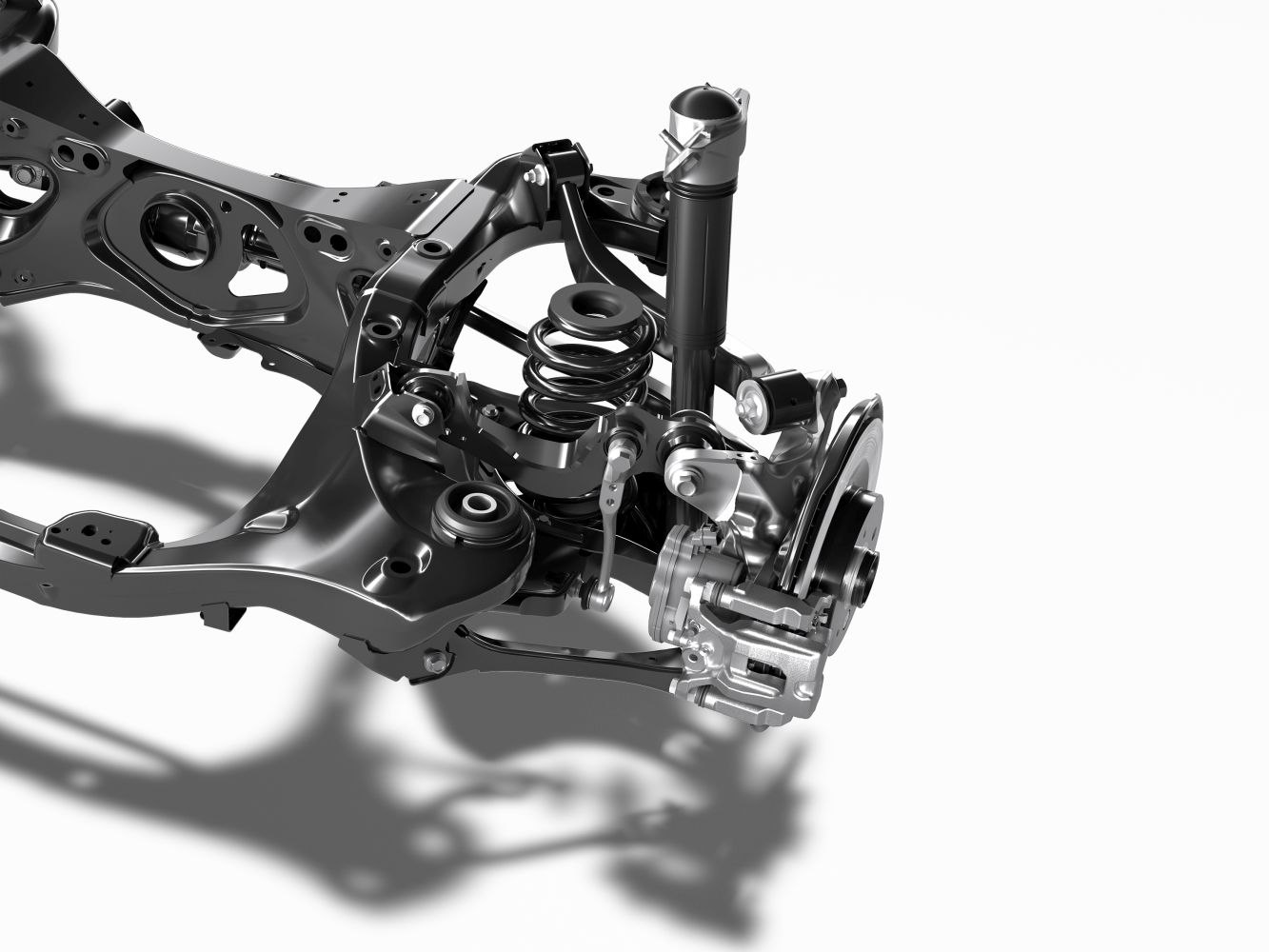

Rear suspension Independent multi-link spring suspension with stabilizer
Steering type Steering rack and pinion

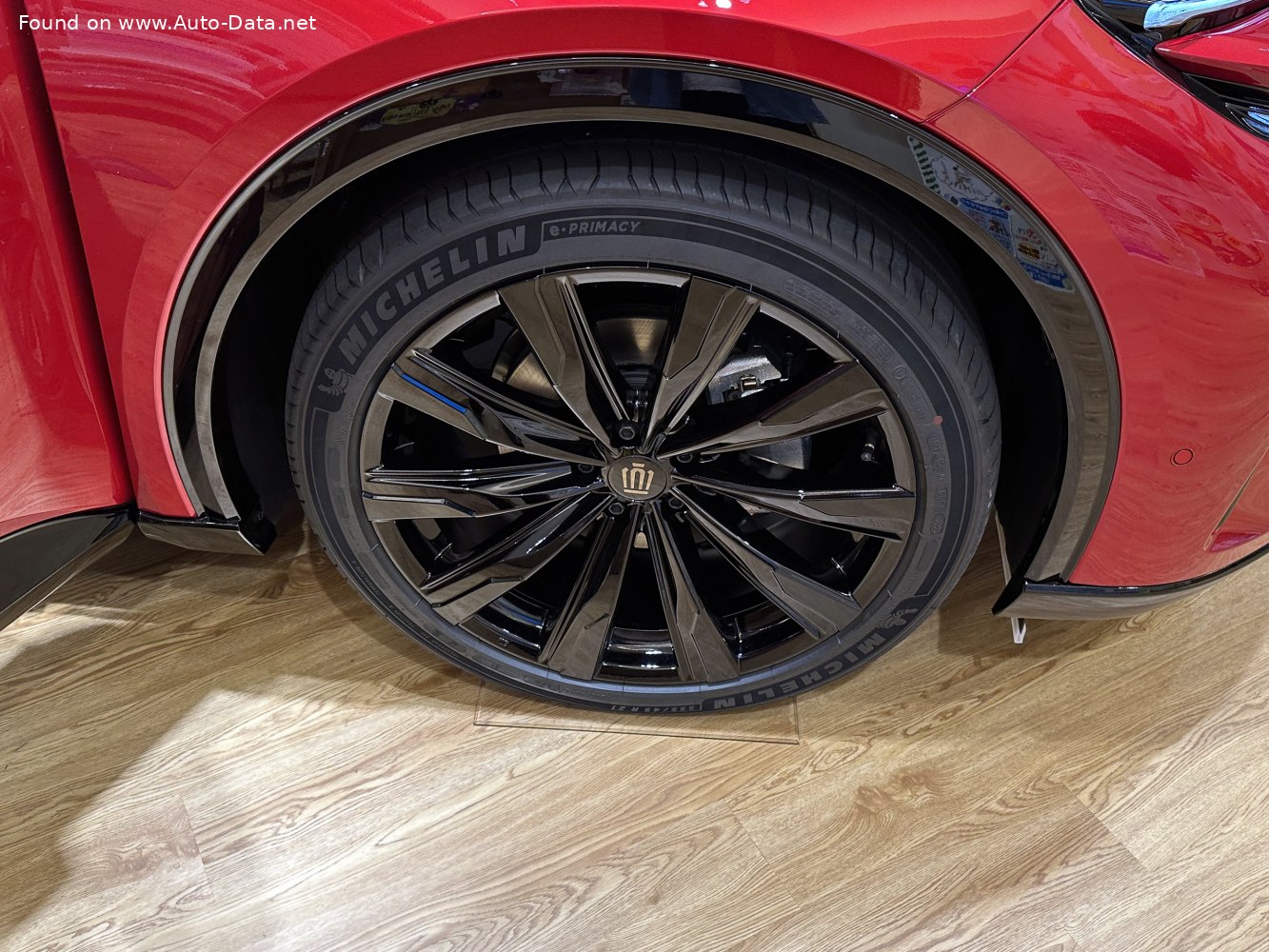

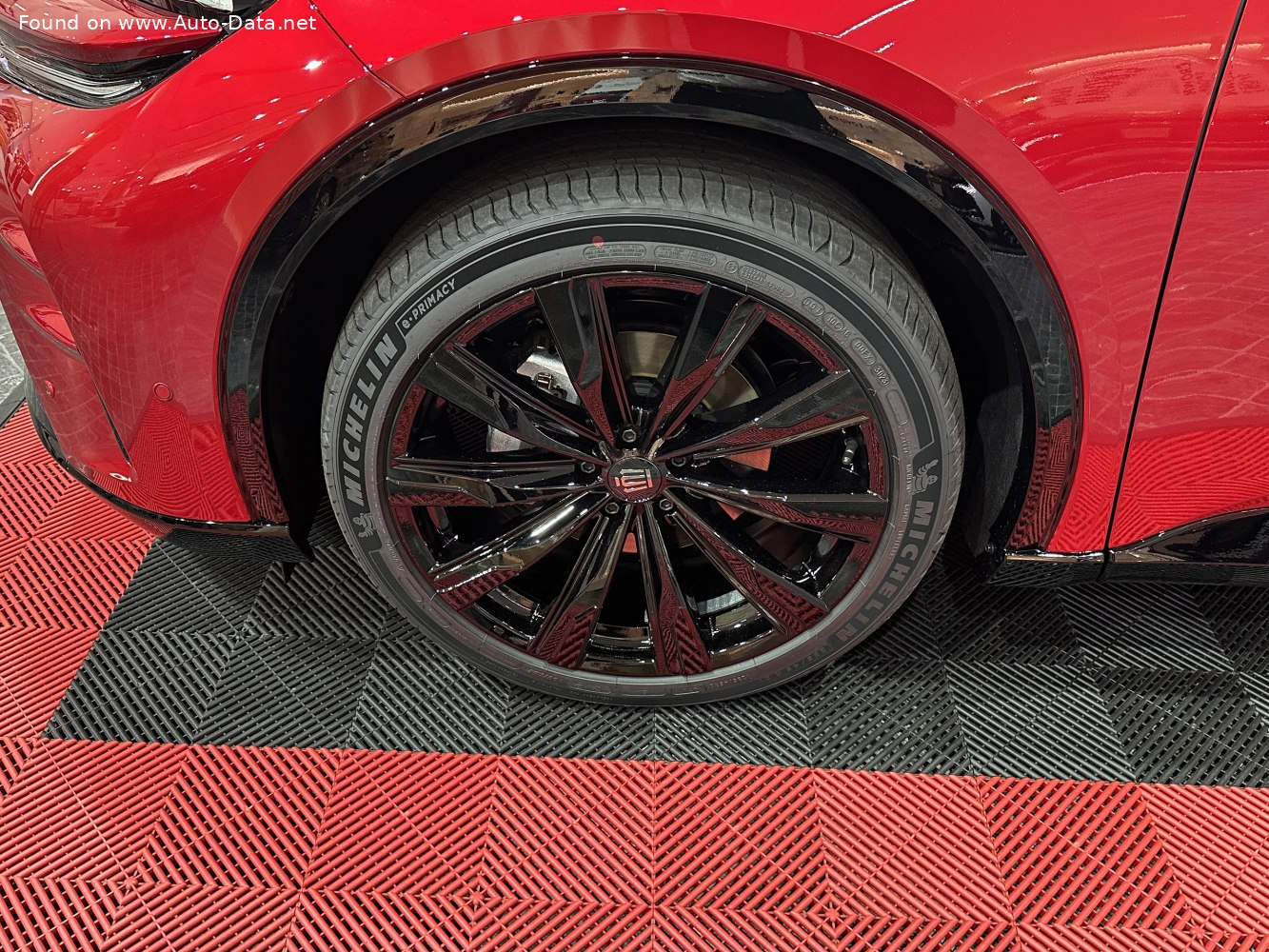

Tires size 225/45 R21; 235/45 R21
Wheel rims size 8.5J x 21

Space Toyota Crown XVI Sport S236 2023

Space
Fuel tank capacity 55 l
Kerb Weight 1810-1820 kg
