Hyundai Santa Fe 3 2012
2.0T (264 Hp) AWD Automatic
Generation Santa Fe 3
Body Type SUV
Seats 5
2016
End Year
5
Doors
Hyundai Santa Fe 3 2012 Key Specs
Body Type
SUV
Doors
5
Drive Wheel
All wheel drive (4x4)
End Of Production
2016
Engine Aspiration
Twin-scroll turbo, Intercooler
Engine Oil Capacity
4.8 l
Fuel Type
Petrol (Gasoline)
Fuel Tank Capacity
66 l
Generation
Santa Fe III (DM)
Kerb Weight
1681-1823 kg
Modification (Engine)
2.0T (264 Hp) AWD Automatic
Number Of Cylinders
4
Power
264 Hp @ 6000 rpm.
Power Steering
Electric Steering
Powertrain Architecture
Internal Combustion engine
Seats
5
Start Of Production
2012
Wheel Rims Size
7J x 18; 7.5J x 19

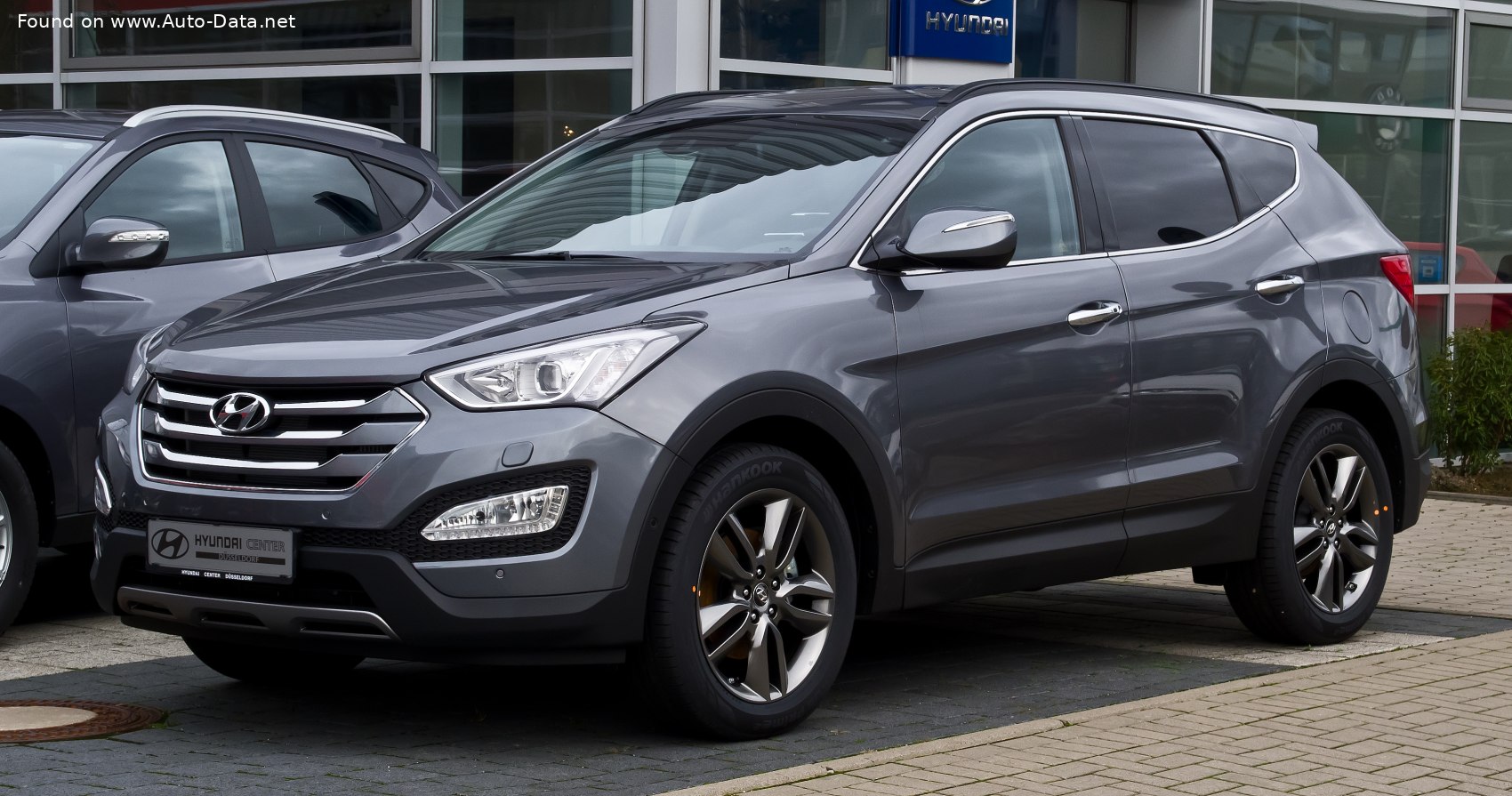

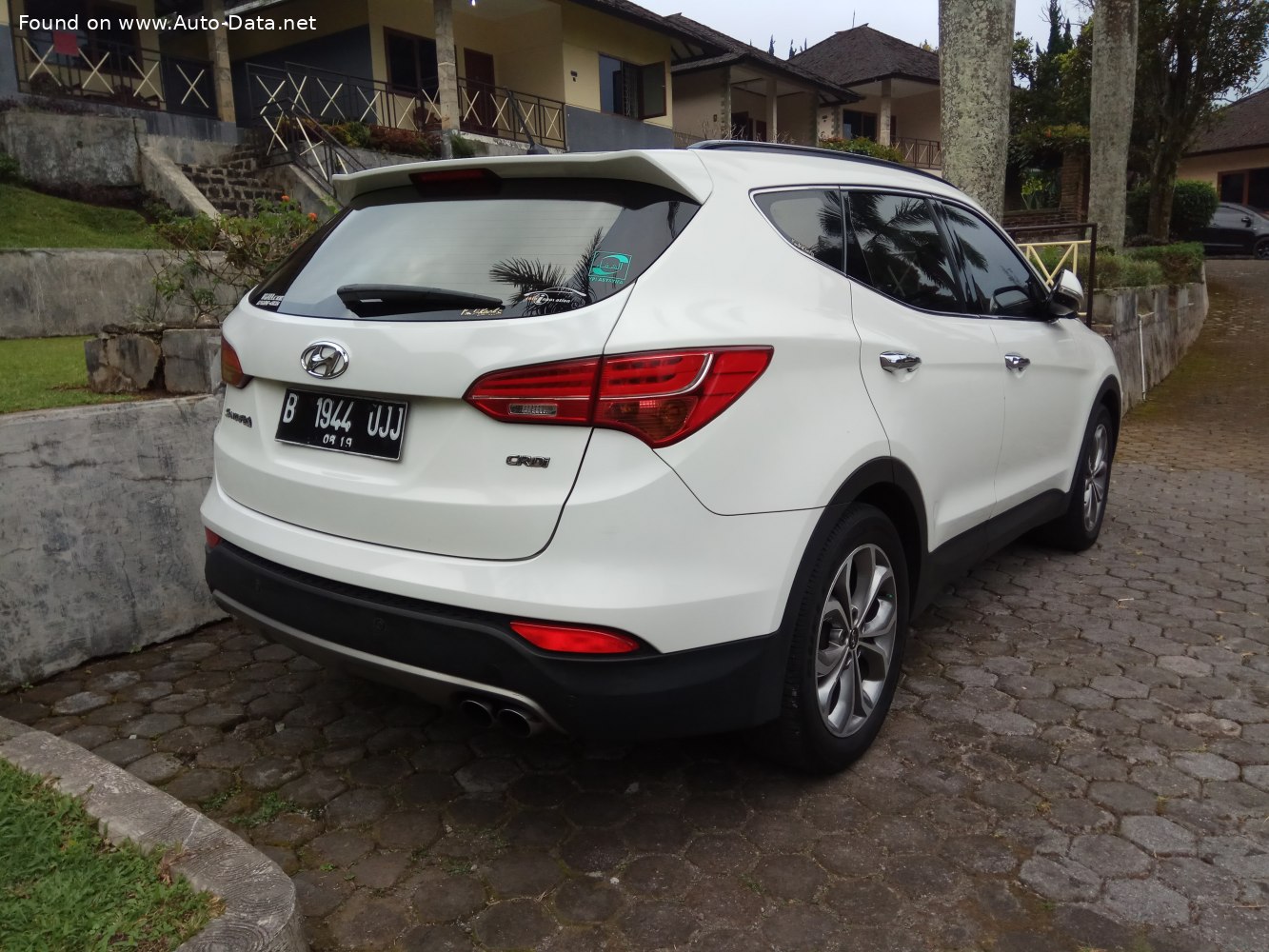

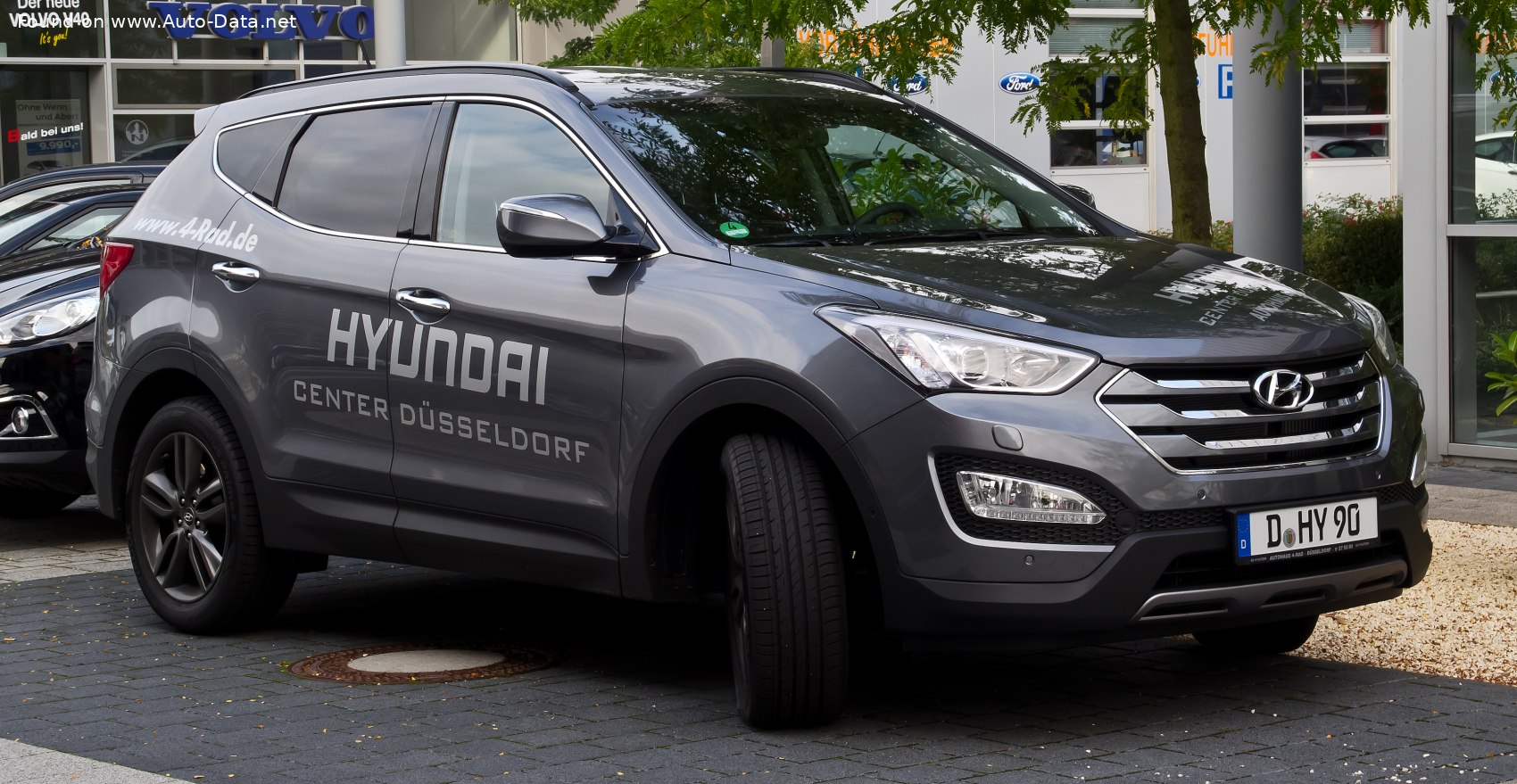

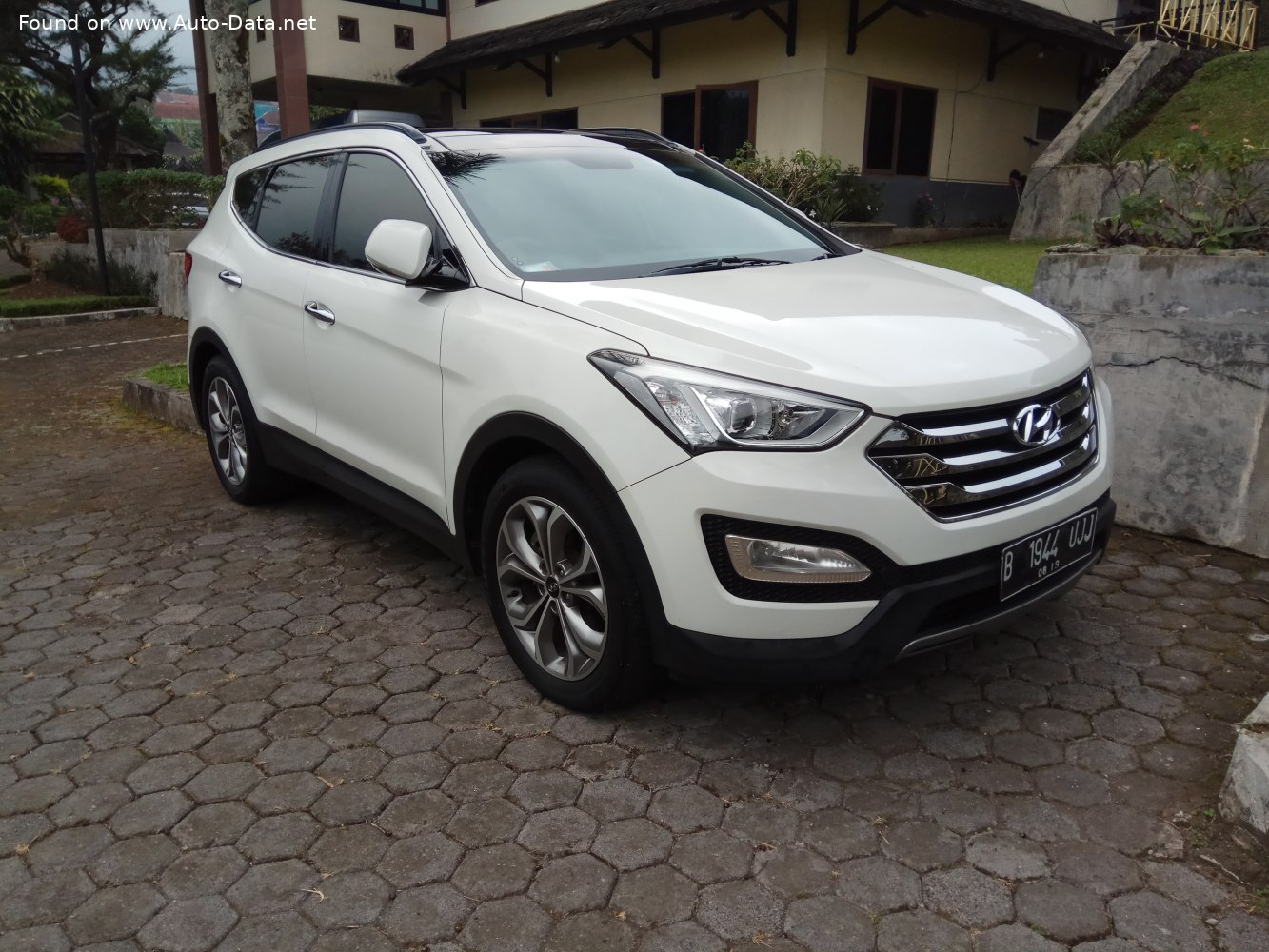

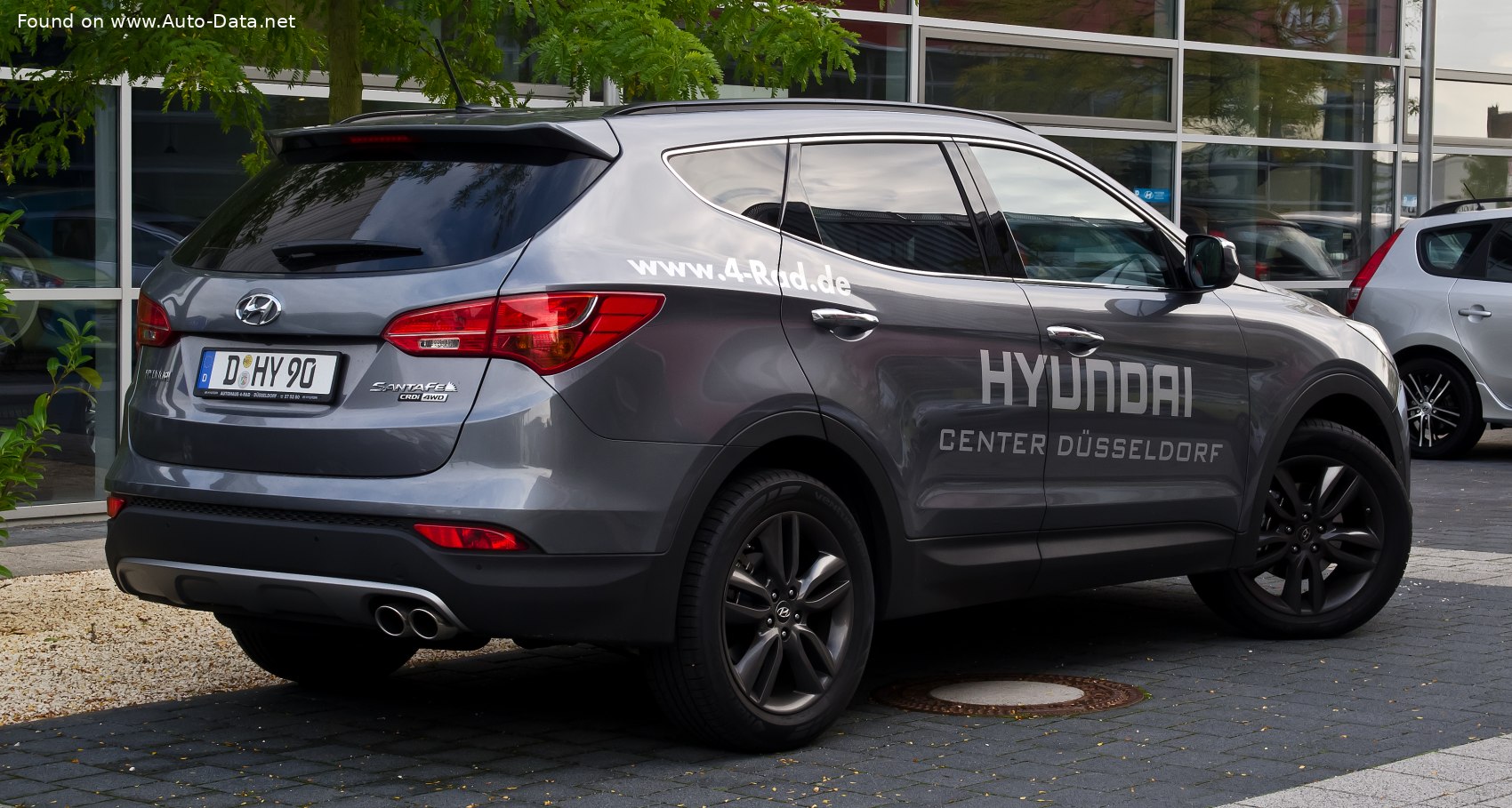

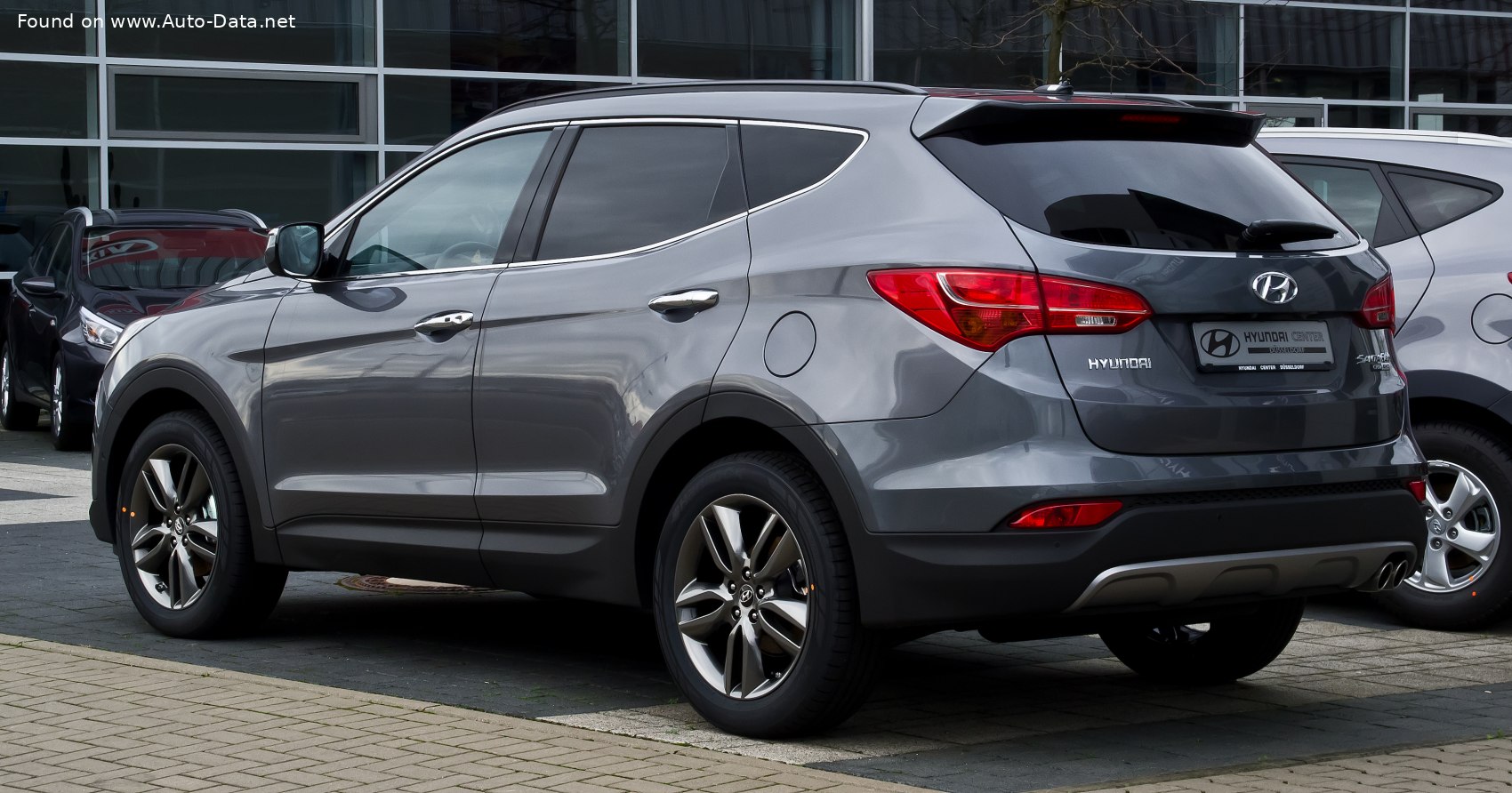

Hyundai Santa Fe 3 2012 Gallery
Hyundai Santa Fe 3 2012 Technical Specifications
General
Body type
SUV
Brand
Hyundai
Doors
5
End of production
2016
Generation
Santa Fe III (DM)
Model
Santa Fe
Modification (Engine)
2.0T (264 Hp) AWD Automatic
Powertrain Architecture
Internal Combustion engine
Seats
5
Start of production
2012
Performance
Emission standard
LEV-II ULEV
Fuel Type
Petrol (Gasoline)
Fuel consumption (economy) - combined (EPA)
11.2 l/100 km
Fuel consumption (economy) - extra urban (EPA)
9.8 l/100 km
Fuel consumption (economy) - urban (EPA)
13.1 l/100 km
Dimensions
Drag coefficient (Cd)
0.34
Front track
1628 mm
Height
1680 mm
Length
4690 mm
Minimum turning circle (turning diameter)
10.9 m
Rear (Back) track
1639 mm
Ride height (ground clearance)
185 mm
Wheelbase
2700 mm
Width
1880 mm
Engine
Compression ratio
9.5
Coolant
9.7 l
Cylinder Bore
86 mm
Engine Model/Code
Theta II / G4KH
Engine aspiration
Twin-scroll turbo, Intercooler
Engine configuration
Inline
Engine displacement
1998 cm
Engine layout
Front, Transverse
Engine oil capacity
4.8 l
Engine oil specification
Log in to see.
Fuel injection system
Direct injection
Number of cylinders
4
Number of valves per cylinder
4
Power
264 Hp @ 6000 rpm.
Torque
365 Nm @ 1750 rpm.
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
6 gears, automatic transmission
Power steering
Electric Steering
Rear brakes
Disc
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
235/60 R18; 235/55 R19
Wheel rims size
7J x 18; 7.5J x 19
Space
Fuel tank capacity
66 l
Kerb Weight
1681-1823 kg
Max load
527-669 kg
Max. weight
2350 kg
