Brand : Ford
Model : Tourneo Custom
Generation : Tourneo Custom 2 L1
Body Type : Van
Engine Type : Electric
Battery Capacity : 82.5 KW
Electric Range : 204-306 km
Start Year : 2024

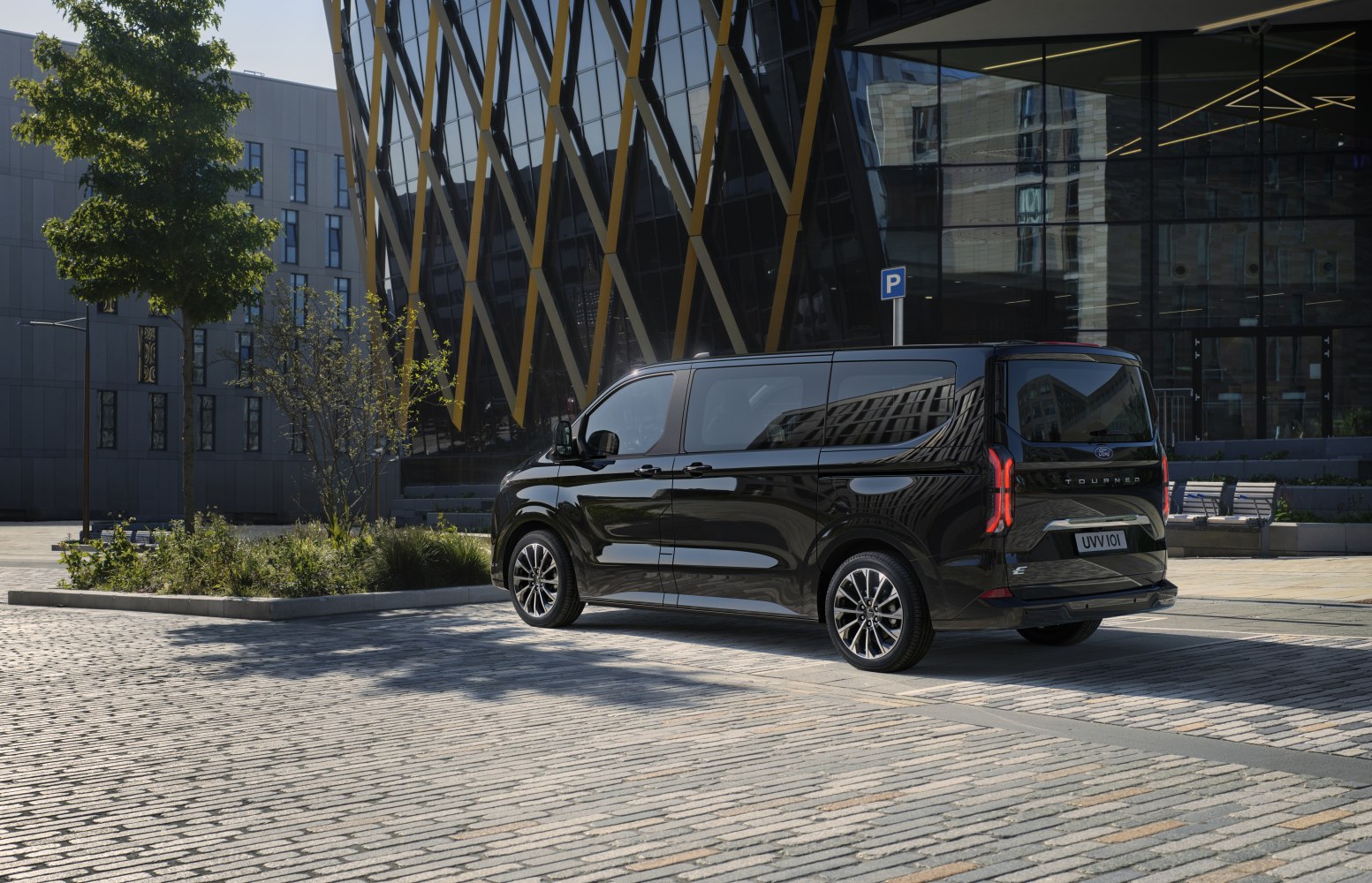

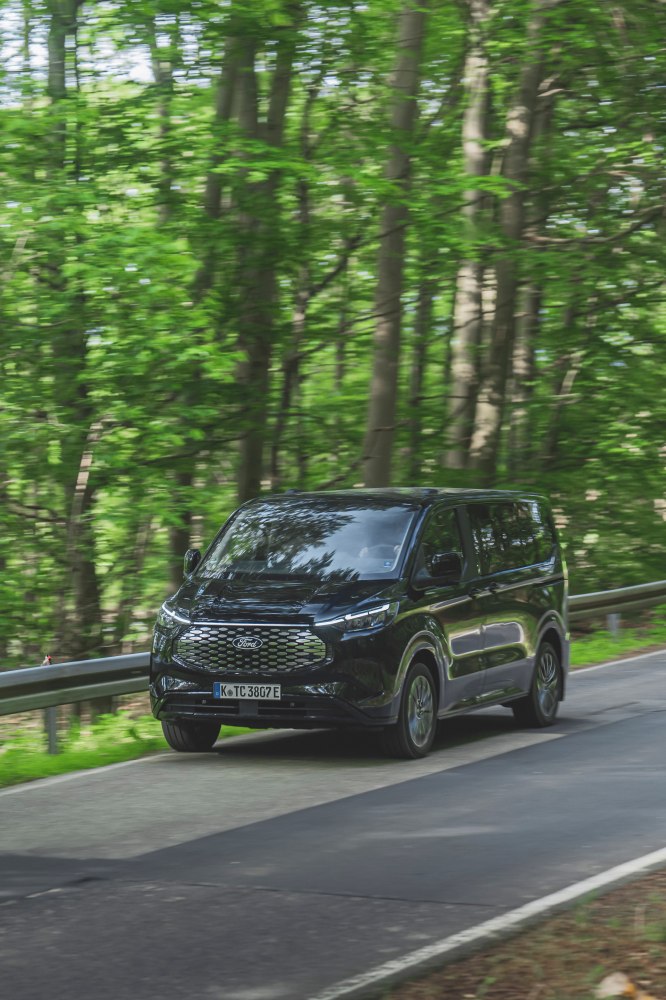

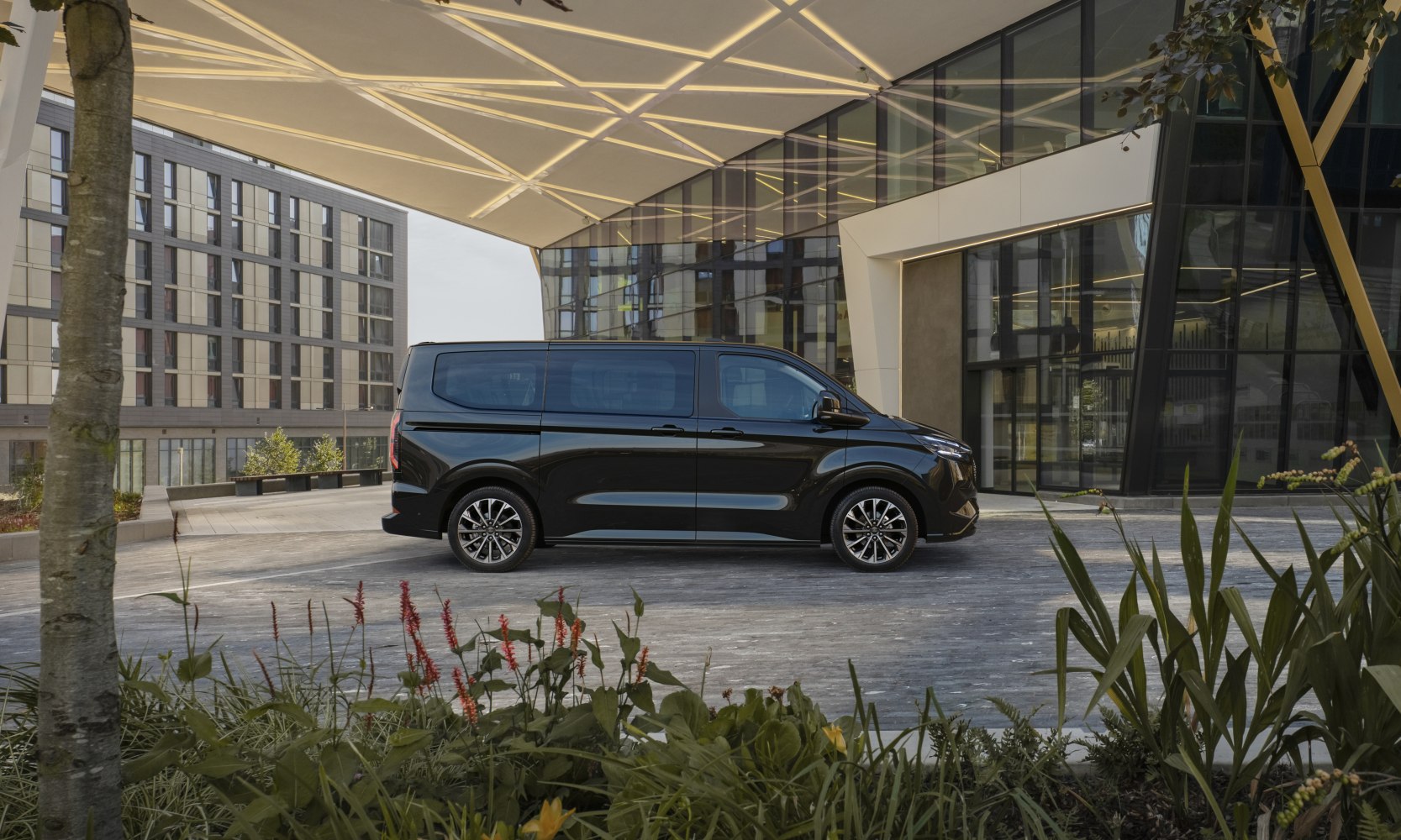

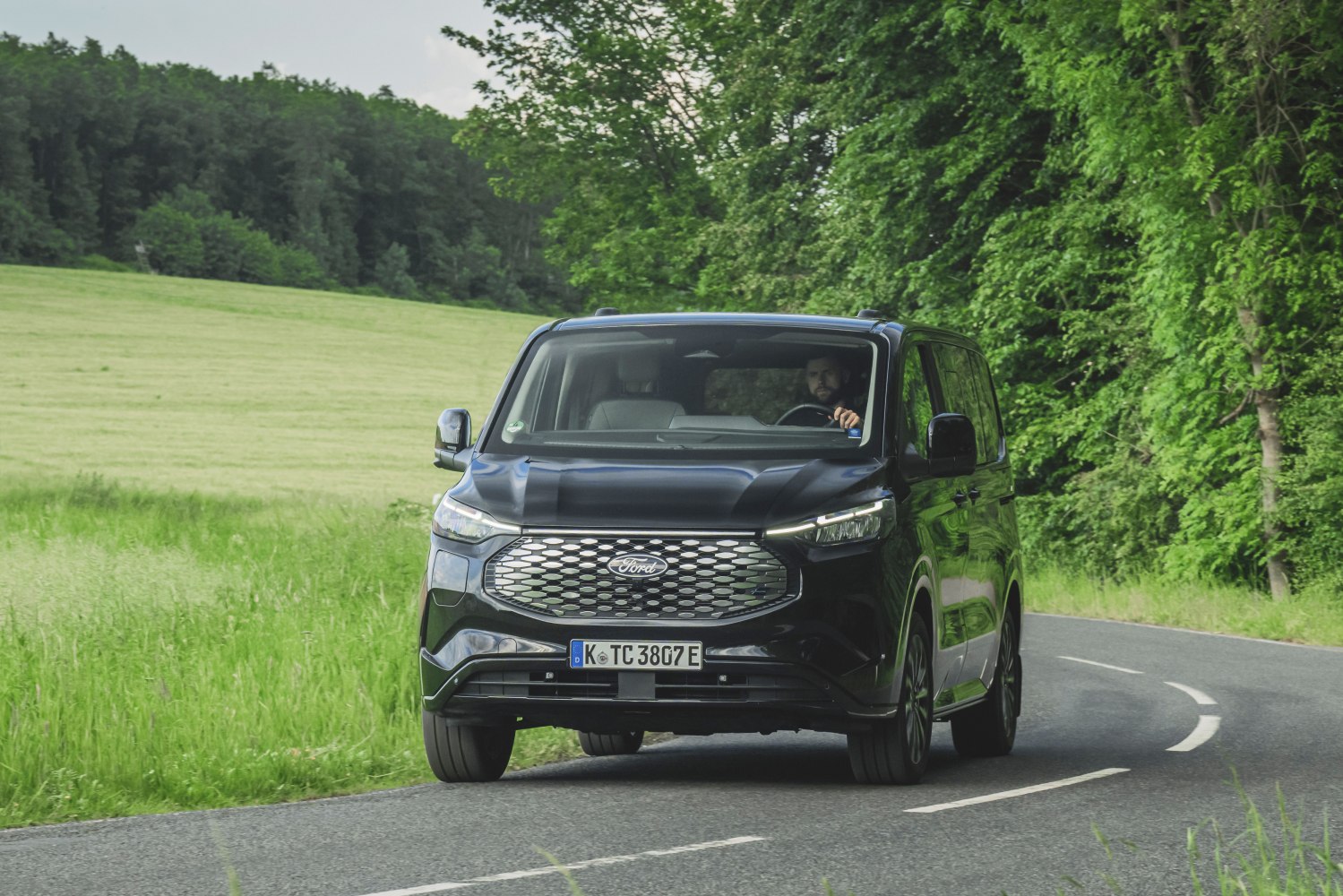

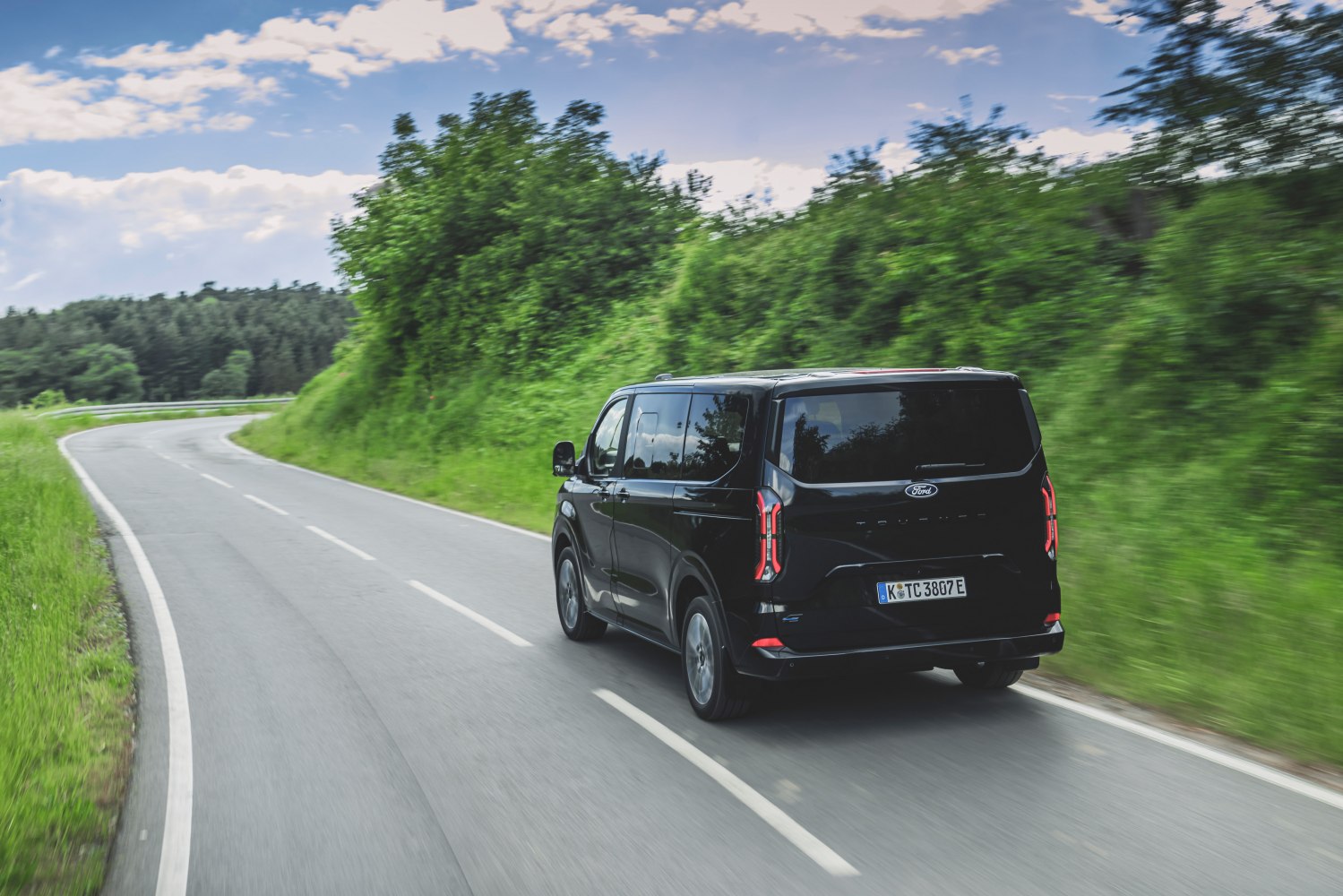

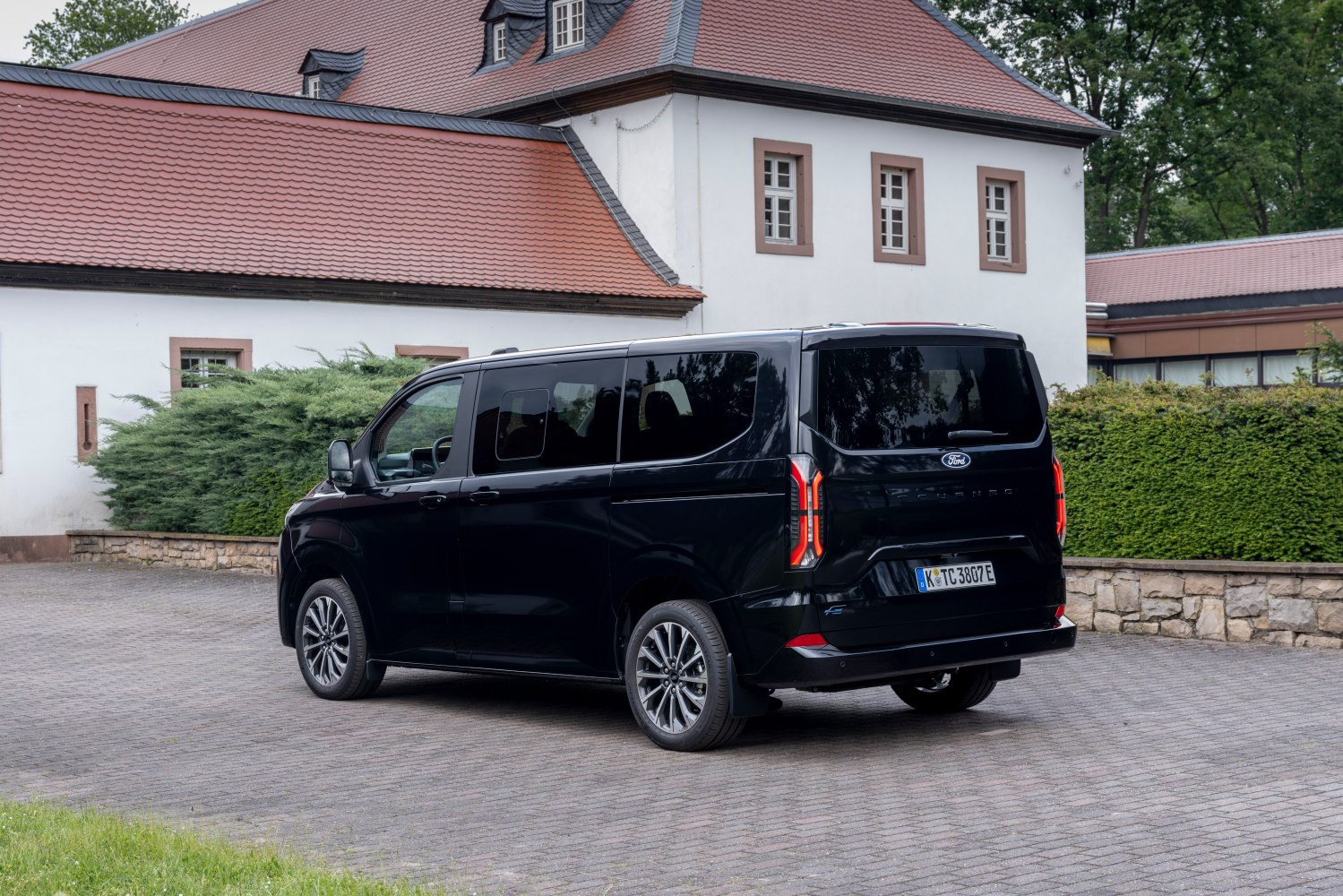

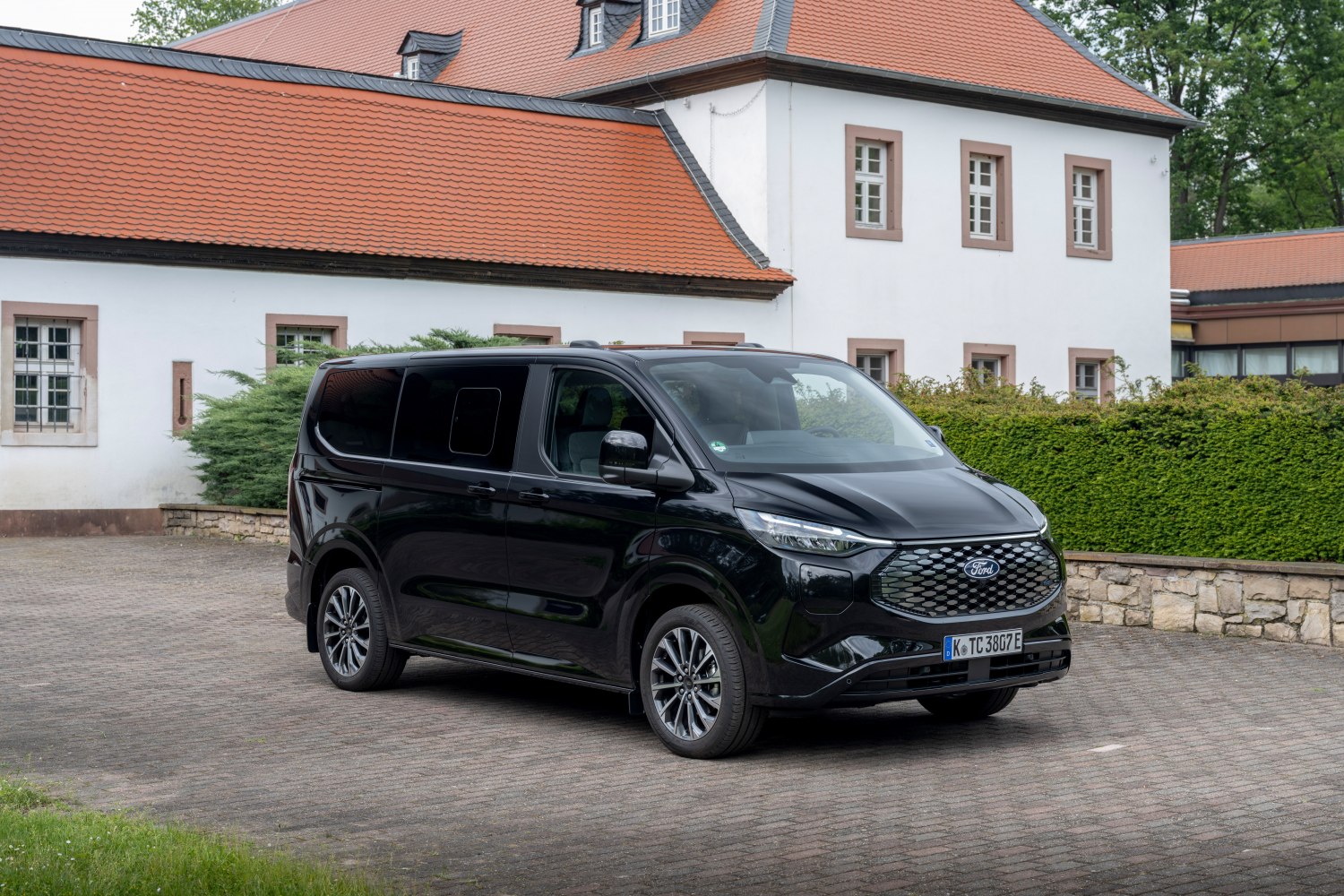

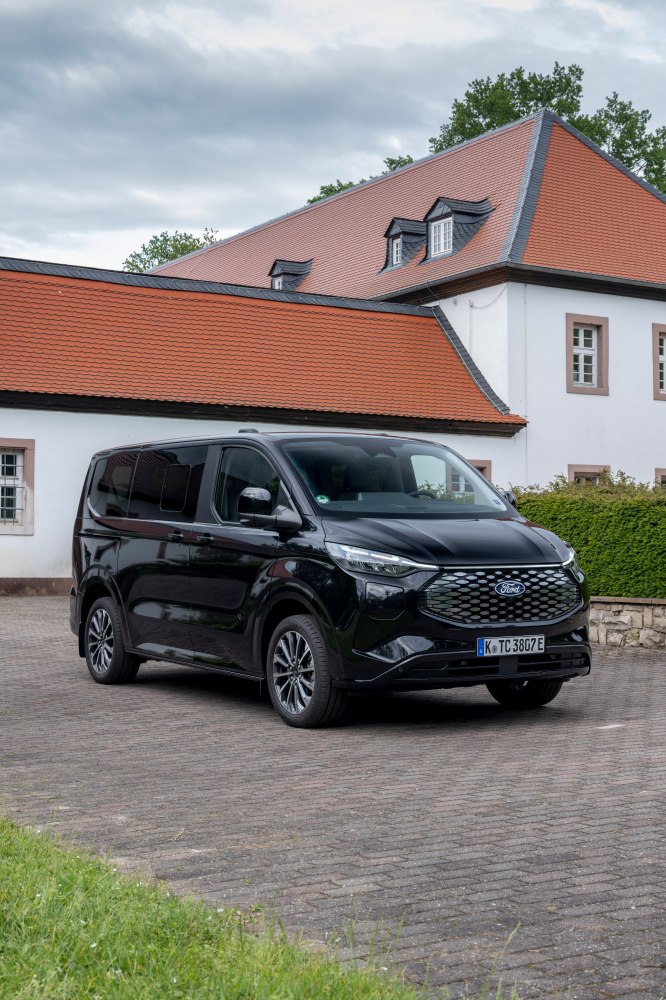

Ford Tourneo Custom 2 L1 2024 82.5 kWh (218 Hp)
Technical Sheet Ford Tourneo Custom II L1 2024
All-electric Range (WLTP)
: 204-306 km
Average Energy Consumption (WLTP)
: 24.7-41.4 kWh/100 km
Body Type
: Van
Doors
: 4-5
Drive Wheel
: Rear wheel drive
Fuel Type
: Electricity
Generation
: Tourneo Custom II L1
Gross Battery Capacity
: 82.5 kWh
Kerb Weight
: 2589 kg
Maximum Speed
: 150 km/h
Modification (Engine)
: 82.5 kWh (218 Hp)
Power Steering
: Electric Steering
Powertrain Architecture
: BEV (Electric Vehicle)
Seats
: 8-9
Start Of Production
: May, 2024
System Power
: 218 Hp
System Torque
: 415 Nm
Wheel Rims Size
: 6.5J x 16; 6.5J x 17; 7.5J x 19
General Ford Tourneo Custom II L1 2024
| General | |
| Body type | Van |
| Brand | Ford |
| Doors | 4-5 |
| Generation | Tourneo Custom II L1 |
| Model | Tourneo Custom |
| Modification (Engine) | 82.5 kWh (218 Hp) |
| Powertrain Architecture | BEV (Electric Vehicle) |
| Seats | 8-9 |
| Start of production | May, 2024 |
Performance Ford Tourneo Custom II L1 2024
| Performance | |
| Fuel Type | Electricity |
| Maximum speed | 150 km/h |
Electric Ford Tourneo Custom II L1 2024
| Electric | |
| Gross battery capacity | 82.5 kWh |
| Net (usable) battery capacity | 64 kWh |
| Battery location | Below the floor |
| All-electric range (WLTP) | 204-306 km |
| Average Energy consumption (WLTP) | 24.7-41.4 kWh/100 km |
| Charging ports number 0 | Log in to see. |
| Electric motor power number 1 | 218 Hp |
| Electric motor Torque number 1 | 415 Nm |
| Electric motor model/code number 1 | EKRA |
| Electric motor location number 1 | Rear axle, Transverse |
| System power | 218 Hp |
| System torque | 415 Nm |
Dimensions Ford Tourneo Custom II L1 2024
| Dimensions | |
| Approach angle | 16.5° |
| Departure angle | 16.4° |
| Front overhang | 958 mm |
| Front track | 1730 mm |
| Height | 1959-2040 mm |
| Length | 5050 mm |
| Minimum turning circle (turning diameter) | 11.6-12.3 m |
| Rear (Back) track | 1721 mm |
| Rear overhang | 992 mm |
| Ride height (ground clearance) | 140 mm |
| Wheelbase | 3100 mm |
| Width | 2032 mm |
Drivetrain Ford Tourneo Custom II L1 2024
| Drivetrain | |
| Drive wheel | Rear wheel drive |
| Front brakes | Ventilated discs, 308 mm |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Number of gears and type of gearbox | 1 gears, automatic transmission |
| Power steering | Electric Steering |
| Rear brakes | Ventilated discs, 304 mm |
| Rear suspension | Independent coil spring, Trailing arm |
| Steering type | Steering rack and pinion |
| Tires size | 215/65 R16; 215/60 R17; 235/50 R19 |
| Wheel rims size | 6.5J x 16; 6.5J x 17; 7.5J x 19 |
Space Ford Tourneo Custom II L1 2024
| Space | |
| Kerb Weight | 2589 kg |
| Max load | 726 kg |
| Max. weight | 3315 kg |
