Ford Transit Connect 2 2018 Panel Van L1
1.5 EcoBlue (120 Hp) Automatic
Generation Transit Connect 2 2018 Panel Van L1
Body Type Minivan
Seats 2
2023
End Year
4
Doors
Ford Transit Connect 2 2018 Panel Van L1 Key Specs
Body Type
Minivan
Doors
4-5
Drive Wheel
Front wheel drive
End Of Production
2023
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
6 l
Engine Systems
Start & Stop SystemParticulate filter
Fuel Type
Diesel
Fuel Tank Capacity
60 l
Generation
Transit Connect II (2018) Panel Van L1
Kerb Weight
1502-1551 kg
Modification (Engine)
1.5 EcoBlue (120 Hp) Automatic
Number Of Cylinders
4
Power
120 Hp
Power Steering
Electric Steering
Powertrain Architecture
Internal Combustion engine
Seats
2-3
Start Of Production
2018
Wheel Rims Size
6.5J x 16; 6.5J x 17

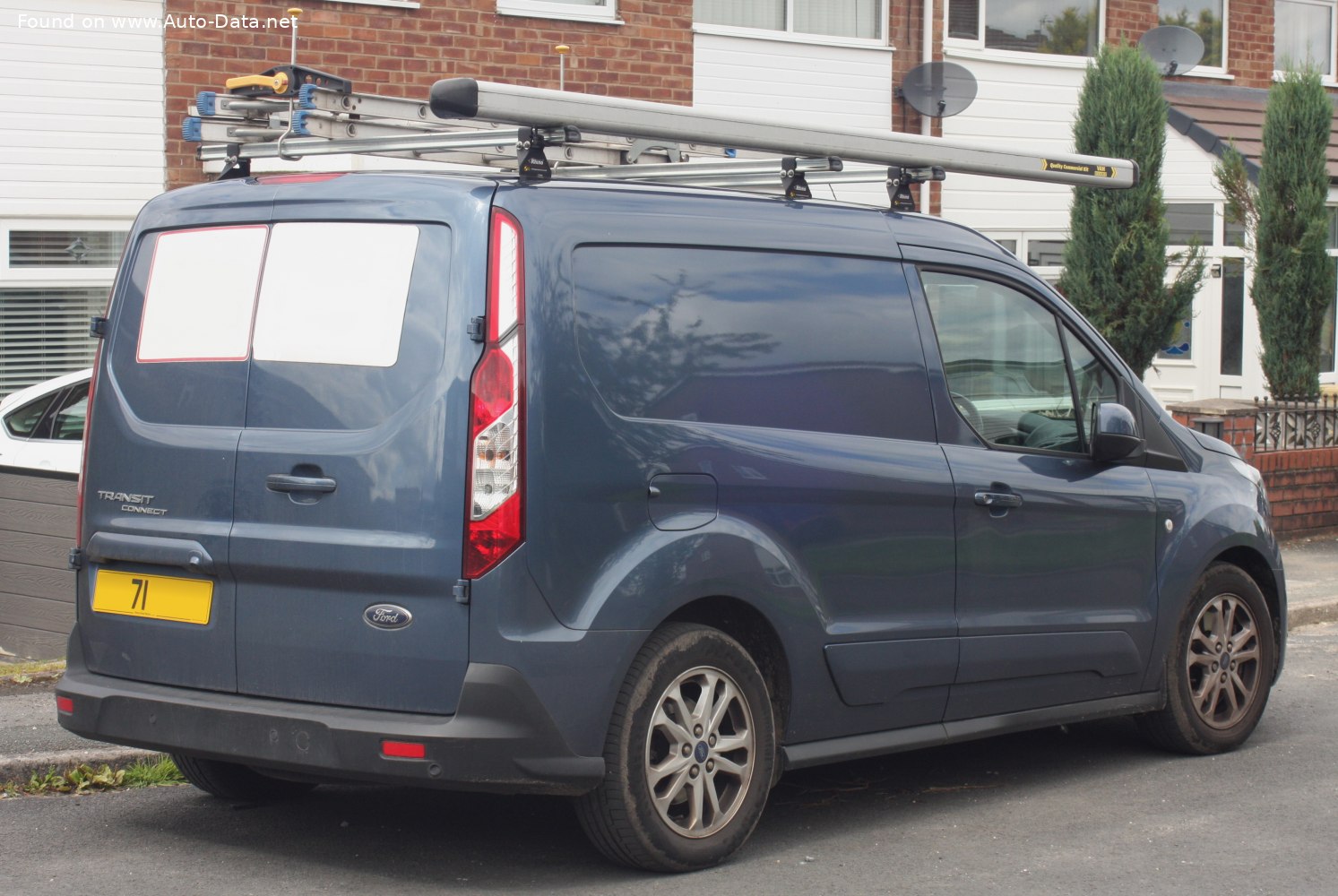

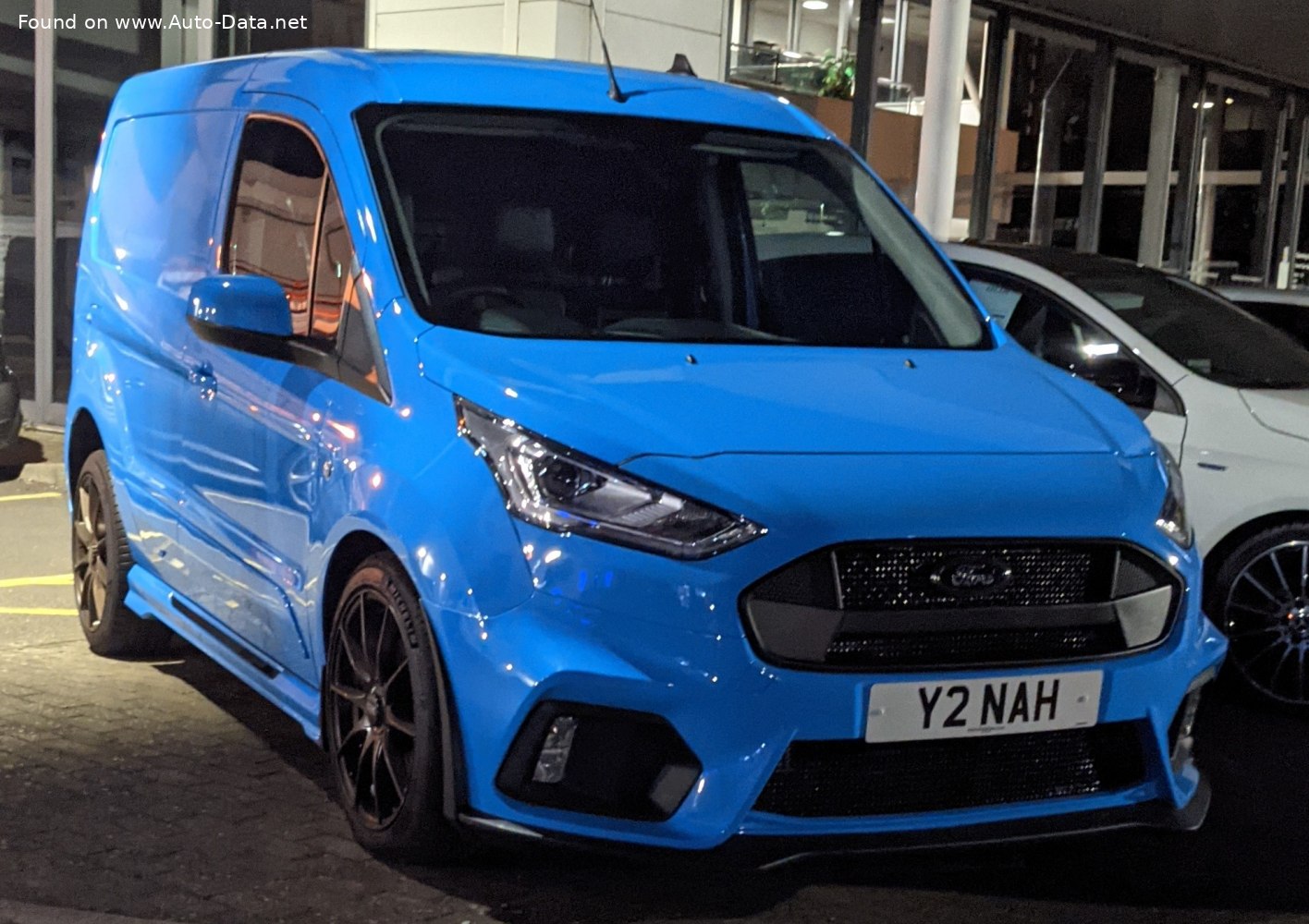

Ford Transit Connect 2 2018 Panel Van L1 Gallery
Ford Transit Connect 2 2018 Panel Van L1 Pros and Cons
Pros
- Excellent fuel efficiency for a diesel engine
- Spacious cargo area with up to 3700 liters of space
- Reliable 120 HP engine with 270 Nm torque
- Comfortable suspension for smooth rides
- Advanced safety features like ABS and electric steering
- Versatile towing capacity for commercial use
Cons
- Limited seating capacity (2-3 seats)
- Higher kerb weight may affect agility
- Basic interior design compared to competitors
Ford Transit Connect 2 2018 Panel Van L1 FAQs
What is the fuel efficiency of this vehicle?
This model offers impressive fuel efficiency, with urban consumption ranging from 5.2-6 l/100 km and extra-urban consumption between 4.7-5 l/100 km.
How much cargo space does it provide?
The minivan boasts a generous cargo capacity, with a minimum trunk space of 2600 liters and a maximum of 3700 liters, making it ideal for transporting goods.
What type of engine does it have?
It is equipped with a 1.5-liter EcoBlue diesel engine, delivering 120 HP and 270 Nm of torque, ensuring reliable performance for both city and highway driving.
Is this vehicle suitable for long-distance travel?
Yes, with its efficient diesel engine, comfortable suspension, and spacious interior, this automobile is well-suited for long journeys.
What safety features are included?
The Transit Connect II 2018 Panel Van L1 comes with ABS, electric power steering, and a robust braking system, ensuring a safe driving experience.
How many seats does it have?
This model is designed with 2-3 seats, making it a practical choice for commercial use or small teams.
What is the maximum towing capacity?
It can tow up to 1500 kg with brakes and 750 kg without brakes, providing versatility for various hauling needs.
Ford Transit Connect 2 2018 Panel Van L1 Technical Specifications
General
Body type
Minivan
Brand
Ford
Doors
4-5
End of production
2023
Generation
Transit Connect II (2018) Panel Van L1
Model
Transit Connect
Modification (Engine)
1.5 EcoBlue (120 Hp) Automatic
Powertrain Architecture
Internal Combustion engine
Seats
2-3
Start of production
2018
Performance
CO2 emissions (NEDC)
134-138 g/km
Emission standard
Euro 6d-TEMP-EVAP-ISC
Fuel Type
Diesel
Fuel consumption (economy) - combined (NEDC)
5.1-5.2 l/100 km
Fuel consumption (economy) - extra urban (NEDC)
4.7-5 l/100 km
Fuel consumption (economy) - urban (NEDC)
5.2-6 l/100 km
Dimensions
Front overhang
885 mm
Front track
1568 mm
Height
1830 mm
Length
4425 mm
Minimum turning circle (turning diameter)
11.7 m
Rear (Back) track
1582 mm
Rear overhang
878 mm
Ride height (ground clearance)
148 mm
Wheelbase
2662 mm
Width
1835 mm
Engine
Coolant
7 l
Cylinder Bore
75 mm
Engine Model/Code
ZTGA
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1498 cm
Engine layout
Front, Transverse
Engine oil capacity
6 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop SystemParticulate filter
Fuel injection system
Diesel Commonrail
Number of cylinders
4
Number of valves per cylinder
4
Power
120 Hp
Torque
270 Nm
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
8 gears, automatic transmission
Power steering
Electric Steering
Rear brakes
Disc
Rear suspension
Semi-dependent beam with stabilizer lateral stability
Steering type
Steering rack and pinion
Tires size
205/60 R16; 215/55 R16; 215/55 R17
Wheel rims size
6.5J x 16; 6.5J x 17
Space
AdBlue tank
17 l
Fuel tank capacity
60 l
Kerb Weight
1502-1551 kg
Max load
628-854 kg
Max. weight
2130-2405 kg
