Ford Transit Connect 2 Panel Van L1 2015
1.5 TDCi (75 Hp)
Generation Transit Connect 2 Panel Van L1
Body Type Minivan
Seats 2
2018
End Year
4
Doors
Ford Transit Connect 2 Panel Van L1 2015 Key Specs
Body Type
Minivan
Doors
4-5
Drive Wheel
Front wheel drive
End Of Production
2018
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
6.2 l
Engine Systems
Particulate filter
Fuel Type
Diesel
Fuel Tank Capacity
60 l
Generation
Transit Connect II Panel Van L1
Kerb Weight
1382-1433 kg
Modification (Engine)
1.5 TDCi (75 Hp)
Number Of Cylinders
4
Power
75 Hp
Power Steering
Electric Steering
Powertrain Architecture
Internal Combustion engine
Seats
2-3
Start Of Production
2015
Wheel Rims Size
6.5J x 16

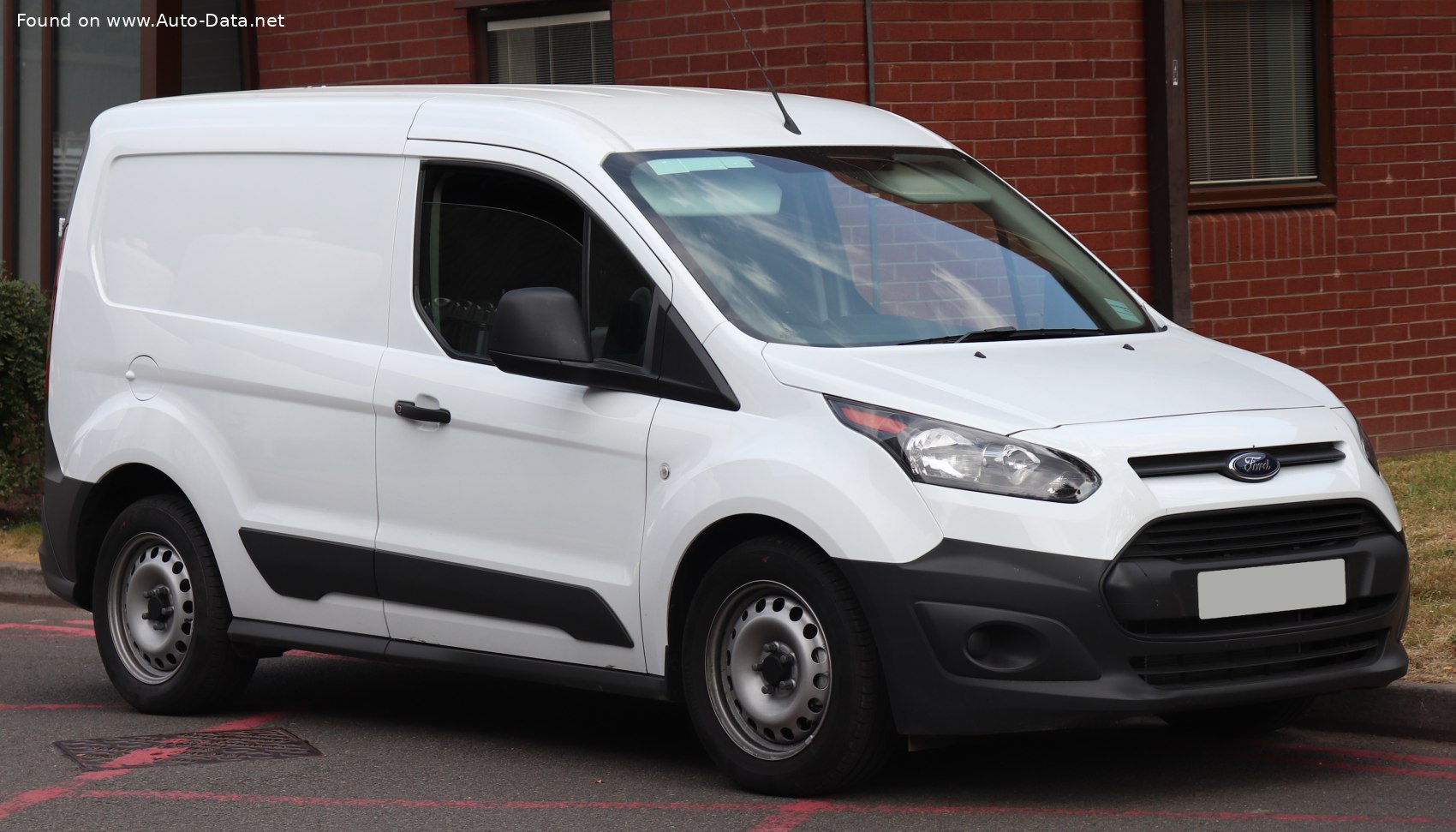

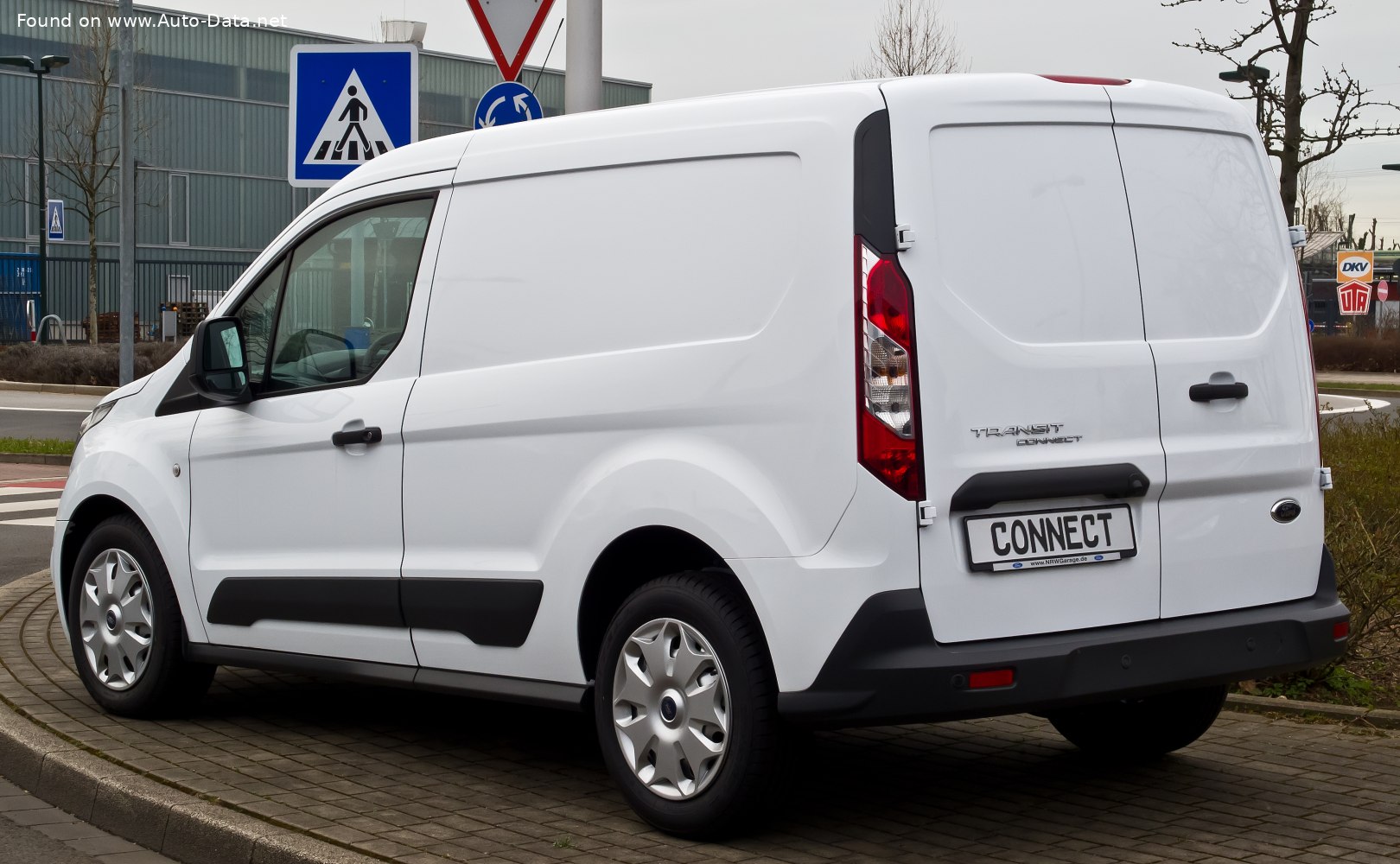

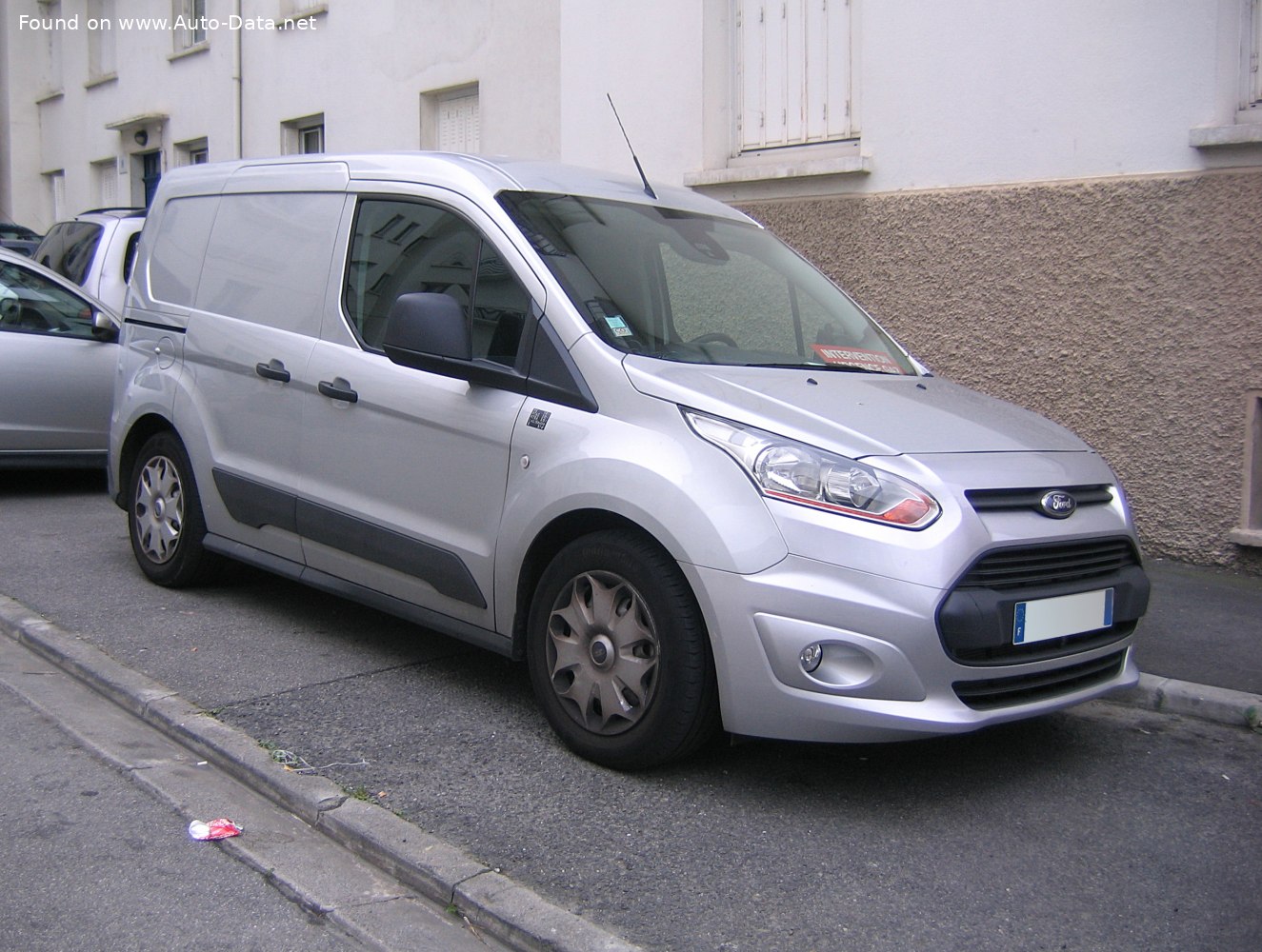

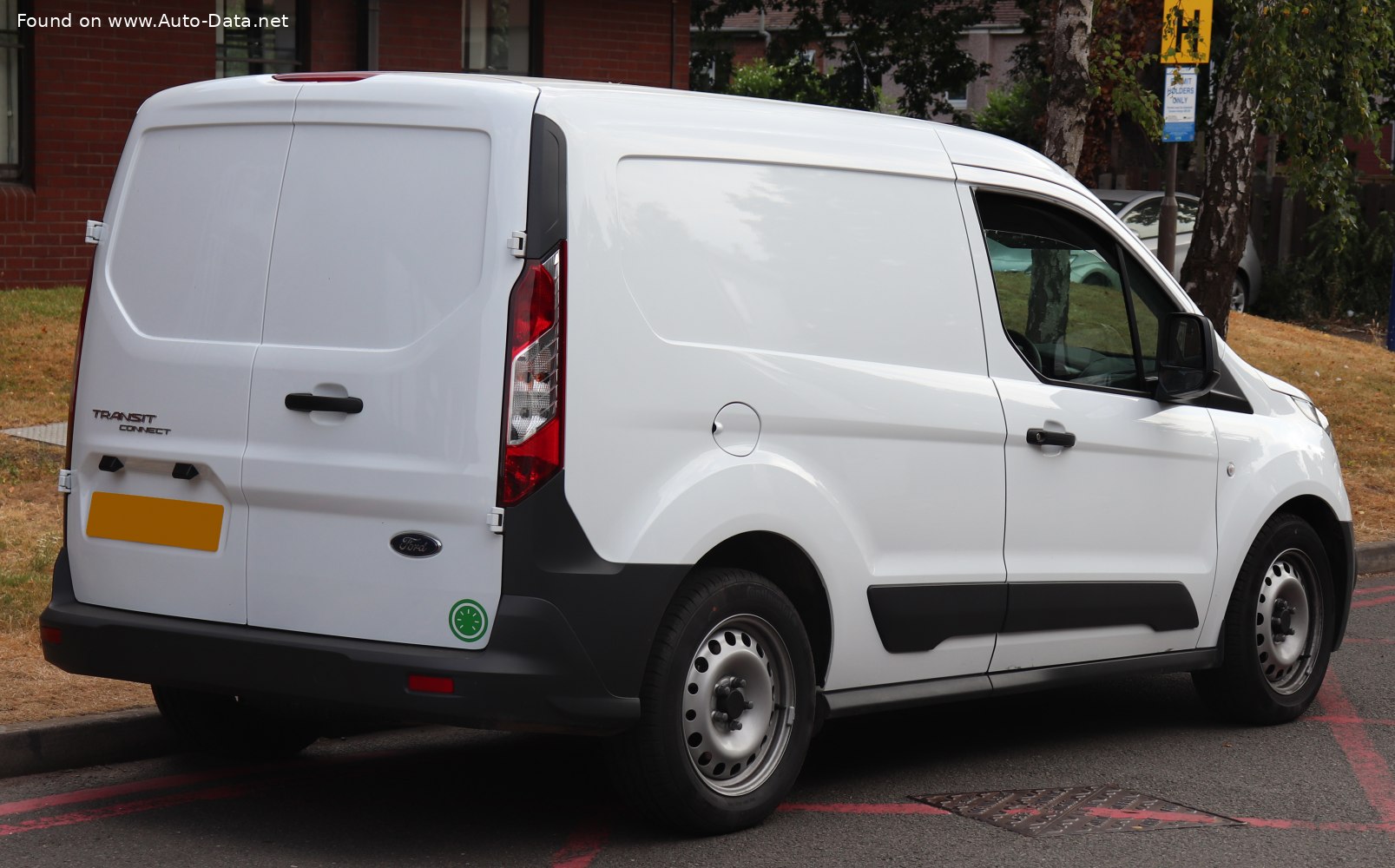

Ford Transit Connect 2 Panel Van L1 2015 Gallery
Ford Transit Connect 2 Panel Van L1 2015 Pros and Cons
Pros
- Excellent fuel efficiency for cost-effective operations
- Spacious cargo area with up to 3700 liters of capacity
- Compact size ideal for urban driving and parking
- Reliable 1.5 TDCi diesel engine with 75 HP
- Complies with Euro 6 emission standards
- Electric power steering for easy maneuverability
Cons
- Limited horsepower may not suit heavy-duty tasks
- Basic interior features compared to competitors
- Manual transmission only, no automatic option
Ford Transit Connect 2 Panel Van L1 2015 FAQs
What is the fuel efficiency of this vehicle?
This model offers excellent fuel efficiency, with urban consumption at 5.2 l/100 km and combined consumption at 4.6 l/100 km.
How much cargo space does it provide?
The minivan offers a generous cargo capacity, ranging from 2630 liters to a maximum of 3700 liters, making it ideal for transporting goods.
What type of engine does it have?
It is equipped with a 1.5 TDCi diesel engine, delivering 75 HP and 220 Nm of torque, ensuring reliable performance for urban and light-duty tasks.
Is this vehicle suitable for city driving?
Yes, its compact dimensions, efficient engine, and electric power steering make it highly maneuverable and suitable for city driving.
What safety features are included?
This automobile comes with ABS, ventilated front disc brakes, and a robust suspension system for enhanced safety and stability.
What is the maximum load capacity?
The maximum load capacity ranges from 623 kg to 782 kg, depending on the configuration, making it versatile for various business needs.
Does it have a particulate filter?
Yes, the engine includes a particulate filter, ensuring compliance with Euro 6 emission standards and reducing environmental impact.
Ford Transit Connect 2 Panel Van L1 2015 Technical Specifications
General
Body type
Minivan
Brand
Ford
Doors
4-5
End of production
2018
Generation
Transit Connect II Panel Van L1
Model
Transit Connect
Modification (Engine)
1.5 TDCi (75 Hp)
Powertrain Architecture
Internal Combustion engine
Seats
2-3
Start of production
2015
Performance
CO2 emissions (NEDC)
120 g/km
Emission standard
Euro 6
Fuel Type
Diesel
Fuel consumption (economy) - combined (NEDC)
4.6 l/100 km
Fuel consumption (economy) - extra urban (NEDC)
4.3 l/100 km
Fuel consumption (economy) - urban (NEDC)
5.2 l/100 km
Dimensions
Front overhang
878 mm
Front track
1568 mm
Height
1861 mm
Length
4418 mm
Minimum turning circle (turning diameter)
11.7 m
Rear (Back) track
1584-1585 mm
Rear overhang
878 mm
Ride height (ground clearance)
152 mm
Wheelbase
2662 mm
Width
1835 mm
Engine
Coolant
6 l
Cylinder Bore
73.5 mm
Engine Model/Code
Duratorq / XUGA
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1499 cm
Engine layout
Front, Transverse
Engine oil capacity
6.2 l
Engine oil specification
Log in to see.
Engine systems
Particulate filter
Fuel injection system
Diesel Commonrail
Number of cylinders
4
Number of valves per cylinder
2
Power
75 Hp
Torque
220 Nm @ 1750-2000 rpm.
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs, 300 mm
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
5 gears, manual transmission
Power steering
Electric Steering
Rear brakes
Disc, 280 mm
Rear suspension
Coil spring, Torsion
Steering type
Steering rack and pinion
Tires size
205/60 R16
Wheel rims size
6.5J x 16
Space
Fuel tank capacity
60 l
Kerb Weight
1382-1433 kg
Max load
623-782 kg
Max. weight
2005-2215 kg
