Mercedes-Benz M-class W163 2001
ML 270 CDI (163 Hp) 4MATIC 5G-TRONIC
Generation M-class W163 2001
Body Type SUV
Seats 5
2004
End Year
183 km/h
Maximum Speed
5
Doors
Mercedes-Benz M-class W163 2001 Key Specs
Acceleration 0 - 100 Km/h
11.4 sec
Acceleration 0 - 62 Mph
11.4 sec
Body Type
SUV
Doors
5
Drive Wheel
All wheel drive (4x4)
End Of Production
December, 2004
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
7.5 l
Fuel Type
Diesel
Fuel Tank Capacity
83 l
Generation
M-class (W163, 2001)
Kerb Weight
2100 kg
Maximum Speed
183 km/h
Modification (Engine)
ML 270 CDI (163 Hp) 4MATIC 5G-TRONIC
Number Of Cylinders
5
Power
163 Hp @ 4200 rpm.
Power Steering
Hydraulic Steering
Powertrain Architecture
Internal Combustion engine
Seats
5
Start Of Production
August, 2001
Wheel Rims Size
8J x 17

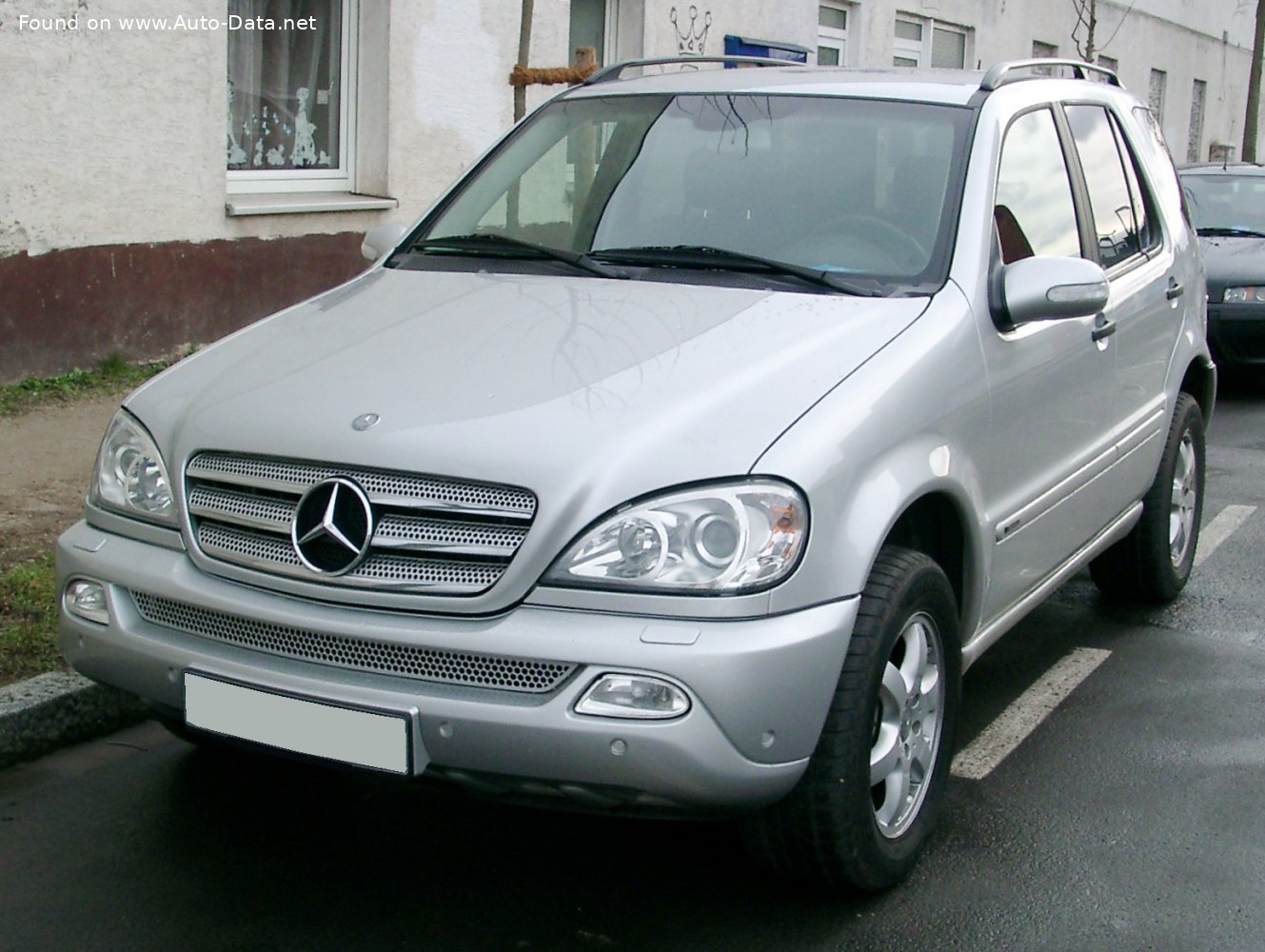

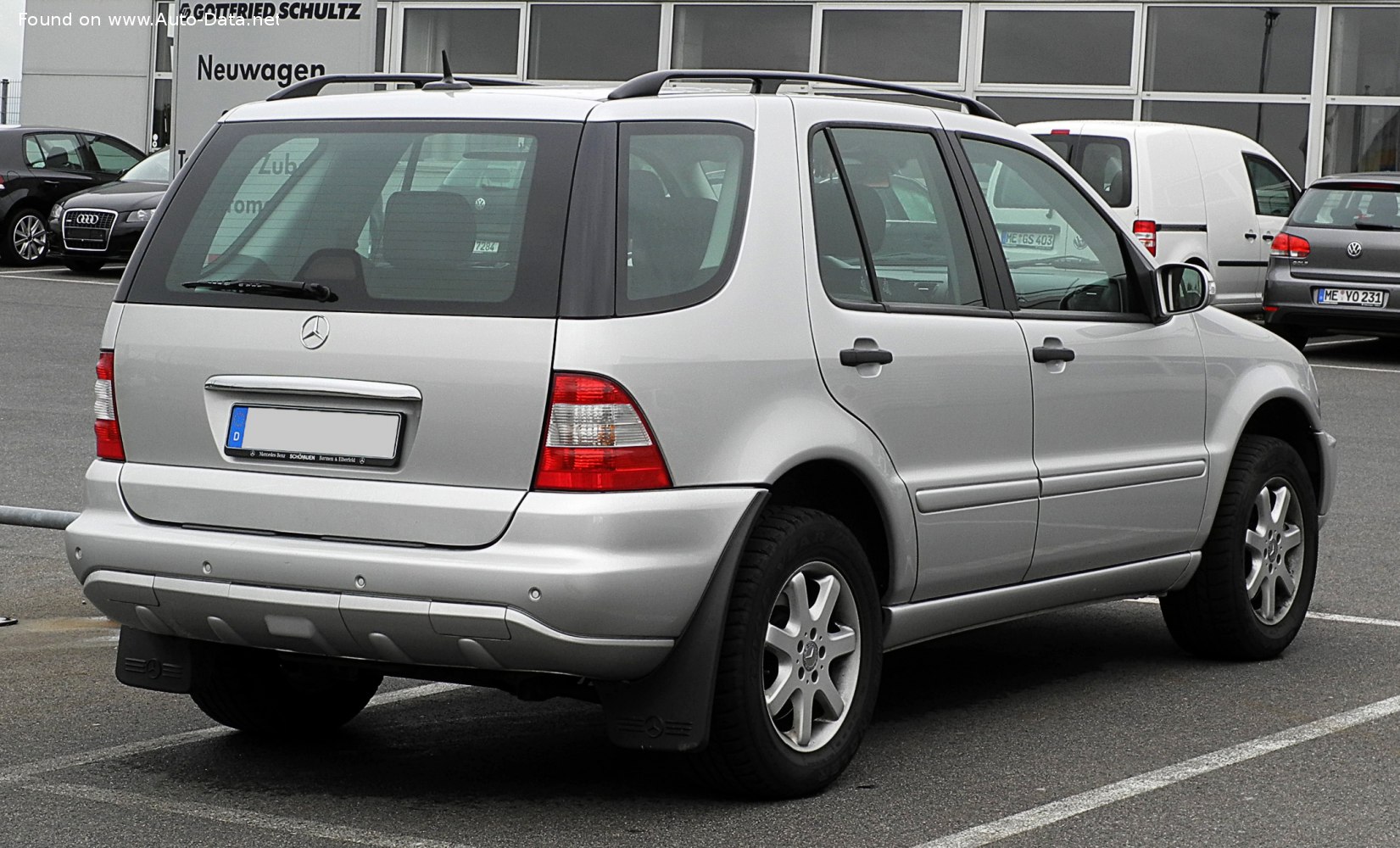

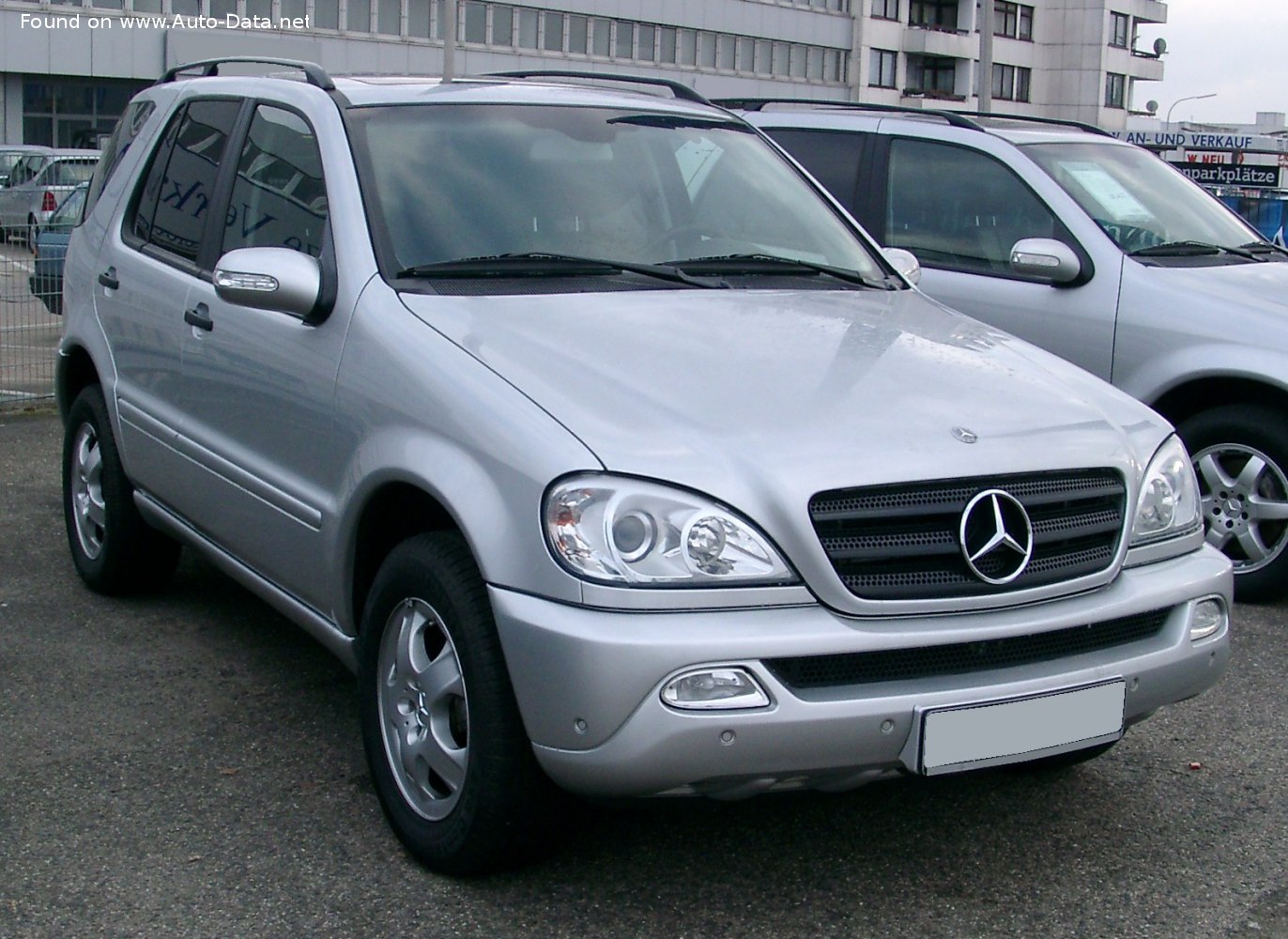

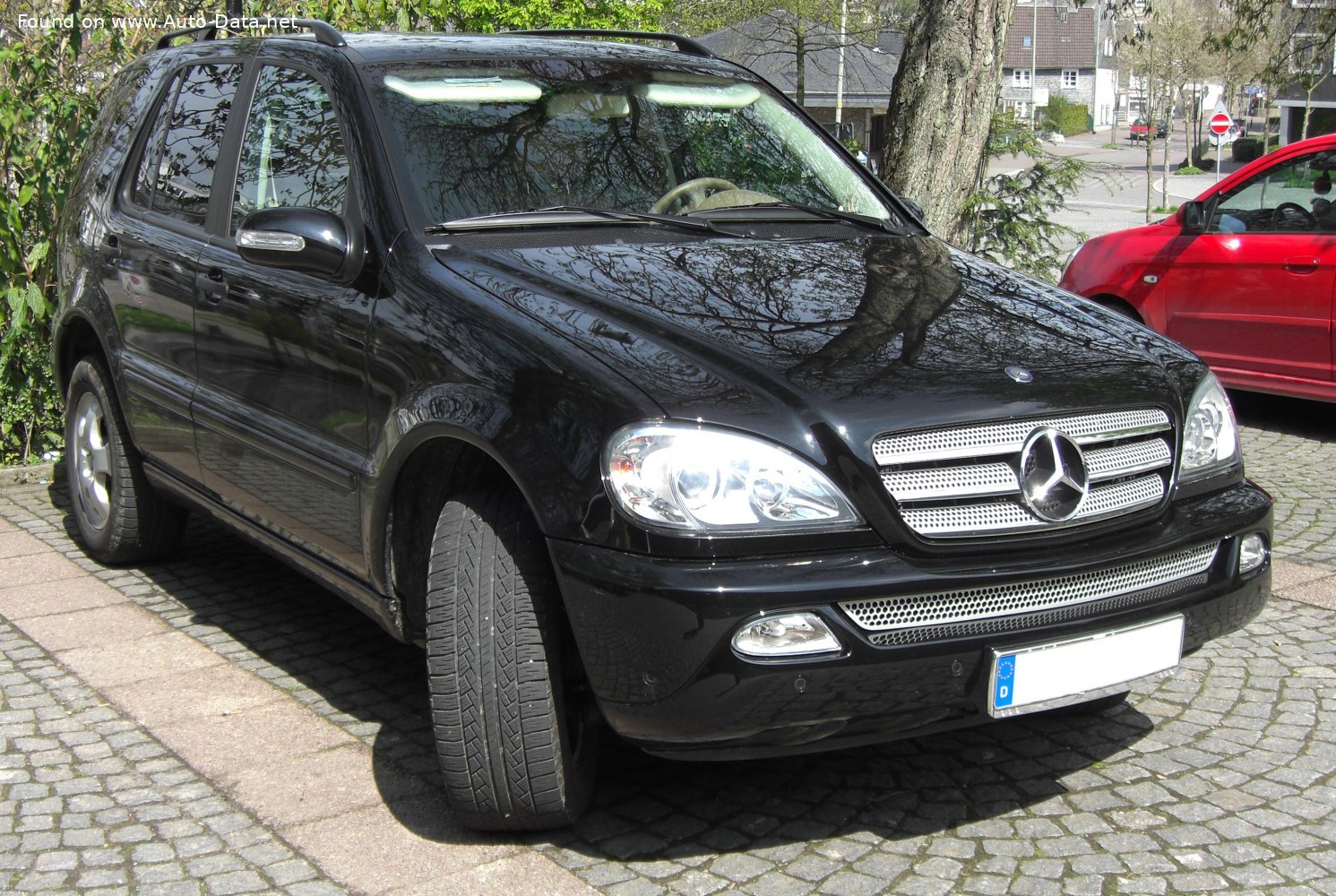

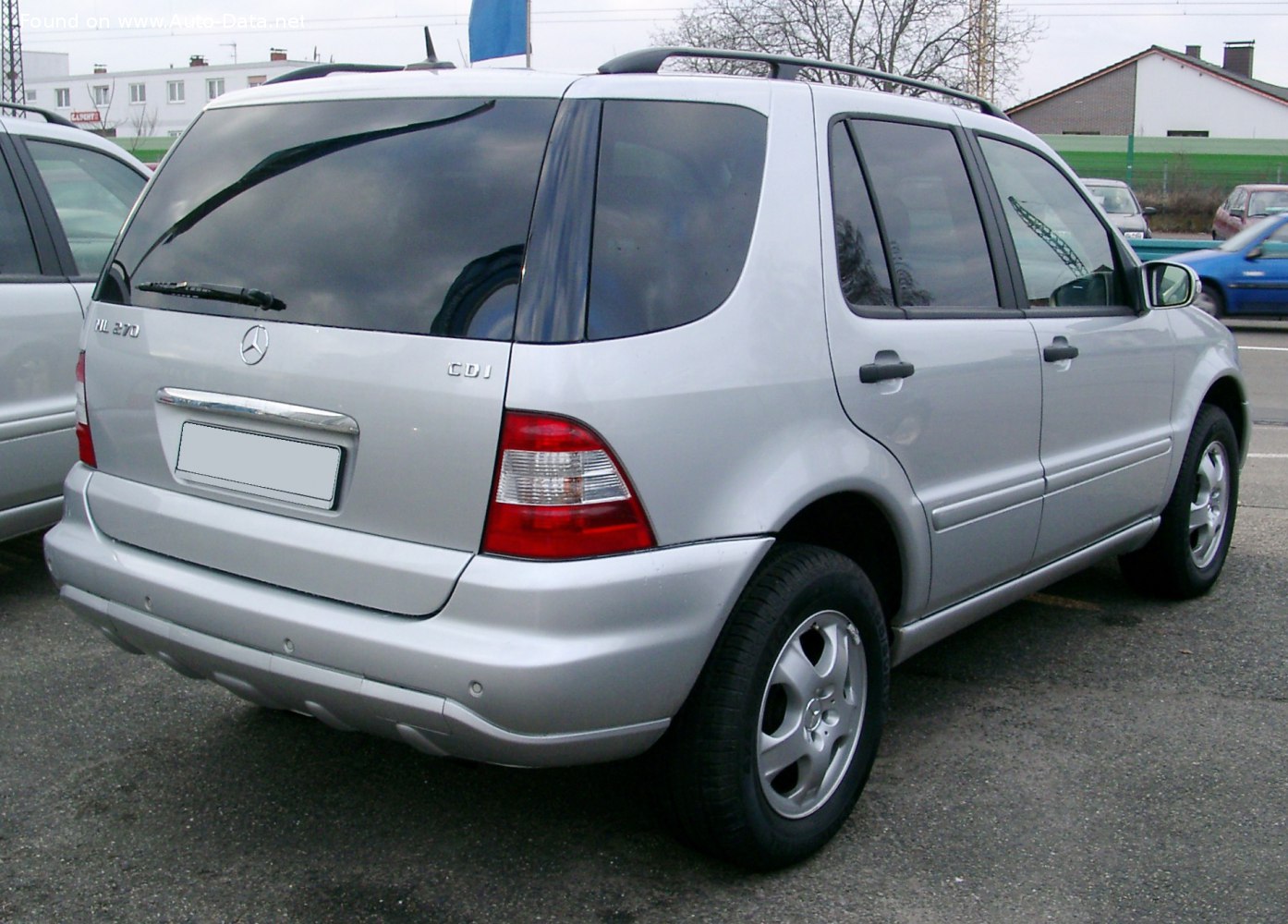

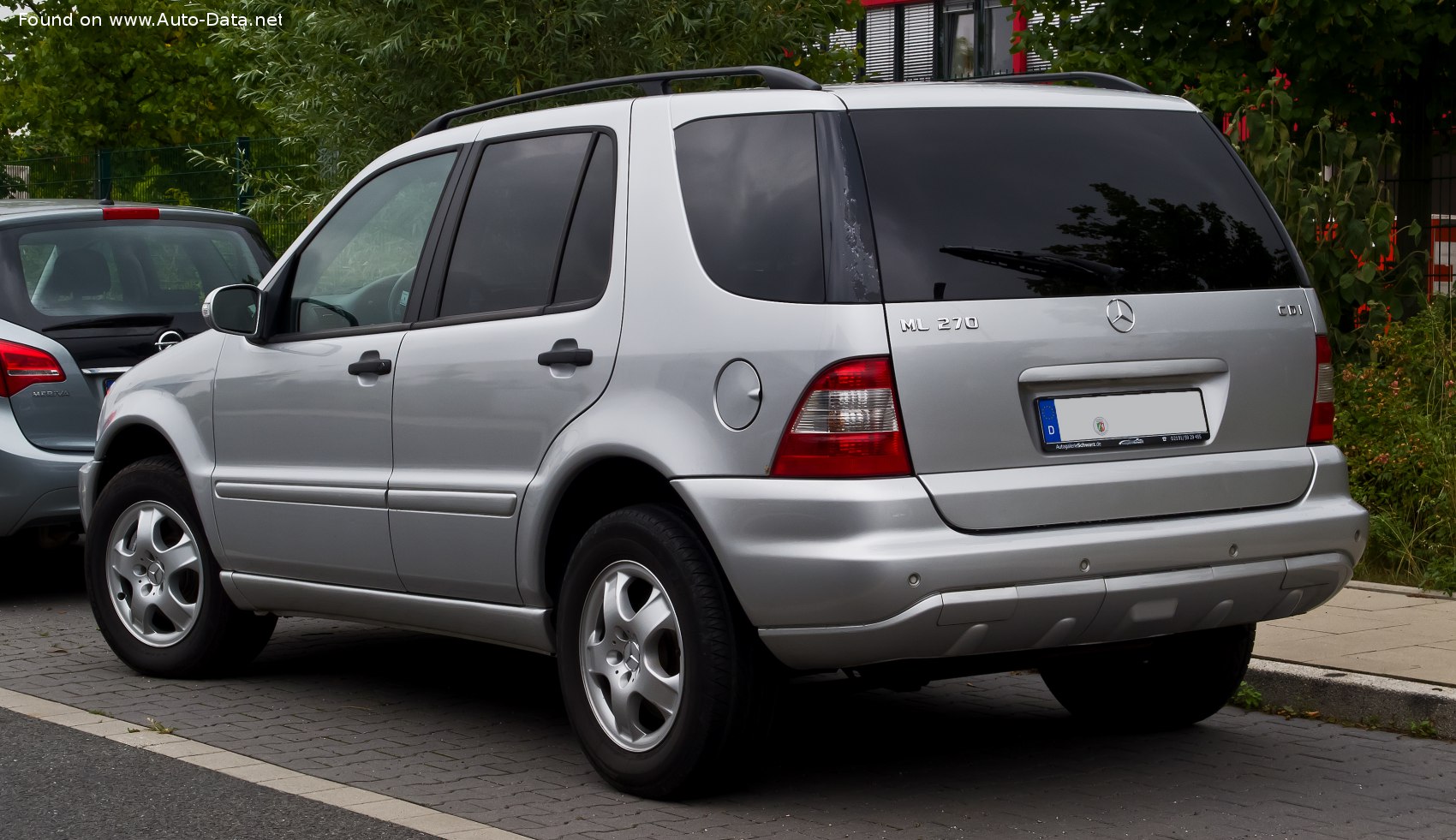

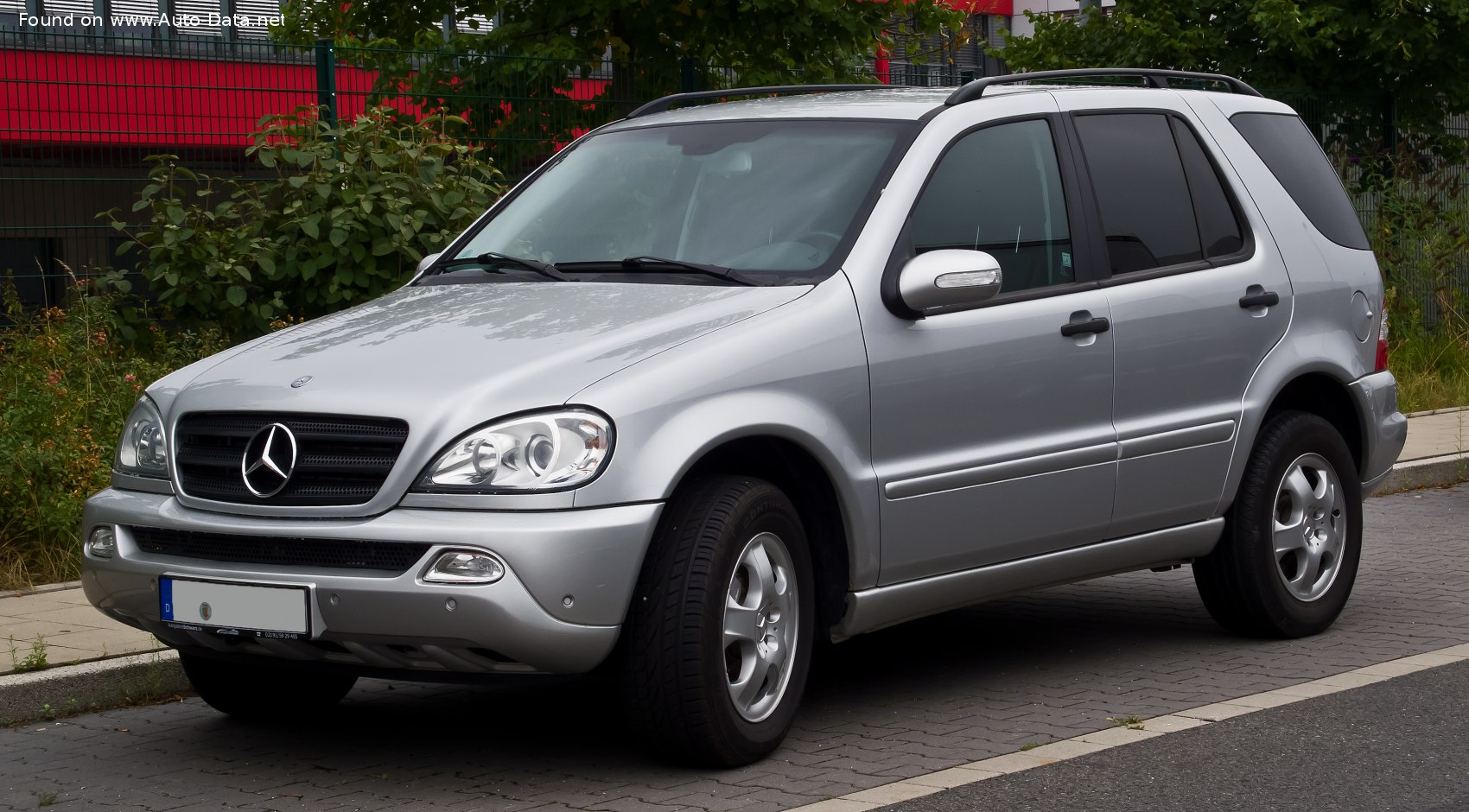

Mercedes-Benz M-class W163 2001 Gallery
Mercedes-Benz M-class W163 2001 Technical Specifications
General
Body type
SUV
Brand
Mercedes-Benz
Doors
5
End of production
December, 2004
Generation
M-class (W163, 2001)
Model
M-class
Modification (Engine)
ML 270 CDI (163 Hp) 4MATIC 5G-TRONIC
Powertrain Architecture
Internal Combustion engine
Seats
5
Start of production
August, 2001
Performance
Acceleration 0 - 100 km/h
11.4 sec
Acceleration 0 - 60 mph
10.8 sec
Acceleration 0 - 62 mph
11.4 sec
CO2 emissions (NEDC)
250 g/km
Emission standard
Euro 3
Fuel Type
Diesel
Fuel consumption (economy) - combined (NEDC)
9.5 l/100 km
Fuel consumption (economy) - extra urban (NEDC)
8 l/100 km
Fuel consumption (economy) - urban (NEDC)
12.4 l/100 km
Maximum speed
183 km/h
Dimensions
Approach angle
30°
Climb angle
38°
Departure angle
30°
Drag coefficient (Cd)
0.39
Front overhang
874 mm
Front track
1555 mm
Height
1820 mm
Length
4638 mm
Minimum turning circle (turning diameter)
11.9 m
Rear (Back) track
1555 mm
Rear overhang
944 mm
Ride height (ground clearance)
205 mm
Wading depth
500 mm
Wheelbase
2820 mm
Width
1840 mm
Engine
Compression ratio
18:1
Coolant
11 l
Cylinder Bore
88 mm
Engine Model/Code
OM 612.963
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
2685 cm
Engine layout
Front, Longitudinal
Engine oil capacity
7.5 l
Engine oil specification
Log in to see.
Fuel injection system
Diesel Commonrail
Maximum engine speed
4600 rpm.
Number of cylinders
5
Number of valves per cylinder
4
Power
163 Hp @ 4200 rpm.
Torque
400 Nm @ 1800-2600 rpm.
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs
Front suspension
Coil spring, Double wishbone, Transverse stabilizer
Number of gears and type of gearbox
5 gears, automatic transmission G-TRONIC
Power steering
Hydraulic Steering
Rear brakes
Disc
Rear suspension
Double wishbone, Transverse stabilizer, Coil spring
Steering type
Steering rack and pinion
Tires size
255/60 R17
Wheel rims size
8J x 17
Space
Fuel tank capacity
83 l
Kerb Weight
2100 kg
Max load
770 kg
Max. weight
2870 kg
Permitted towbar download
135 kg
