Onvo L60 2024
60 kWh (462 Hp) 4WD Standard Range
Electric Car
Body Type SUV
Battery Capacity 60 KW
203 km/h
Maximum Speed
5
Doors
Onvo L60 2024 Key Specs
Acceleration 0 - 100 Km/h
4.6 sec
Acceleration 0 - 62 Mph
4.6 sec
Battery Voltage
900 V
Body Type
SUV
Doors
5
Drive Wheel
All wheel drive (4x4)
Fuel Type
Electricity
Generation
L60
Gross Battery Capacity
60 kWh
Kerb Weight
1955-1970 kg
Maximum Speed
203 km/h
Modification (Engine)
60 kWh (462 Hp) 4WD Standard Range
Power Steering
Electric Steering
Powertrain Architecture
BEV (Electric Vehicle)
Seats
5
Start Of Production
September, 2024
System Power
462 Hp
System Torque
440 Nm
Wheel Rims Size
19; 20

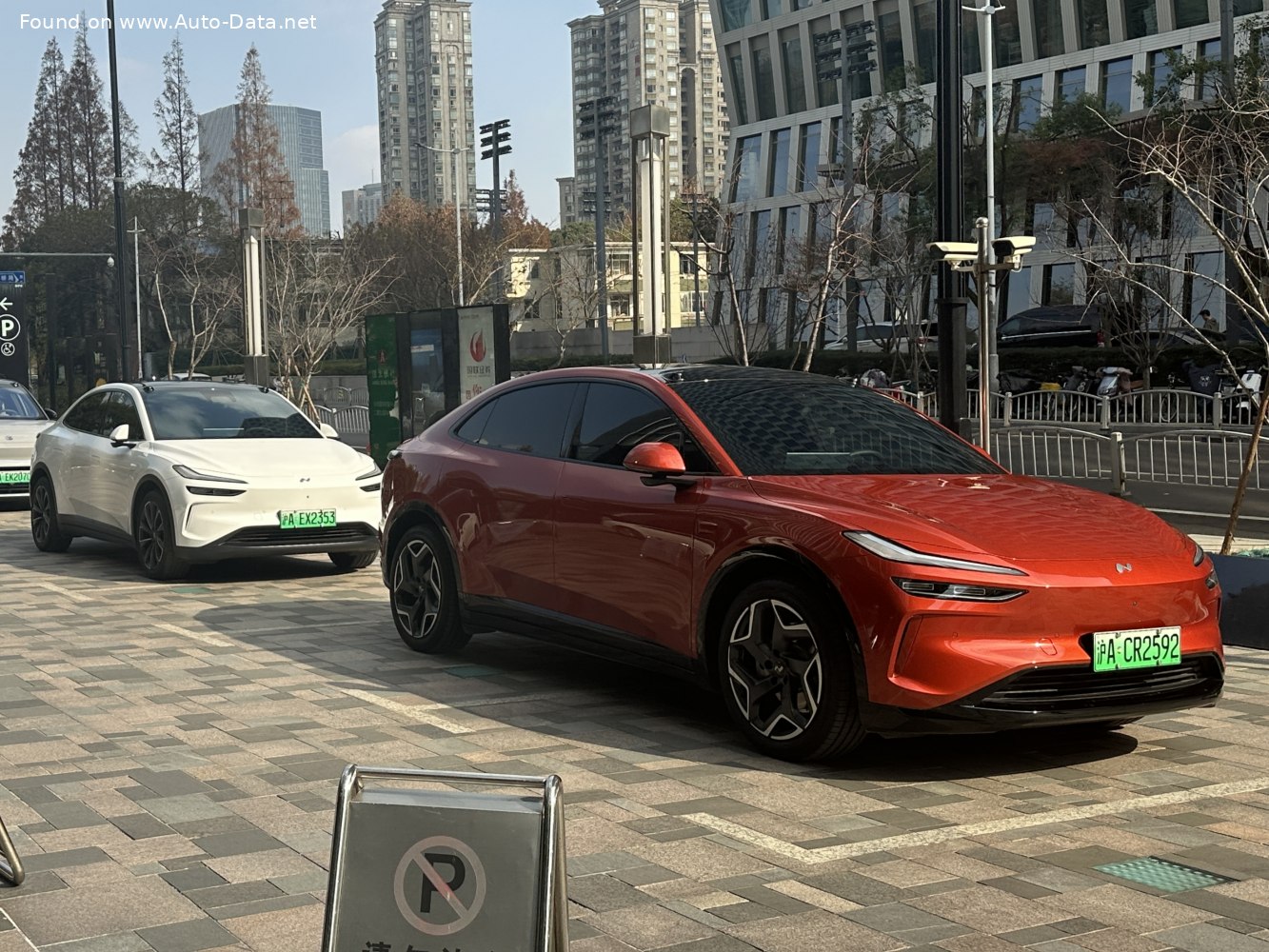

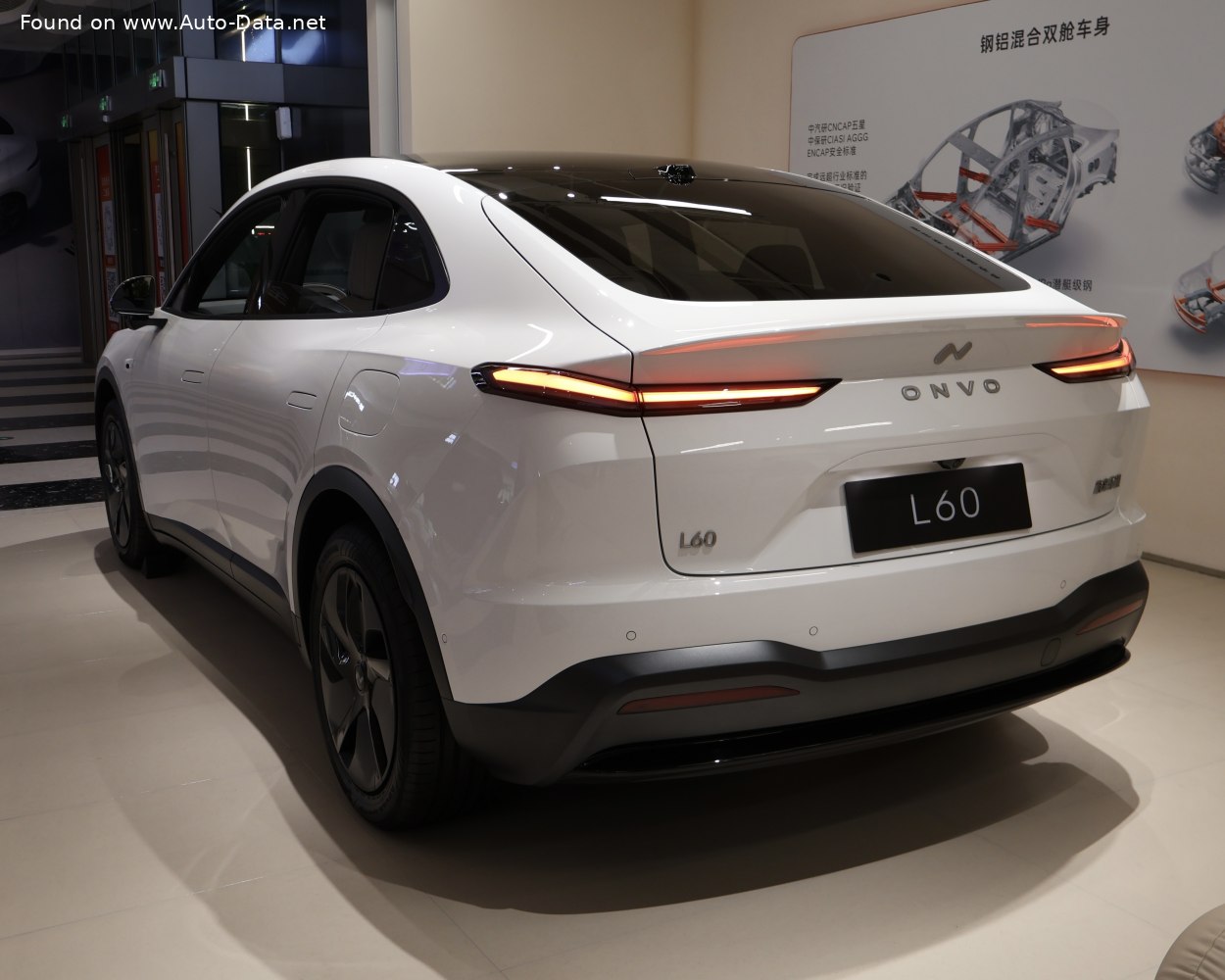

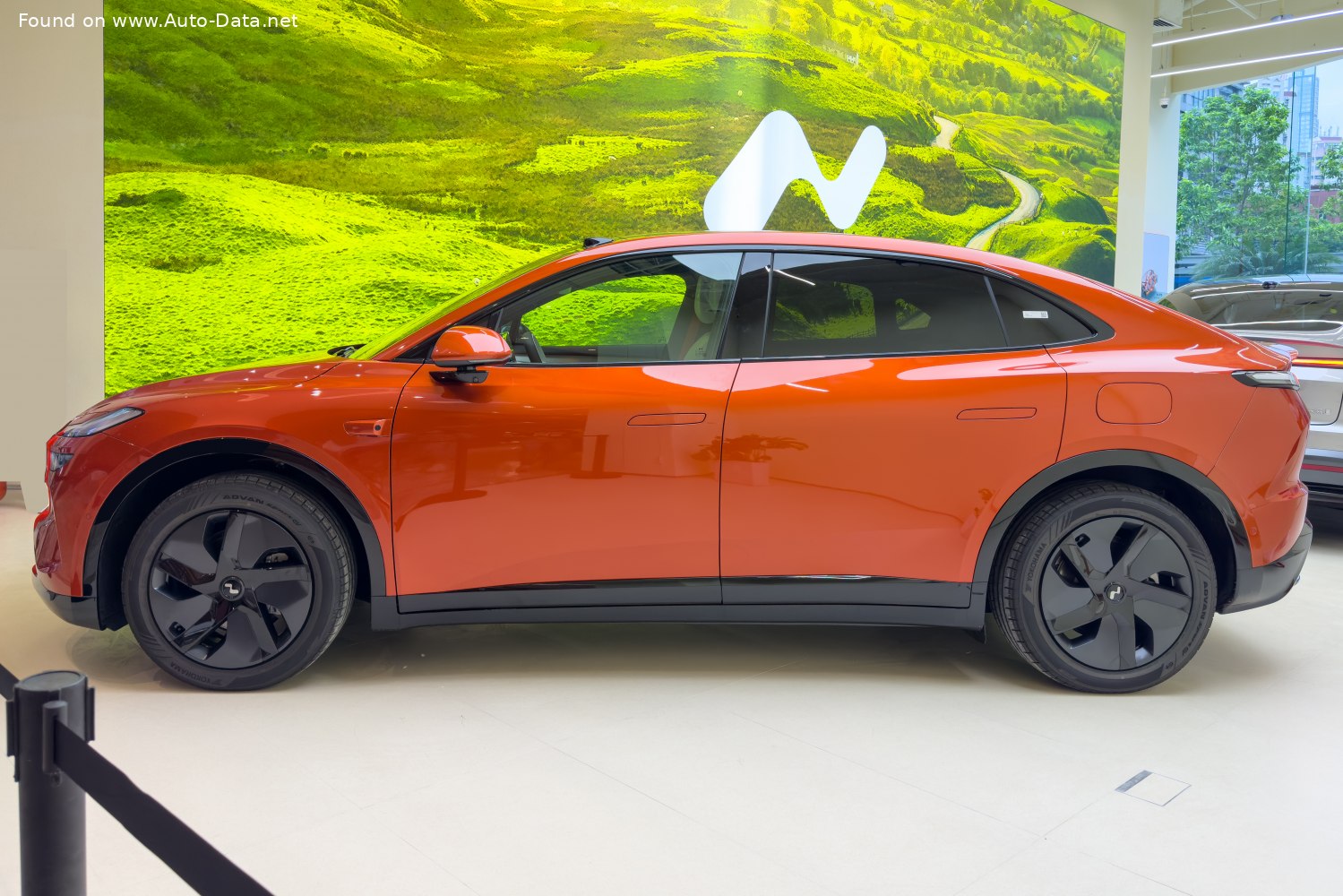

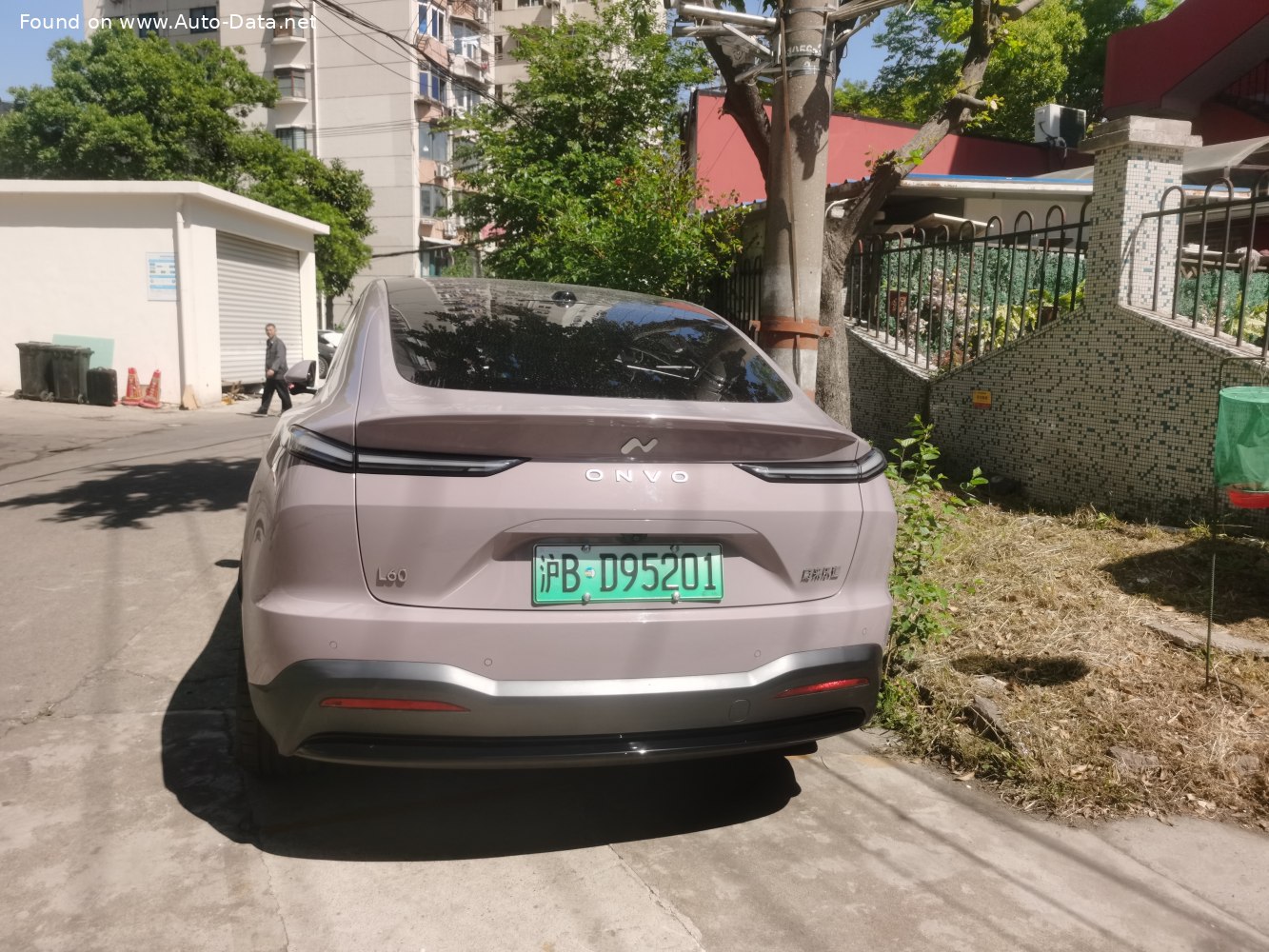

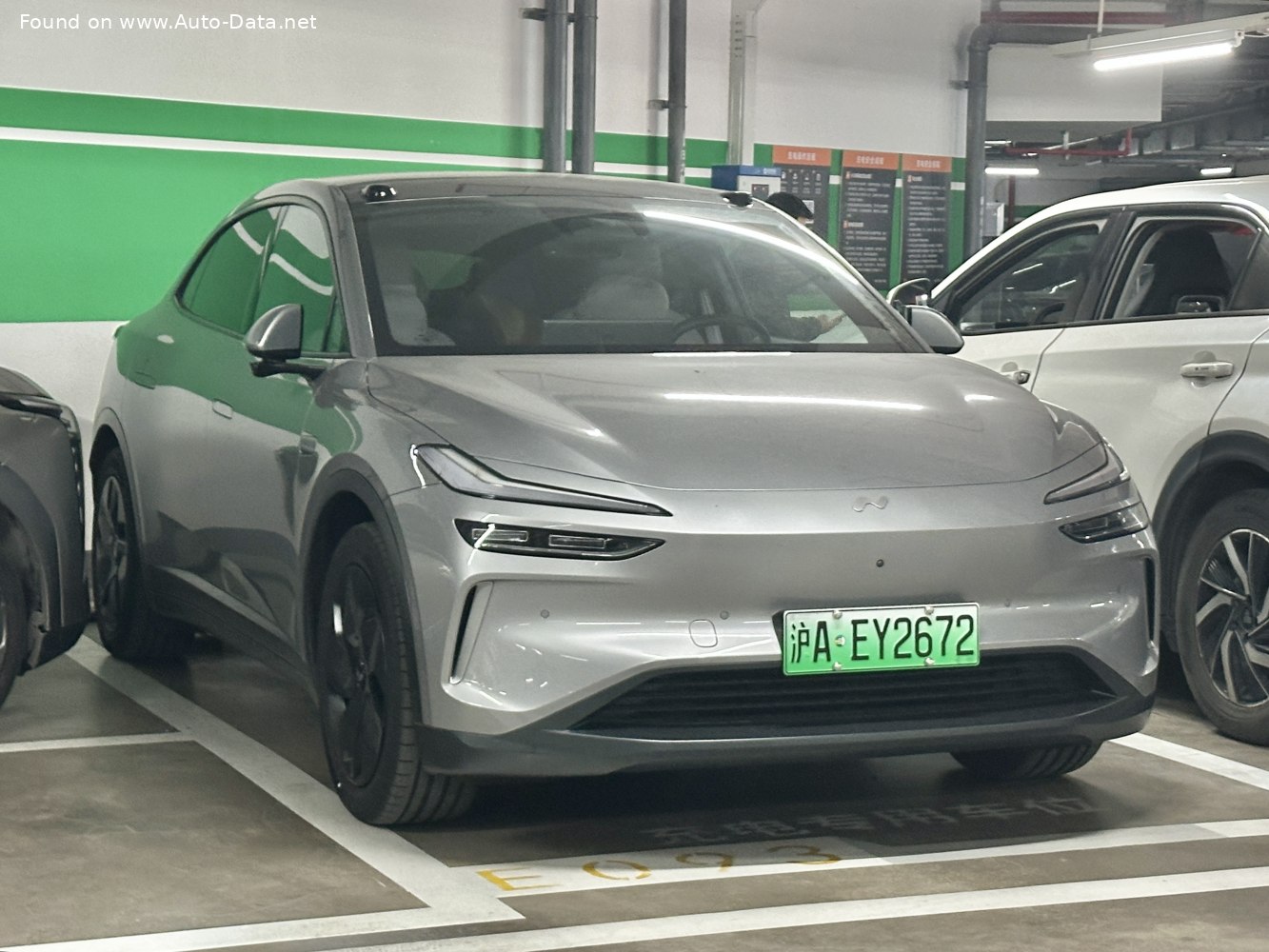

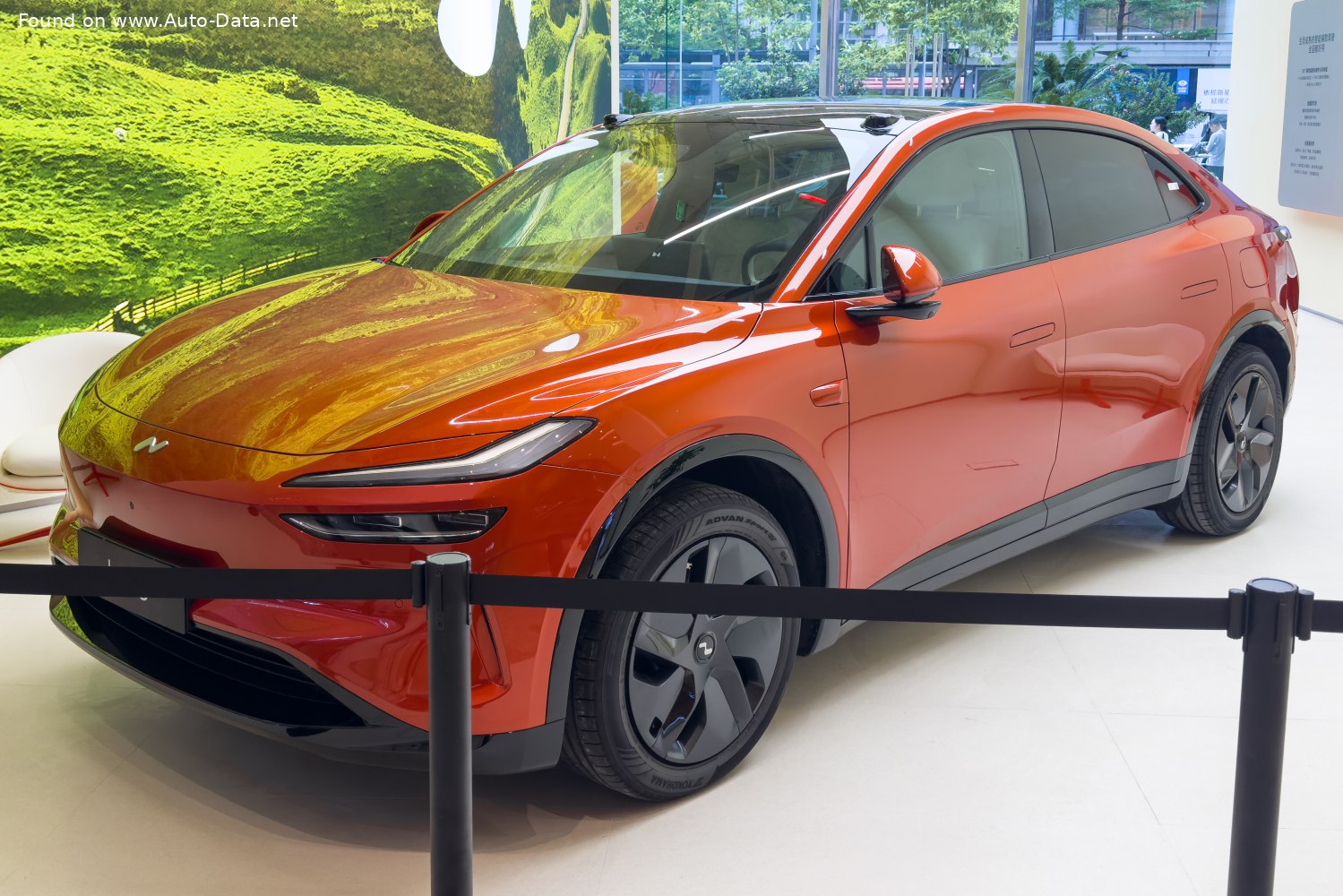

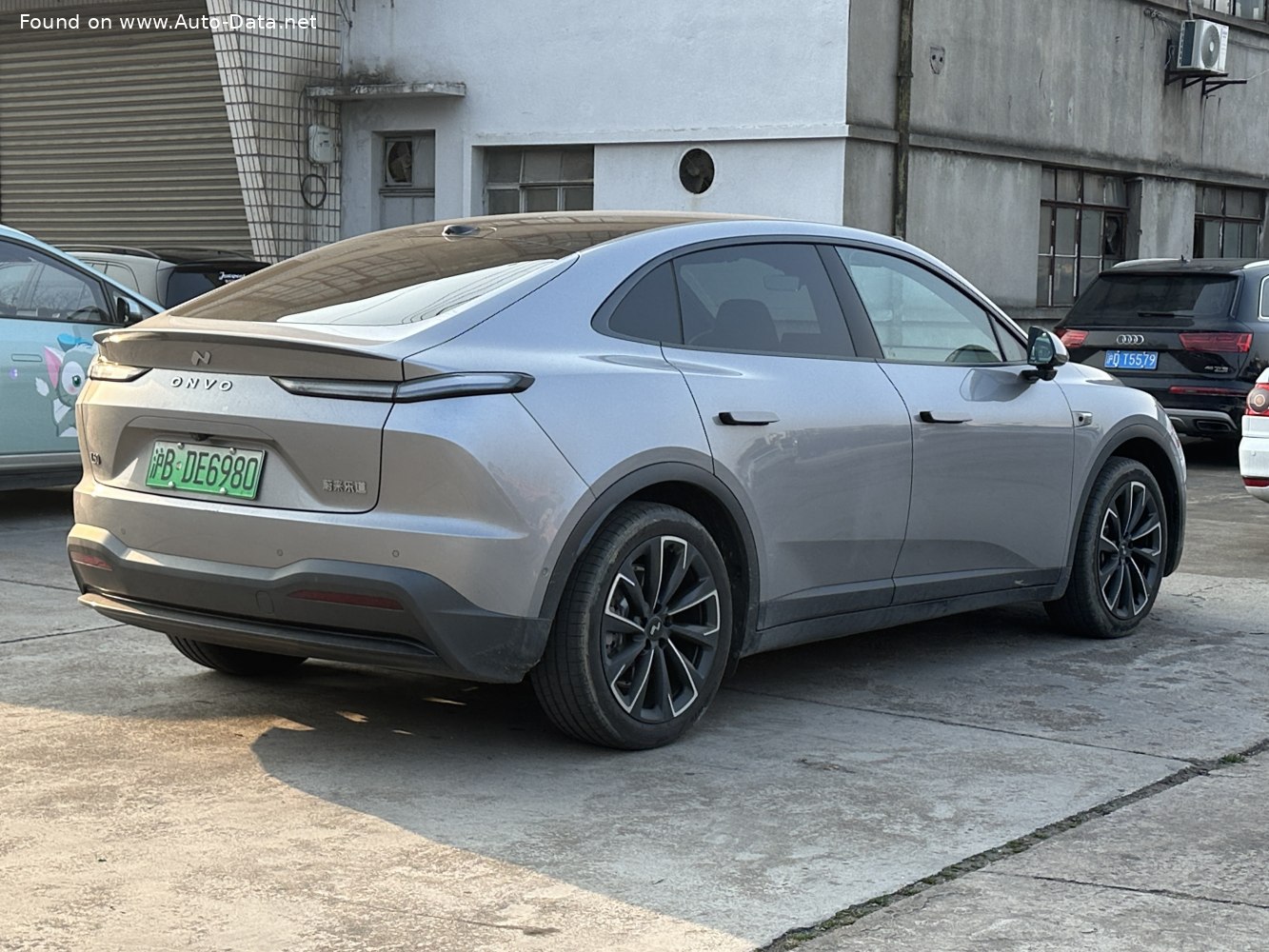

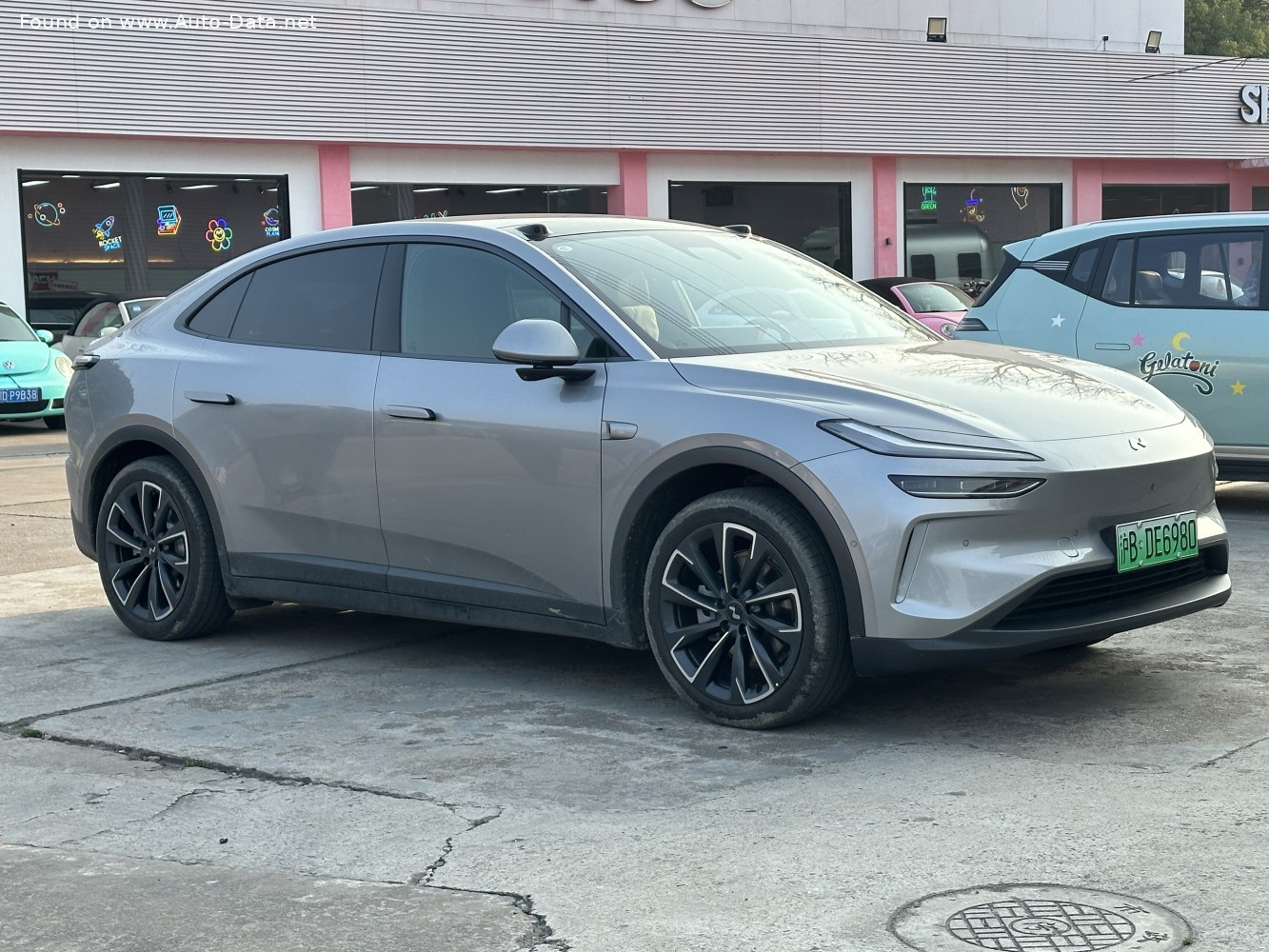

Onvo L60 2024 Gallery
Onvo L60 2024 Technical Specifications
General
Body type
SUV
Brand
Onvo
Doors
5
Generation
L60
Model
L60
Modification (Engine)
60 kWh (462 Hp) 4WD Standard Range
Powertrain Architecture
BEV (Electric Vehicle)
Seats
5
Start of production
September, 2024
Performance
100 km/h - 0
36.8 m
Acceleration 0 - 100 km/h
4.6 sec
Acceleration 0 - 60 mph
4.4 sec
Acceleration 0 - 62 mph
4.6 sec
Fuel Type
Electricity
Maximum speed
203 km/h
Electric
All-electric range (CLTC)
501-525 km
Average Energy consumption (CLTC)
12.7-13.3 kWh/100 km
Battery location
Below the floor
Battery voltage
900 V
Charging ports number 0
Log in to see.
Electric motor Torque number 1
305 Nm
Electric motor Torque number 2
135 Nm
Electric motor location number 1
Rear axle, Transverse
Electric motor location number 2
Front axle, Transverse
Electric motor model/code number 1
TZ188S001
Electric motor model/code number 2
YS198S001
Electric motor power number 1
326 Hp
Electric motor power number 2
136 Hp
Electric motor type number 1
Synchronous
Electric motor type number 2
Asynchronous
Gross battery capacity
60 kWh
Maximum revolutions of the electric motor number 1
18000 rpm.
Maximum revolutions of the electric motor number 2
18000 rpm.
System power
462 Hp
System torque
440 Nm
Dimensions
Approach angle
17°
Departure angle
21°
Drag coefficient (Cd)
0.229
Front overhang
898 mm
Front track
1666 mm
Height
1616 mm
Length
4828 mm
Minimum turning circle (turning diameter)
11.5 m
Rear (Back) track
1677 mm
Rear overhang
980 mm
Ride height (ground clearance)
175 mm
Wheelbase
2950 mm
Width
1930 mm
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
1 gears, automatic transmission
Power steering
Electric Steering
Rear brakes
Ventilated discs
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
245/50 R19; 245/45 R20
Wheel rims size
19; 20
Space
Kerb Weight
1955-1970 kg
Max load
430-445 kg
Max. weight
2400 kg
