Lynk and Co 09 2022
EM-P 2.0TD T5 (519 Hp) Plug-in Hybrid E-AWD DHT Pro
Hybrid Car
Body Type SUV
Battery Capacity 40.1 KW
2023
End Year
230 km/h
Maximum Speed
5
Doors
Lynk and Co 09 2022 Key Specs
Acceleration 0 - 100 Km/h
5.9 sec
Acceleration 0 - 62 Mph
5.9 sec
Body Type
SUV
Doors
5
Drive Wheel
All wheel drive (4x4)
End Of Production
2023
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
5.6 l
Fuel Type
Petrol / electricity
Fuel Tank Capacity
70 l
Generation
09
Gross Battery Capacity
40.1 kWh
Kerb Weight
2470 kg
Maximum Speed
230 km/h
Modification (Engine)
EM-P 2.0TD T5 (519 Hp) Plug-in Hybrid E-AWD DHT Pro
Number Of Cylinders
4
Power
254 Hp @ 5500 rpm.
Power Steering
Electric Steering
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Seats
6-7
Start Of Production
2022
System Power
519 Hp
System Torque
844 Nm
Wheel Rims Size
20

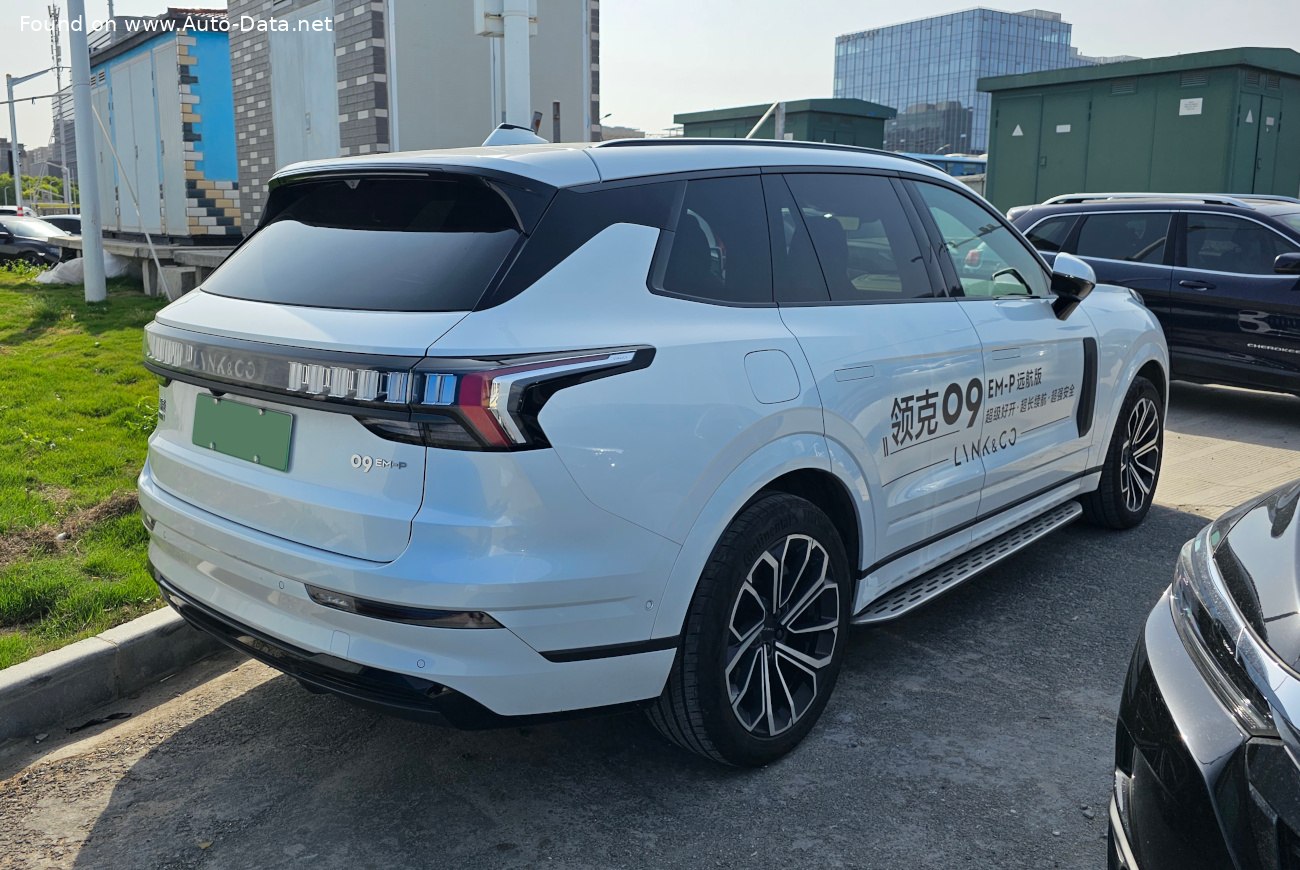

Lynk and Co 09 2022 Gallery
Lynk and Co 09 2022 Technical Specifications
General
Body type
SUV
Brand
Lynk & Co
Doors
5
End of production
2023
Generation
09
Model
09
Modification (Engine)
EM-P 2.0TD T5 (519 Hp) Plug-in Hybrid E-AWD DHT Pro
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Seats
6-7
Start of production
2022
Performance
Acceleration 0 - 100 km/h
5.9 sec
Acceleration 0 - 60 mph
5.6 sec
Acceleration 0 - 62 mph
5.9 sec
Emission standard
China VI
Fuel Type
Petrol / electricity
Fuel consumption (economy) - combined (WLTC)
0.95 l/100 km
Maximum speed
230 km/h
Electric
All-electric range (WLTC)
150 km
Average Energy consumption (WLTC)
23.3 kWh/100 km
Battery location
Below the floor
Charging ports number 0
Log in to see.
Electric motor Torque number 1
320 Nm
Electric motor Torque number 2
309 Nm
Electric motor location number 1
Integrated into the transmission
Electric motor location number 2
Rear axle, Transverse
Electric motor power number 1
136 Hp
Electric motor power number 2
177 Hp
Electric motor type number 1
Synchronous
Electric motor type number 2
Synchronous
Gross battery capacity
40.1 kWh
System power
519 Hp
System torque
844 Nm
Internal Engine
Compression ratio
10.8
Cylinder Bore
82 mm
Engine Model/Code
JLH-4G20TDC
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1969 cm
Engine layout
Front, Transverse
Engine oil capacity
5.6 l
Engine oil specification
Log in to see.
Fuel injection system
Direct injection
Number of cylinders
4
Number of valves per cylinder
4
Piston Stroke
93.2 mm
Power
254 Hp @ 5500 rpm.
Power per litre
129 Hp/l
Torque
350 Nm @ 1800-4800 rpm.
Valvetrain
DOHC
Dimensions
Approach angle
21°
Departure angle
20°
Front track
1680 mm
Height
1780 mm
Length
5042 mm
Minimum turning circle (turning diameter)
12.3 m
Rear (Back) track
1684 mm
Ride height (ground clearance)
190 mm
Wheelbase
2984 mm
Width
1977 mm
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs
Front suspension
Double wishbone, Air Suspension - Optional
Number of gears and type of gearbox
3 gears, automatic transmission DHT Pro
Power steering
Electric Steering
Rear brakes
Ventilated discs
Rear suspension
Independent multi-link suspension, Leaf spring, Air Suspension - Optional
Steering type
Steering rack and pinion
Tires size
275/40 R20
Wheel rims size
20
Space
Fuel tank capacity
70 l
Kerb Weight
2470 kg
