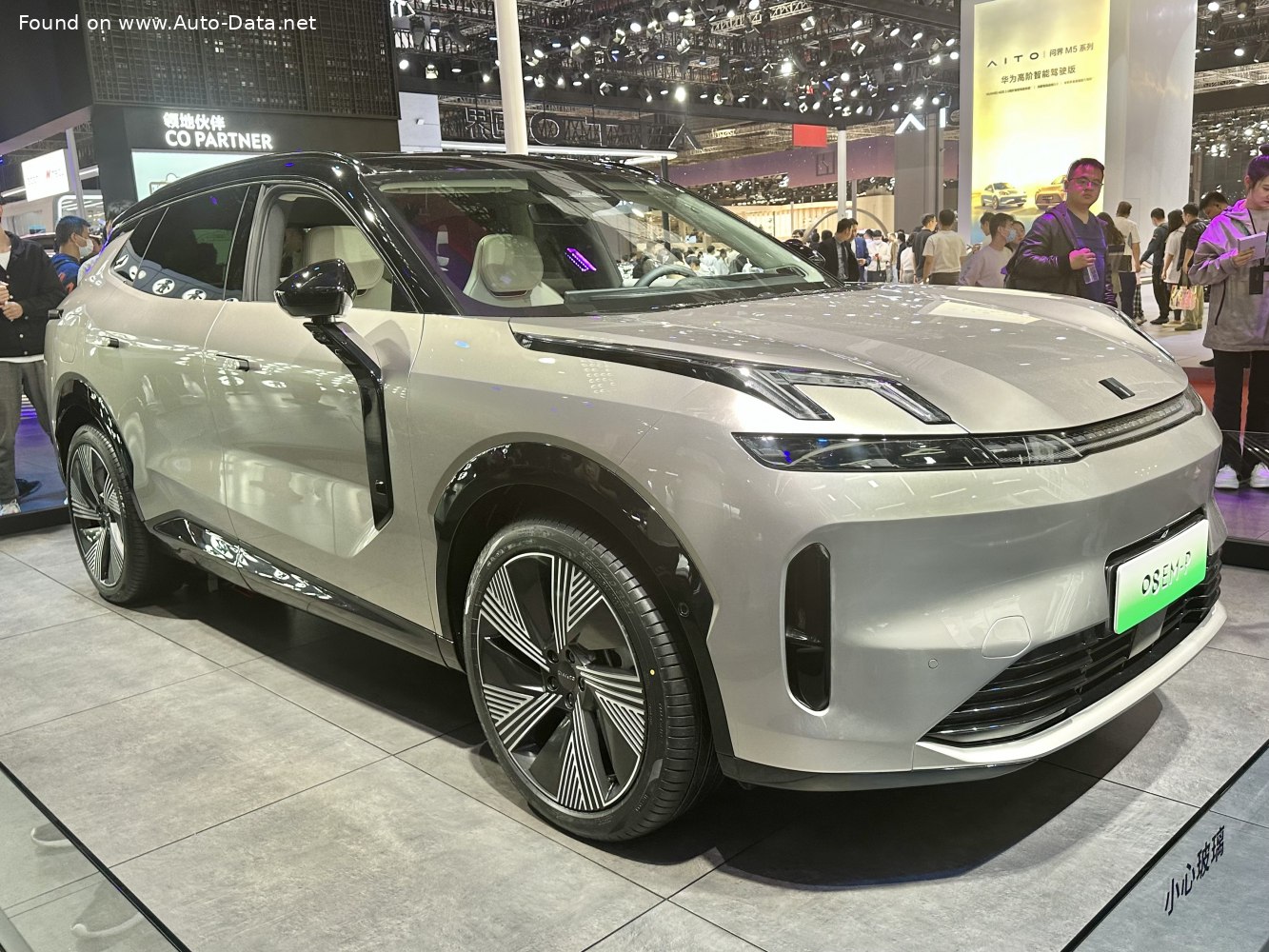

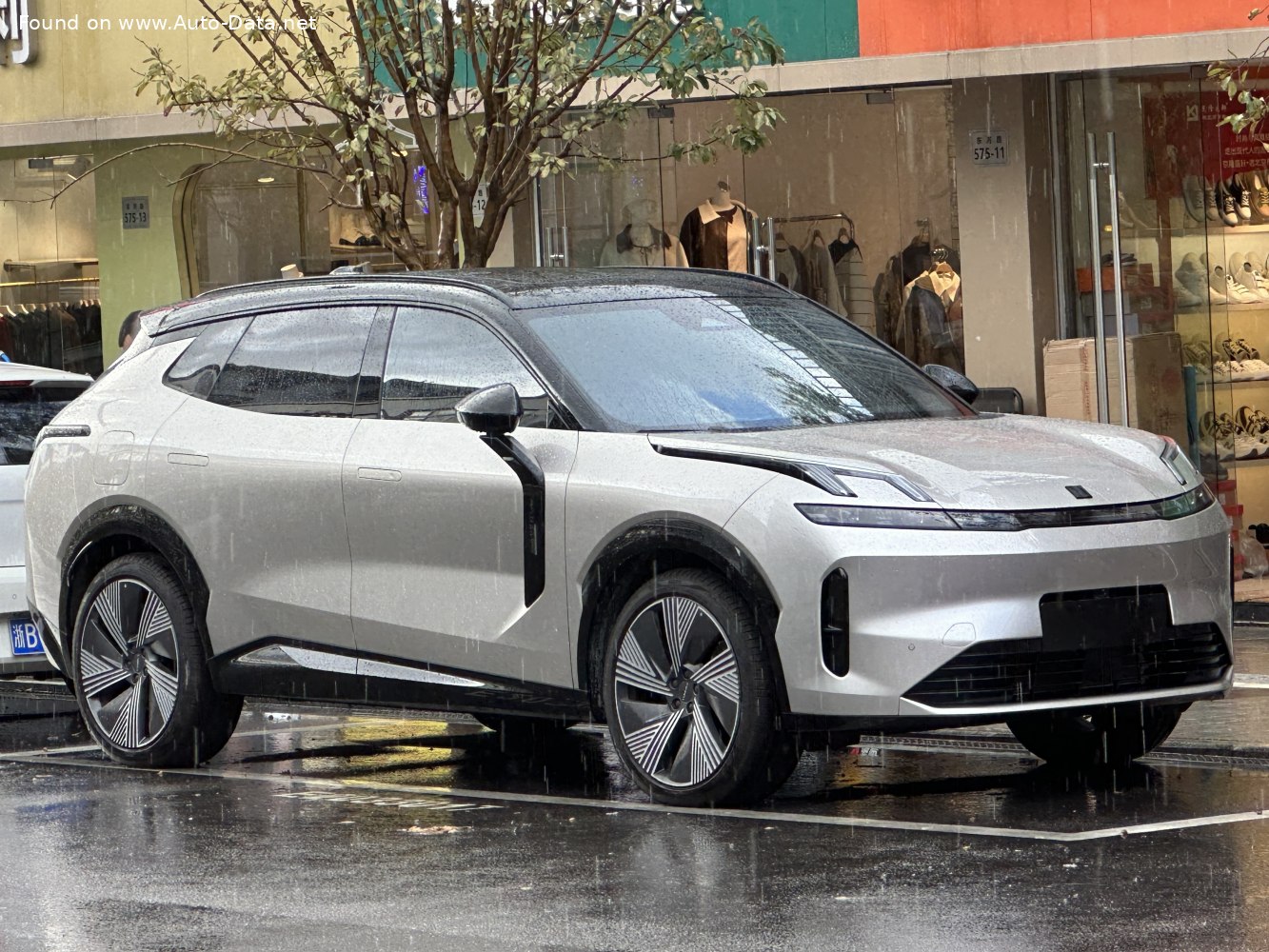

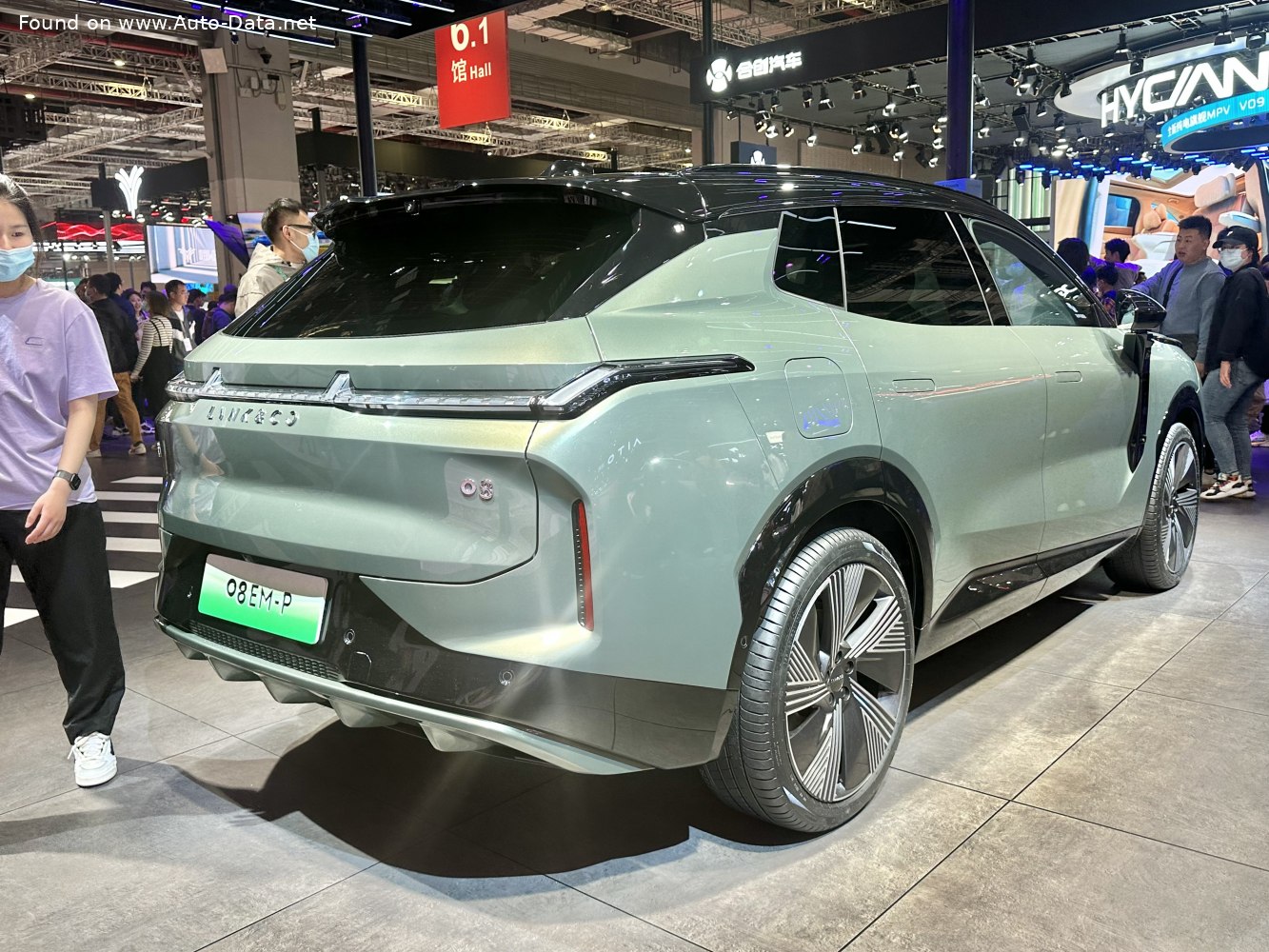

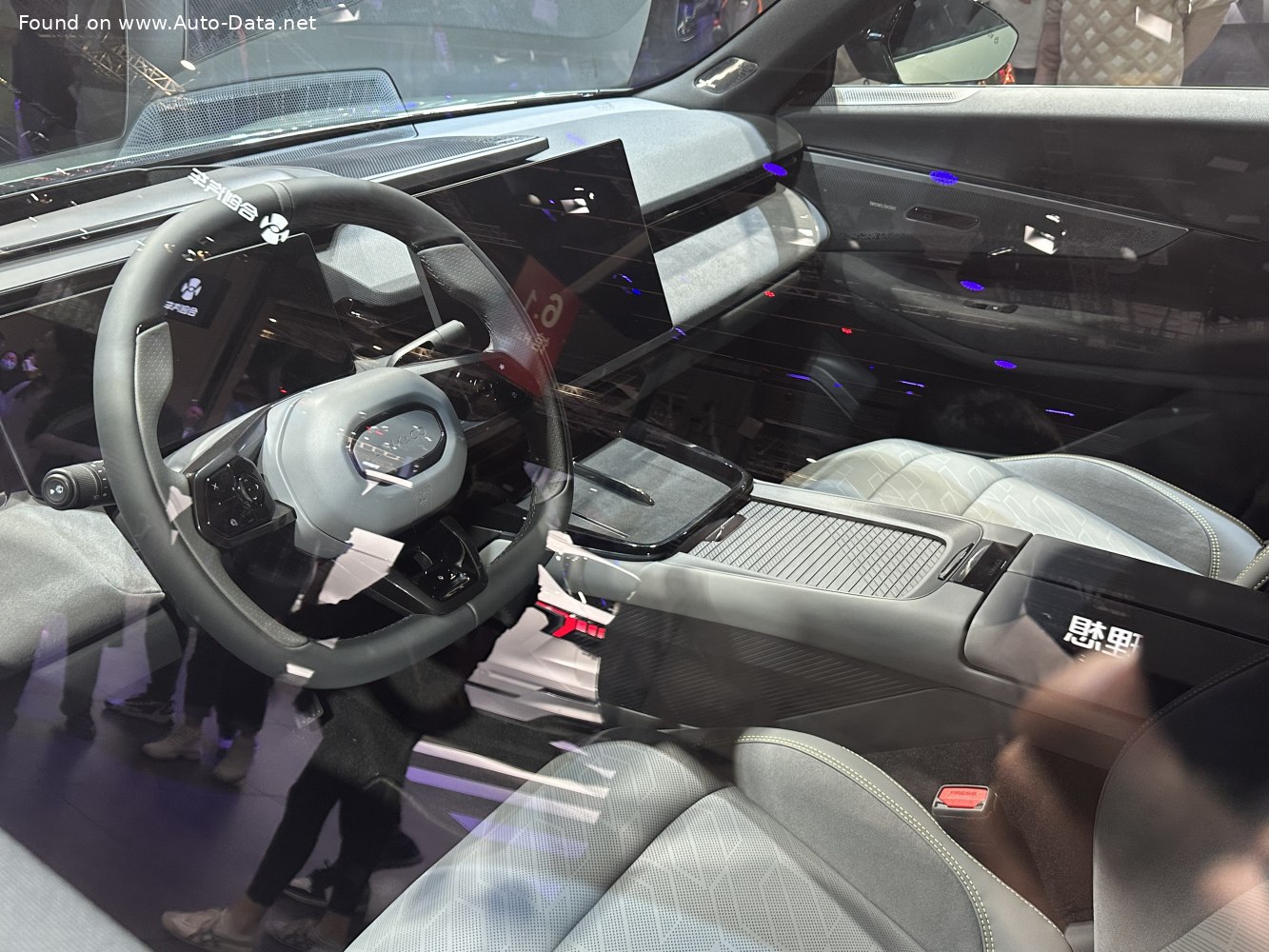

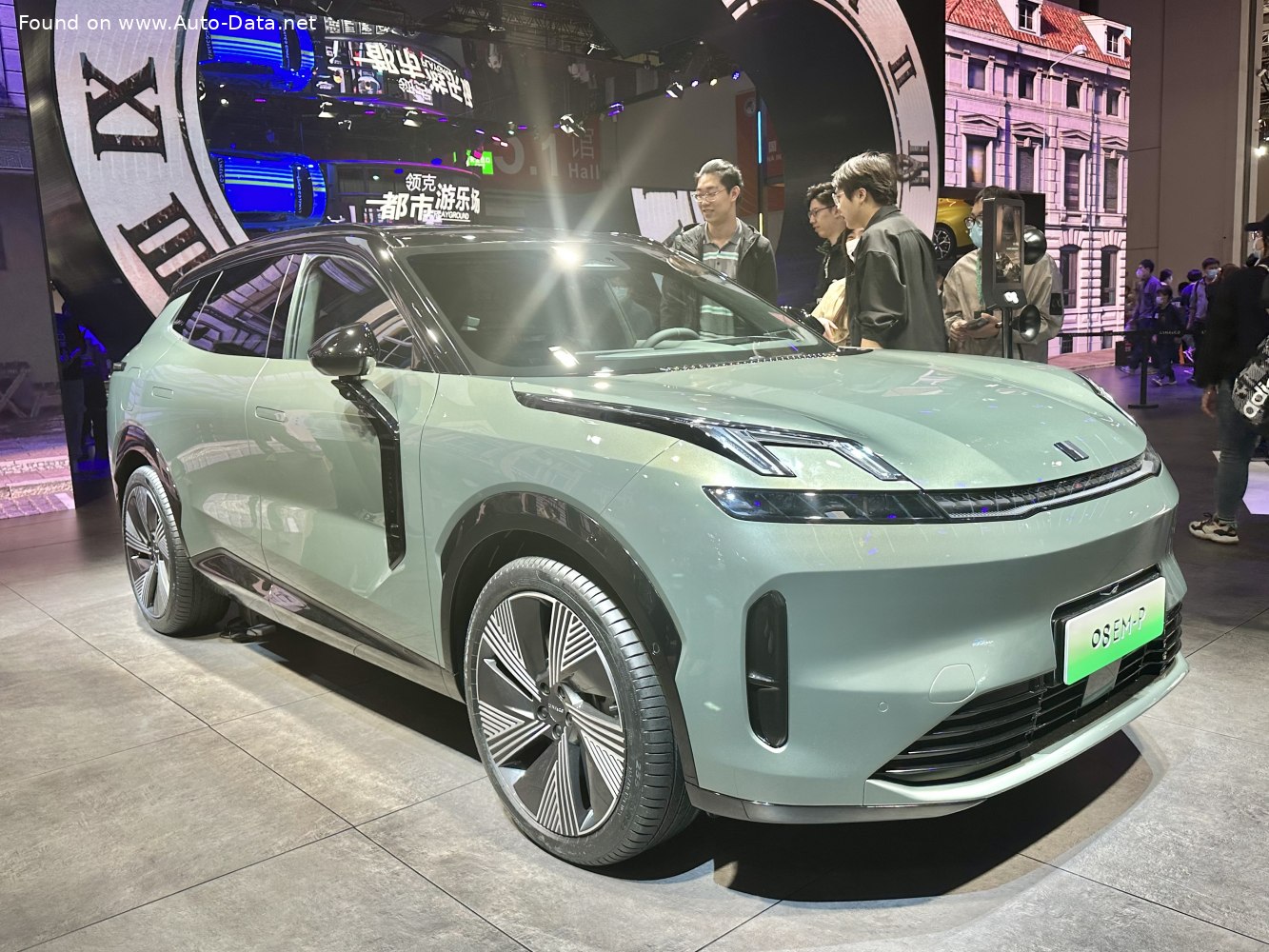

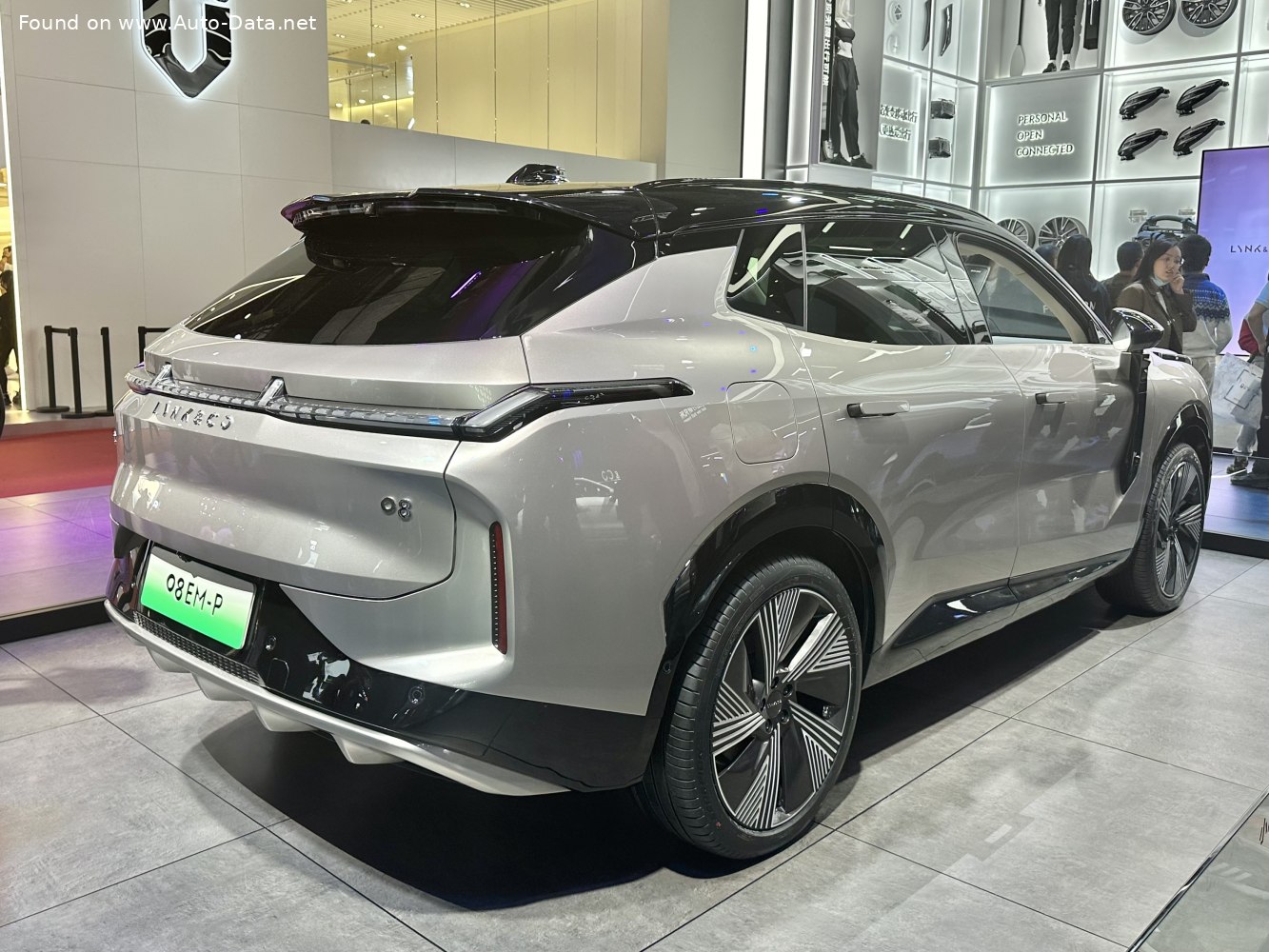

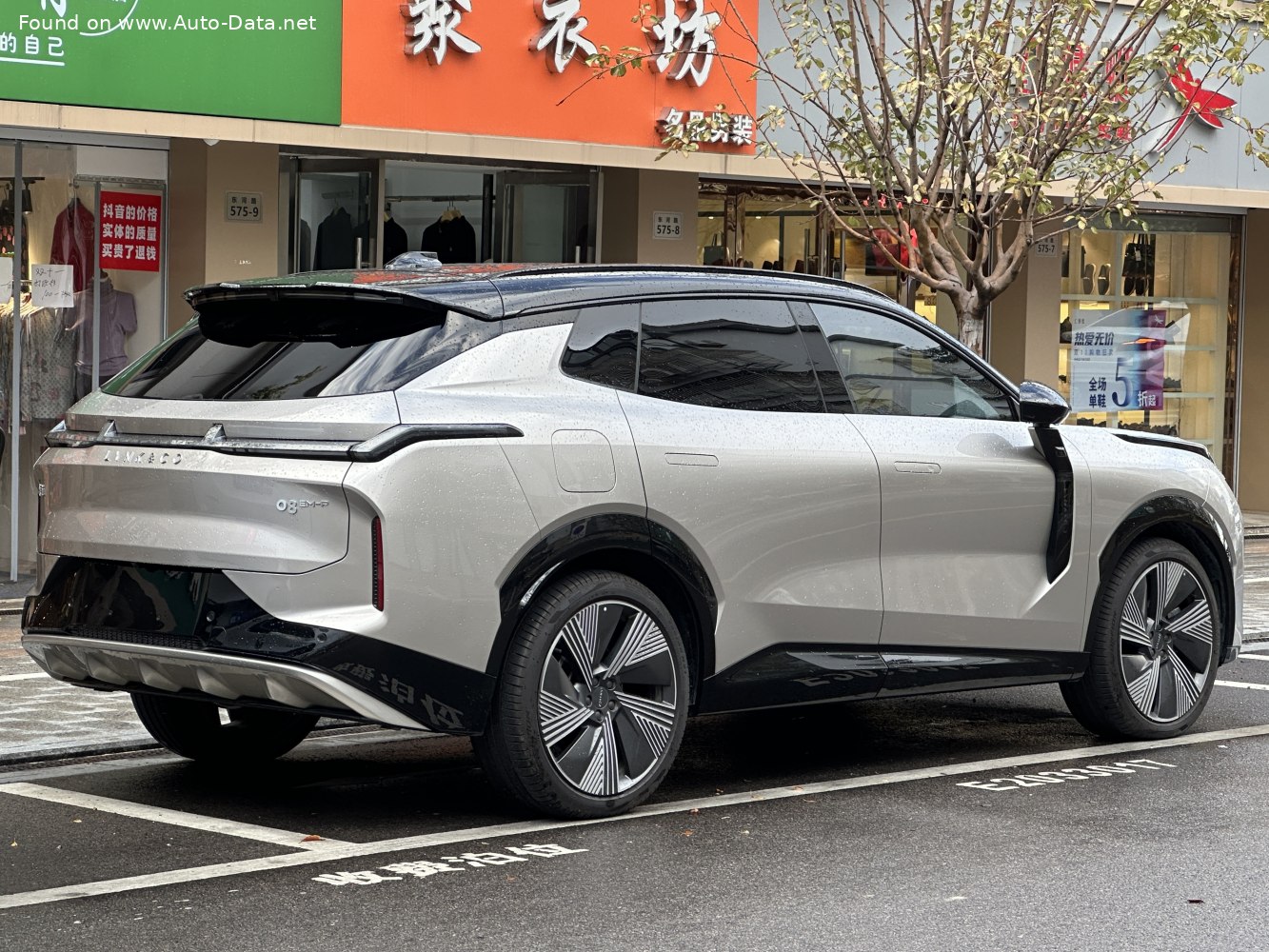

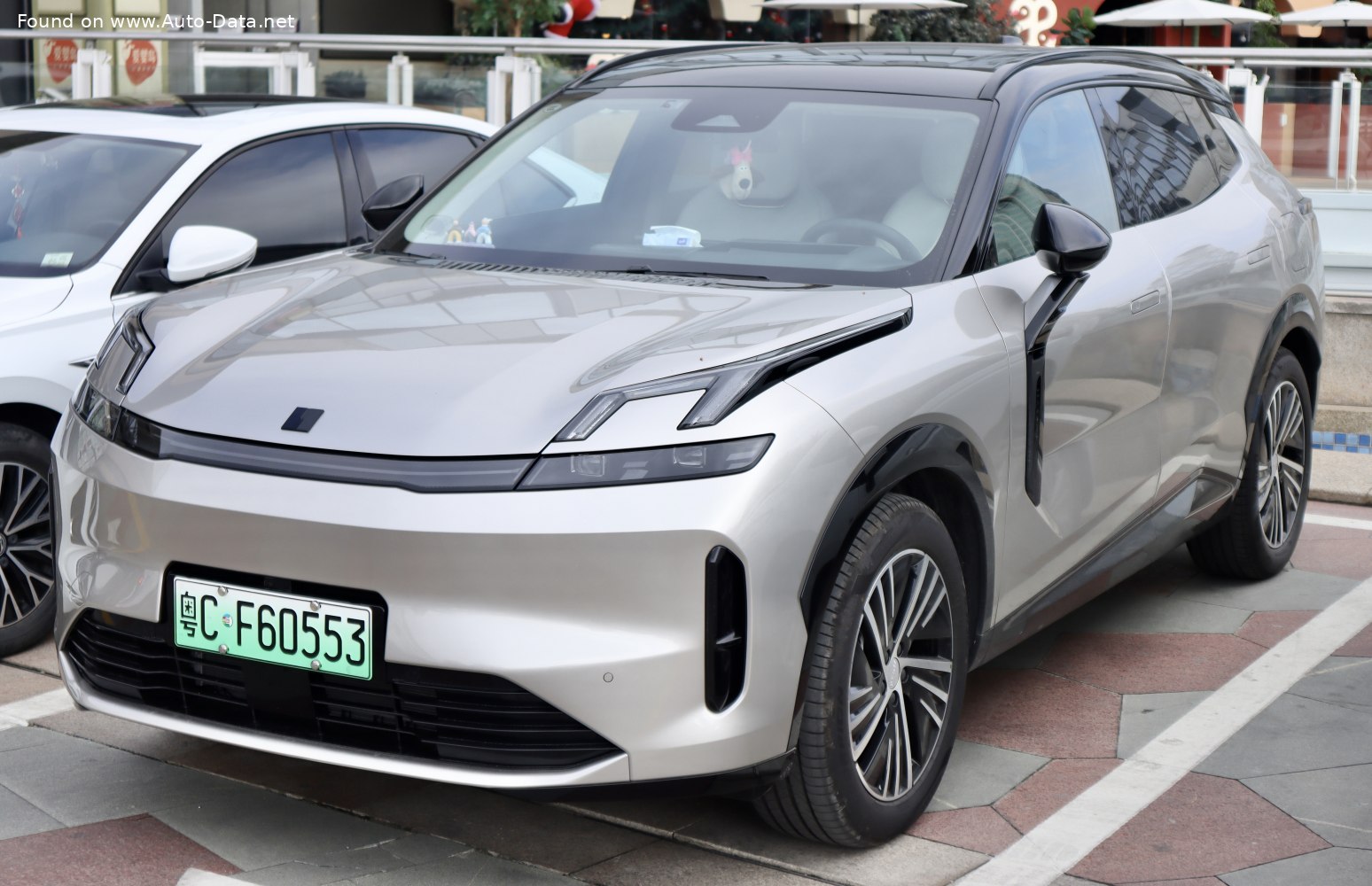

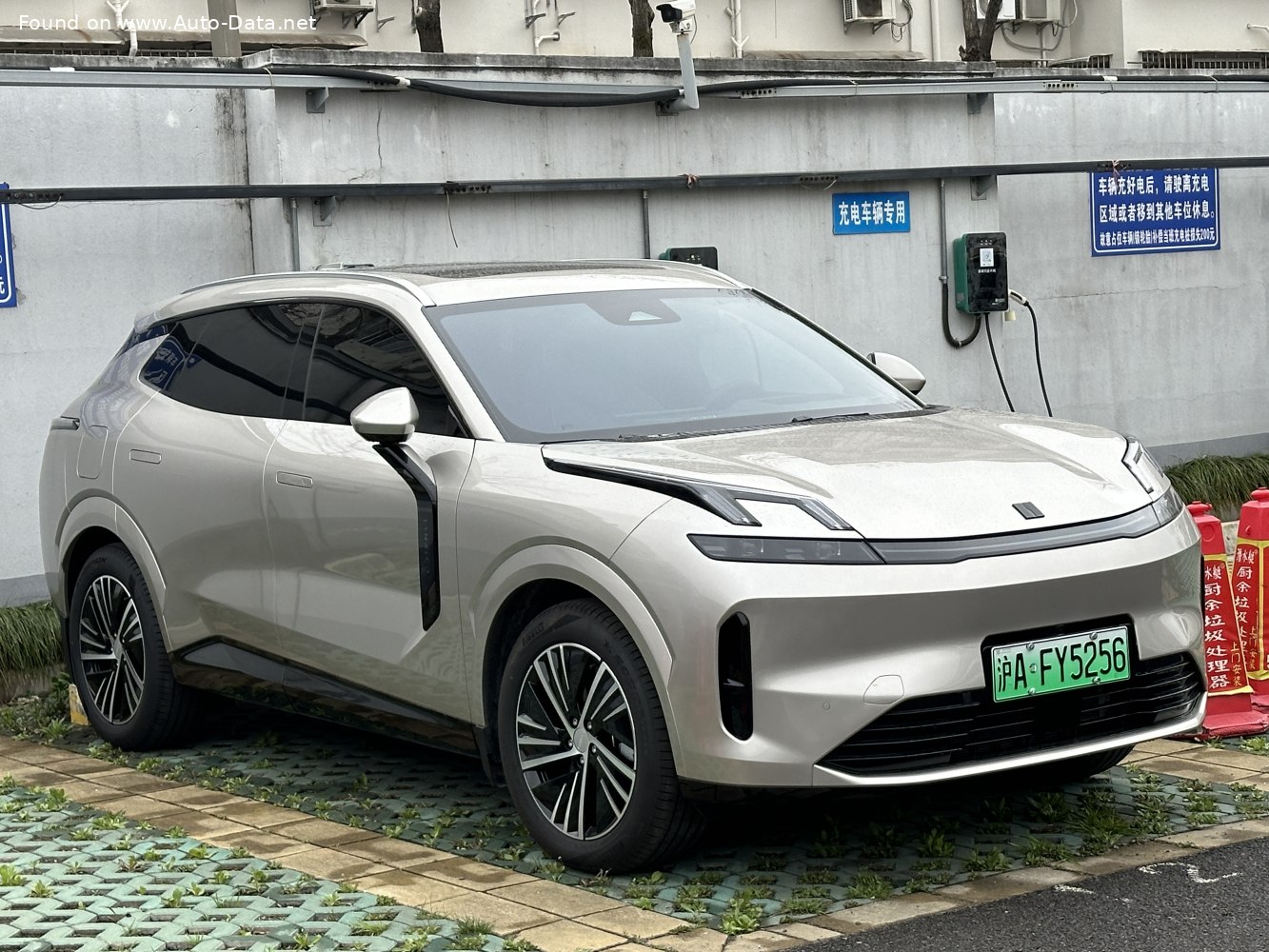

Lynk and Co 08 2023 EM-P 120 Long Range 1.5TD (381 Hp) Plug-in Hybrid DHT Evo

Lynk and Co 08 2023 EM-P 120 Long Range 1.5TD (381 Hp) Plug-in Hybrid DHT Evo
Brand : Lynk and Co
Model : 08
Generation : 08
Body Type : SUV
Engine Type : Hybrid
Battery Capacity : 21.2 KW
Doors : 5
Start Year : 2023

Technical Sheet Lynk and Co 08 2023

Body Type
: SUV
Doors
: 5
Drive Wheel
: Front wheel drive
Engine Aspiration
: Turbocharger, Intercooler
Fuel Type
: Petrol / electricity
Fuel Tank Capacity
: 60 l
Generation
: 08
Gross Battery Capacity
: 21.2 kWh
Kerb Weight
: 2038 kg
Maximum Speed
: 190 km/h
Modification (Engine)
: EM-P 120 Long Range 1.5TD (381 Hp) Plug-in Hybrid DHT Evo
Number Of Cylinders
: 4
Power
: 163 Hp @ 5500 rpm.
Power Steering
: Electric Steering
Powertrain Architecture
: PHEV (Plug-in Hybrid Electric Vehicle)
Seats
: 5
Start Of Production
: 2023
System Power
: 381 Hp
System Torque
: 615 Nm
Wheel Rims Size
: 19; 21

General Lynk and Co 08 2023

General
Body type SUV
Brand Lynk & Co
Doors 5
Generation 08
Model 08
Modification (Engine) EM-P 120 Long Range 1.5TD (381 Hp) Plug-in Hybrid DHT Evo
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Seats 5
Start of production 2023

Performance Lynk and Co 08 2023

Performance
Emission standard China VI
Fuel Type Petrol / electricity
Fuel consumption (economy) - combined (WLTC) 1.2 l/100 km
Maximum speed 190 km/h

Electric Lynk and Co 08 2023

Electric
Gross battery capacity 21.2 kWh
Battery location Below the floor
All-electric range (WLTC) 102 km
Charging ports number 0 Log in to see.
Electric motor power number 1 218 Hp
Electric motor Torque number 1 350 Nm
Electric motor model/code number 1 TZ220WY035
Electric motor location number 1 Integrated into the transmission
Electric motor type number 1 Synchronous
System power 381 Hp
System torque 615 Nm

Internal Engine Lynk and Co 08 2023

Internal Engine
Cylinder Bore 73.4 mm
Engine Model/Code BHE15-BFZ
Engine aspiration Turbocharger, Intercooler
Engine configuration Inline
Engine displacement 1499 cm
Engine layout Front, Transverse
Fuel injection system Direct injection
Number of cylinders 4
Number of valves per cylinder 4
Piston Stroke 88.57 mm
Power 163 Hp @ 5500 rpm.
Power per litre 108.7 Hp/l
Torque 255 Nm @ 2500-4000 rpm.
Valvetrain DOHC

Dimensions Lynk and Co 08 2023

Dimensions
Approach angle 18°
Departure angle 21°
Drag coefficient (Cd) 0.295
Front overhang 930 mm
Front track 1635 mm
Height 1685 mm
Length 4820 mm
Minimum turning circle (turning diameter) 12 m
Rear (Back) track 1635 mm
Rear overhang 1042 mm
Ride height (ground clearance) 186 mm
Wheelbase 2848 mm
Width 1915 mm

Drivetrain Lynk and Co 08 2023

Drivetrain
Drive wheel Front wheel drive
Front brakes Ventilated discs
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox 3 gears, automatic transmission DHT Evo
Power steering Electric Steering
Rear brakes Disc
Rear suspension Independent multi-link spring suspension with stabilizer
Steering type Steering rack and pinion
Tires size 235/55 R19; 255/40 R21
Wheel rims size 19; 21

Space Lynk and Co 08 2023

Space
Fuel tank capacity 60 l
Kerb Weight 2038 kg
Max load 425 kg
Max. weight 2463 kg
