Lynk and Co 01 2020
1.5TD (261 Hp) Plug-in Hybrid DCTH
Hybrid Car
Body Type SUV
Battery Capacity 17.7 KW
69-75 km
Electric Range
210 km/h
Maximum Speed
5
Doors
Lynk and Co 01 2020 Key Specs
Acceleration 0 - 100 Km/h
8 sec
Acceleration 0 - 62 Mph
8 sec
All-electric Range (NEDC)
88 km
All-electric Range (WLTP)
69-75 km
Average Energy Consumption (WLTP)
18.5-20.1 kWh/100 km
Battery Voltage
347.5 V
Body Type
SUV
Doors
5
Drive Wheel
Front wheel drive
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
5.6 l
Engine Systems
Particulate filter
Fuel Type
Petrol / electricity
Fuel Tank Capacity
42 l
Generation
01 (2020)
Gross Battery Capacity
17.7 kWh
Kerb Weight
1879 kg
Max Speed (electric)
130 km/h
Maximum Speed
210 km/h
Modification (Engine)
1.5TD (261 Hp) Plug-in Hybrid DCTH
Number Of Cylinders
3
Power
180 Hp @ 5500 rpm.
Power Steering
Electric Steering
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Seats
5
Start Of Production
December, 2020
System Power
261 Hp
Wheel Rims Size
19; 20

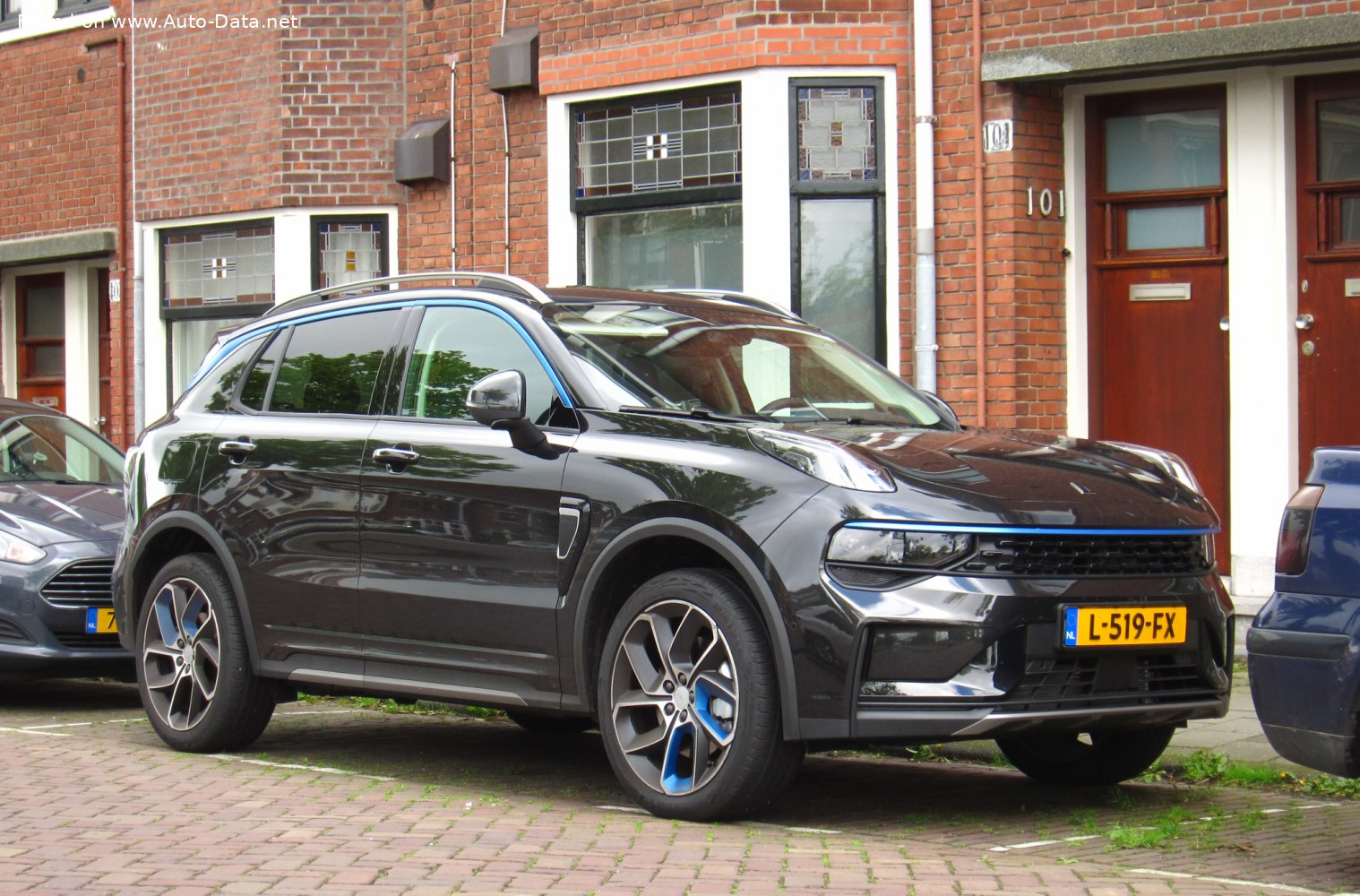

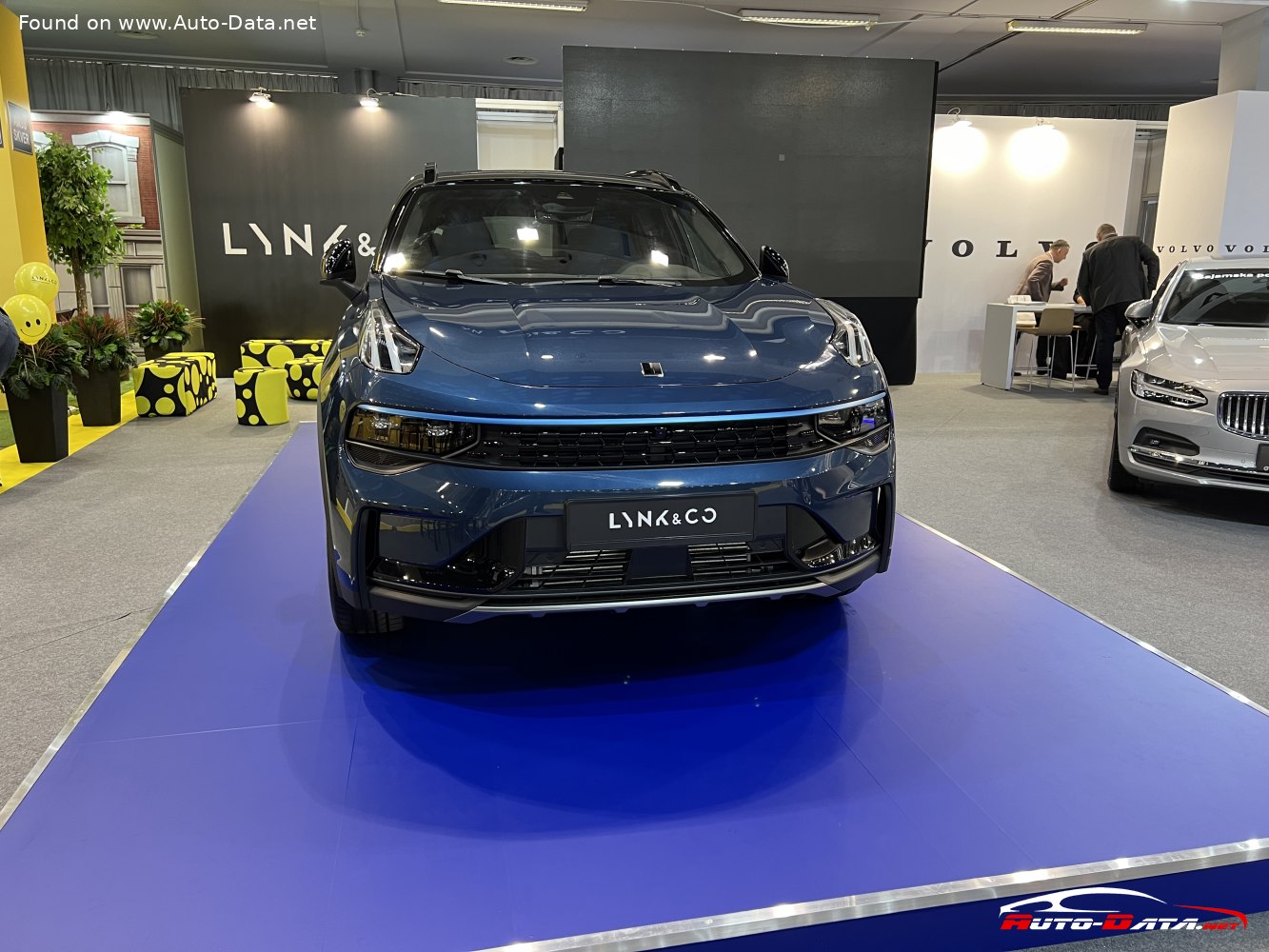

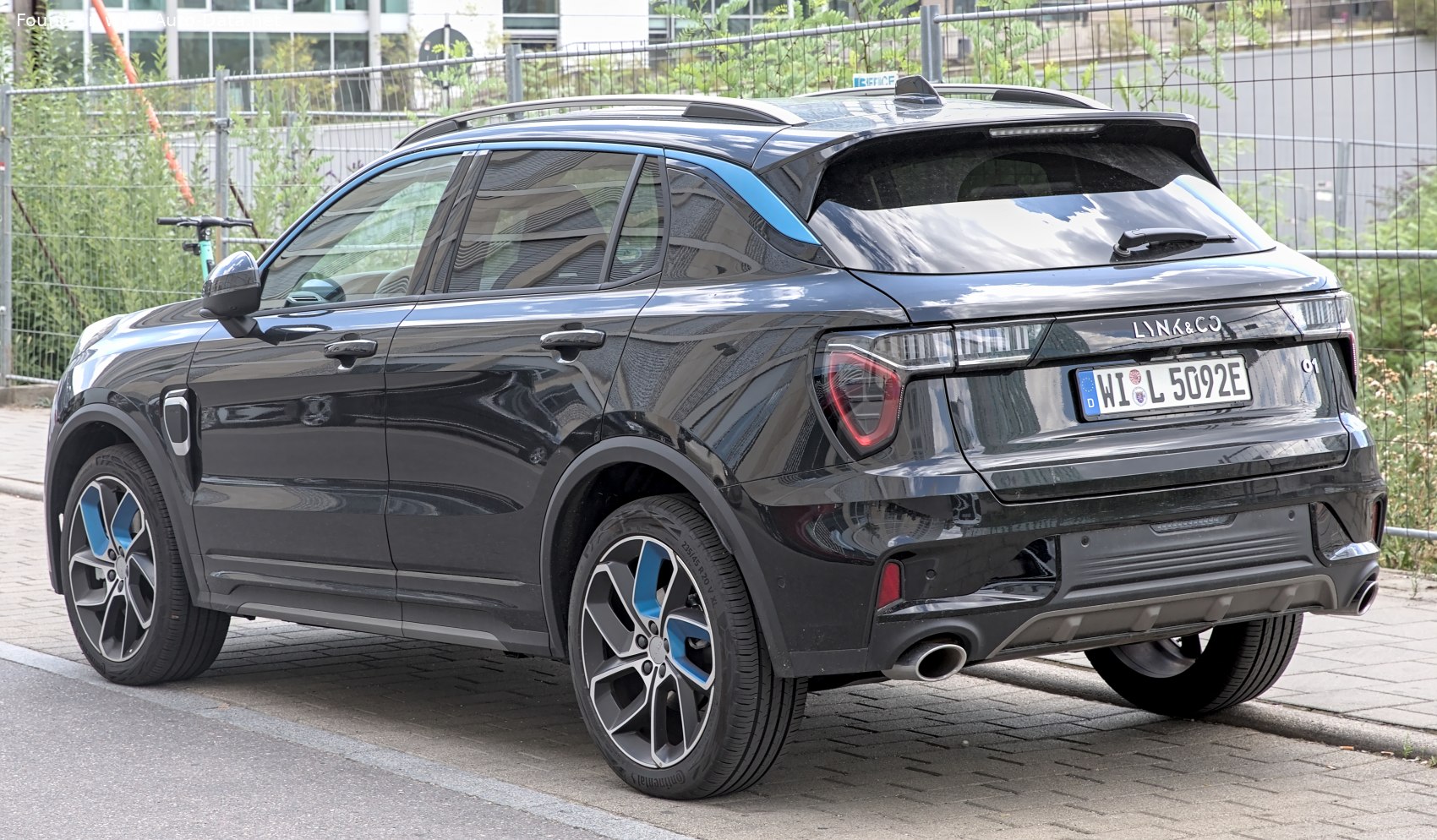

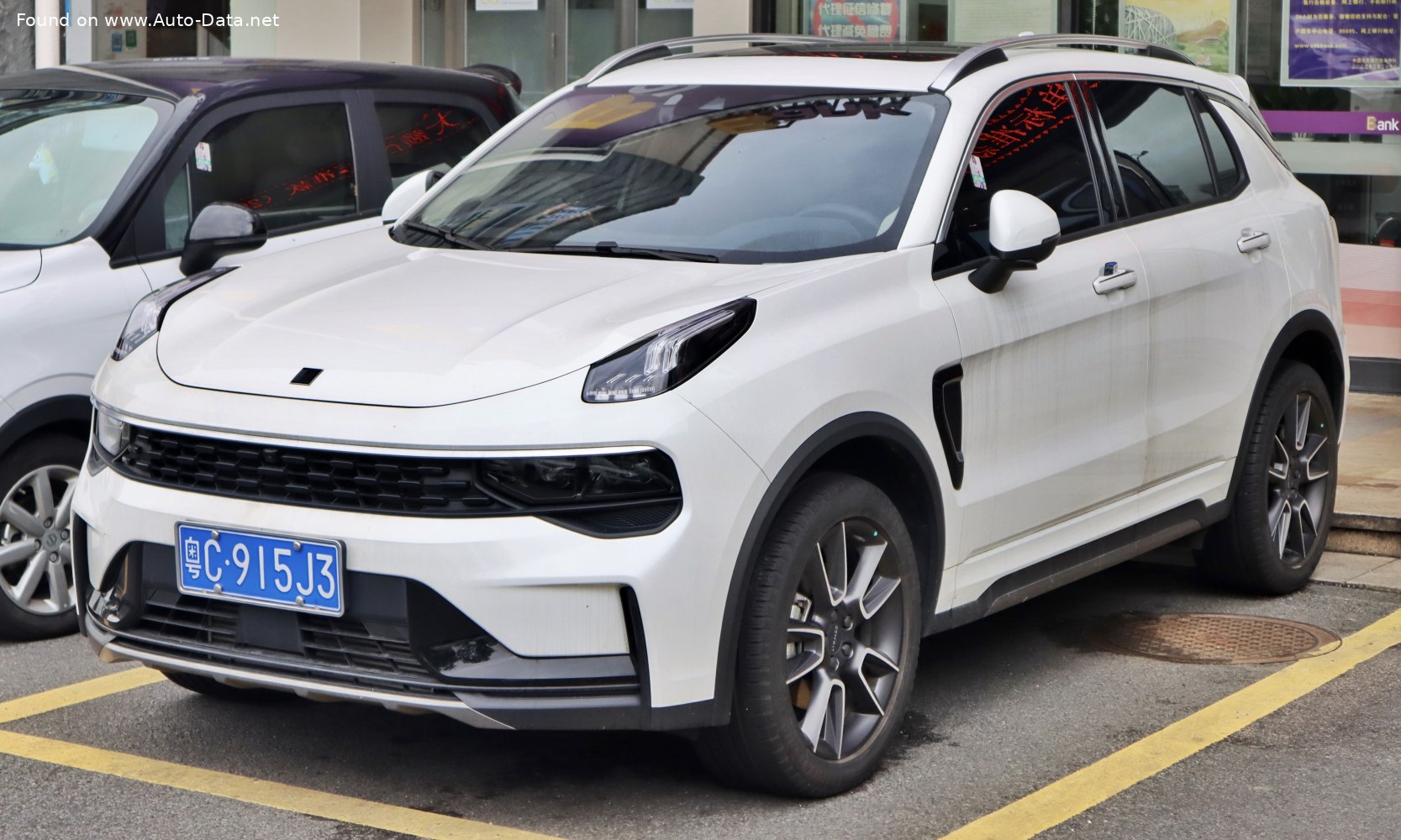

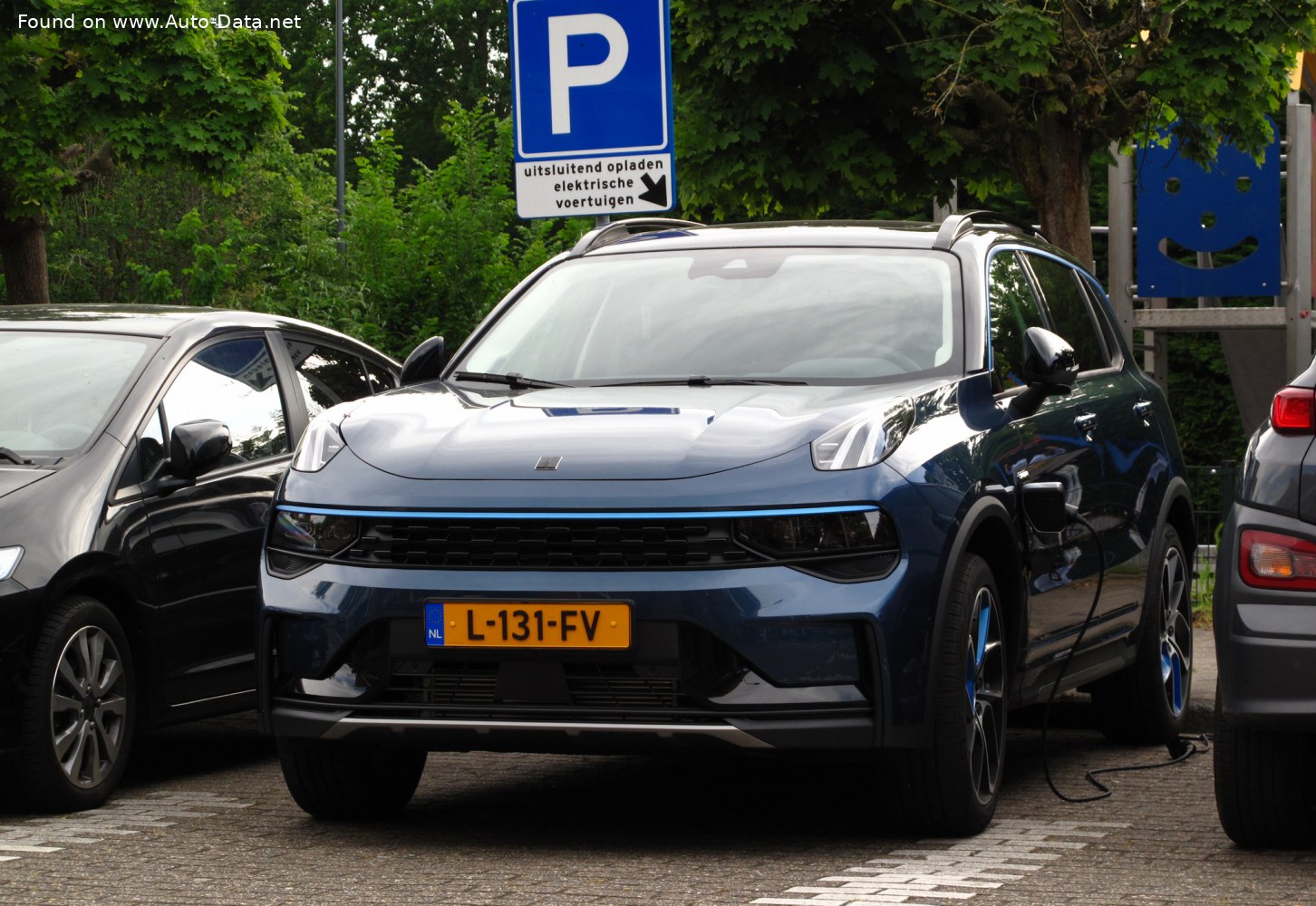

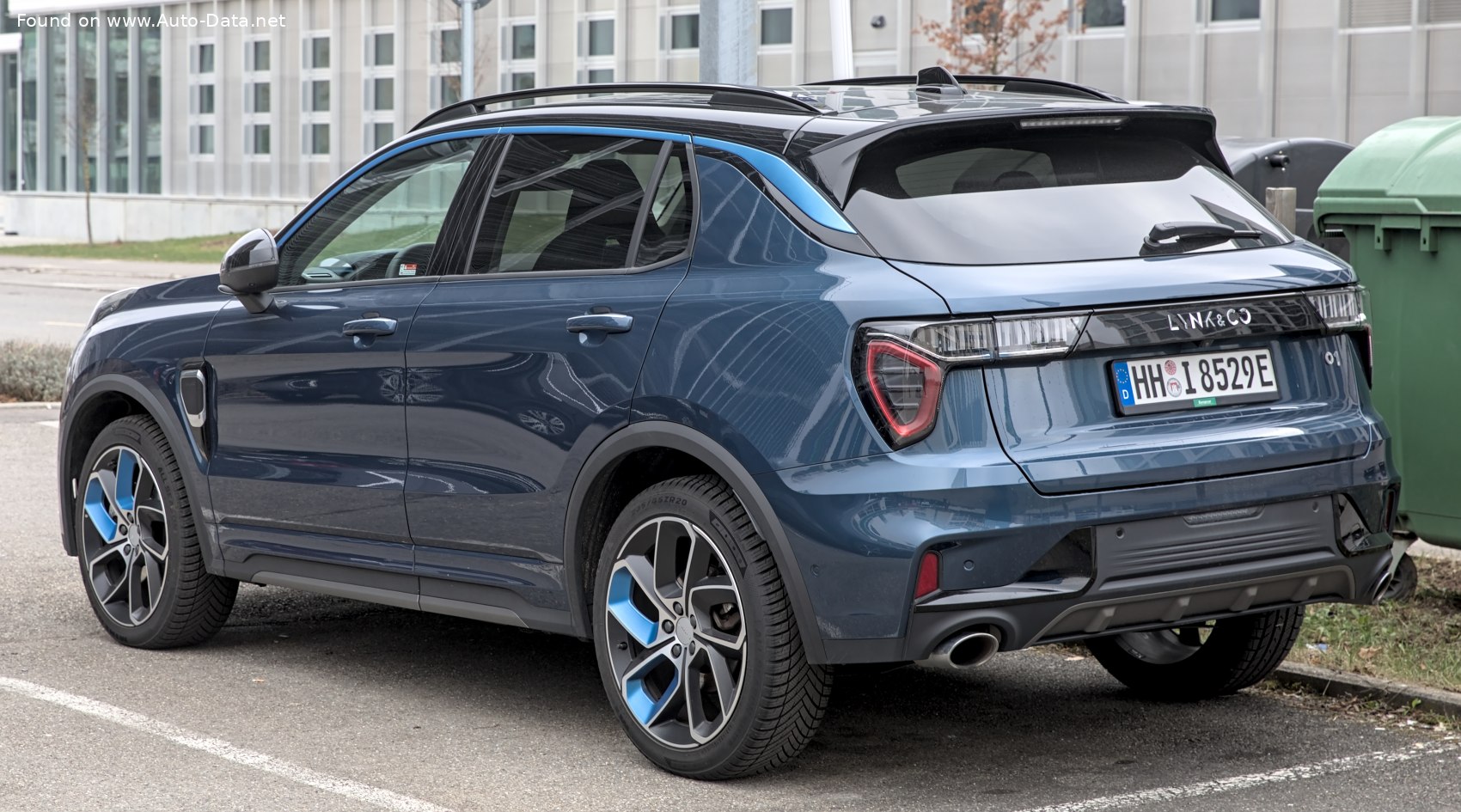

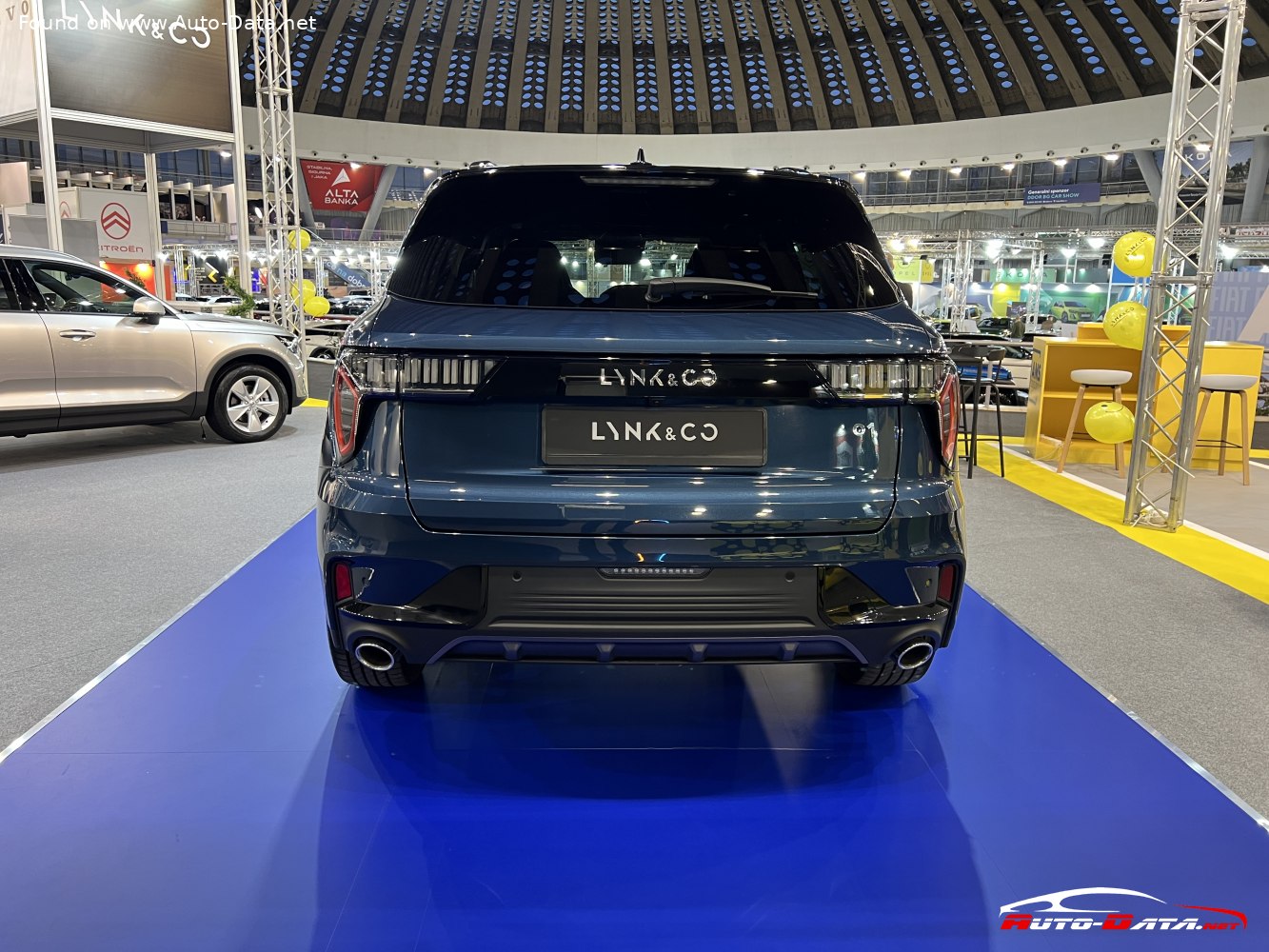

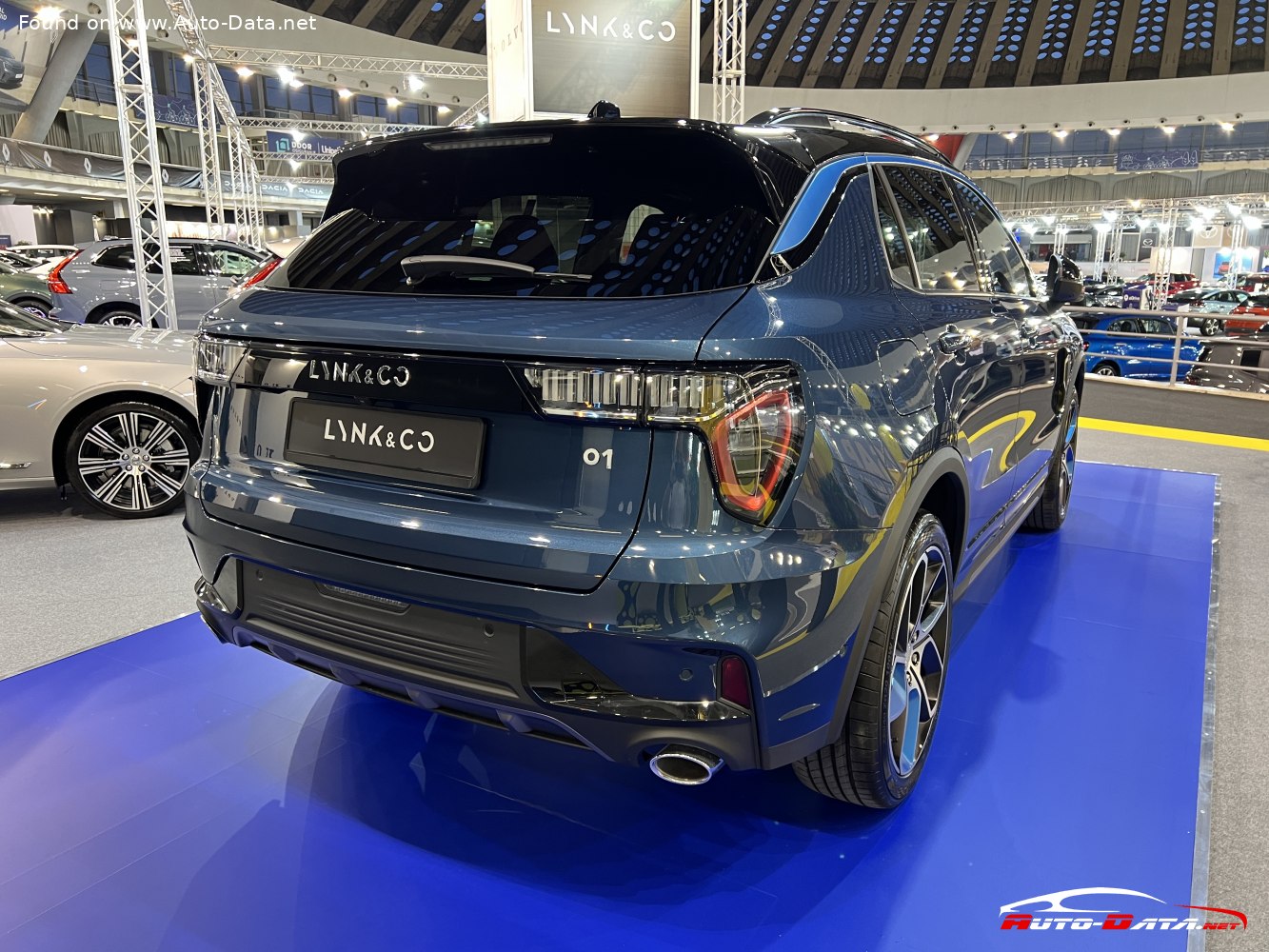

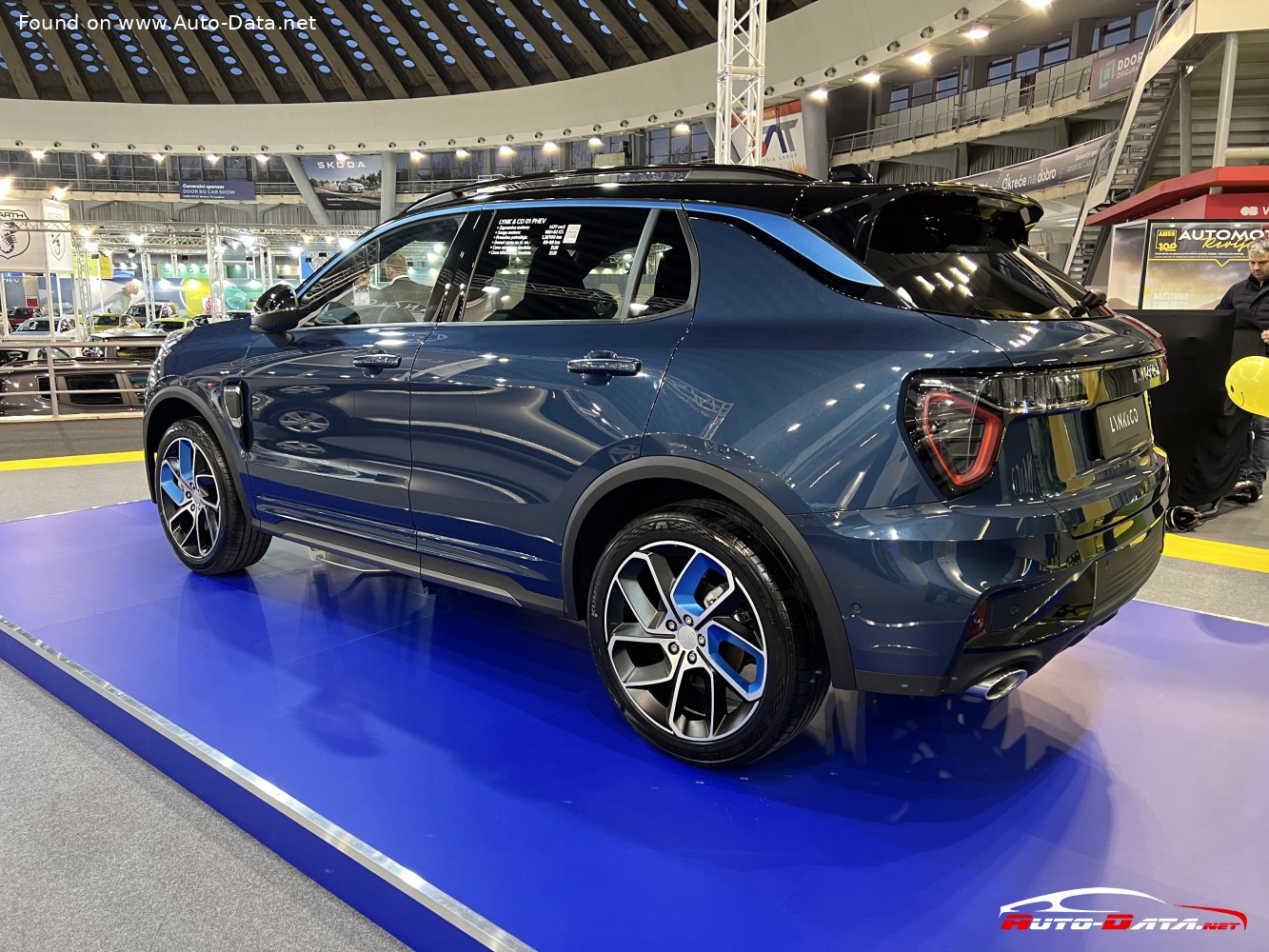

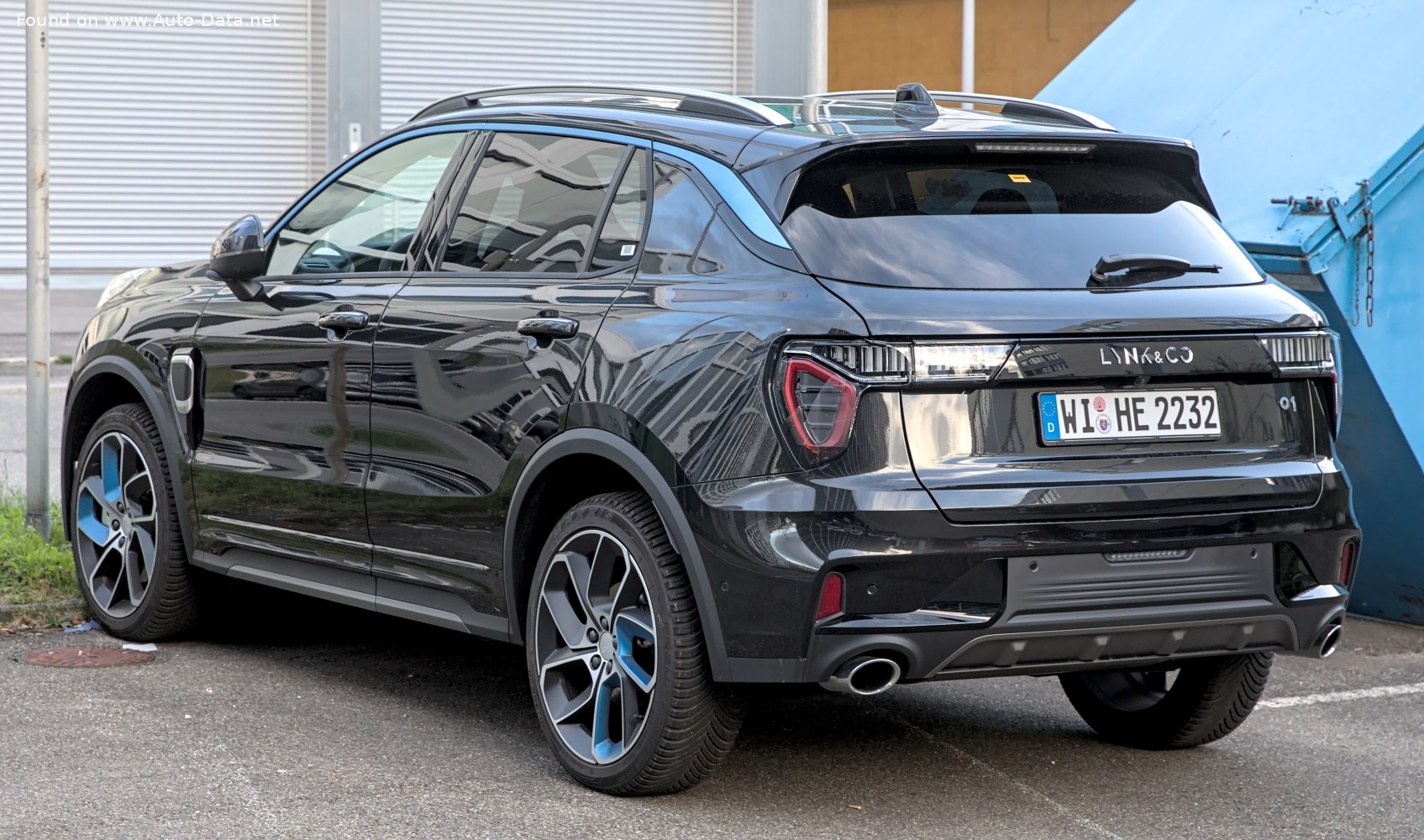

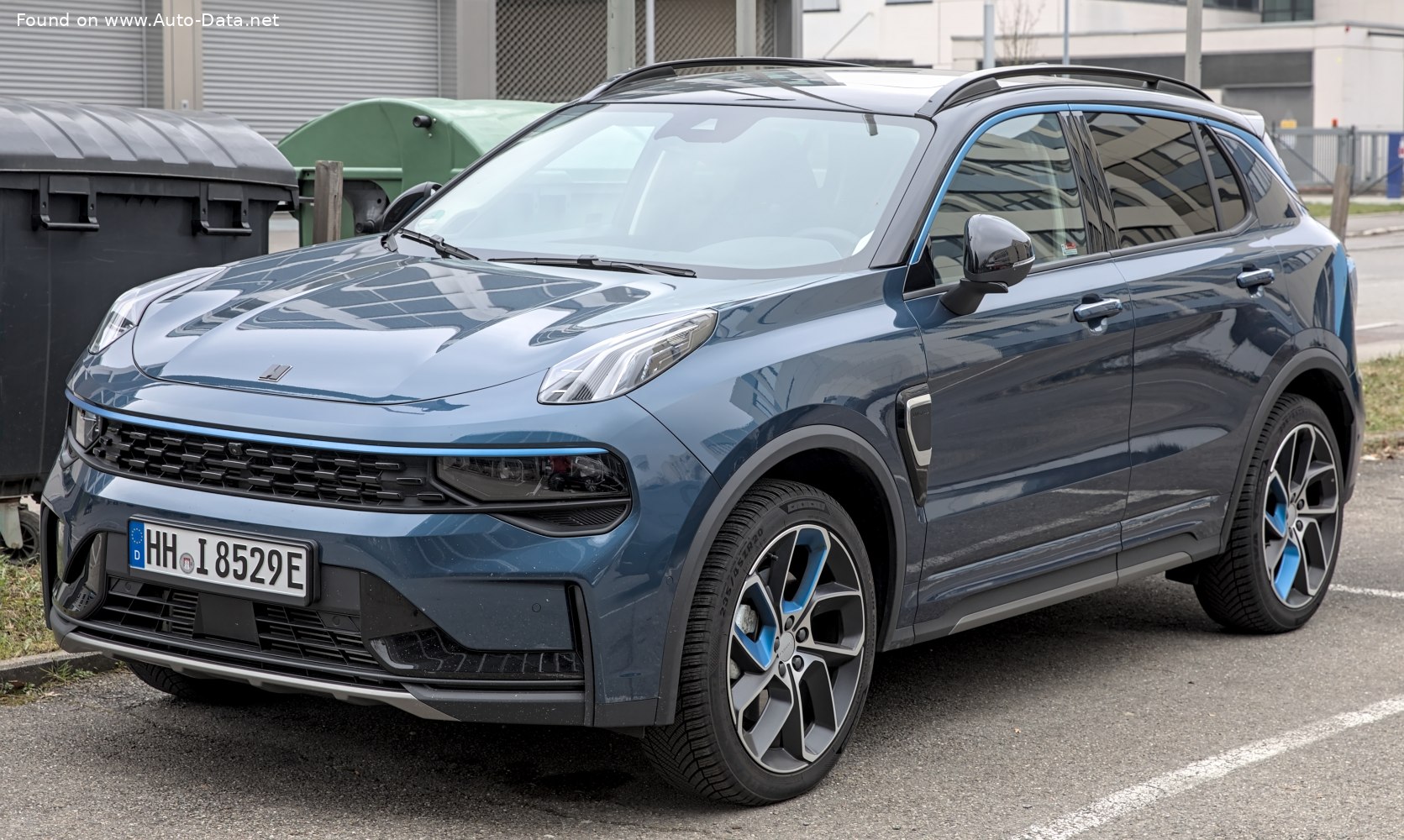

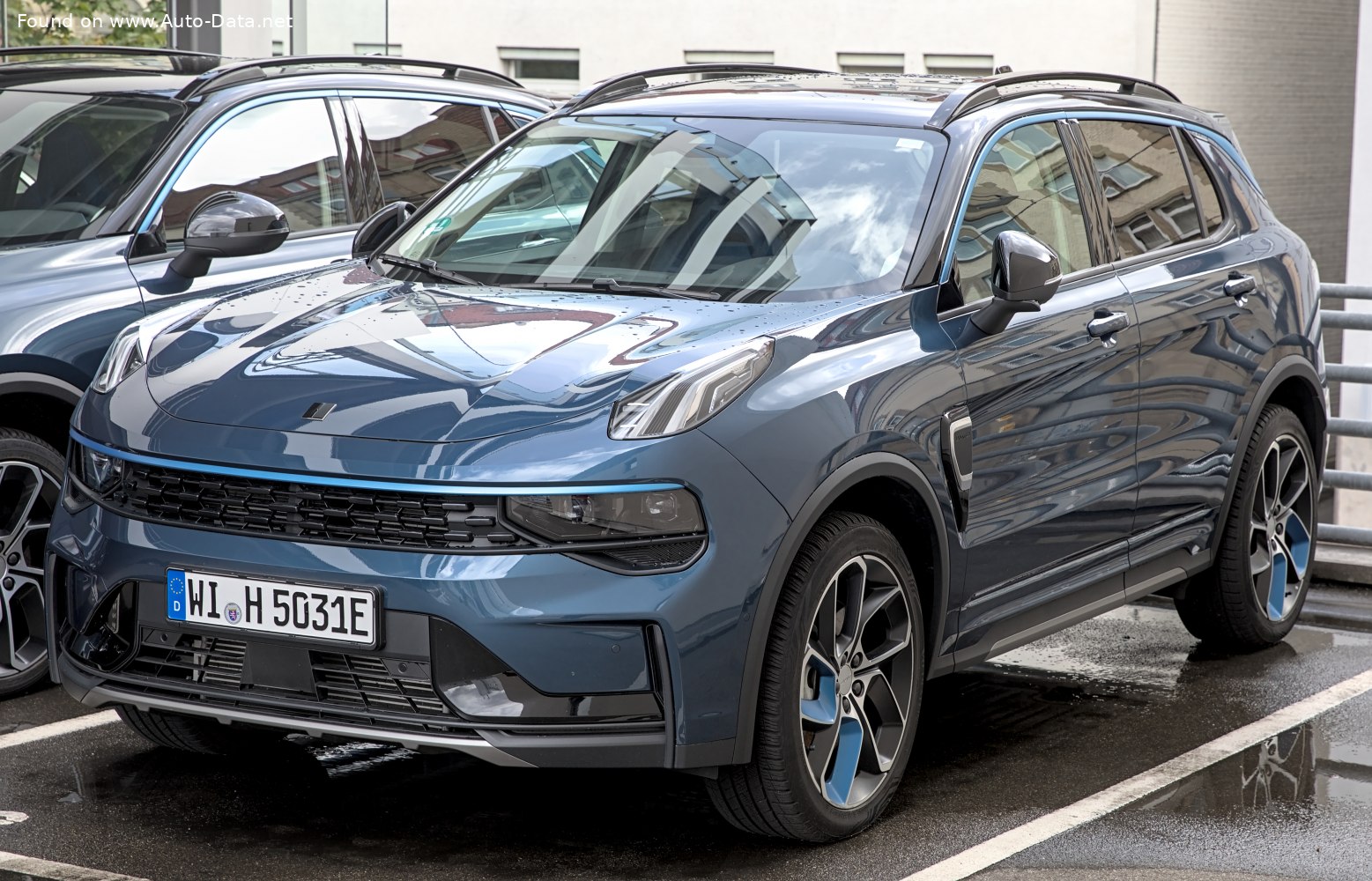

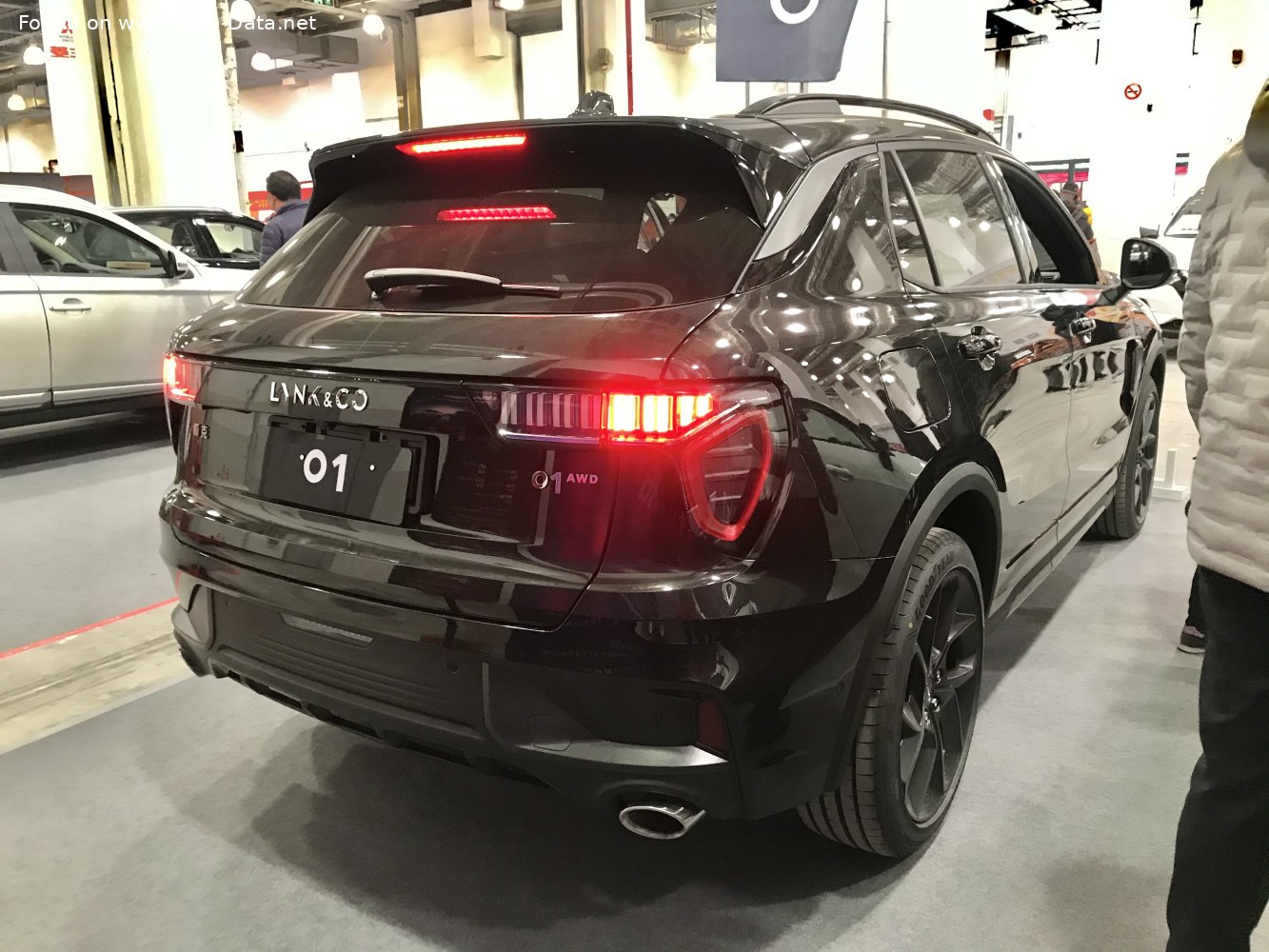

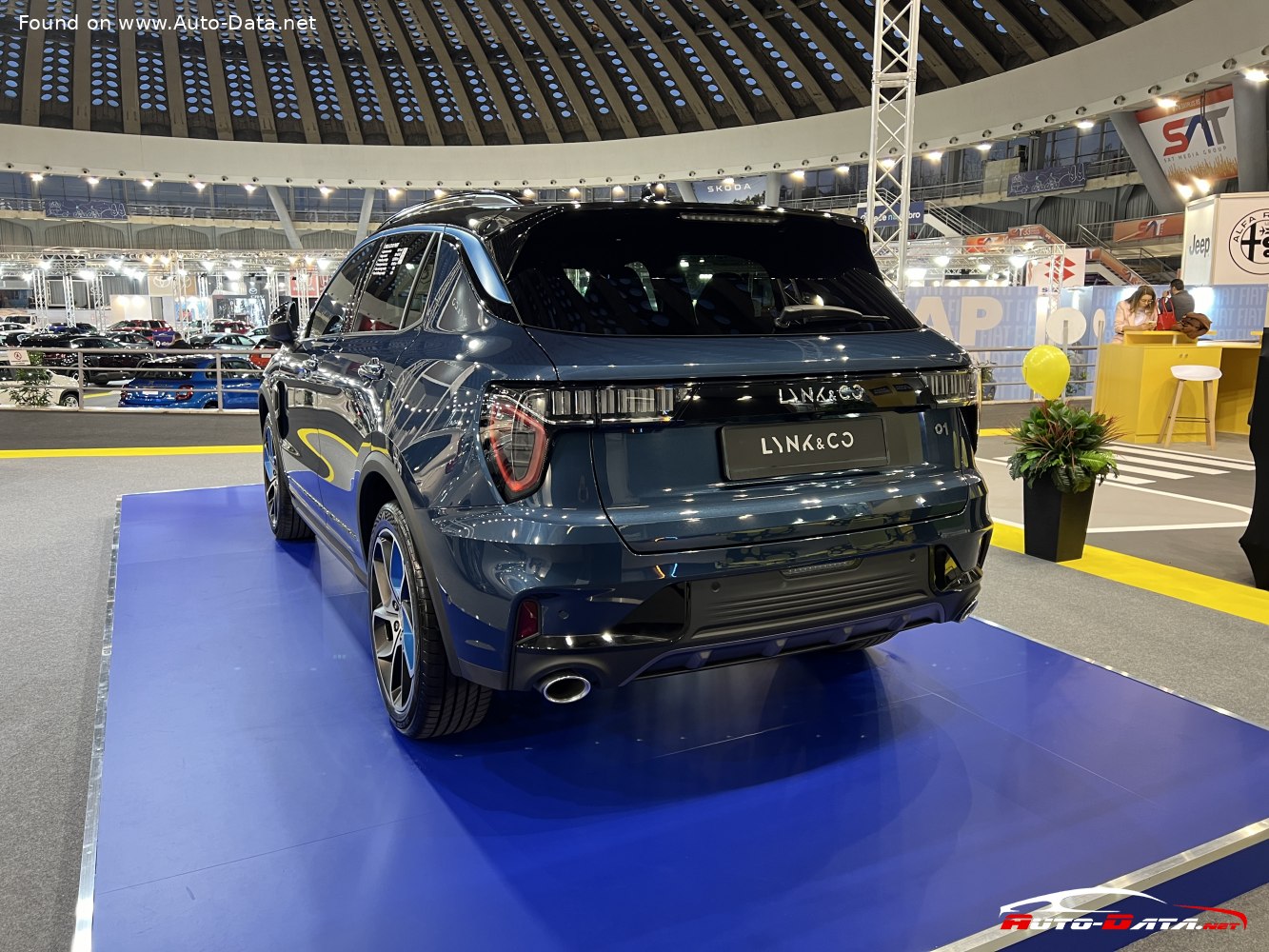

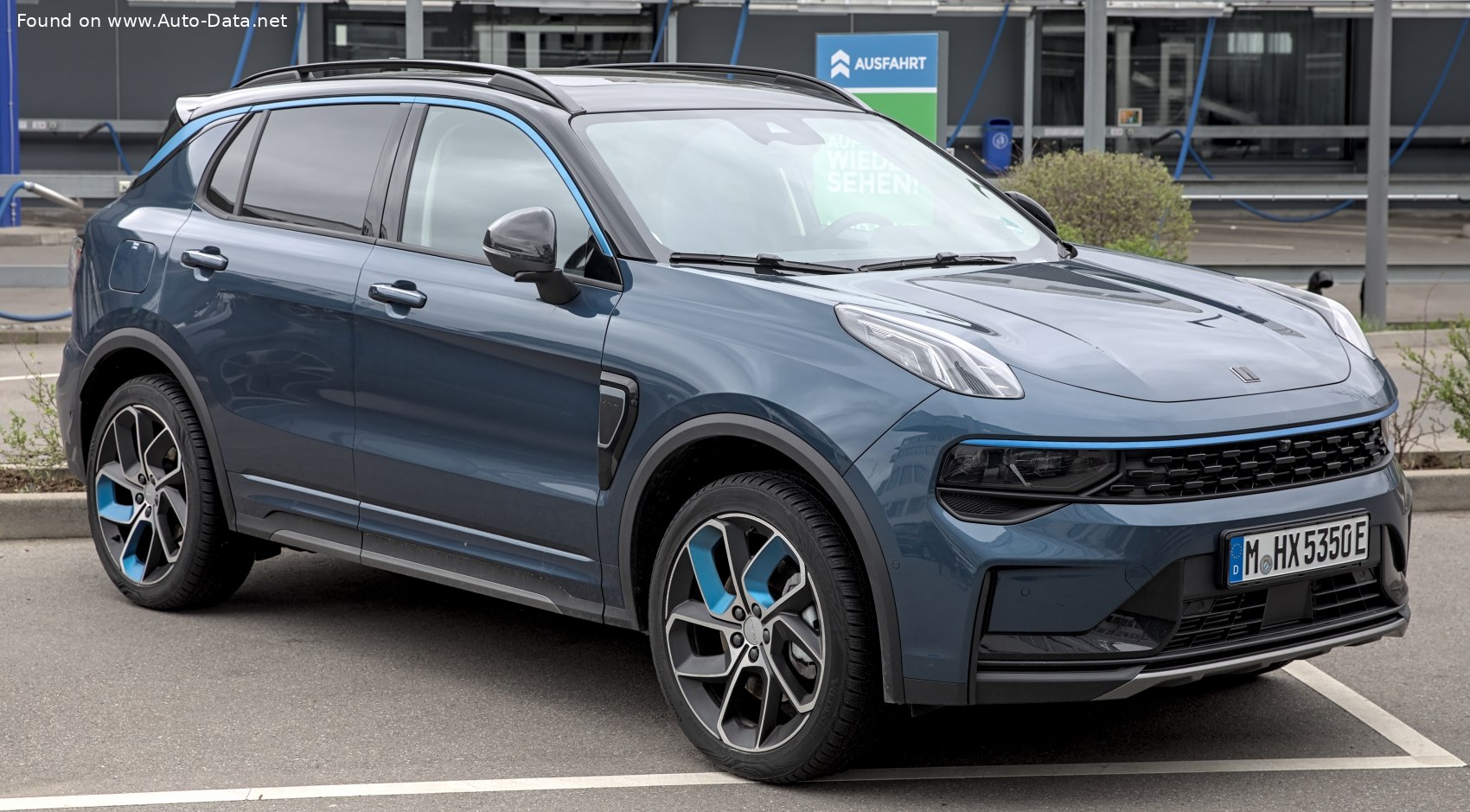

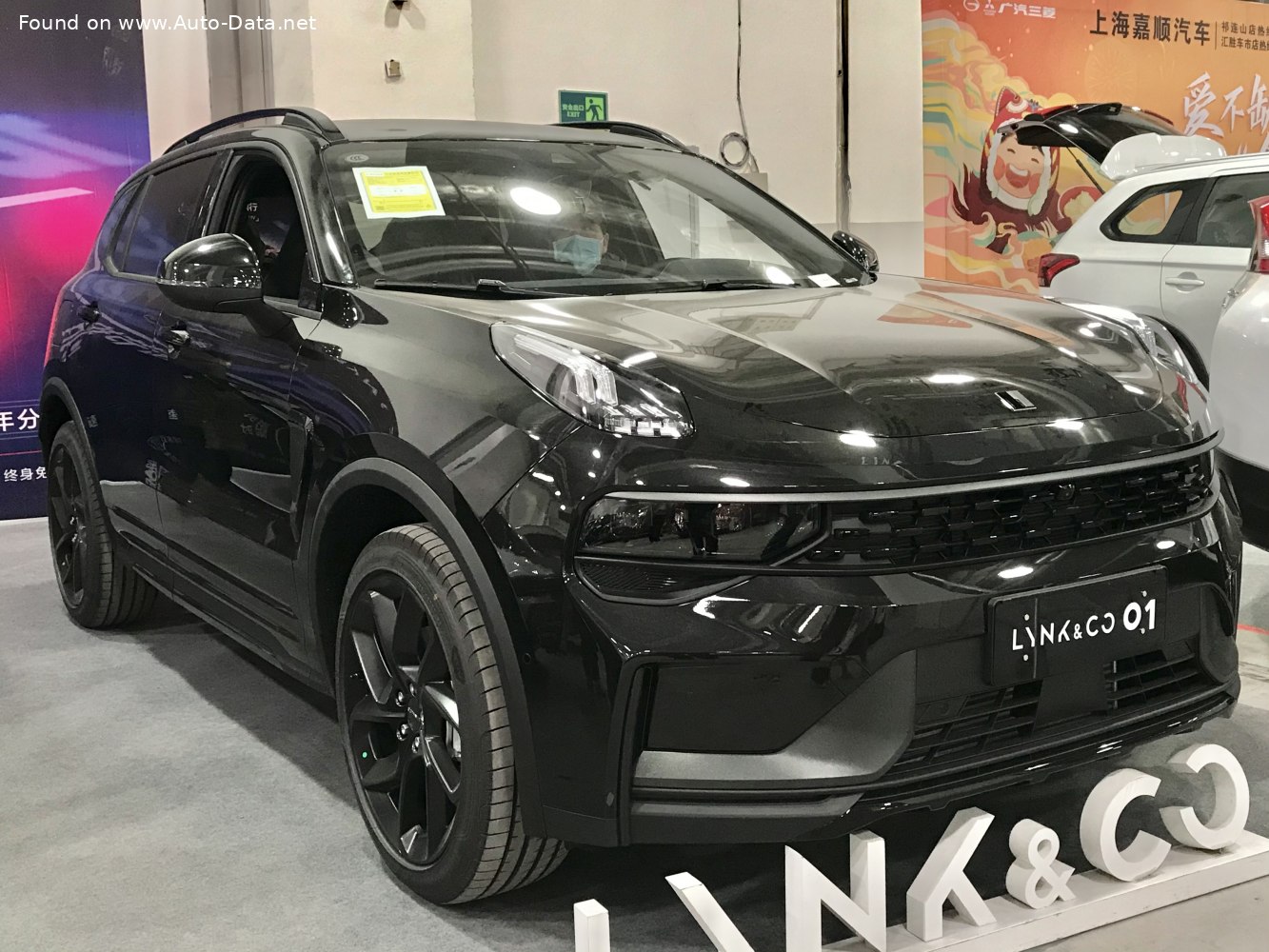

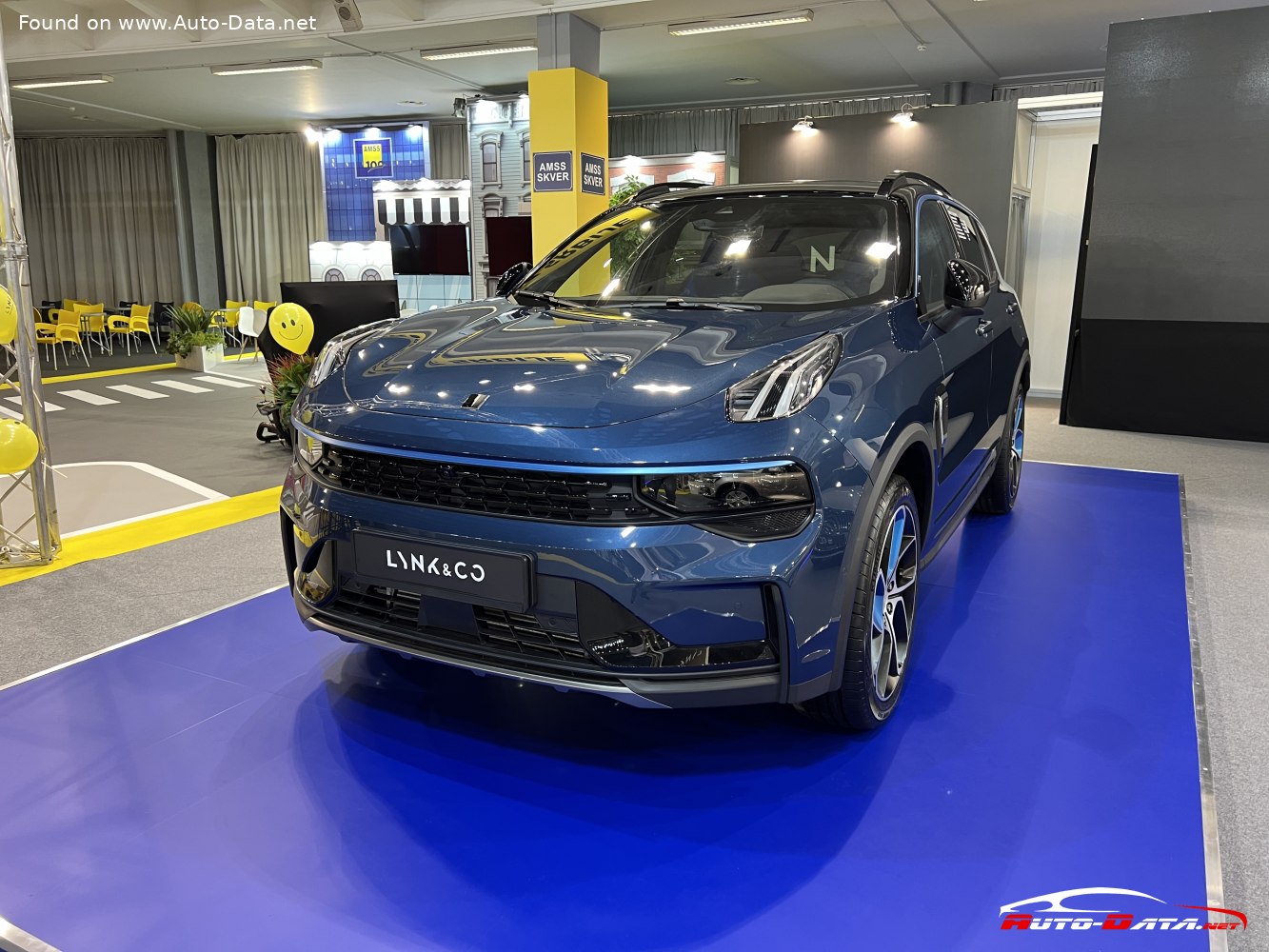

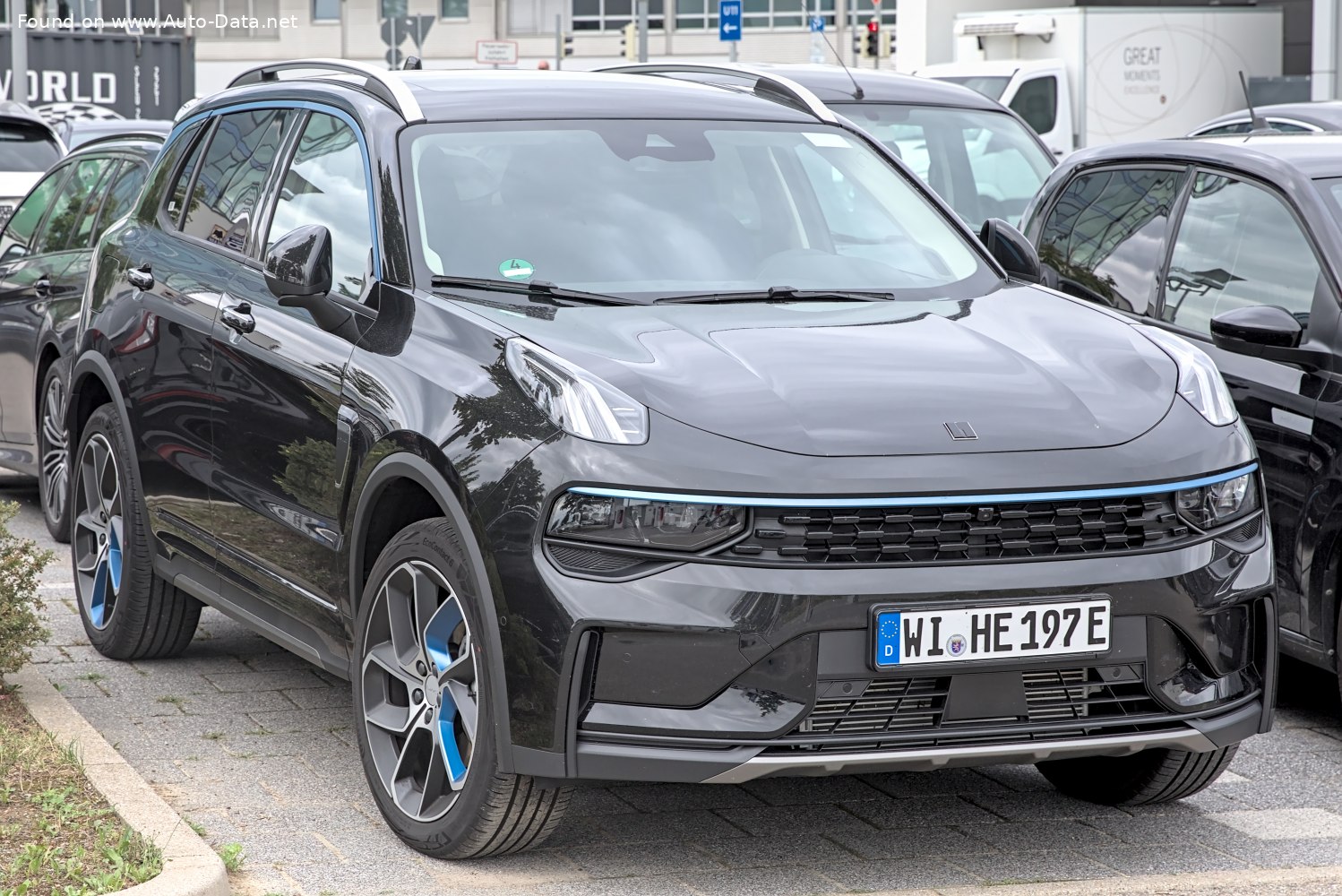

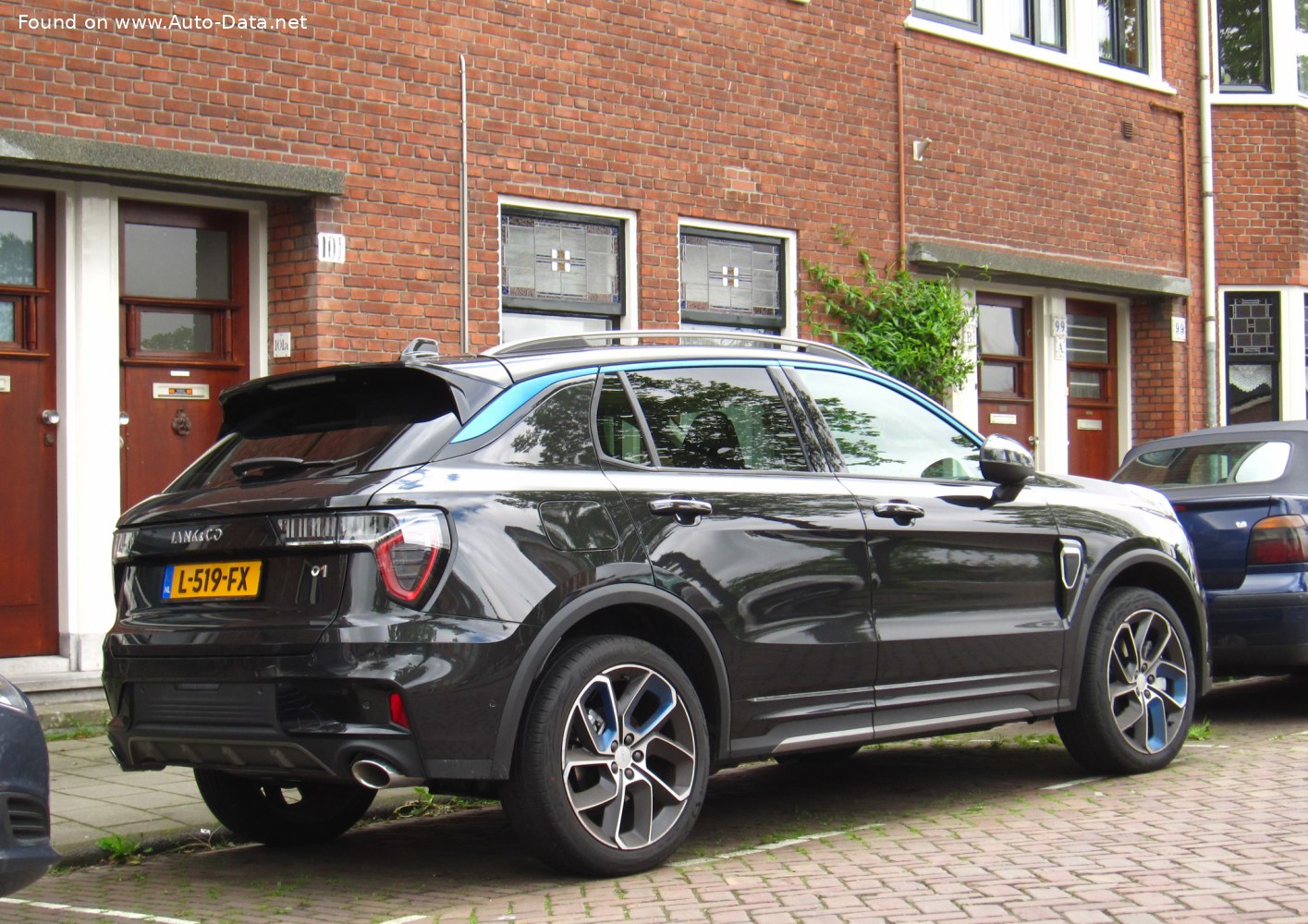

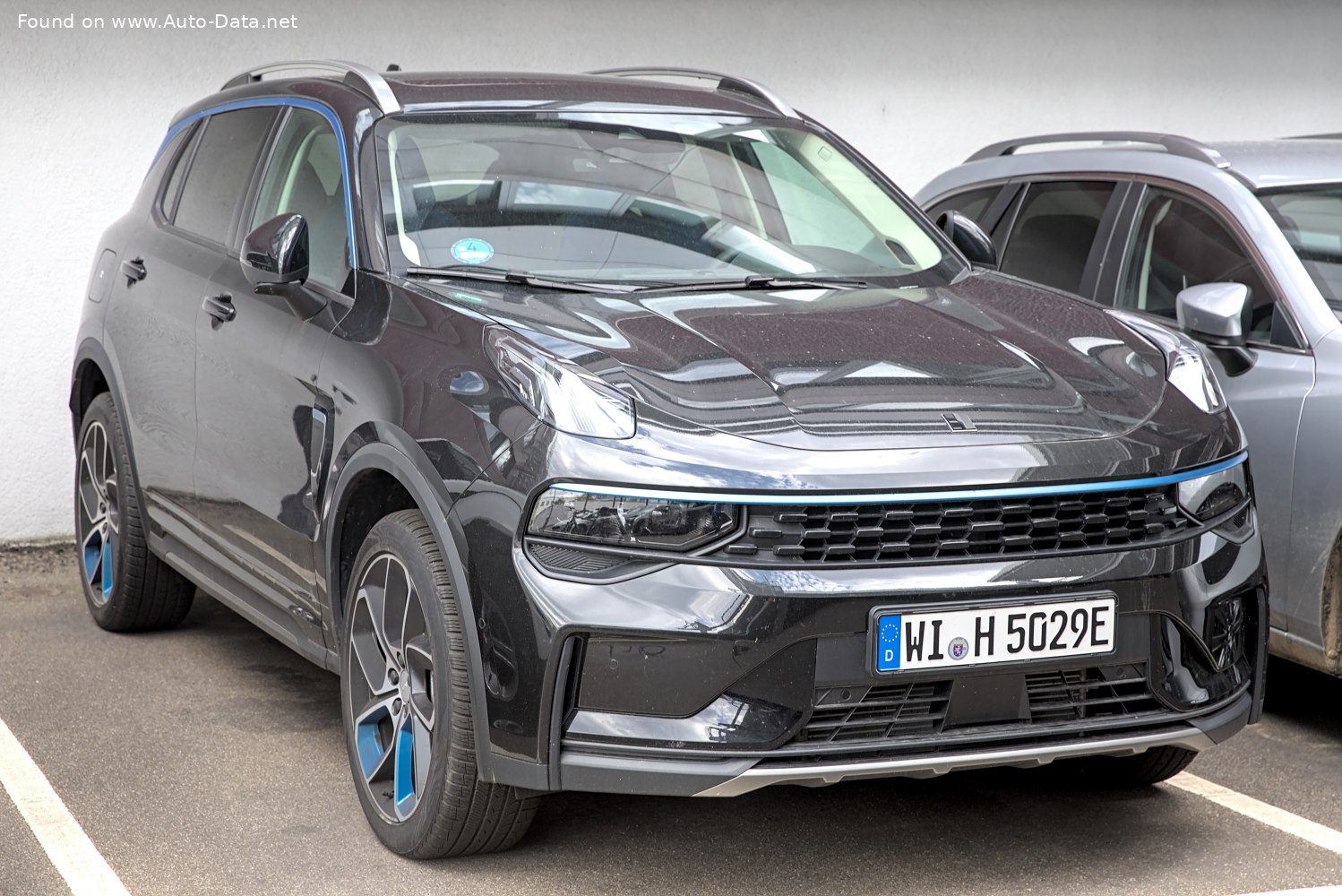

Lynk and Co 01 2020 Gallery
Lynk and Co 01 2020 Technical Specifications
General
Body type
SUV
Brand
Lynk & Co
Doors
5
Generation
01 (2020)
Model
01
Modification (Engine)
1.5TD (261 Hp) Plug-in Hybrid DCTH
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Seats
5
Start of production
December, 2020
Performance
Acceleration 0 - 100 km/h
8 sec
Acceleration 0 - 60 mph
7.6 sec
Acceleration 0 - 62 mph
8 sec
CO2 emissions (WLTP)
24-27 g/km
Combined fuel consumption (WLTP)
1-1.2 l/100 km
Emission standard
Euro 6d-ISC-FCM
Fuel Type
Petrol / electricity
Maximum speed
210 km/h
Electric
All-electric range (NEDC)
88 km
All-electric range (WLTP)
69-75 km
Average Energy consumption (WLTP)
18.5-20.1 kWh/100 km
Battery location
In the central tunnel
Battery voltage
347.5 V
Charging ports number 0
Log in to see.
Electric motor Torque number 1
160 Nm
Electric motor location number 1
Integrated into the transmission
Electric motor power number 1
82 Hp
Electric motor type number 1
Synchronous
Gross battery capacity
17.7 kWh
Max speed (electric)
130 km/h
Net (usable) battery capacity
14.1 kWh
System power
261 Hp
Internal Engine
Compression ratio
11.5
Cylinder Bore
82 mm
Engine Model/Code
JLH-3G15TD
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1477 cm
Engine layout
Front, Transverse
Engine oil capacity
5.6 l
Engine oil specification
Log in to see.
Engine systems
Particulate filter
Fuel injection system
Direct injection
Number of cylinders
3
Number of valves per cylinder
4
Piston Stroke
93.2 mm
Power
180 Hp @ 5500 rpm.
Power per litre
121.9 Hp/l
Torque
265 Nm @ 1500-4000 rpm.
Valvetrain
DOHC
Dimensions
Approach angle
19.4°
Departure angle
26.4°
Height
1694 mm
Length
4541 mm
Minimum turning circle (turning diameter)
11.8 m
Ride height (ground clearance)
213 mm
Wheelbase
2734 mm
Width
1857 mm
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
7 gears, automatic transmission DCTH
Power steering
Electric Steering
Rear brakes
Disc
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
235/50 R19; 235/45 R20
Wheel rims size
19; 20
Space
Fuel tank capacity
42 l
Kerb Weight
1879 kg
Max load
471 kg
Max. weight
2350 kg
