Toyota Crown 16 Signia S238 2024
2.5 D-4S (240 Hp) Hybrid E-Four e-CVT
Hybrid Car
Body Type SUV, Crossover
Battery Capacity 1.15 KW
6000 rpm.
Power HP RPM
5
Doors
Toyota Crown 16 Signia S238 2024 Key Specs
Battery Voltage
230.4 V
Body Type
SUV, Crossover
Doors
5
Drive Wheel
All wheel drive (4x4)
Engine Aspiration
Naturally aspirated engine
Engine Oil Capacity
4.3 l
Engine Systems
Start & Stop System
Fuel Type
Petrol (Gasoline)
Fuel Tank Capacity
55 l
Generation
Crown XVI Signia (S238)
Gross Battery Capacity
1.15 kWh
Kerb Weight
1910 kg
Modification (Engine)
2.5 D-4S (240 Hp) Hybrid E-Four e-CVT
Number Of Cylinders
4
Power
188 Hp @ 6000 rpm.
Power Steering
Electric Steering
Powertrain Architecture
FHEV (Full Hybrid Electric Vehicle)
Seats
5
Start Of Production
June, 2024
System Power
240 Hp
Wheel Rims Size
19; 21

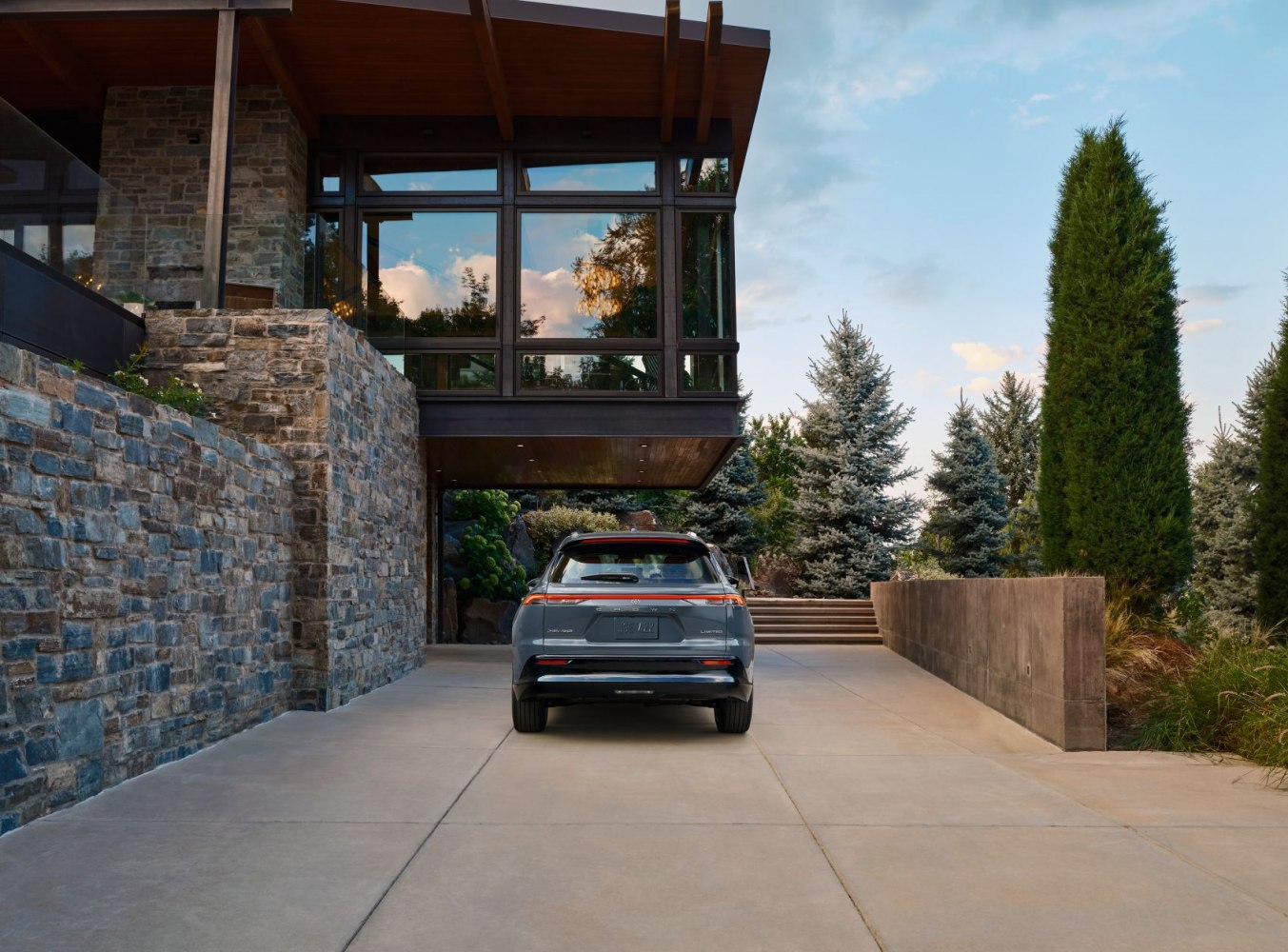

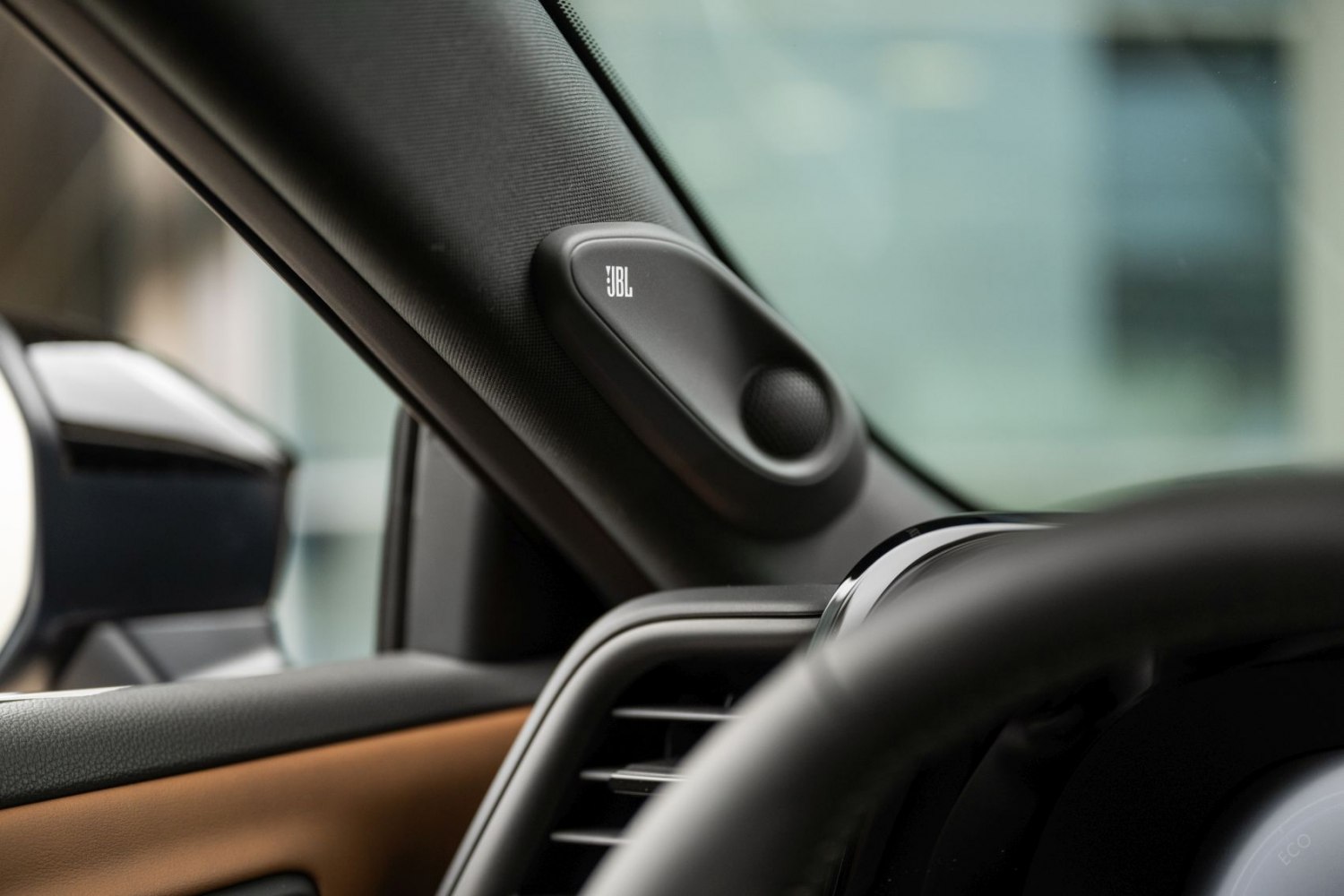

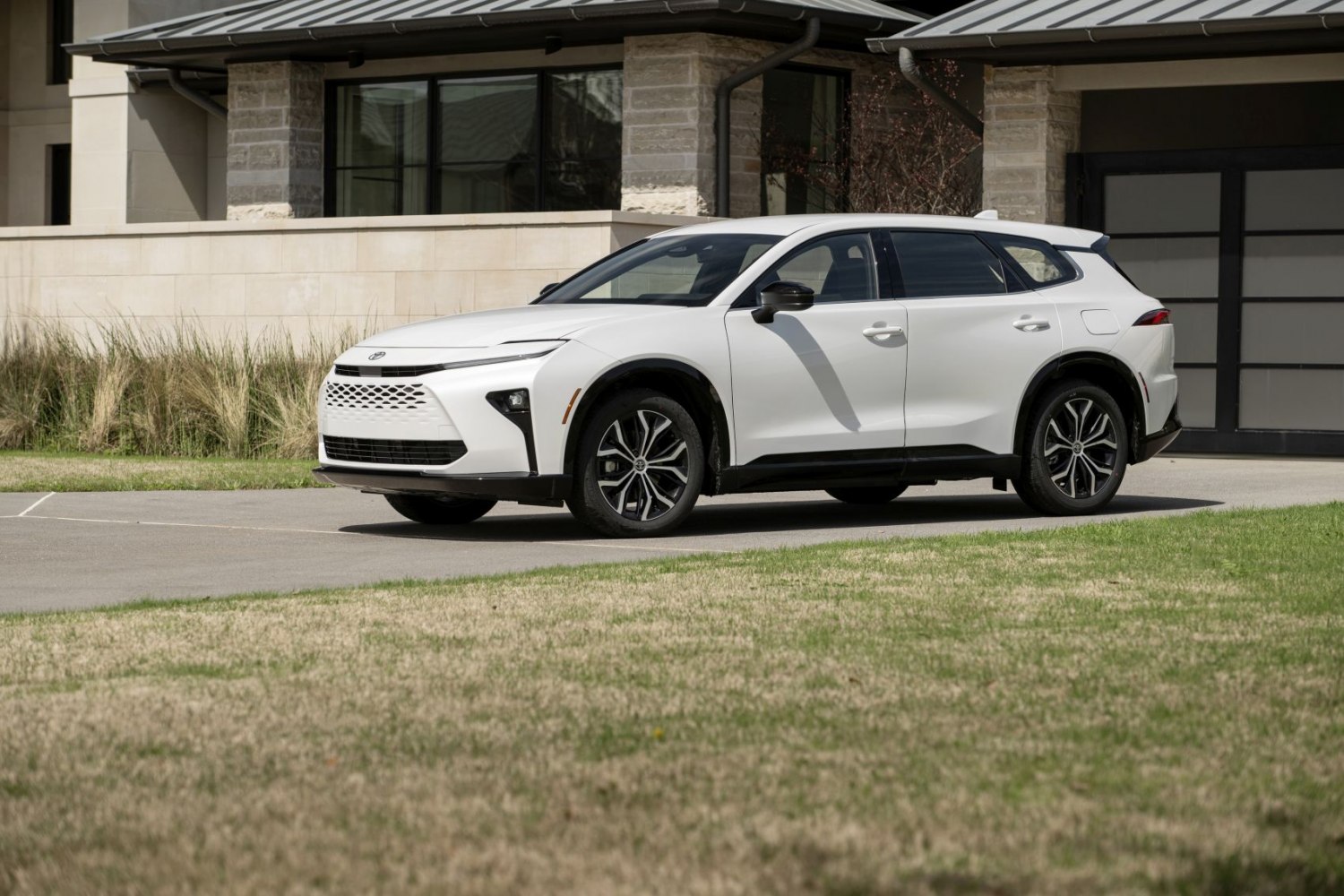

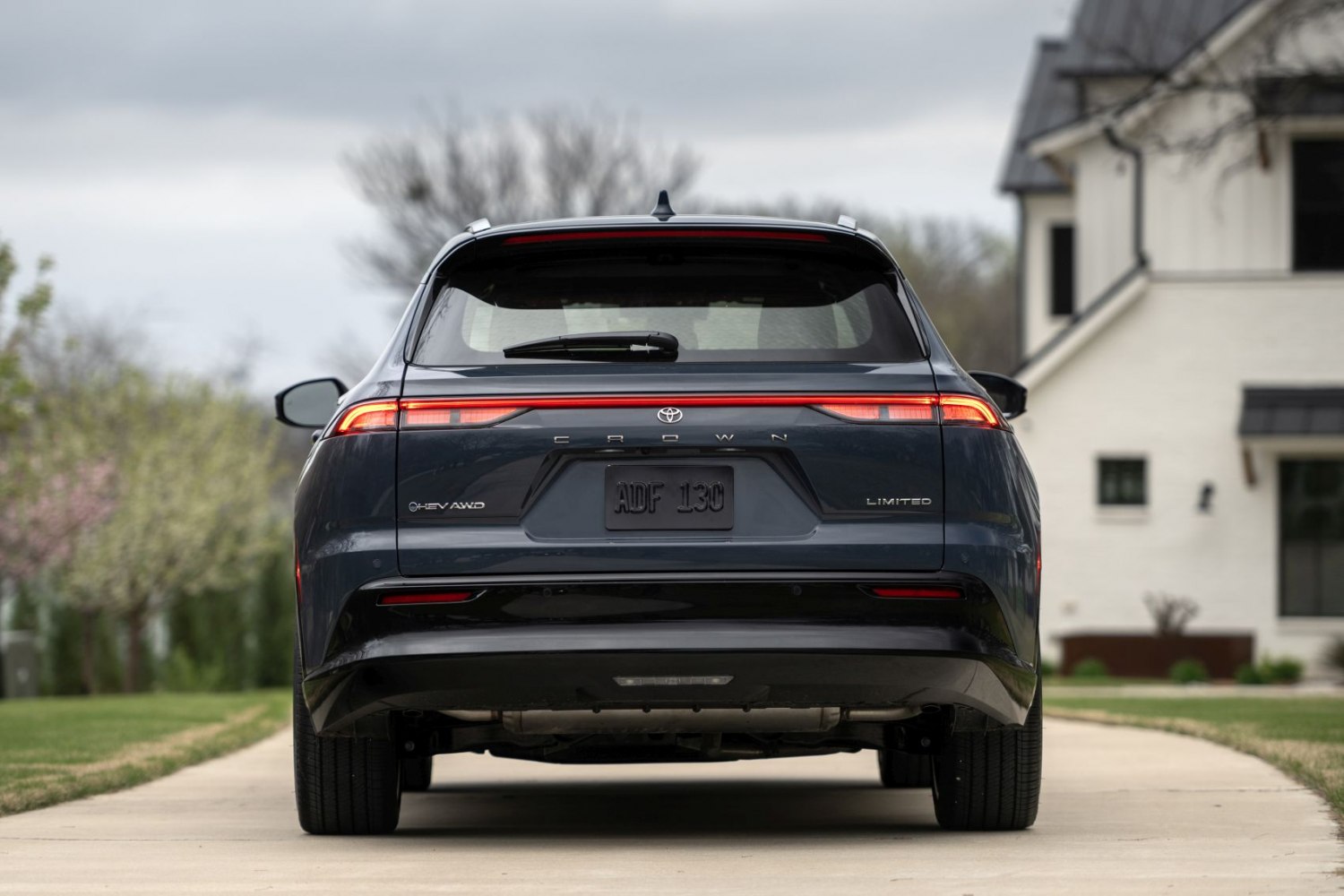

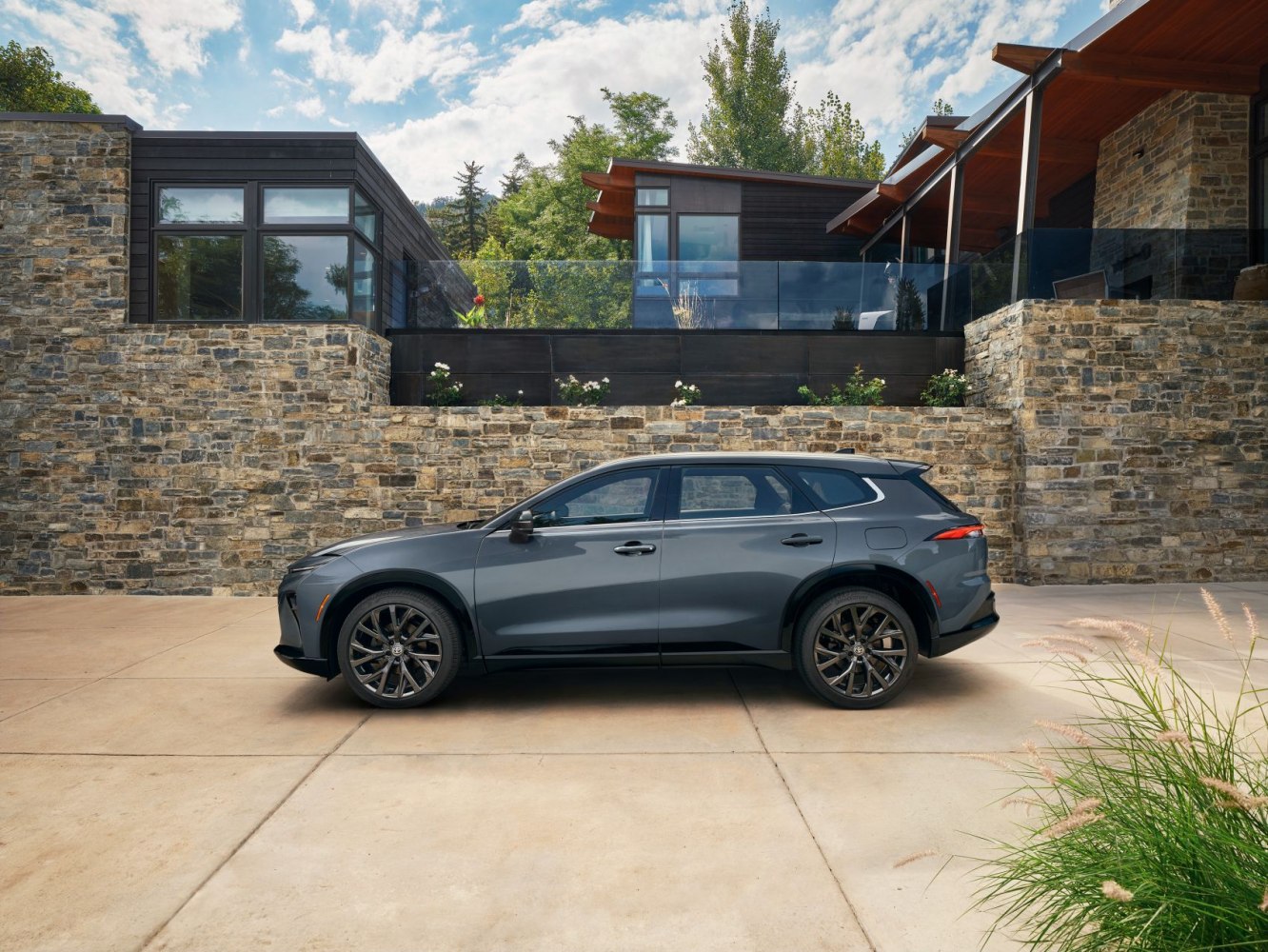

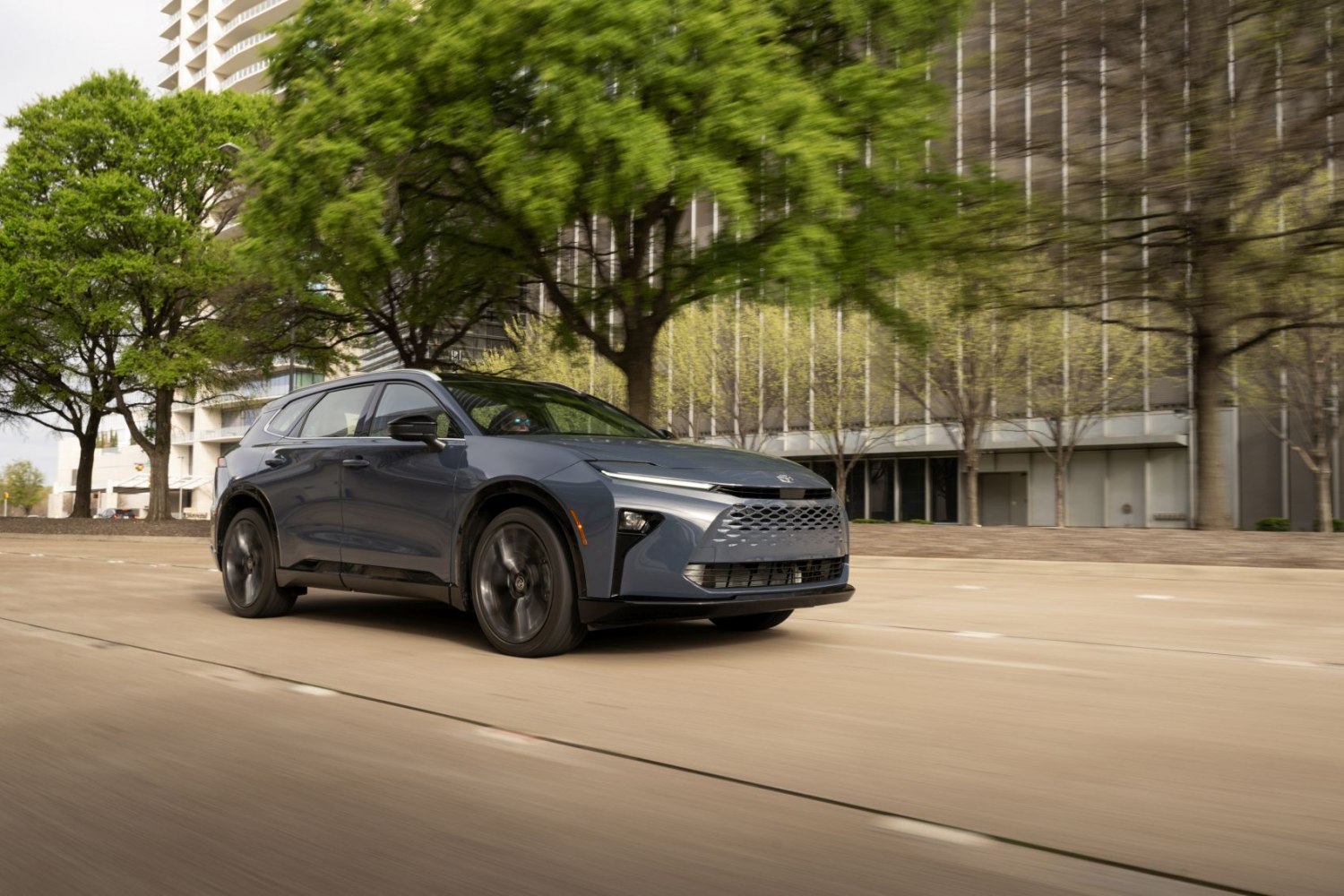

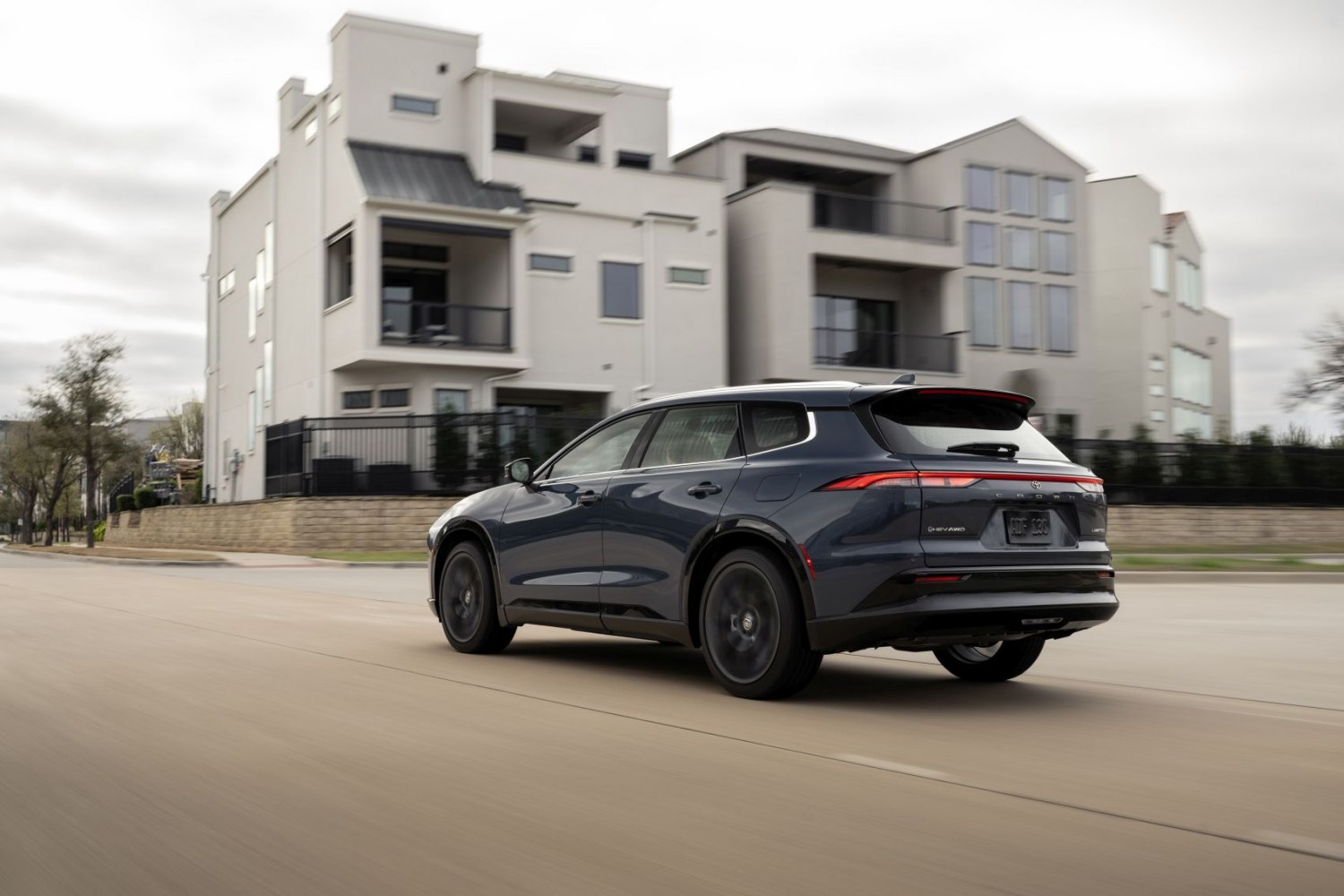

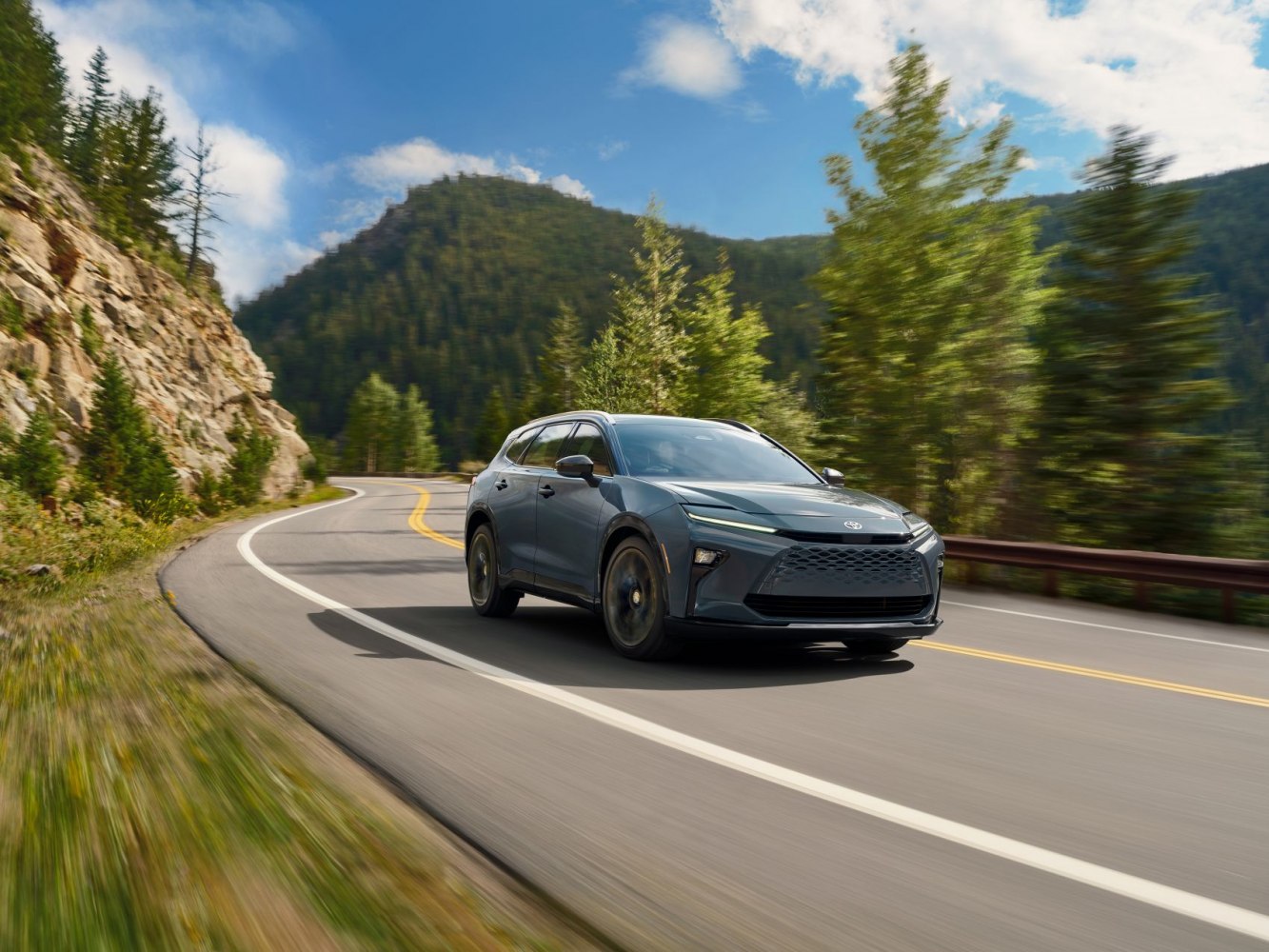

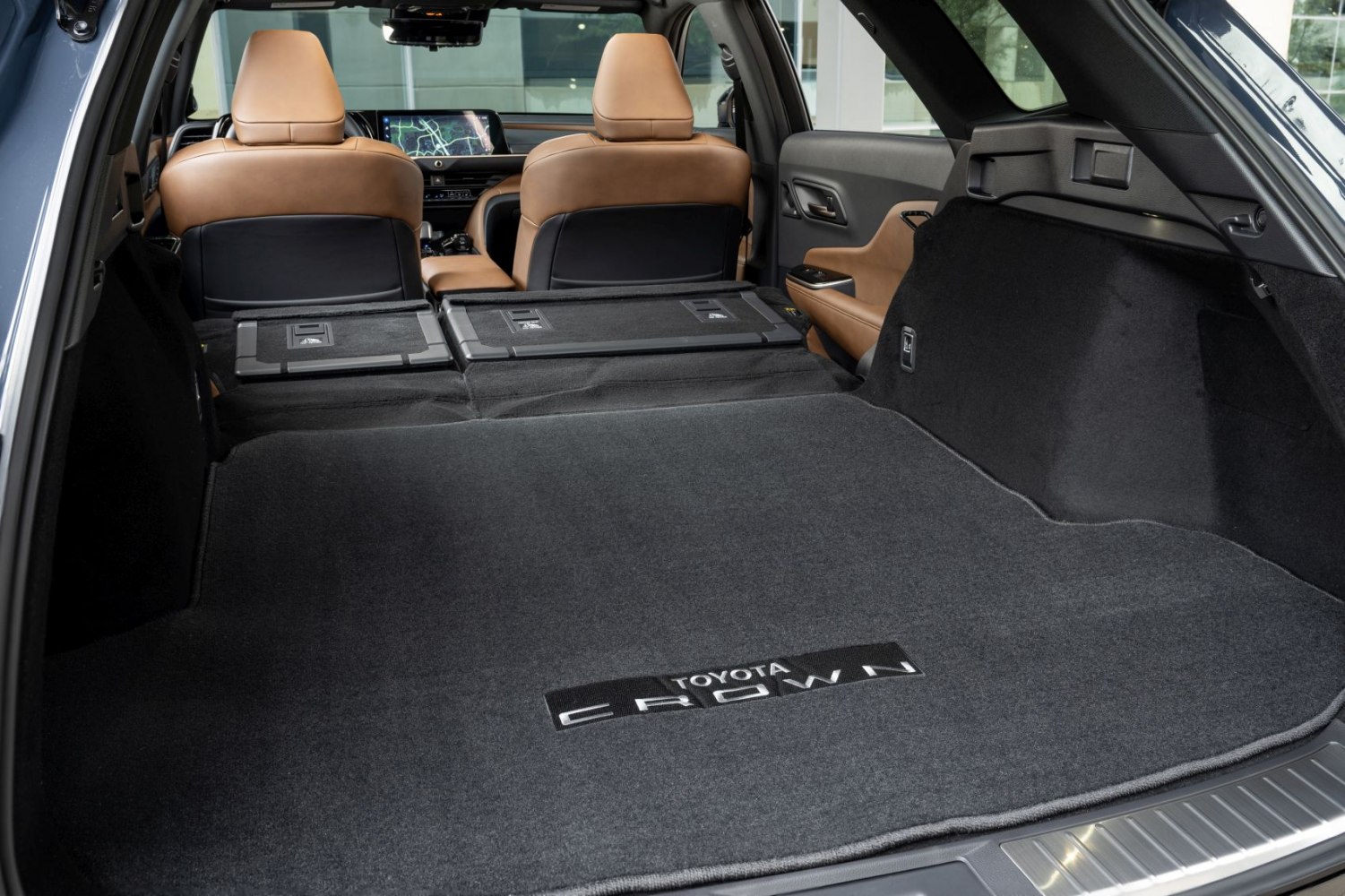

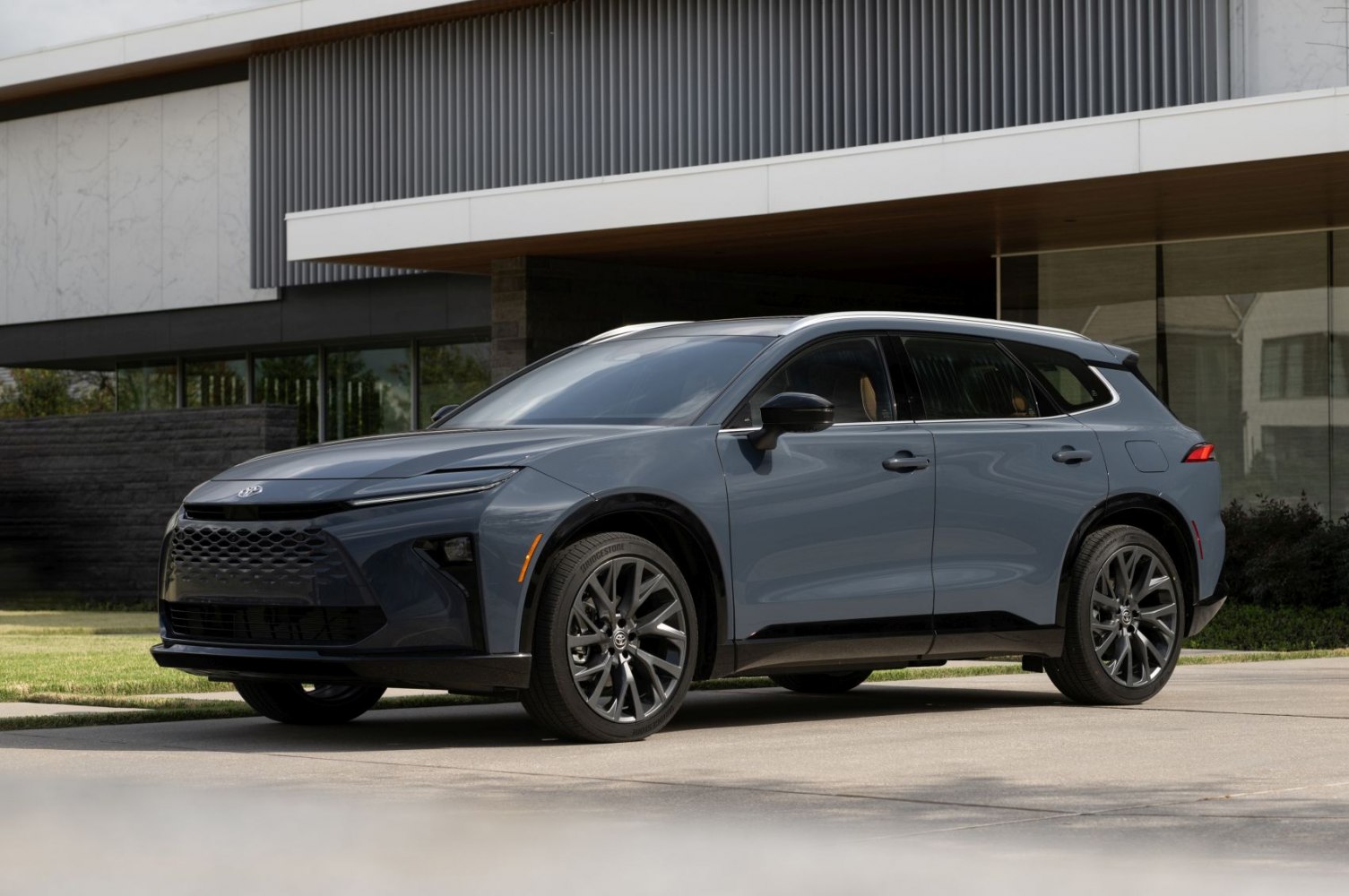

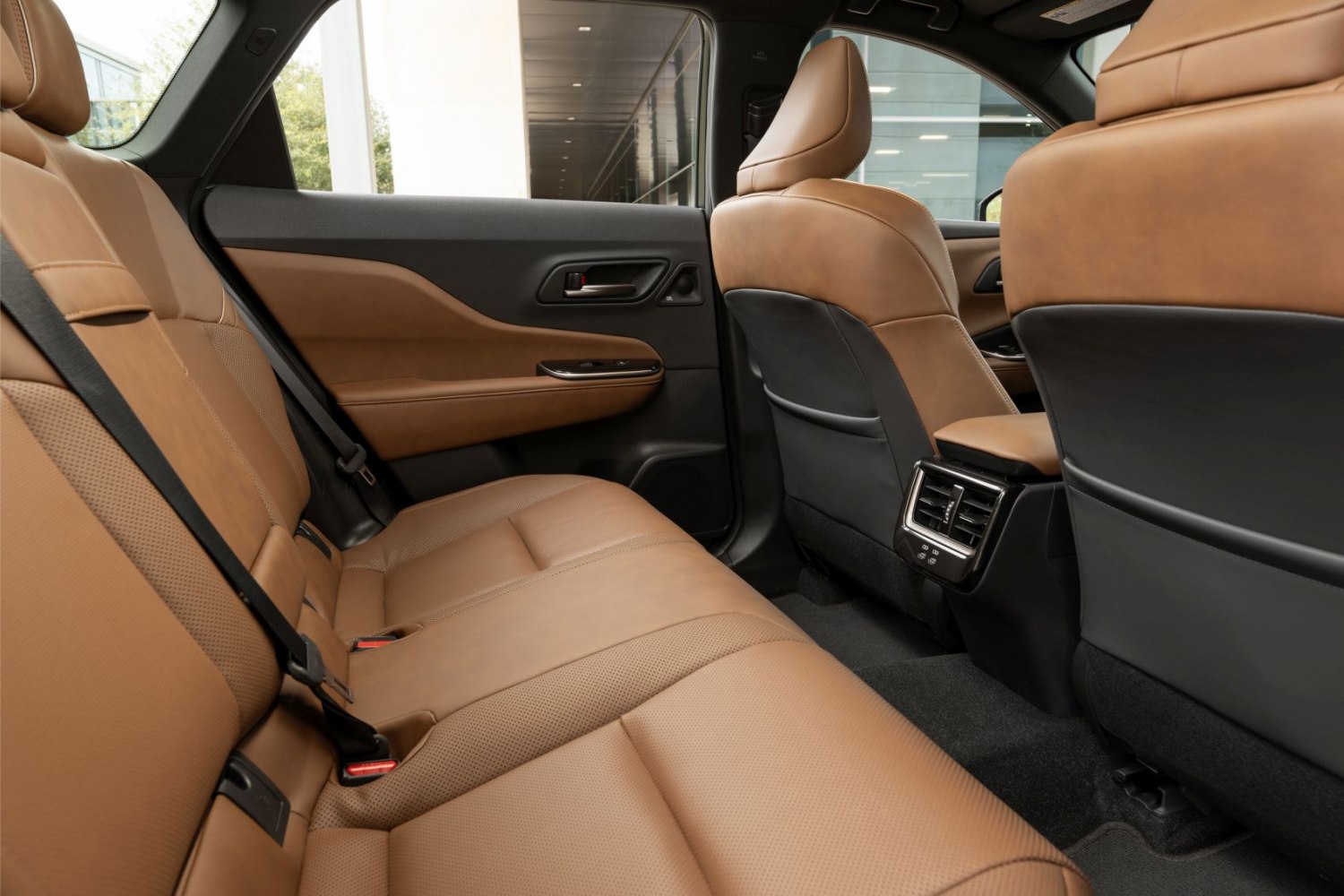

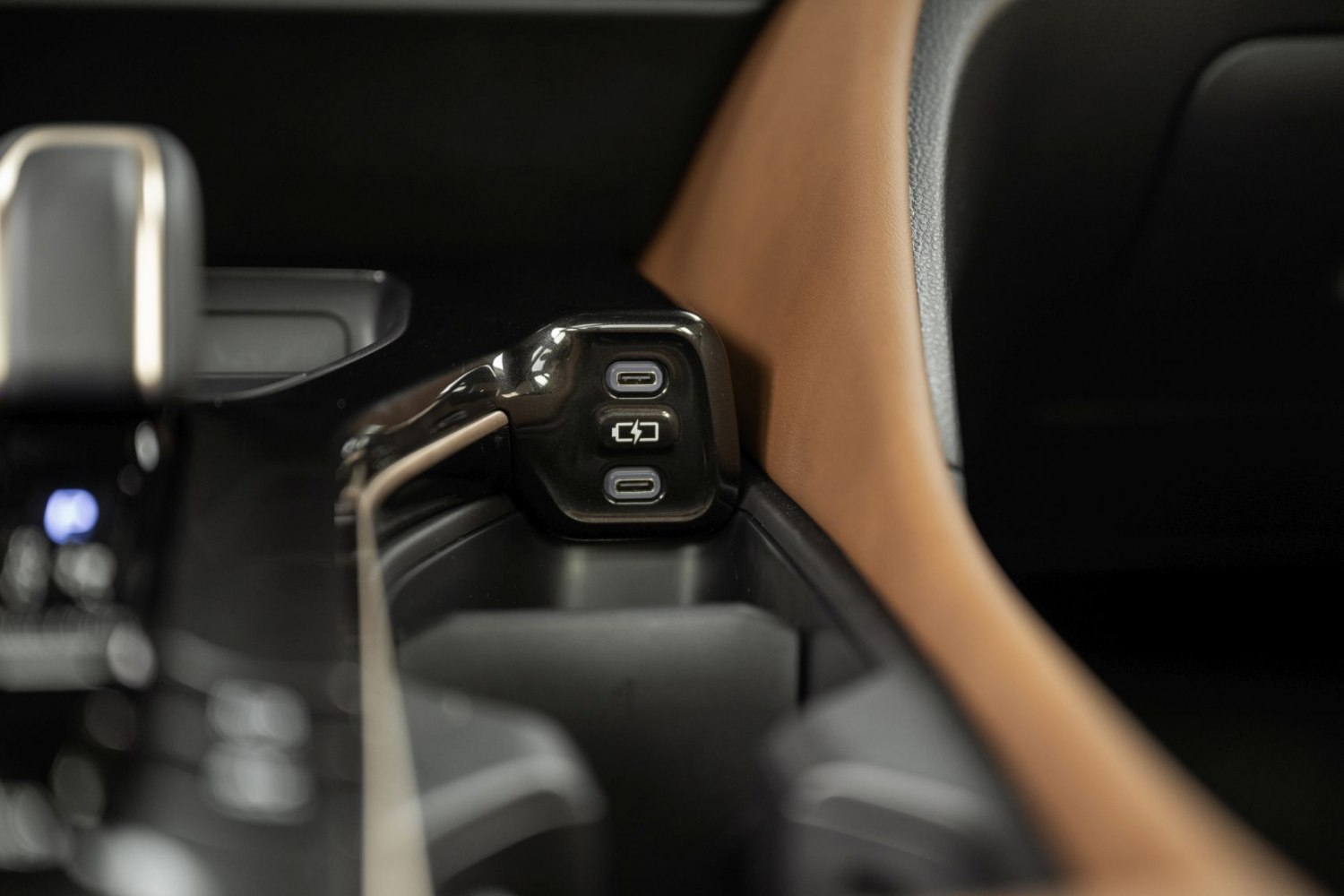

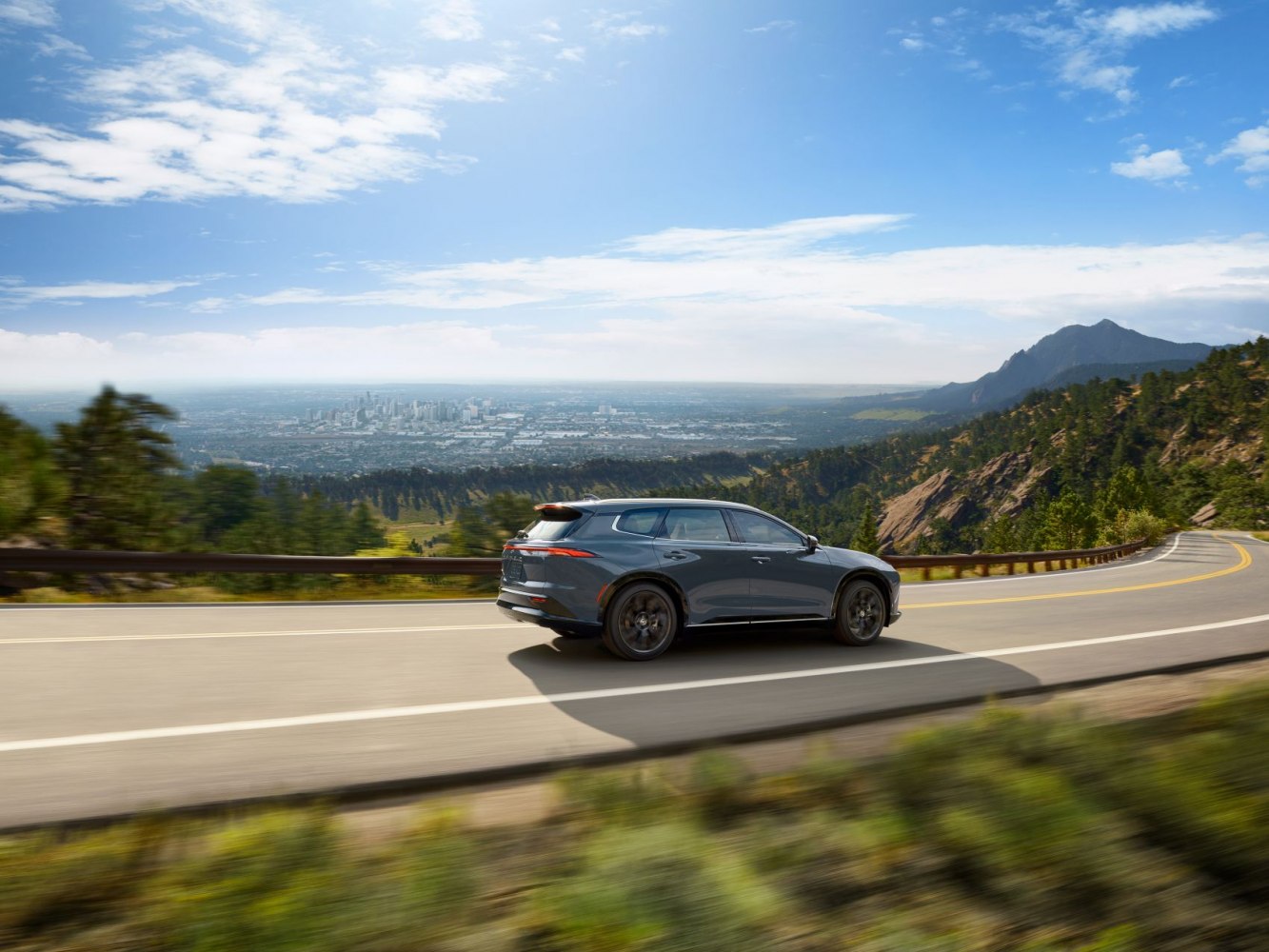

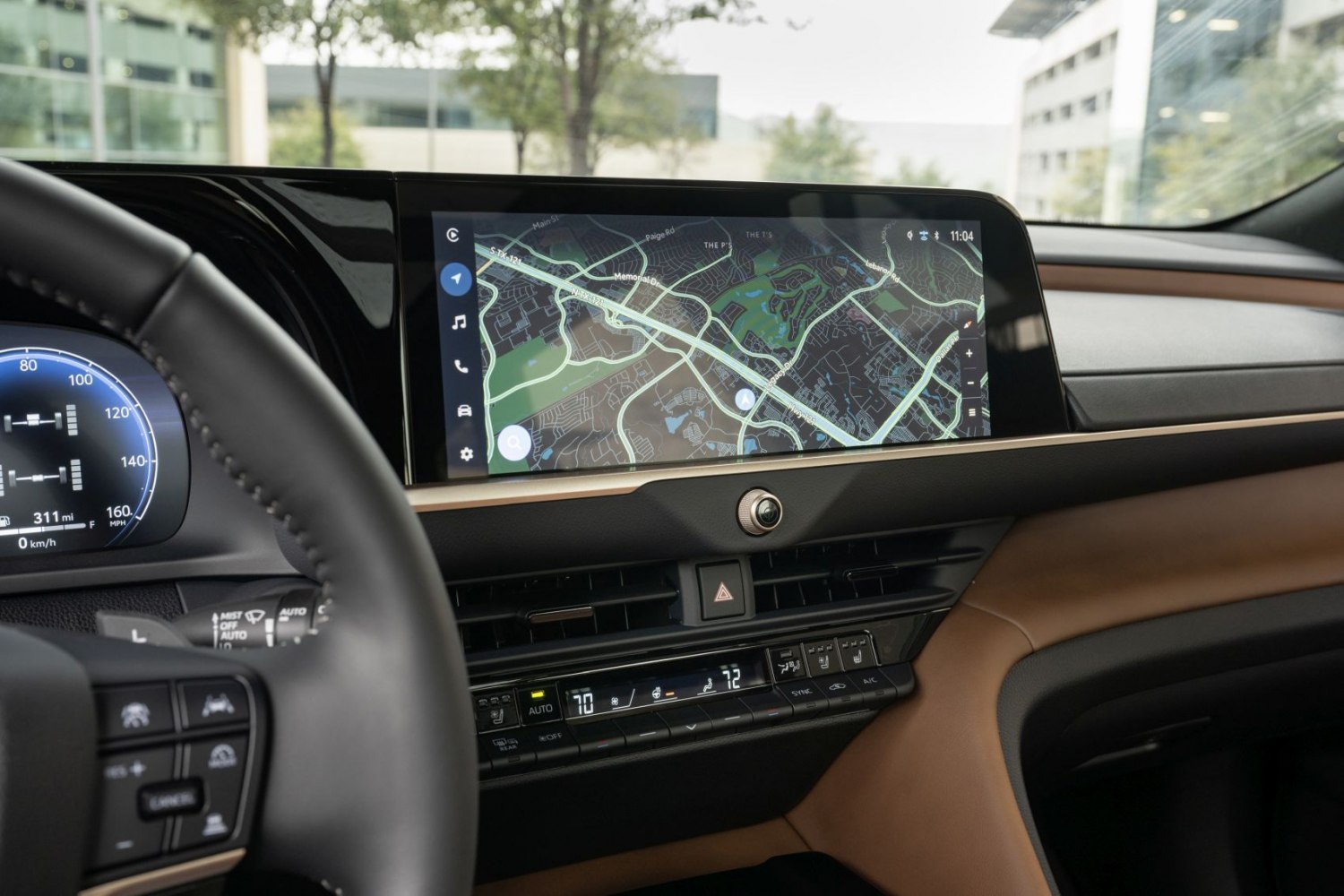

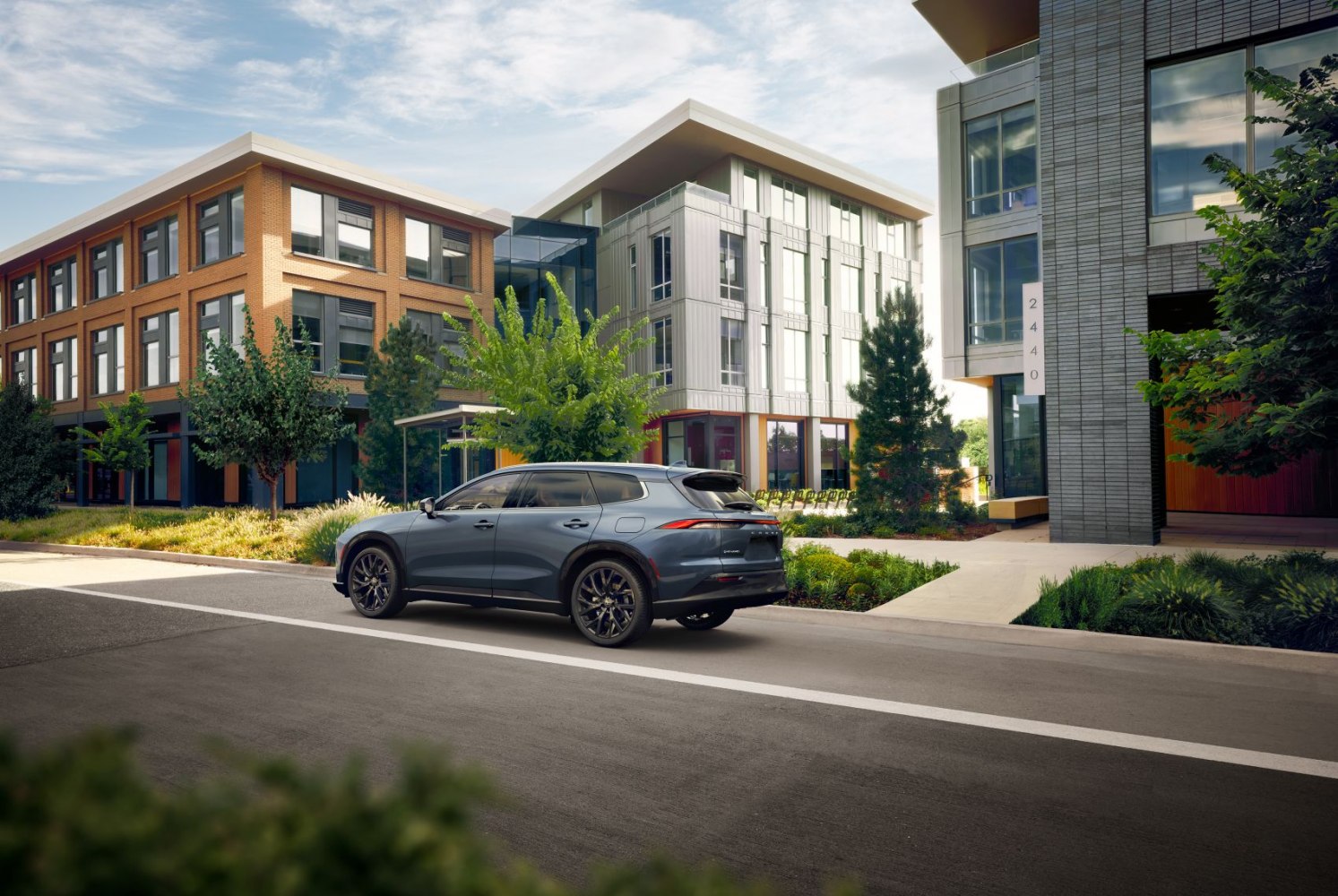

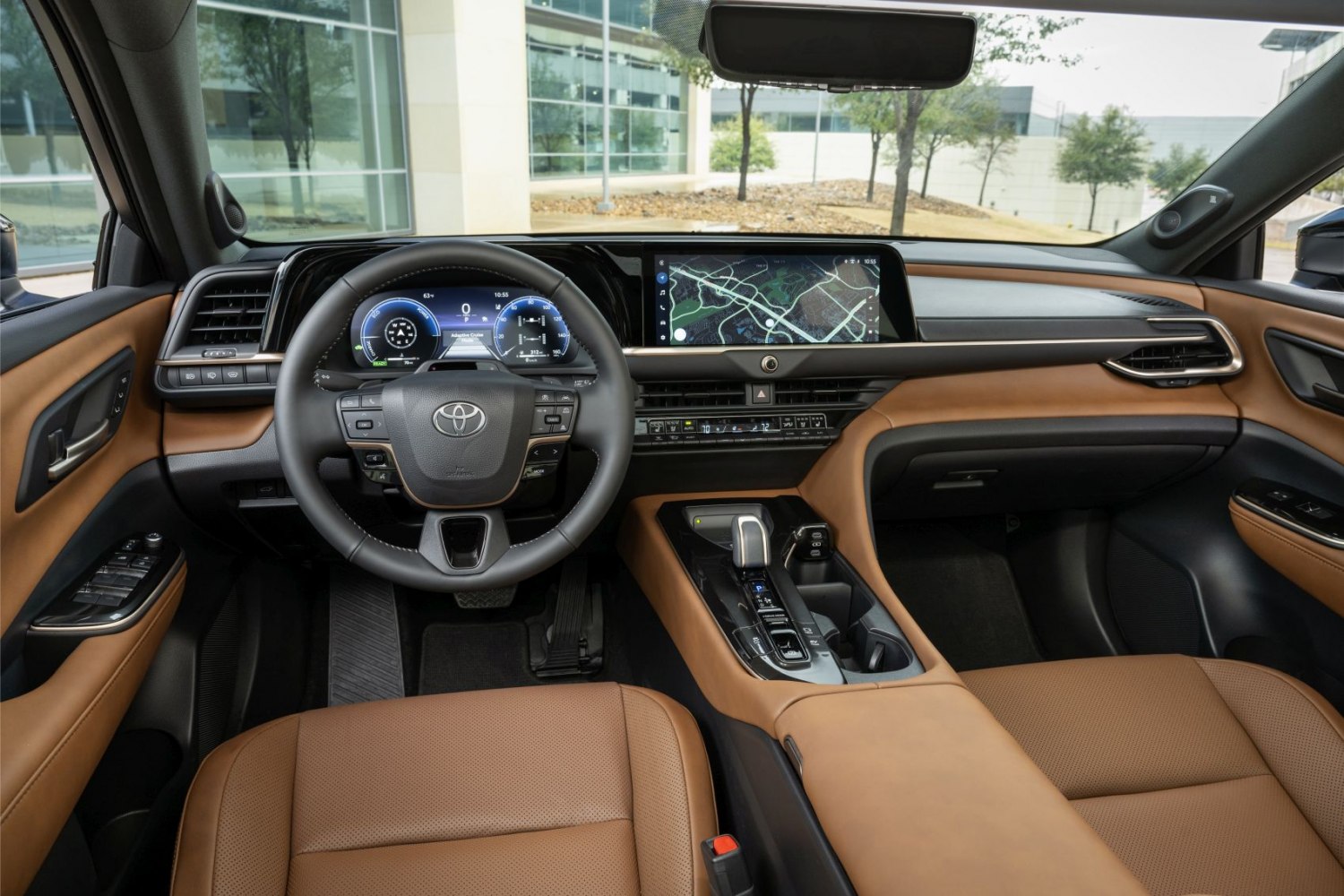

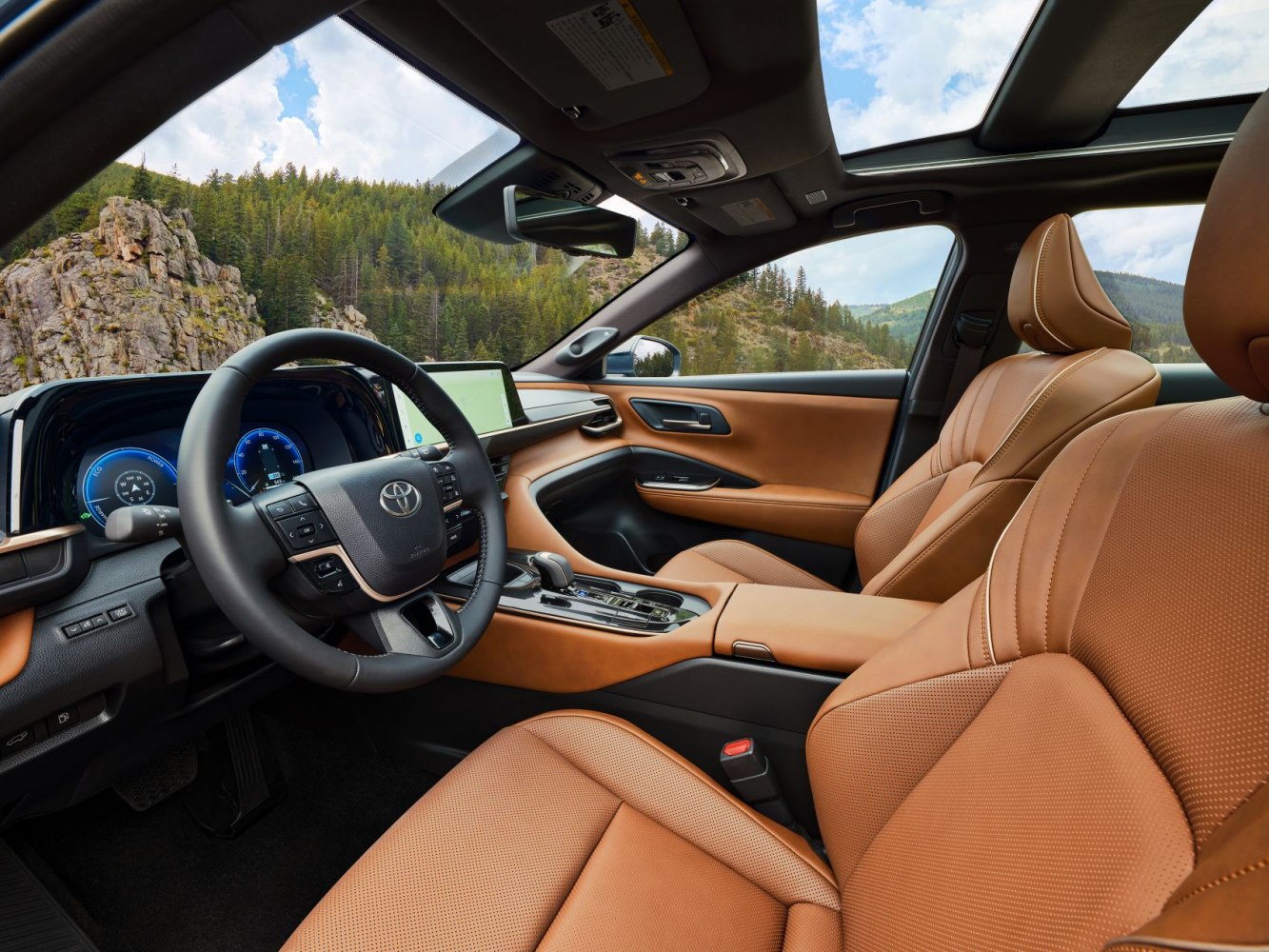

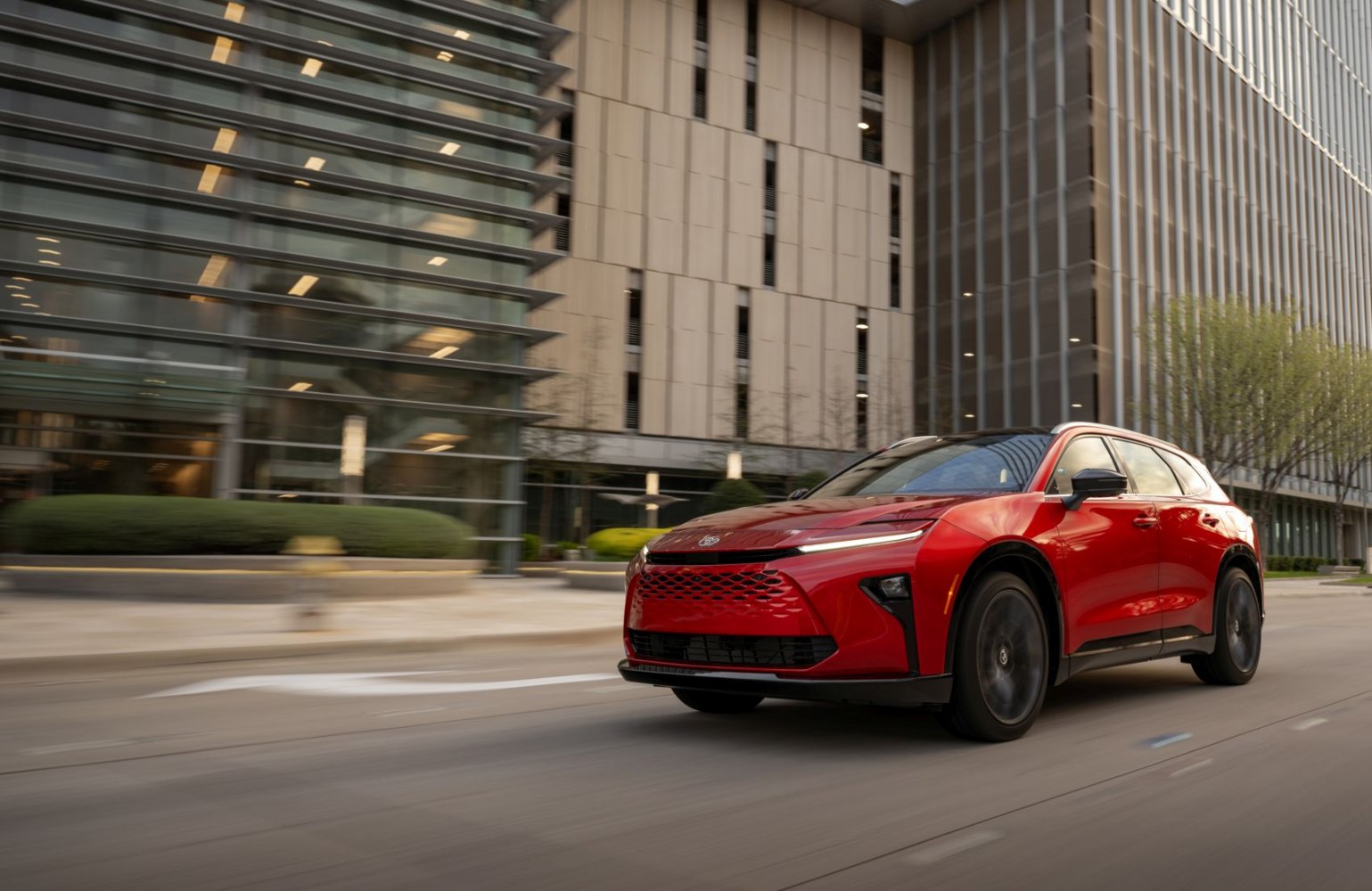

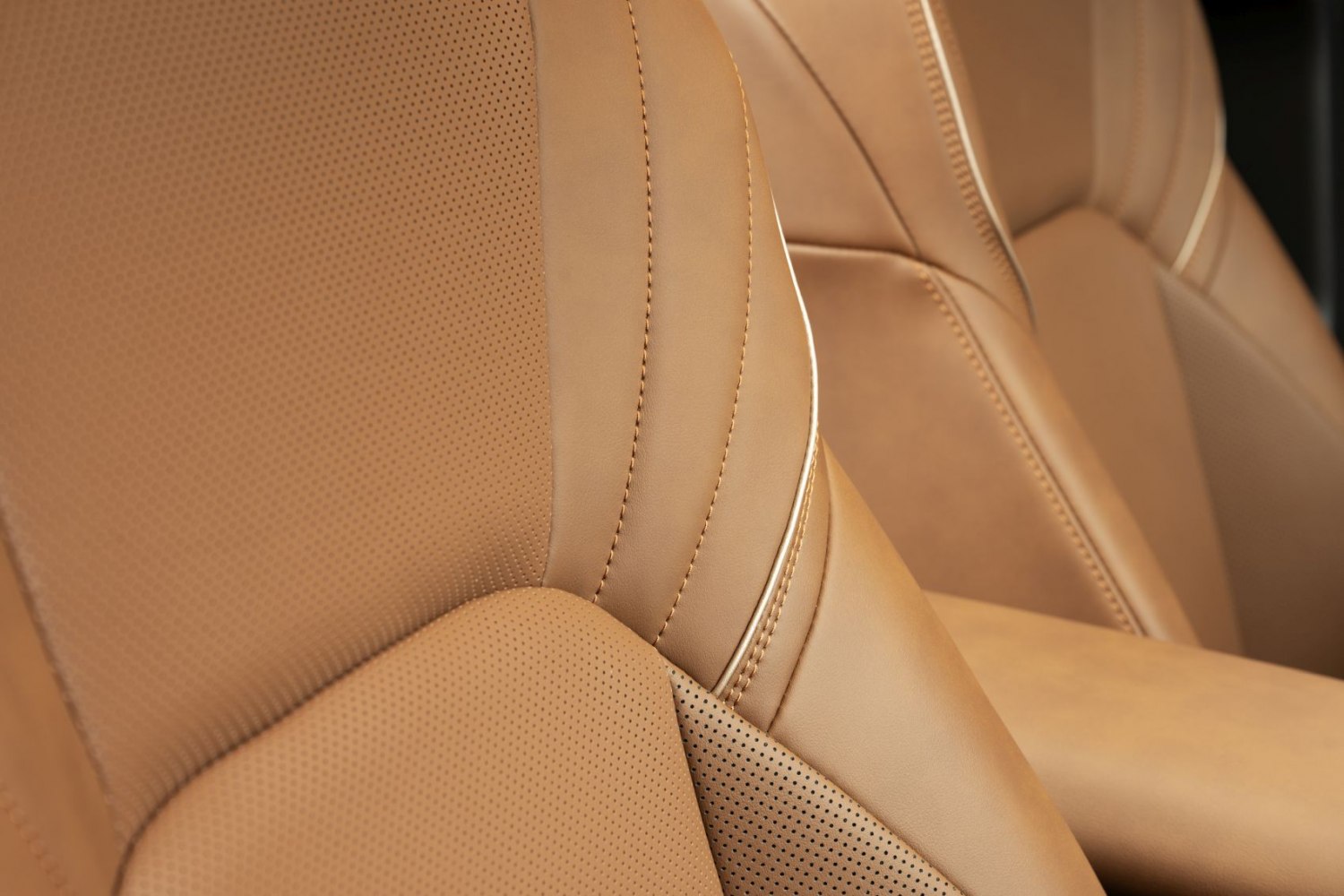

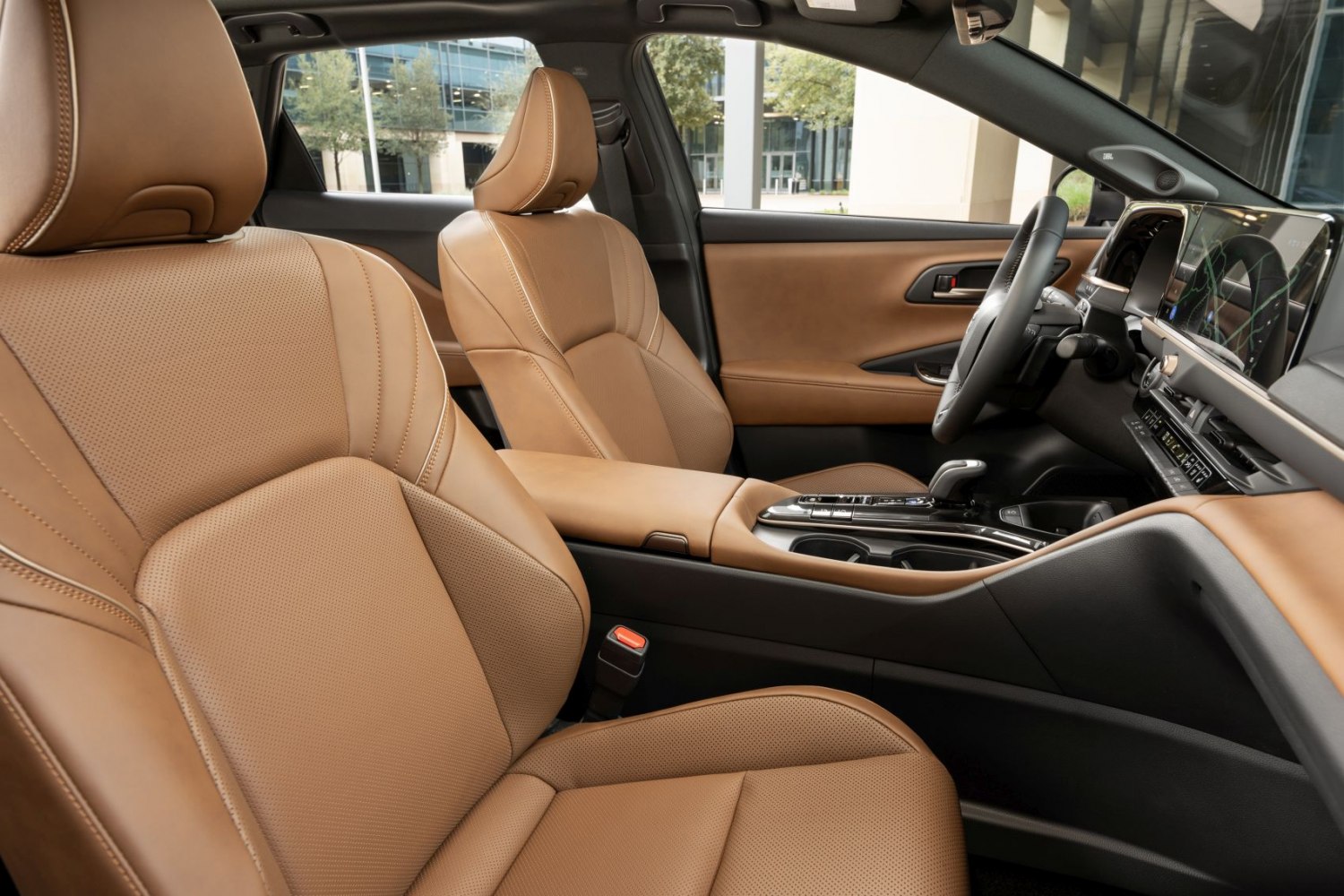

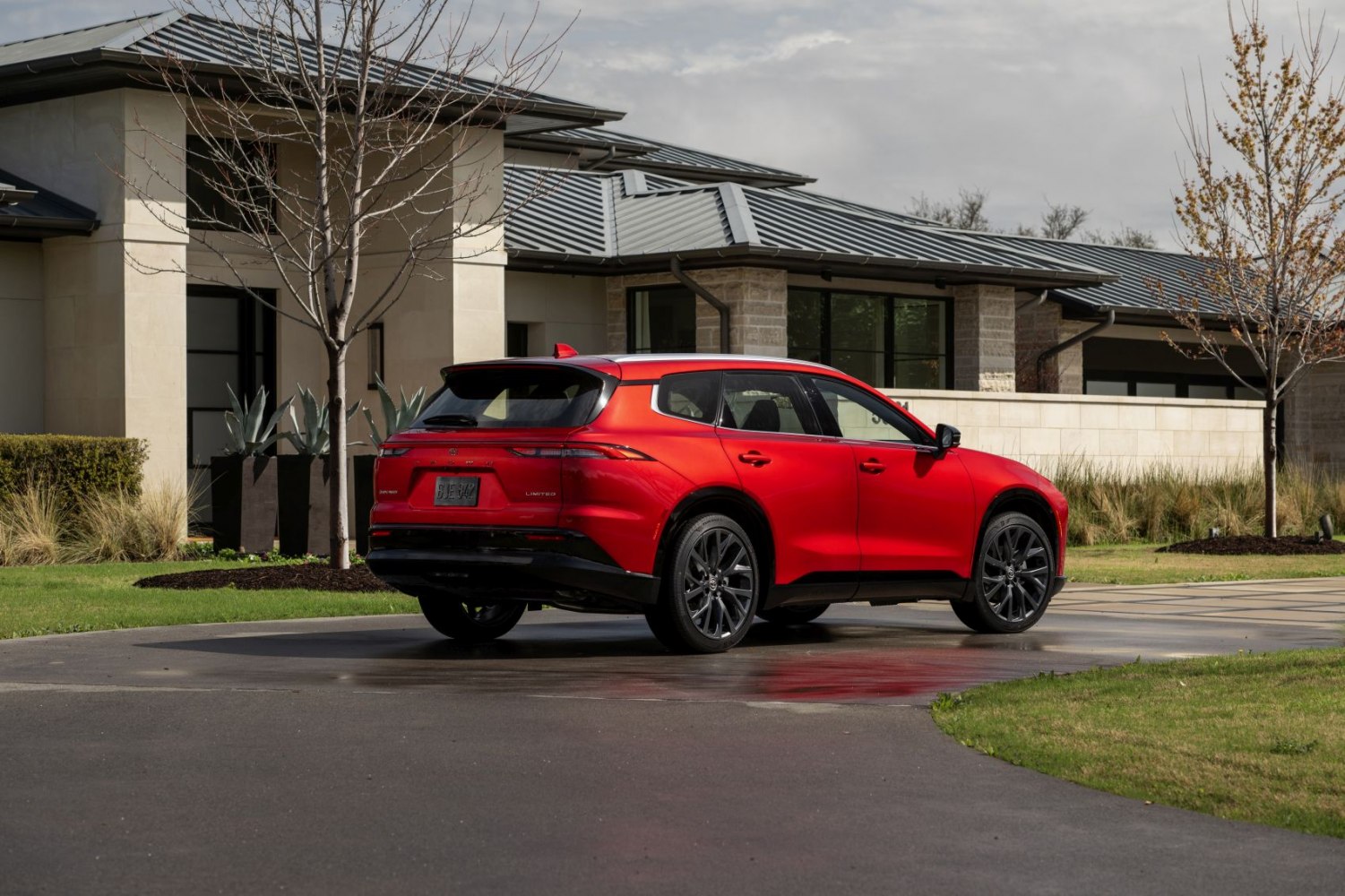

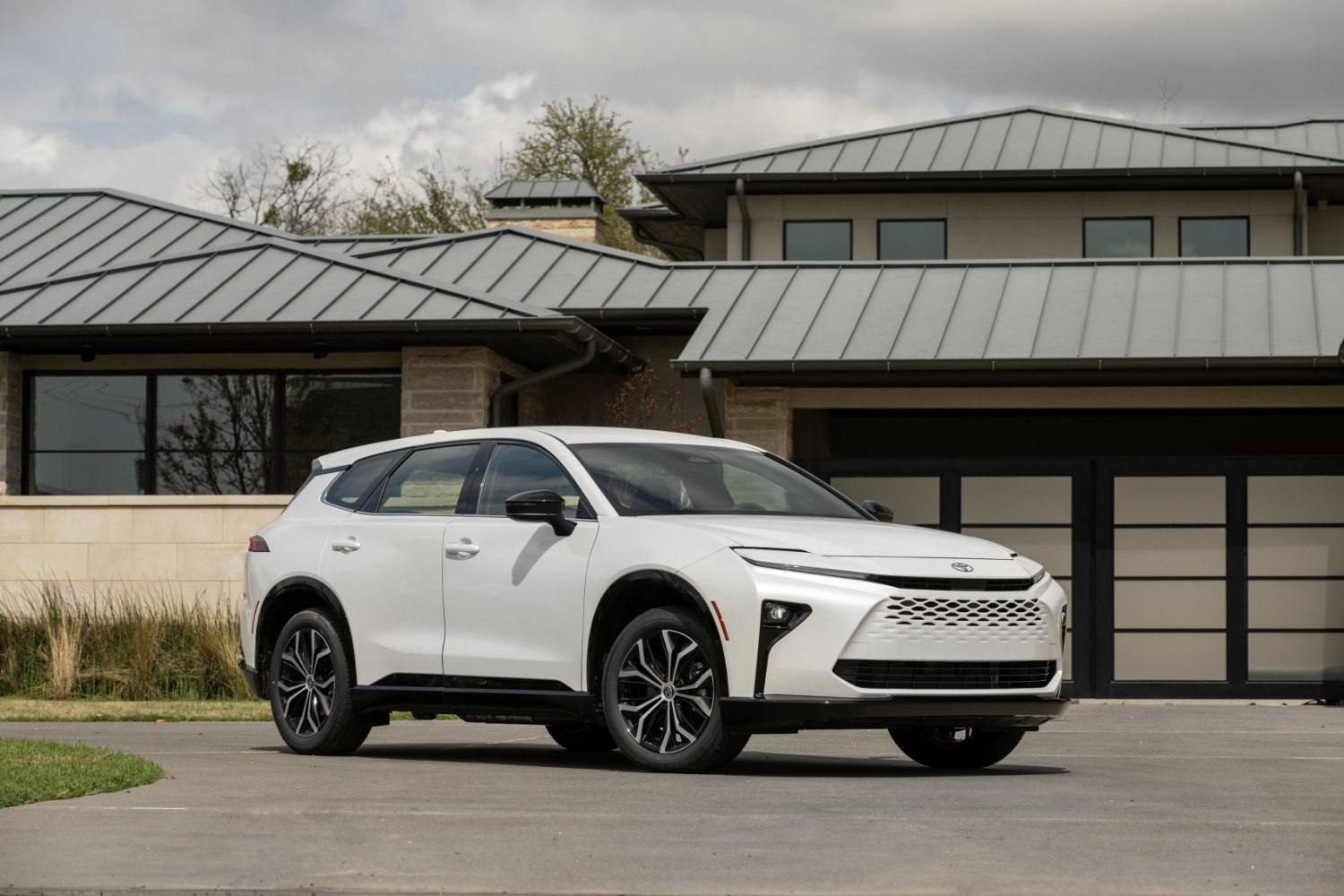

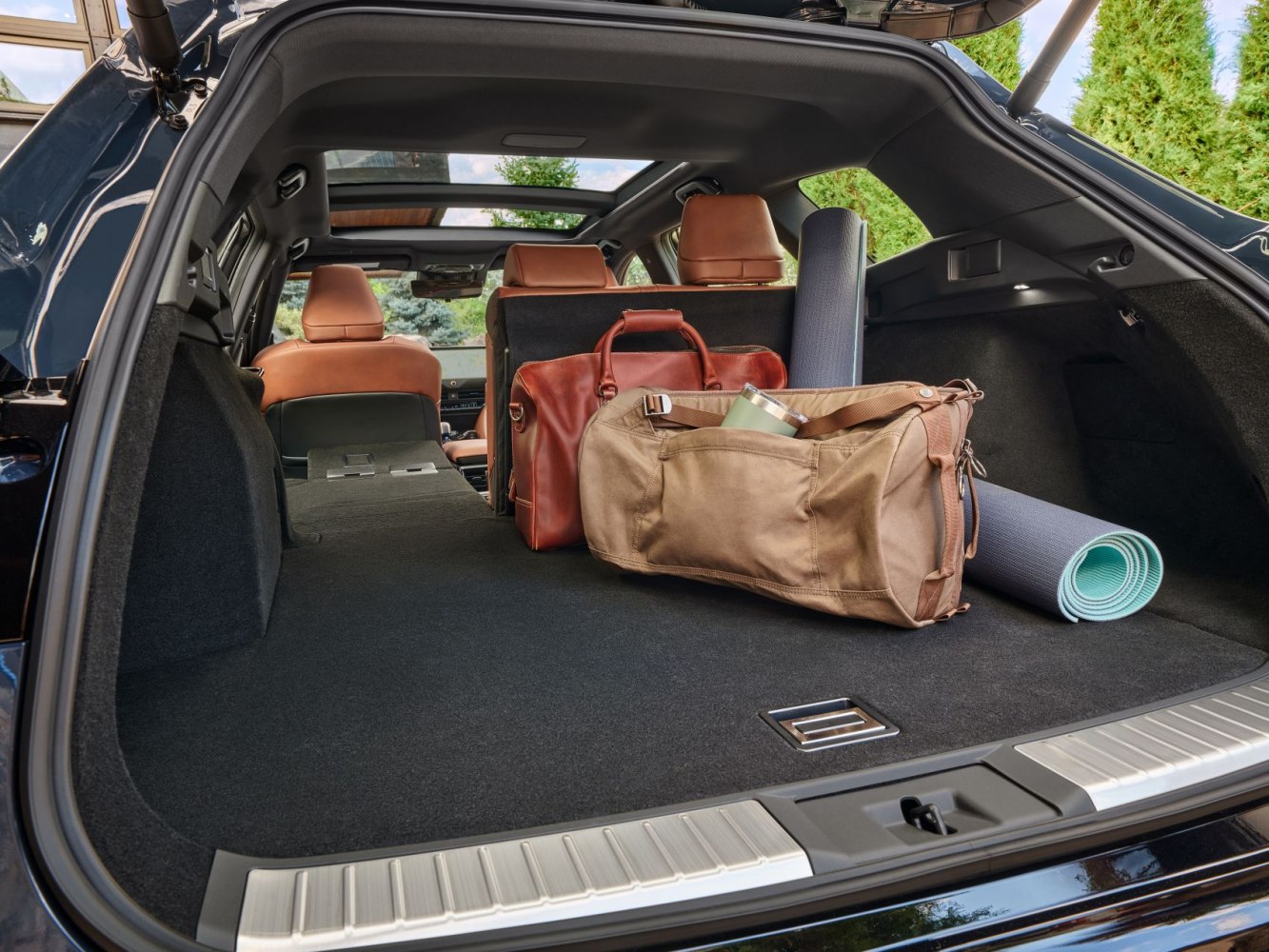

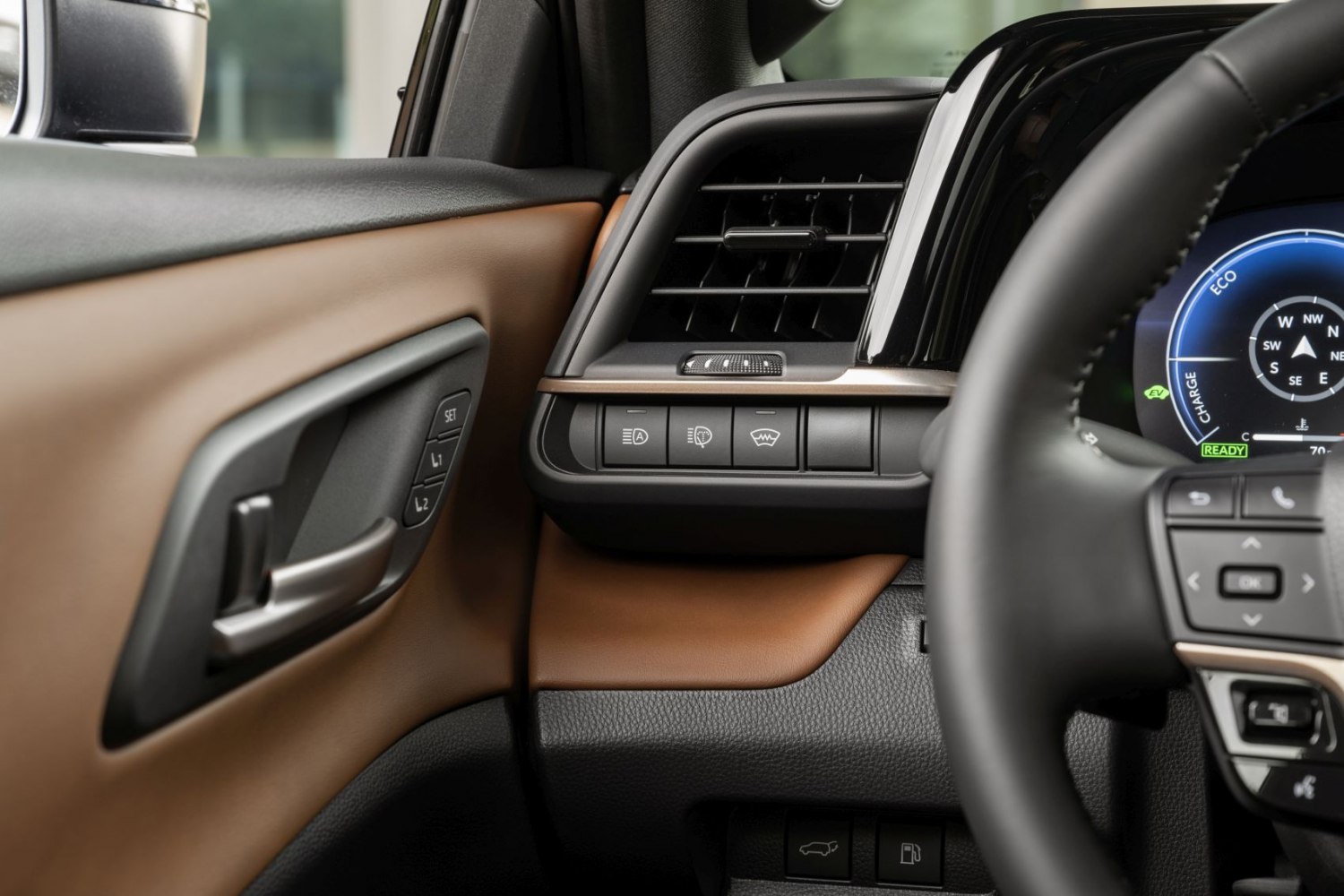

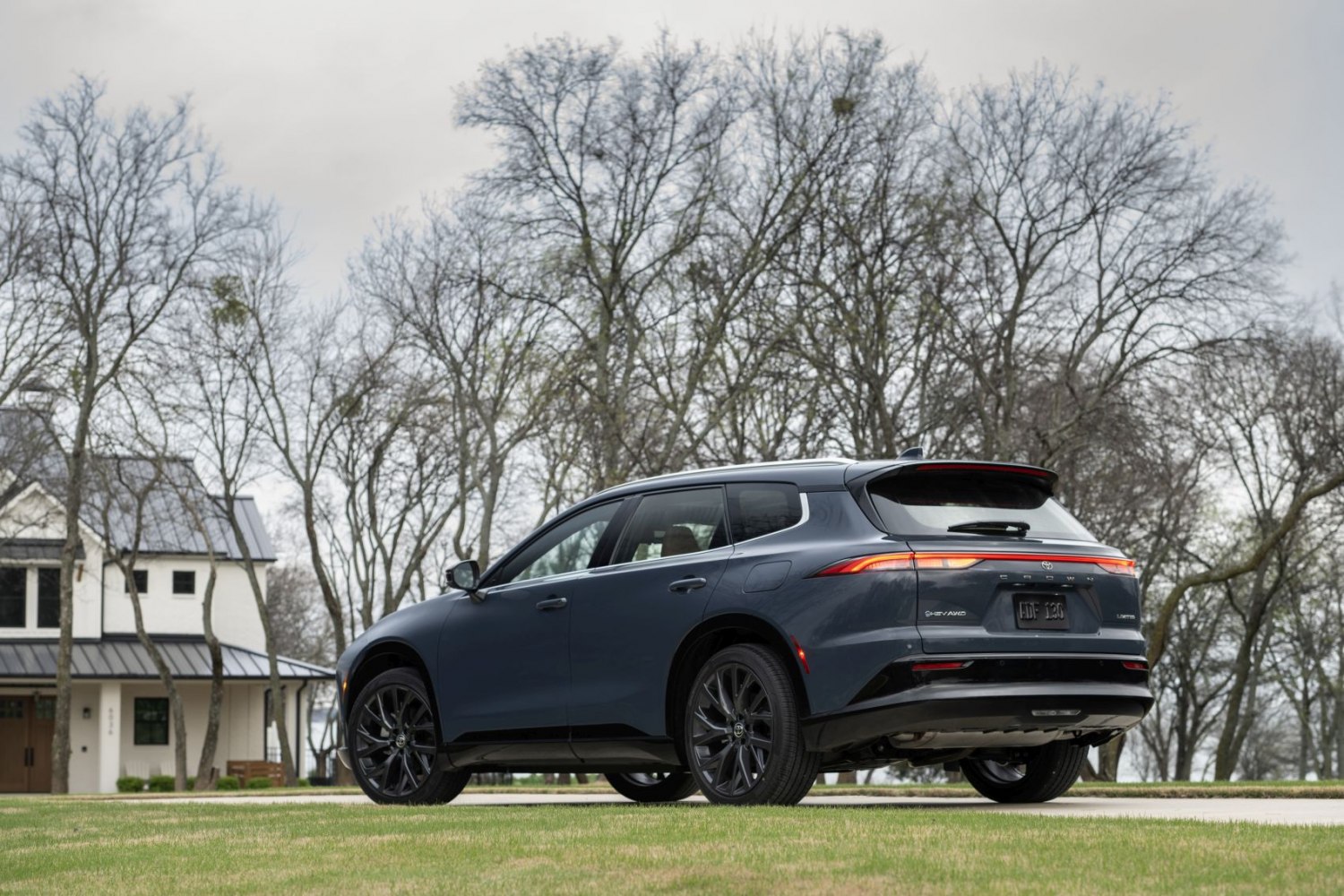

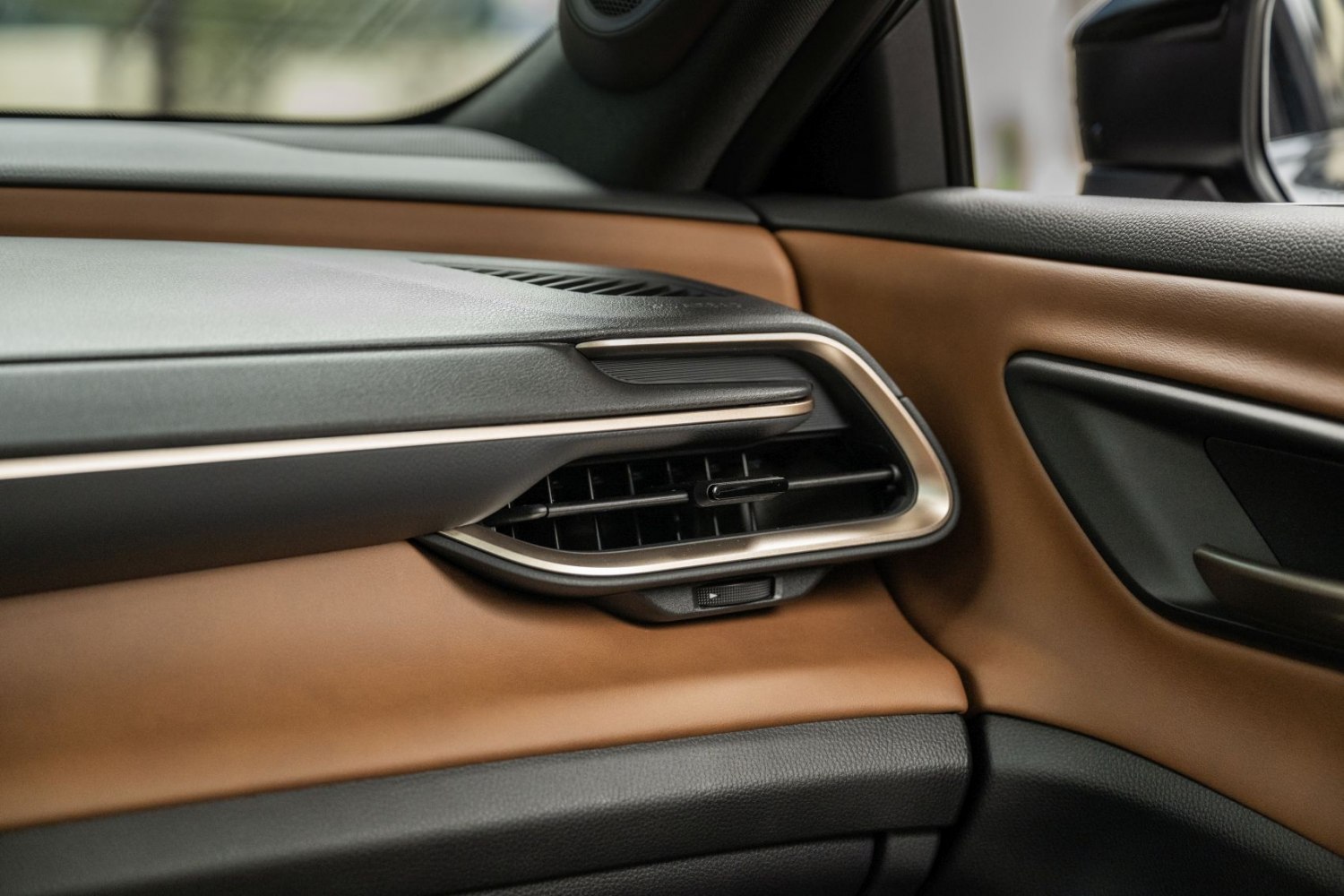

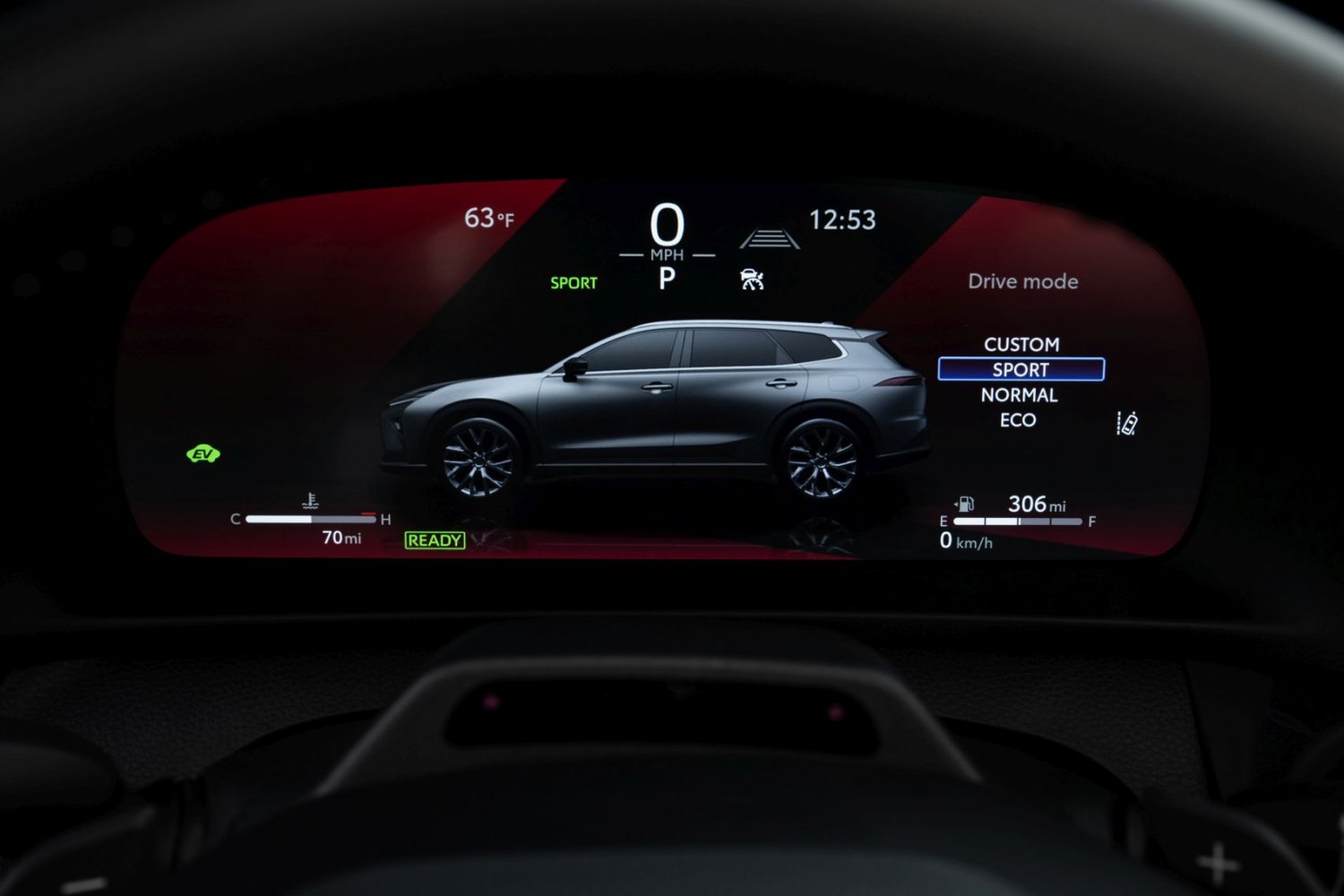

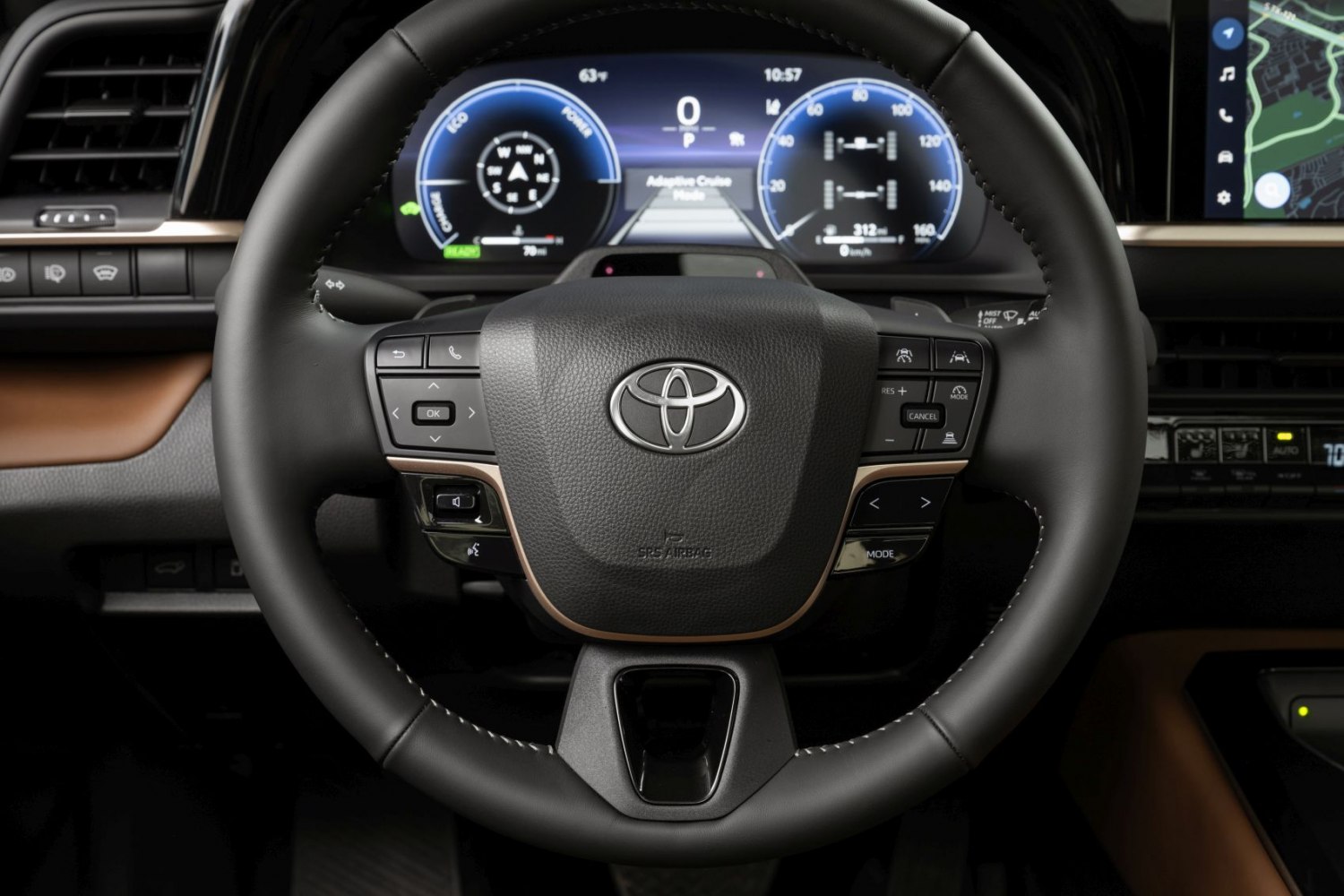

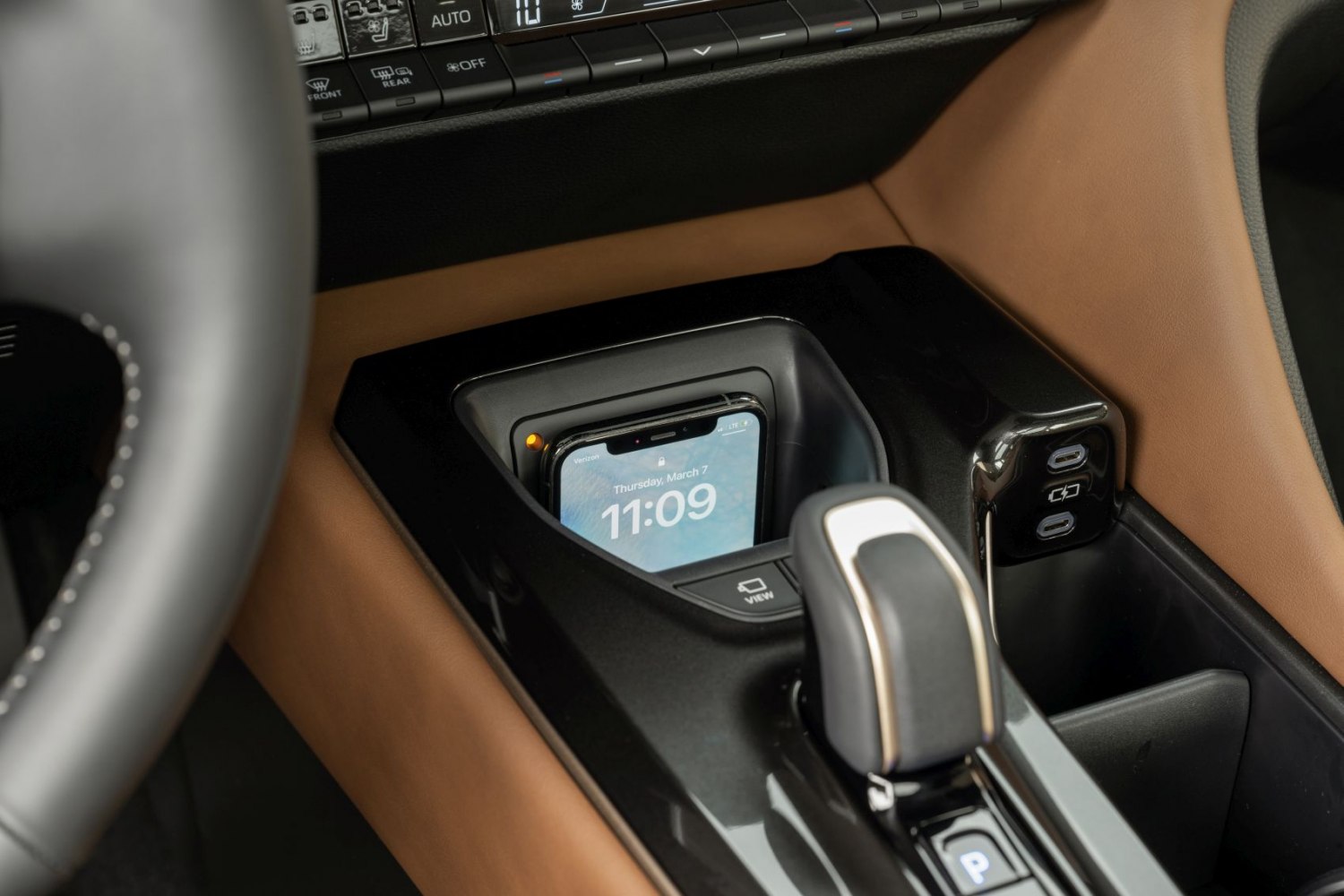

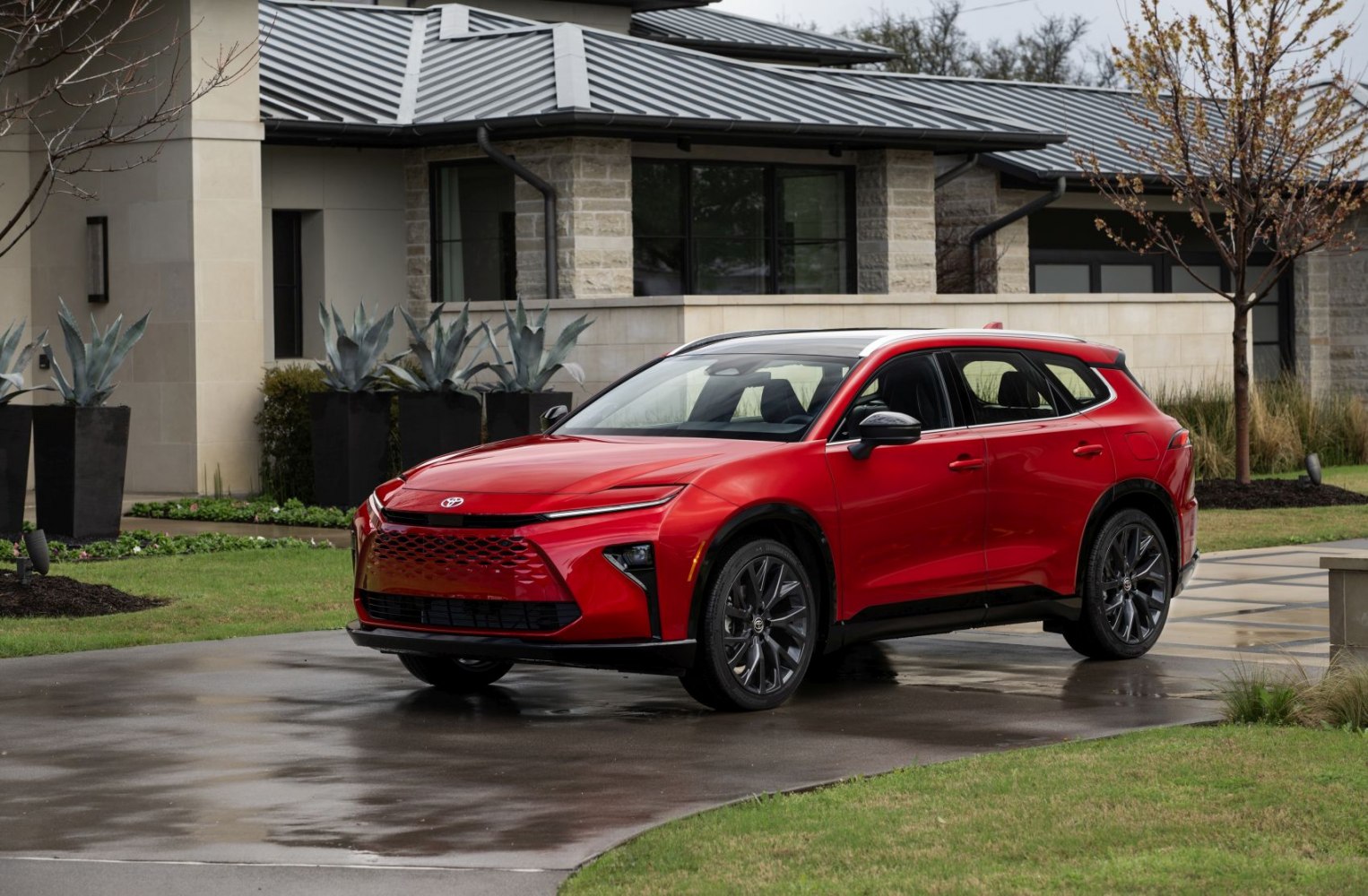

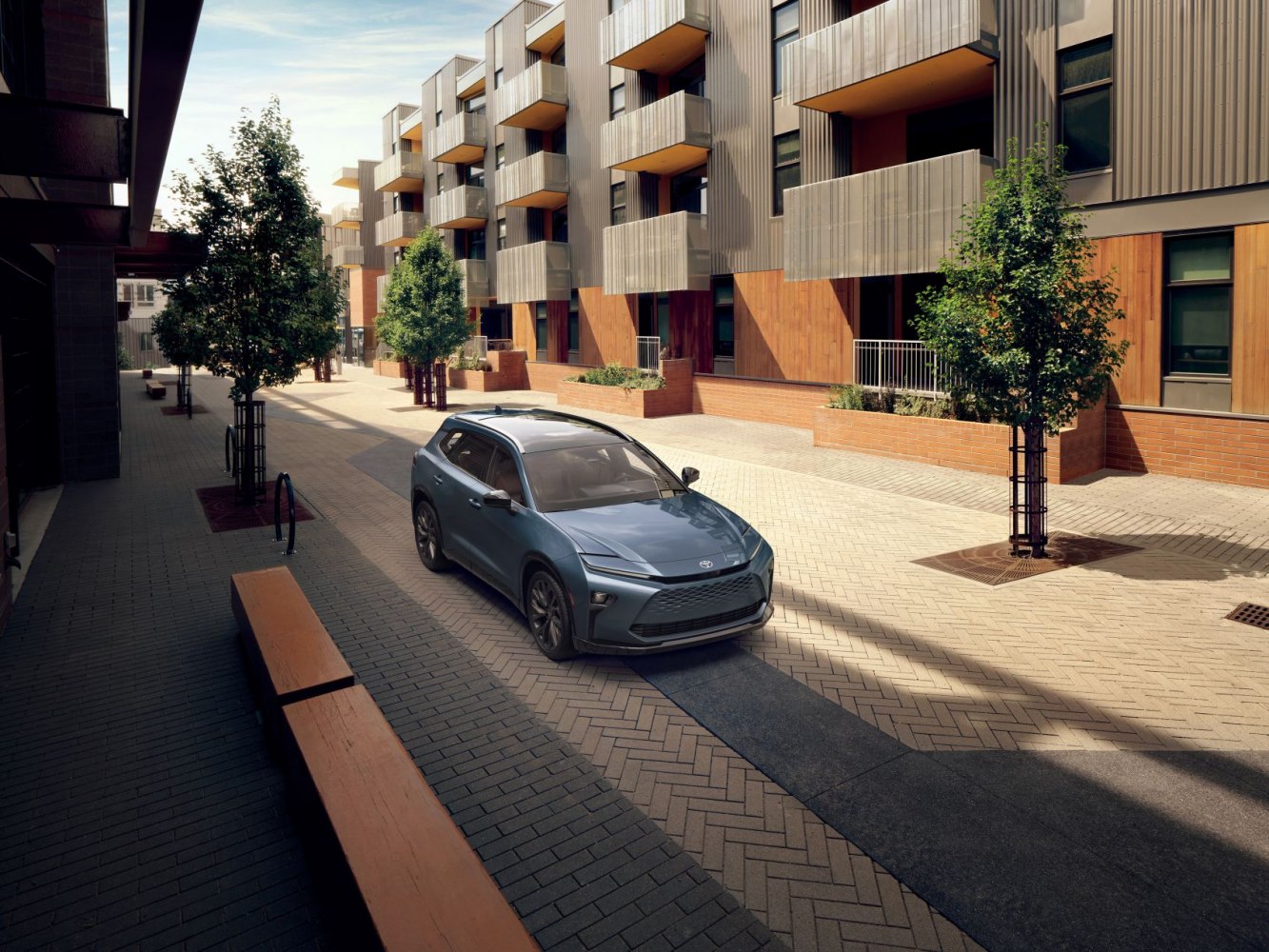

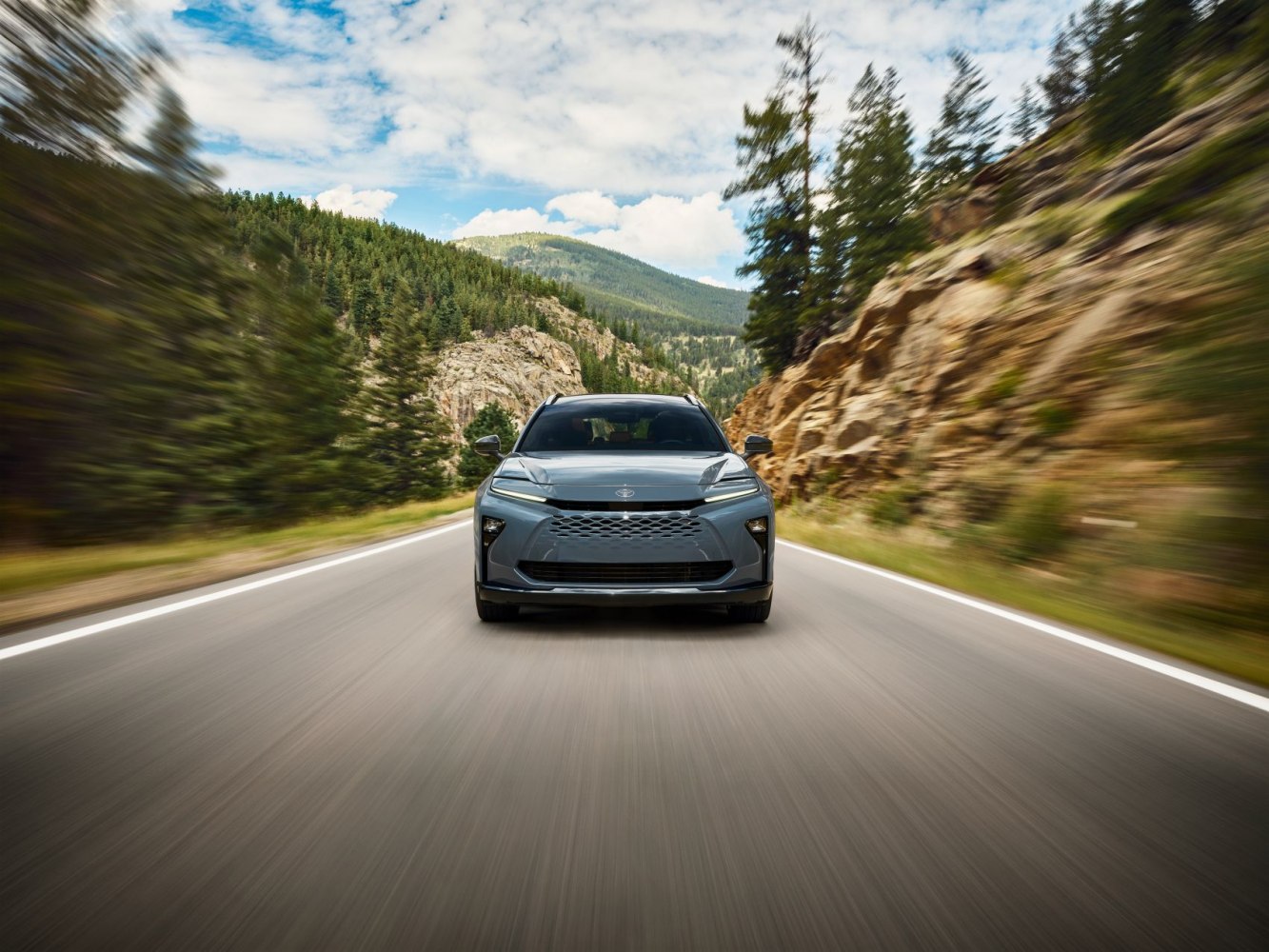

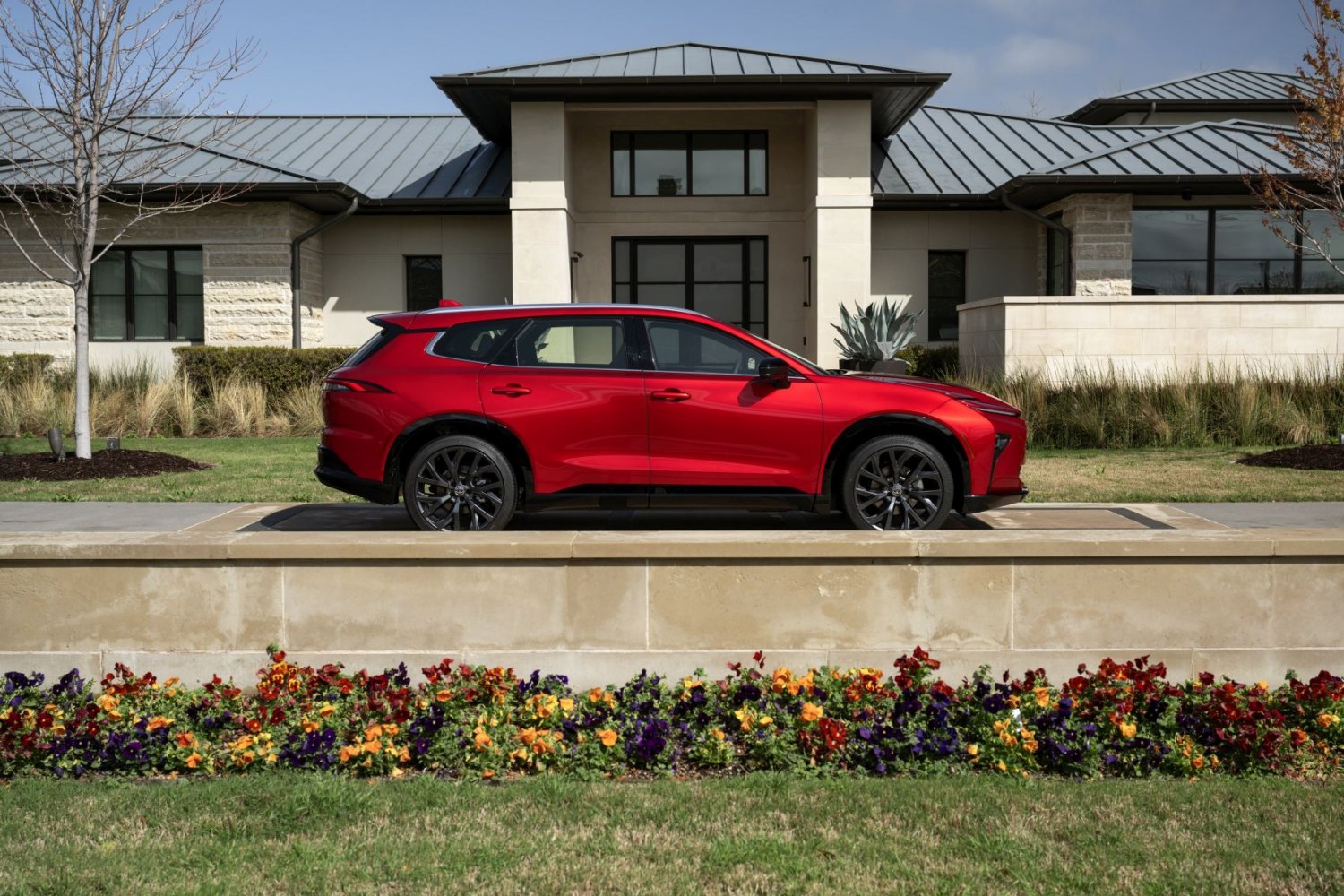

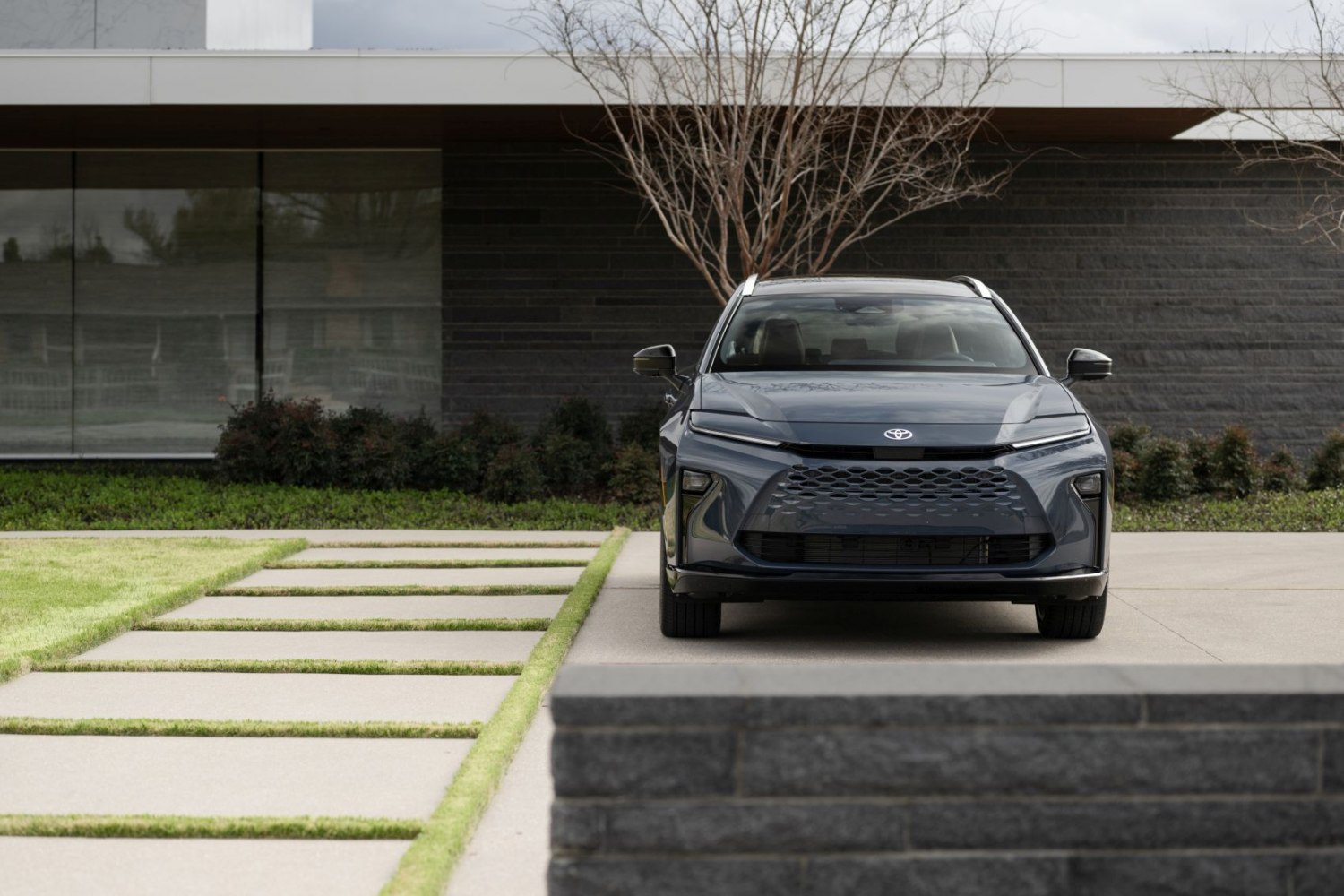

Toyota Crown 16 Signia S238 2024 Gallery
Toyota Crown 16 Signia S238 2024 Technical Specifications
General
Body type
SUV, Crossover
Brand
Toyota
Doors
5
Generation
Crown XVI Signia (S238)
Model
Crown
Modification (Engine)
2.5 D-4S (240 Hp) Hybrid E-Four e-CVT
Powertrain Architecture
FHEV (Full Hybrid Electric Vehicle)
Seats
5
Start of production
June, 2024
Performance
Acceleration 0 - 60 mph
7.1 sec
Emission standard
SULEV
Fuel Type
Petrol (Gasoline)
Fuel consumption (economy) - combined (EPA)
6.2 l/100 km
Fuel consumption (economy) - extra urban (EPA)
6.4 l/100 km
Fuel consumption (economy) - urban (EPA)
6 l/100 km
Electric
Battery location
Below the floor, under the rear seats
Battery voltage
230.4 V
Electric motor Torque number 1
270 Nm
Electric motor Torque number 2
121 Nm
Electric motor location number 1
Integrated into the transmission
Electric motor location number 2
Rear axle, Transverse
Electric motor power number 1
182 Hp
Electric motor power number 2
54 Hp
Electric motor type number 1
Synchronous
Electric motor type number 2
Synchronous
Gross battery capacity
1.15 kWh
System power
240 Hp

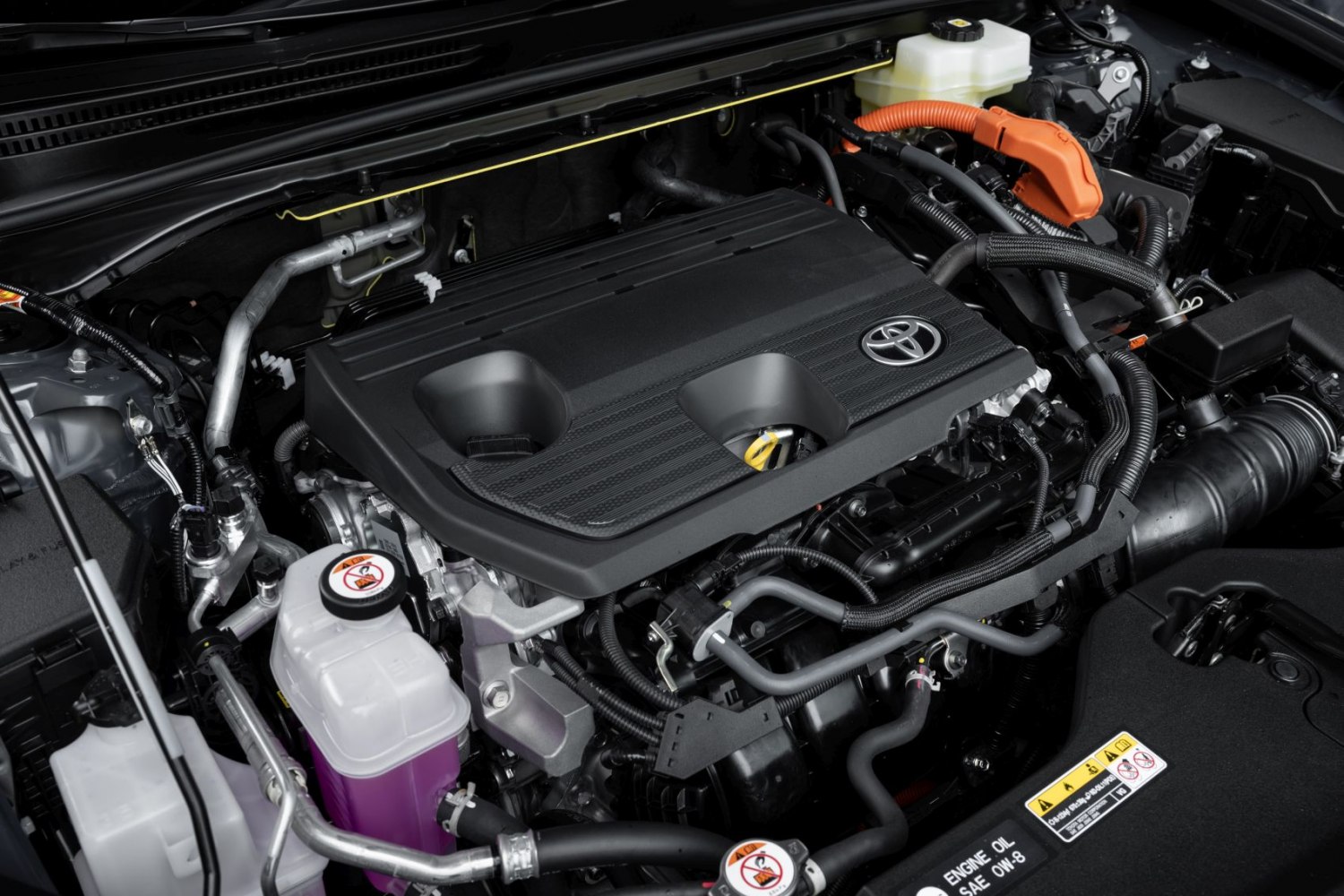

Internal Engine
Compression ratio
14
Cylinder Bore
87.5 mm
Engine Model/Code
Dynamic Force / A25A-FXS
Engine aspiration
Naturally aspirated engine
Engine configuration
Inline
Engine displacement
2487 cm
Engine layout
Front, Transverse
Engine oil capacity
4.3 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop System
Fuel injection system
Direct injection and Multi-port manifold injection
Number of cylinders
4
Number of valves per cylinder
4
Piston Stroke
103.4 mm
Power
188 Hp @ 6000 rpm.
Power per litre
75.6 Hp/l
Torque
241 Nm @ 4300-4500 rpm.
Valvetrain
DOHC, VVT-iE, VVT-i
Dimensions
Approach angle
15.2°
Departure angle
21.4°
Front overhang
1000 mm
Height
1626-1631 mm
Length
4930 mm
Minimum turning circle (turning diameter)
12 m
Rear overhang
1080 mm
Ride height (ground clearance)
170 mm
Wheelbase
2850 mm
Width
1880 mm
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs, 328 mm
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
automatic transmission e-CVT
Power steering
Electric Steering
Rear brakes
Ventilated discs, 318 mm
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
225/55 R19; 225/45 R21
Wheel rims size
19; 21
Space
Fuel tank capacity
55 l
Kerb Weight
1910 kg
Max load
440 kg
Max. weight
2350 kg
